Contact Seller
Features
| Title | ACTUAL POWER H-300HA-NC |
| Type | Engineering - Fabrication |
| Sub Type | Cutting Equipment |
| Class | Band Saw |
| Make | ACTUAL POWER |
| Model | H-300HA-NC |
| Sale Price | $29,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 14343 |
| RefCode | TA1266971 |
Description

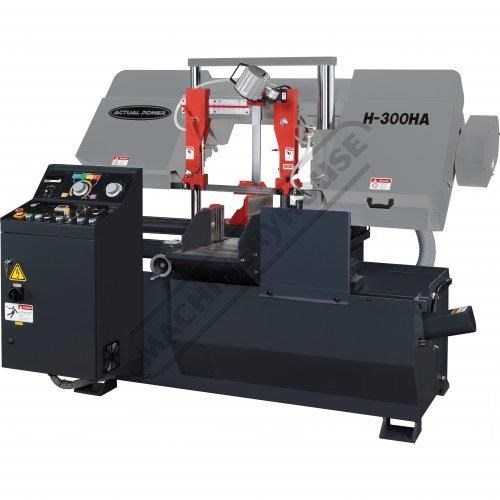

H-300HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed Includes Inverter Variable
ACTUAL POWER H-300HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed Includes Inverter Variable Blade Speed Control, Auto Kerf Compensation, Auto Trim Cut, LCD Touch Screen, Hydraulic Vice Clamping & Hydraulic Downfeed Control 300 x 300mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B118
Manufactured in Taiwan

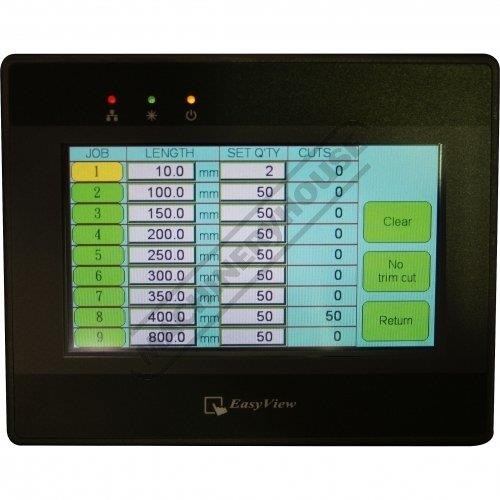

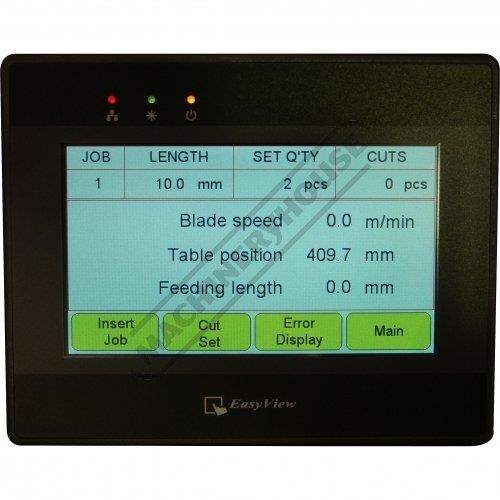

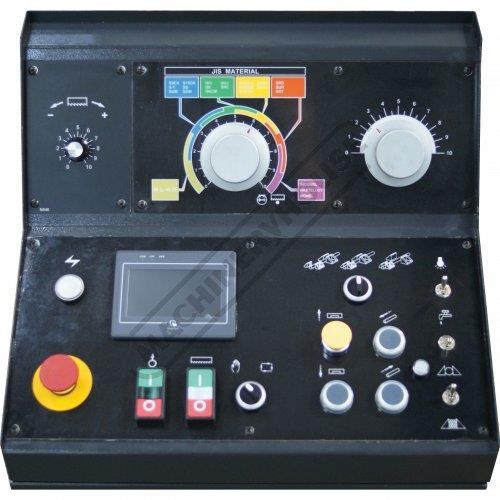

Fully automatic and intelligent HMI touch screen programmable NC control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
Functions:
1. AUTOMATIC KERF COMPENSATION: Blade thickness for multiple indexing: This function allows and calculates the blade thickness into the programmed cut length so you achieve your desired length required (factory pre-set)
2. AUTOMATIC LOCATE TRIM CUT: When the material is placed in rear vice and this function is selected the machine will automatically find the material end and set up trim cut to the programmed value
3. AUTOMATIC SHUT-OFF: For finished jobs or out of stock

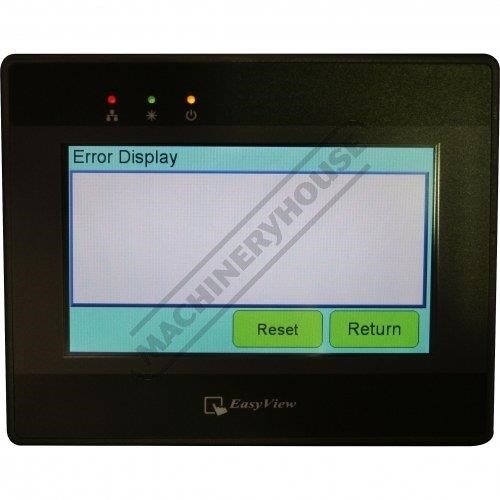

4. SIMPLIFIED SELF DIAGNOSTICS: Error code display
5. LCD SCREEN: With touch screen display
Features:

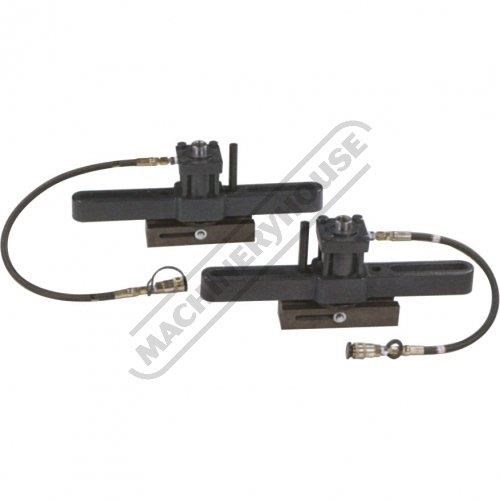

Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)

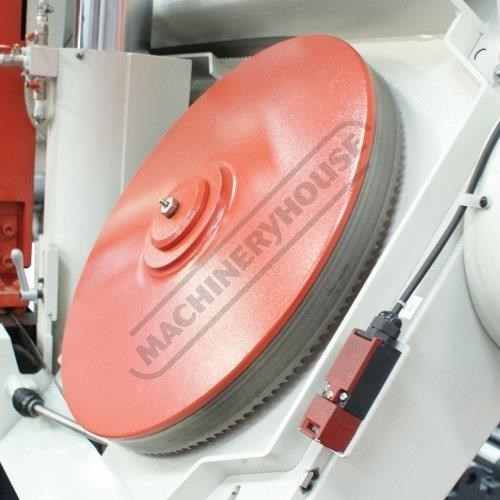

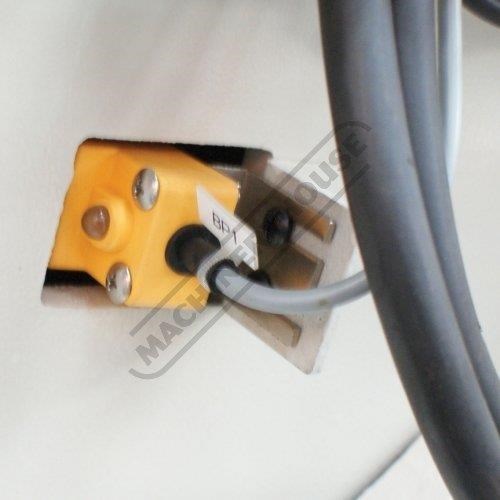

Idle wheel motion proximity switches shuts off machine if blade breaks or slips

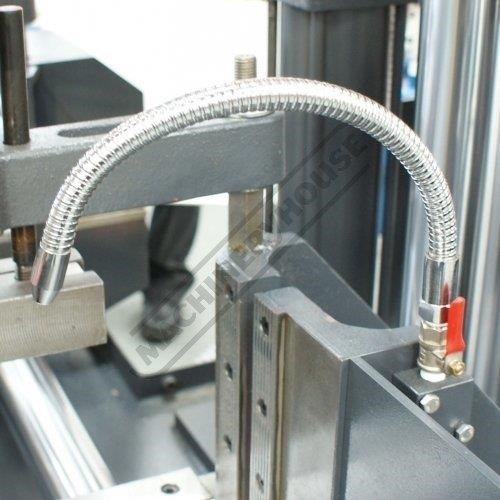

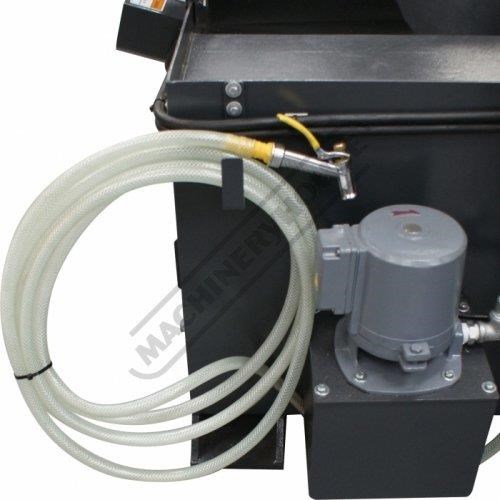

Coolant system incorporating a wash down hose with trigger gun
Back-tilted saw frame for longer blade life

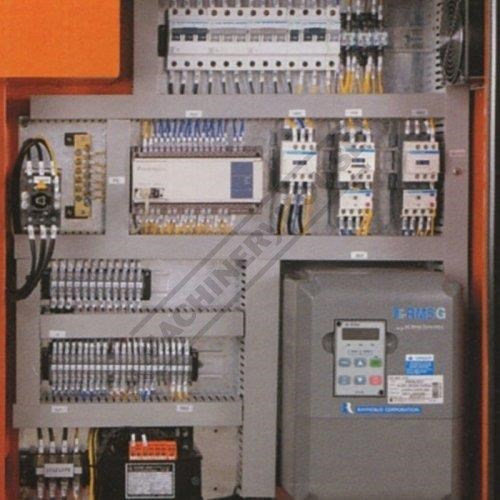

Inverter controlled infinitely variable blade speed 20-100mpm
Material height sensor for beam to rapid down and start cut feed rate when reached material
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Large double columns precision ground for additional support
Automatic (work height) material sensor with rapid approach

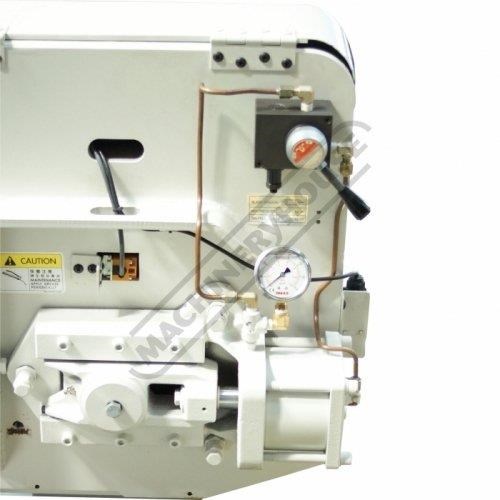

Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2

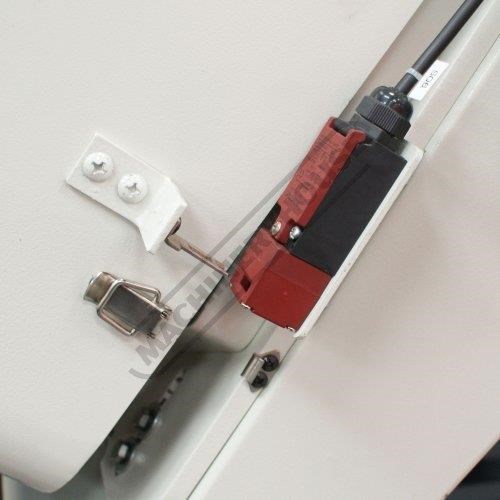

Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped

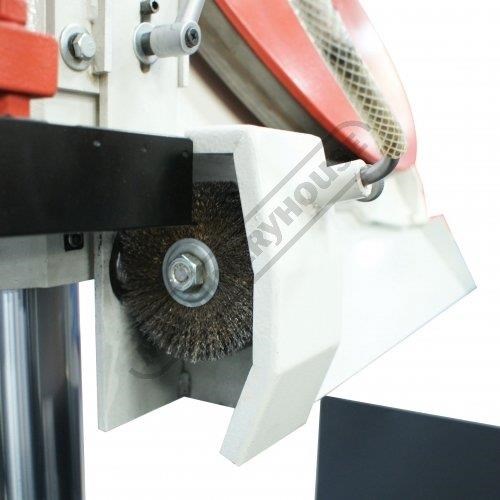

Synchronised power driven blade cleaning brush removes swarf from blade

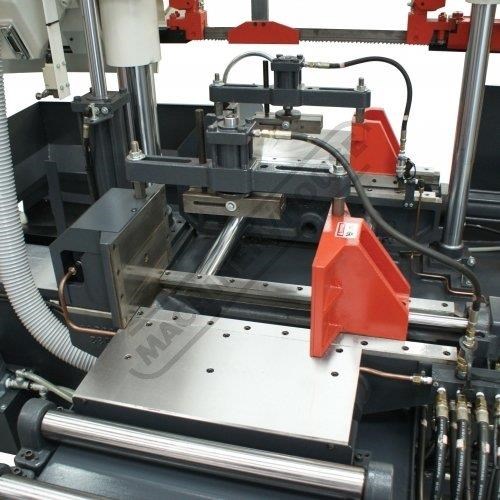

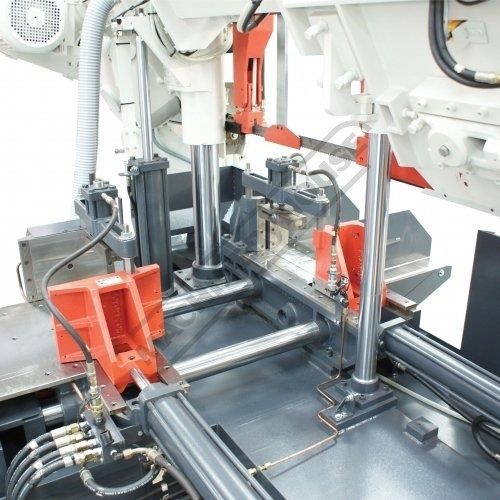

Double retracting vice jaws (feeding vice only) reduces friction from jaws rubbing on material during the feeding process

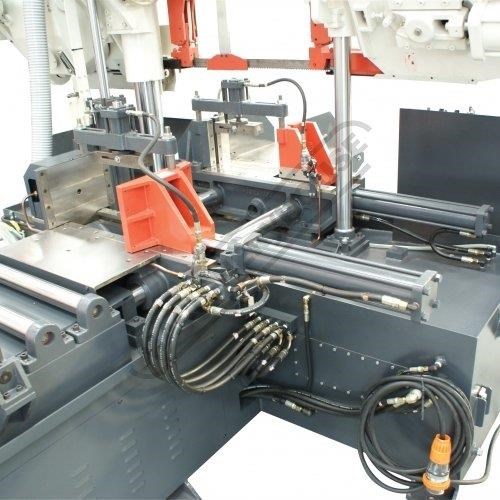

Full stroke hydraulic cylinder vice provides quicker set-up of jobs

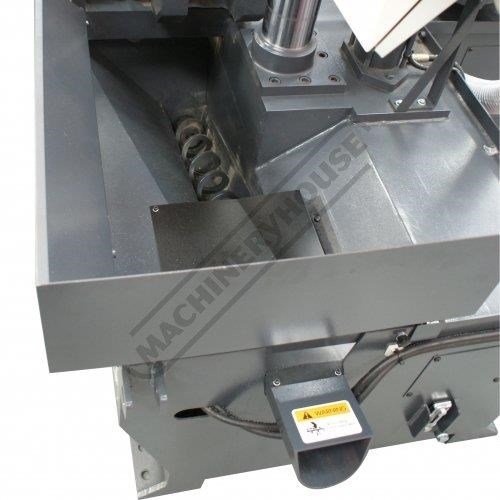

Hydraulic swarf conveyor directs excess waste to side of machine
Specifications:
ORDER CODE: B118
MODEL: H-300HA-NC
Operation Type: Fixed (Double Column)
Operation Type: Automatic - Hitch Feed
Round @ 90?? (mm): 300
Round @ 45?? (mm): ~
Round @ 60?? (mm): ~
Square @ 90?? (mm): 300
Square @ 45?? (mm): ~
Square @ 60?? (mm): ~
Rectangle (W x H) @ 90?? (mm): 300 x 300
Rectangle (W x H) @ 45?? (mm): ~
Rectangle (W x H) @ 60?? (mm): ~
Coolant System: Yes
Table Working Height (mm): 780
Cutting Head Beam Type: Fully-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Yes
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 3920 x 34 x 1.1
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1650
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B118'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
