Contact Seller
Features
| Title | ACTUAL POWER H-550HA-NC |
| Type | Engineering - Fabrication |
| Sub Type | Cutting Equipment |
| Class | Band Saw |
| Make | ACTUAL POWER |
| Model | H-550HA-NC |
| Sale Price | $49,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 39519 |
| RefCode | TA1266955 |
Description

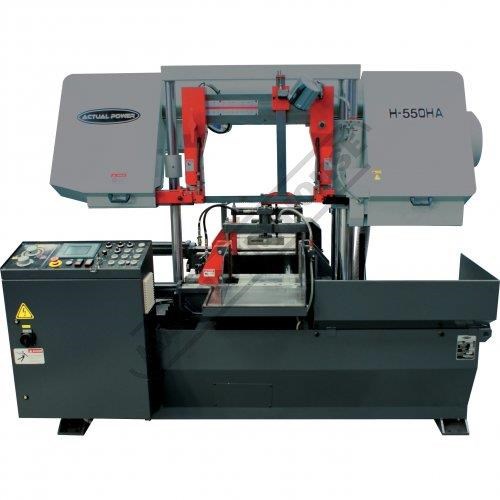

H-550HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed 550 x 550mm (W x H) Recta
ACTUAL POWER H-550HA-NC NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed 550 x 550mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B124
Manufactured in Taiwan

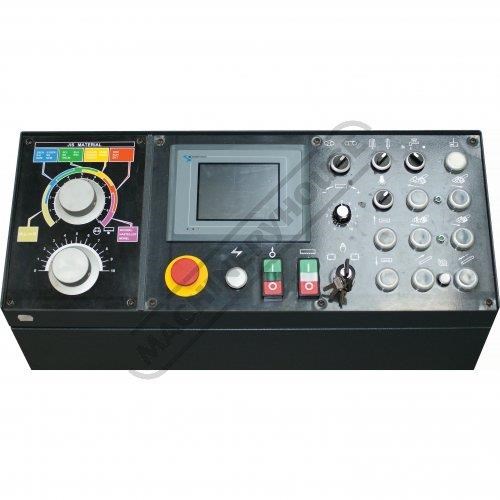

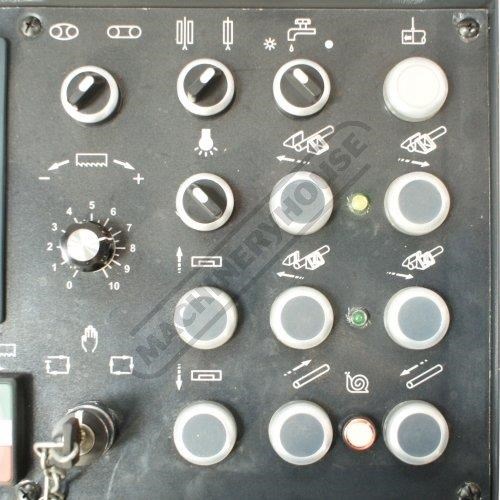

Fully automatic and intelligent HMI touch screen programmable control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system
Functions:
1. AUTOMATIC KERF COMPENSATION: Blade thickness for multiple indexing: This function allows and calculates the blade thickness into the programmed cut length so you achieve your desired length required (factory pre-set)
2. AUTOMATIC LOCATE TRIM CUT: When the material is placed in rear vice and this function is selected the machine will automatically find the material end and set up trim cut to the programmed value
3. ``SAVE-A-BLADE``: To prevent carbide blade tooth deformities. This function retracts the material back approx 3mm away from the blade preventing the carbide blade teeth rubbing on the material on the return after completion of cut. This is activate via selecting the carbide blade function on the control panel
4. AUTOMATIC MATERIAL ZERO POINT LOCATION: This function automatically finds the start point of the material preventing unnecessary trim cut waste
5. AUTOMATIC SHUT-OFF: For finished jobs or out of stock
6. SIMPLIFIED SELF DIAGNOSTICS: Error code display
7. LCD SCREEN: With touch screen display
Features:

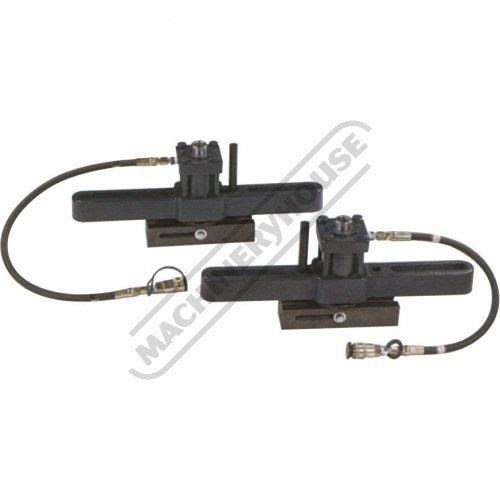

Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)

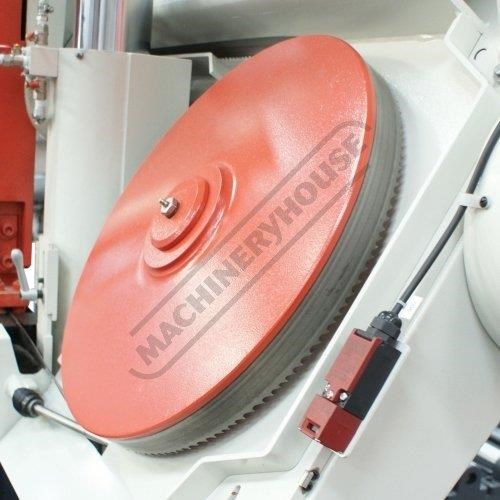

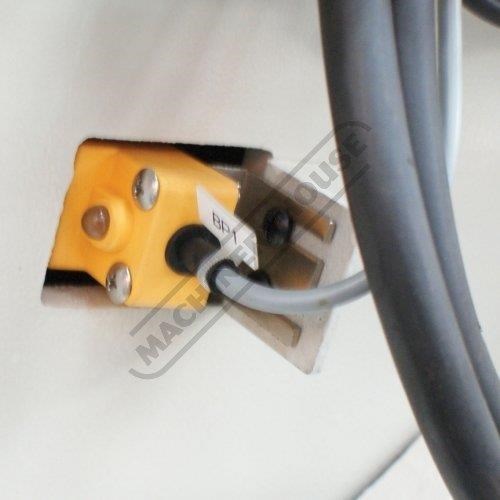

Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Trim cut function: cuts material end (zero point) in auto or manual mode
Automatic material location (zero point) to reduce unnecessary trim cut waste

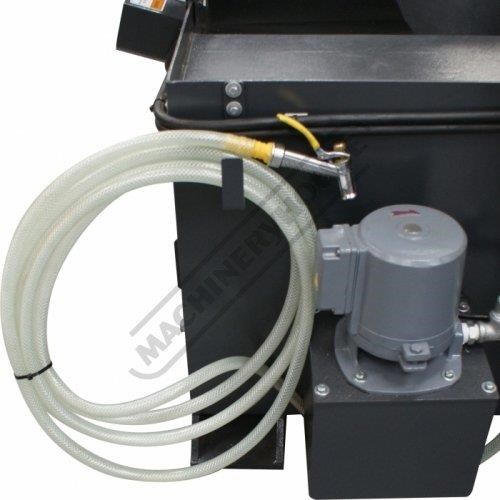

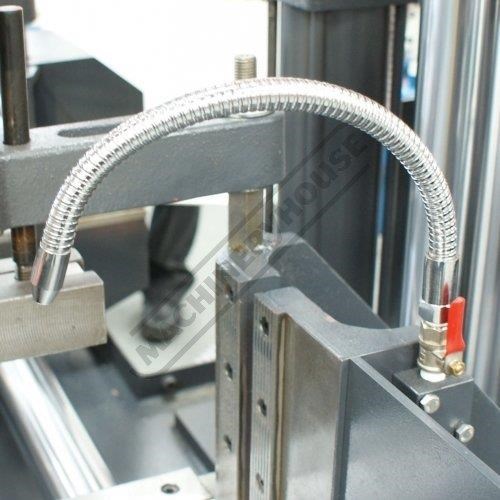

Coolant system incorporating a wash down hose with trigger gun
Back-tilted saw frame for longer blade life

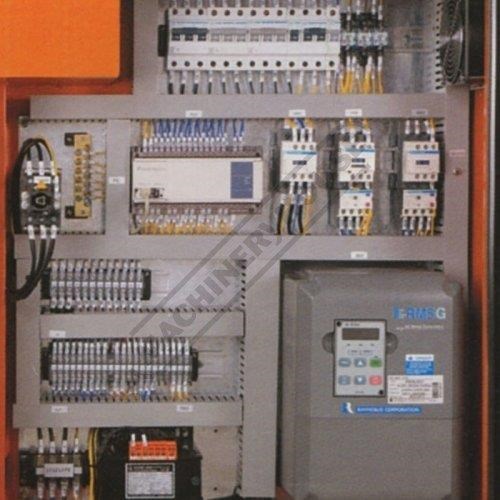

Inverter controlled infinitely variable blade speed 20-100mpm
Material height sensor for beam to rapid down and start cut feed rate when reached material

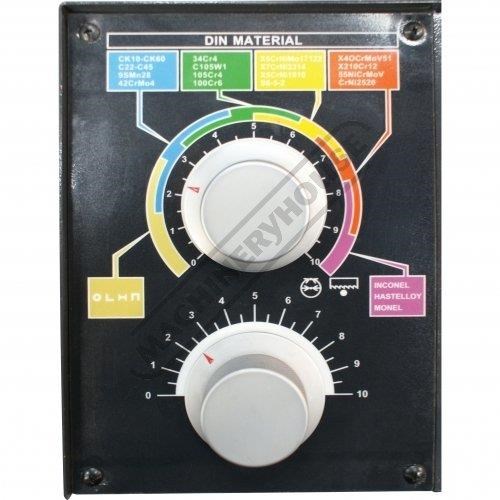

Precision feed pressure & feed rate dual valve system for optimal performance in any material

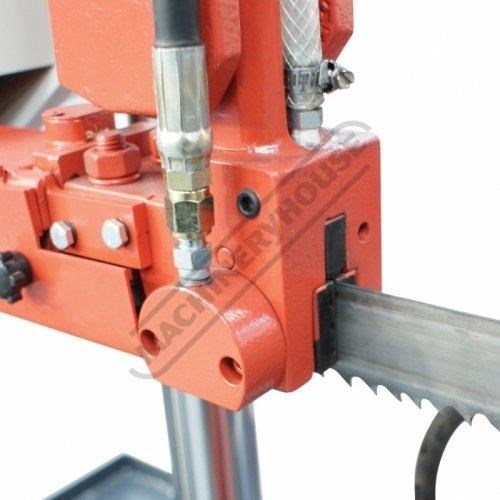

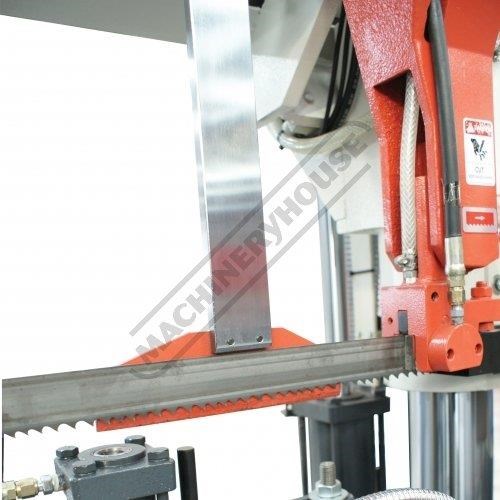

Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
Large double columns precision ground for additional support
Automatic (work height) material sensor with rapid approach

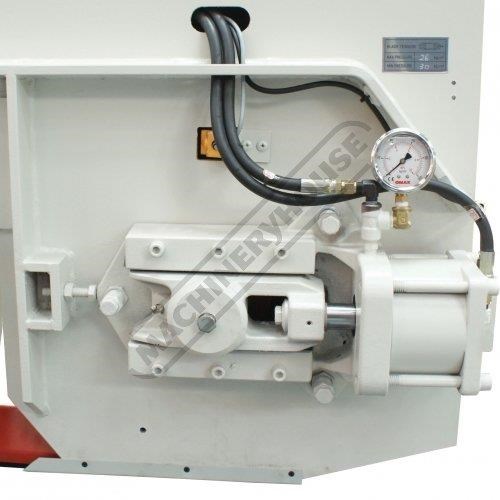

Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2

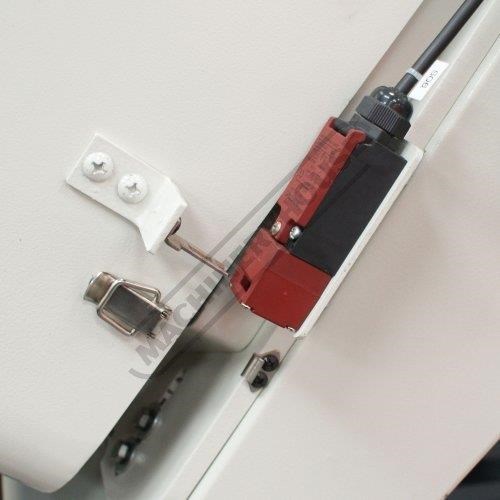

Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped

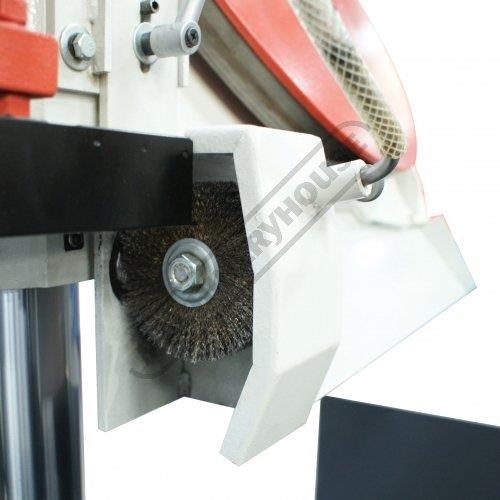

Synchronised power driven blade cleaning brush removes swarf from blade
Full stroke hydraulic cylinder vice provides quicker set-up of jobs

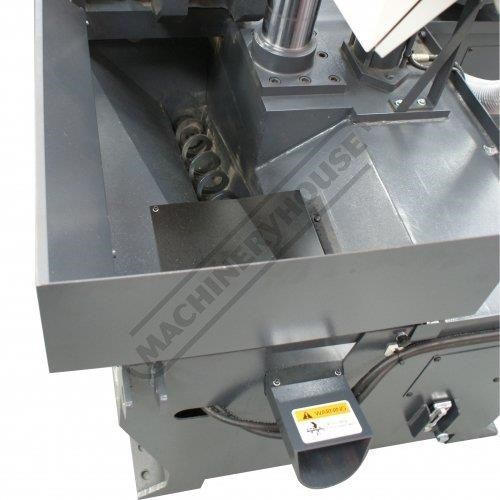

Hydraulic swarf conveyor directs excess waste to side of machine
Fitted with vibration dampening device for better cut finishes blade wear & blade life

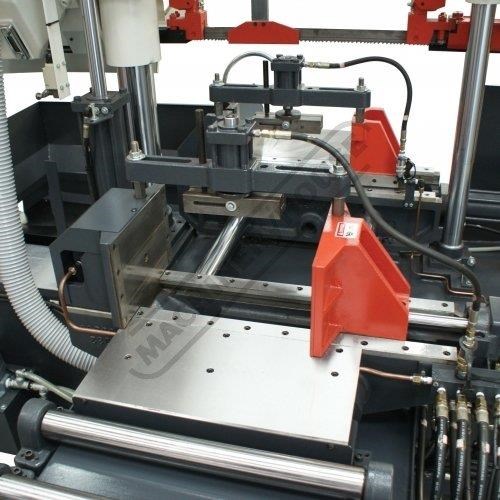

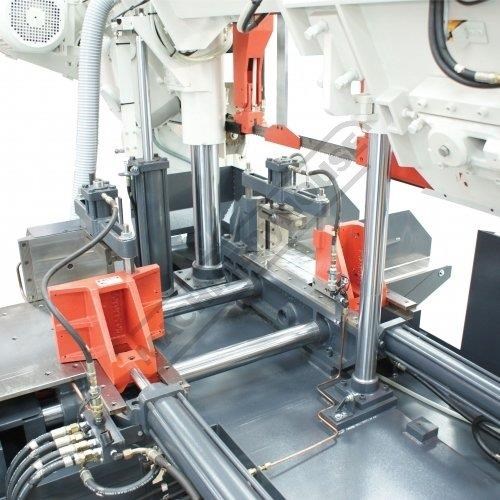

Dual vice clamping providing burr free cut
Specifications:
ORDER CODE: B124
MODEL: H-550HA-NC
Operation Type: Fixed (Double Column)
Operation Type: Automatic Hitch Feed
Round @ 90?? (mm): 550
Round @ 45?? (mm): ~
Round @ 60?? (mm): ~
Square @ 90?? (mm): 550
Square @ 45?? (mm): ~
Square @ 60?? (mm): ~
Rectangle (W x H) @ 90?? (mm): 550 x 550
Rectangle (W x H) @ 45?? (mm): ~
Rectangle (W x H) @ 60?? (mm): ~
Coolant System: Yes
Table Working Height (mm): 800
Cutting Head Beam Type: Fully-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: Yes
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 5980 x 41 x 1.3

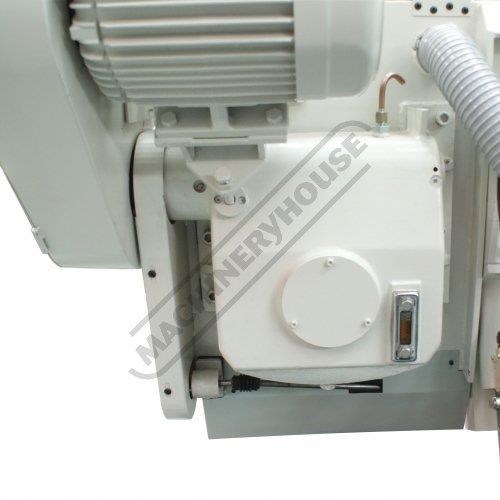

Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 3800
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B124'
