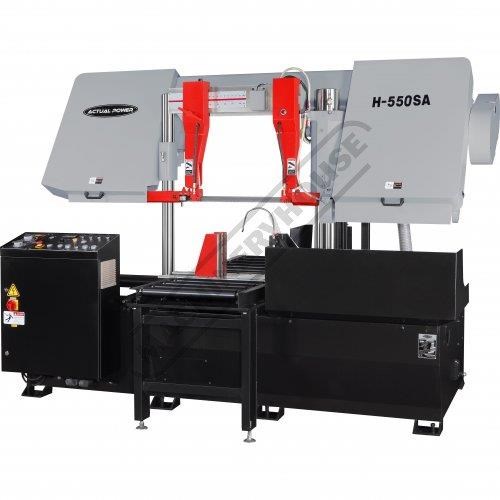

ACTUAL POWER H-550SA

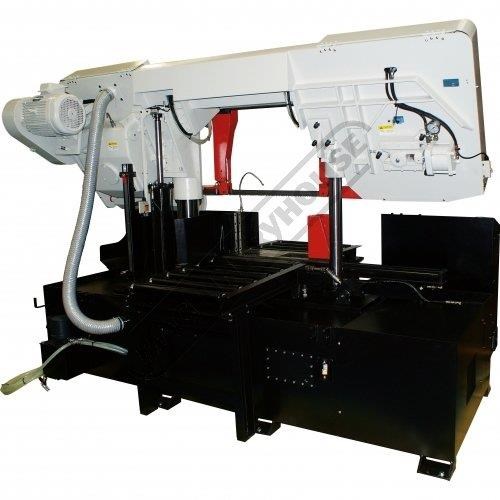

H-550SA Semi Automatic Double Column Heavy Duty Band Saw 550 x 550mm (W x H) Rectangle Capacity

ACTUAL POWER H-550SA Semi Automatic Double Column Heavy Duty Band Saw 550 x 550mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B127

Manufactured in Taiwan

Features:
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun

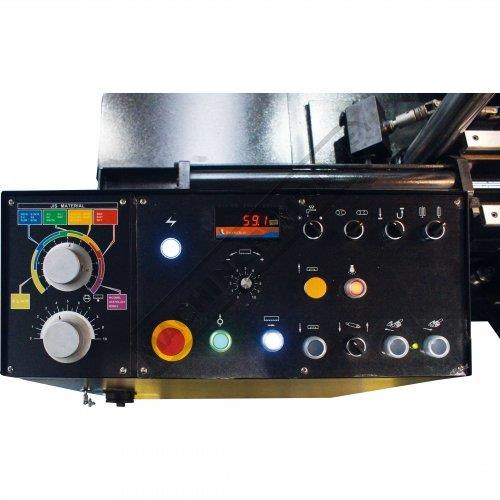

Inverter controlled infinitely variable blade speed 13-85mpm with digital display
Precision feed pressure & feed rate dual valve system for optimal performance in any material

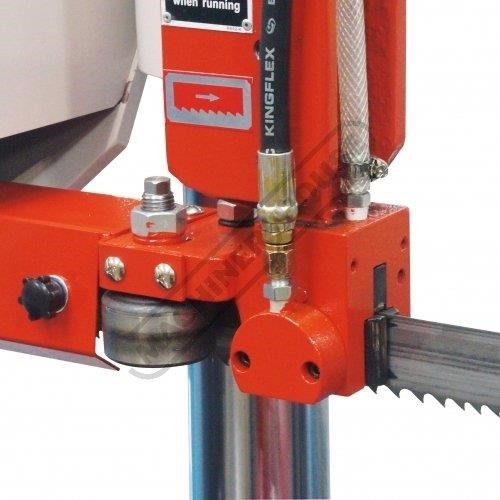

Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life

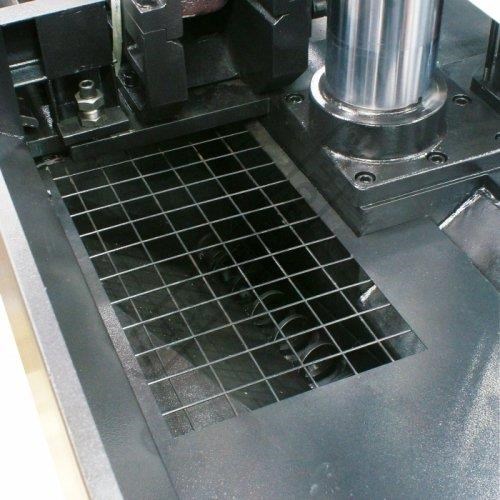

Hydraulic swarf conveyor directs excess waste to side of machine
Large double columns precision ground for additional support

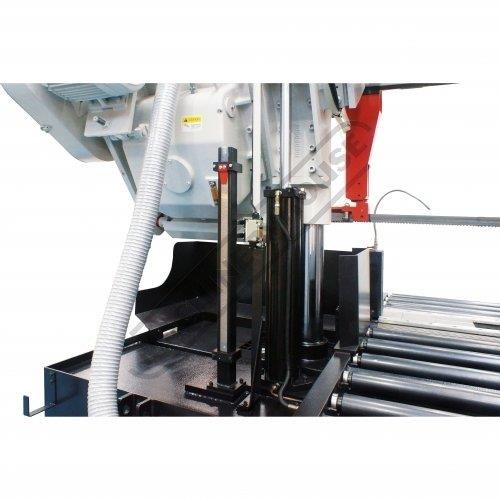

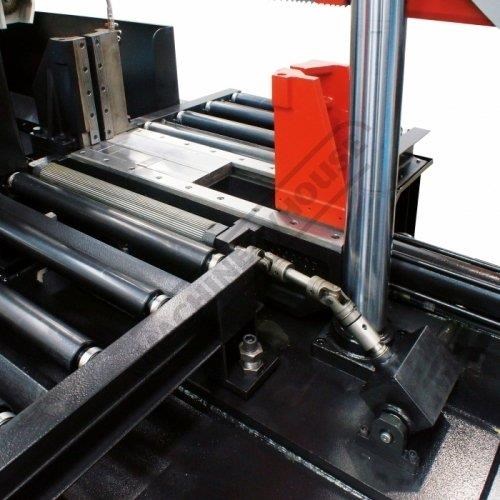

Hydraulic lift up roller designed with manual material feed for set up
Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2

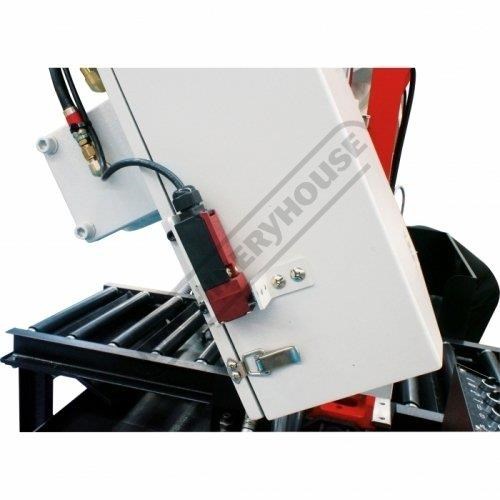

Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
Synchronised power driven blade cleaning brush removes swarf from blade

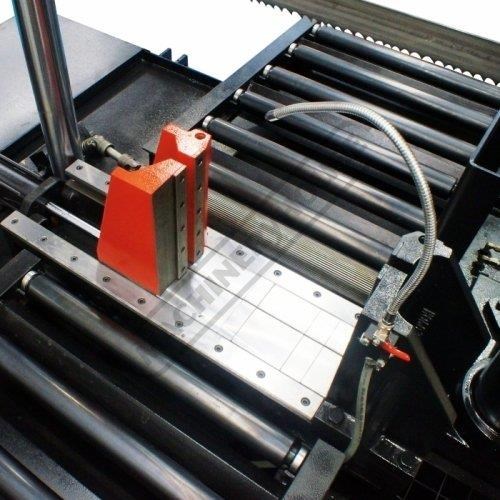

Dual vice clamping providing burr free cut

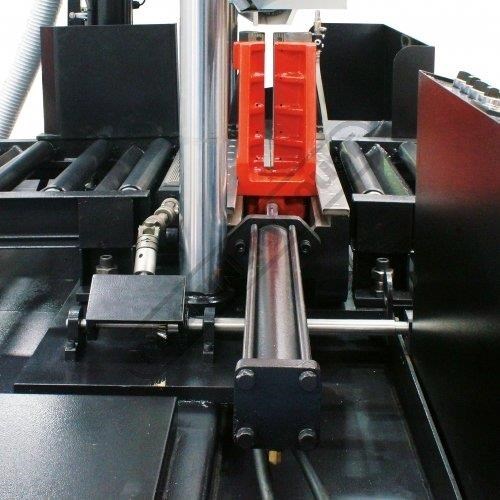

Full stroke hydraulic cylinder vice provides quicker set-up of jobs


Specifications:
ORDER CODE: B127
MODEL: H-550SA
Operation Type: Fixed (Double Column)
Operation Type: Semi - Automatic
Round @ 90?? (mm): 550
Round @ 45?? (mm): ~
Round @ 60?? (mm): ~
Square @ 90?? (mm): 550
Square @ 45?? (mm): ~
Square @ 60?? (mm): ~
Rectangle (W x H) @ 90?? (mm): 550 x 550
Rectangle (W x H) @ 45?? (mm): ~
Rectangle (W x H) @ 60?? (mm): ~
Coolant System: Yes
Table Working Height (mm): 800
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 20-100
Blade Size (L x W x T) (mm): 5980 x 41 x 1.3
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2700
