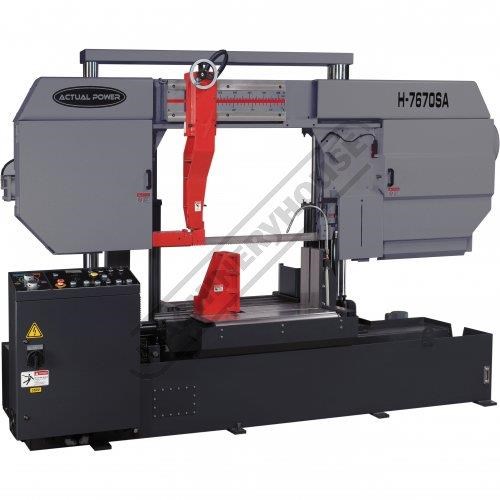

ACTUAL POWER H-7670SA

H-7670SA Semi Automatic Double Column Heavy Duty Band Saw 760 x 700mm (W x H) Square Capacity

ACTUAL POWER H-7670SA Semi Automatic Double Column Heavy Duty Band Saw 760 x 700mm (W x H) Square Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B128

Manufactured in Taiwan

Features:
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun
Inverter controlled infinitely variable blade speed 20-80mpm
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
Hydraulic swarf conveyor directs excess waste to side of machine
Large double columns precision ground for additional support
Hydraulic lift up roller designed with manual material feed for set up
Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2
Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
Synchronised power driven blade cleaning brush removes swarf from blade
Dual vice clamping providing burr free cut
Full stroke hydraulic cylinder vice provides quicker set-up of jobs


Specifications:
ORDER CODE: B128
MODEL: H-7670SA
Operation Type: Fixed (Double Column)
Operation Type: Semi - Automatic
Round @ 90?? (mm): 700
Round @ 45?? (mm): ~
Round @ 60?? (mm): ~
Square @ 90?? (mm): 700
Square @ 45?? (mm): ~
Square @ 60?? (mm): ~
Rectangle (W x H) @ 90?? (mm): 760 x 700
Rectangle (W x H) @ 45?? (mm): ~
Rectangle (W x H) @ 60?? (mm): ~
Coolant System: Yes
Table Working Height (mm): 680
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 20-80
Blade Size (L x W x T) (mm): 7200 x 54 x 1.6
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 3850
