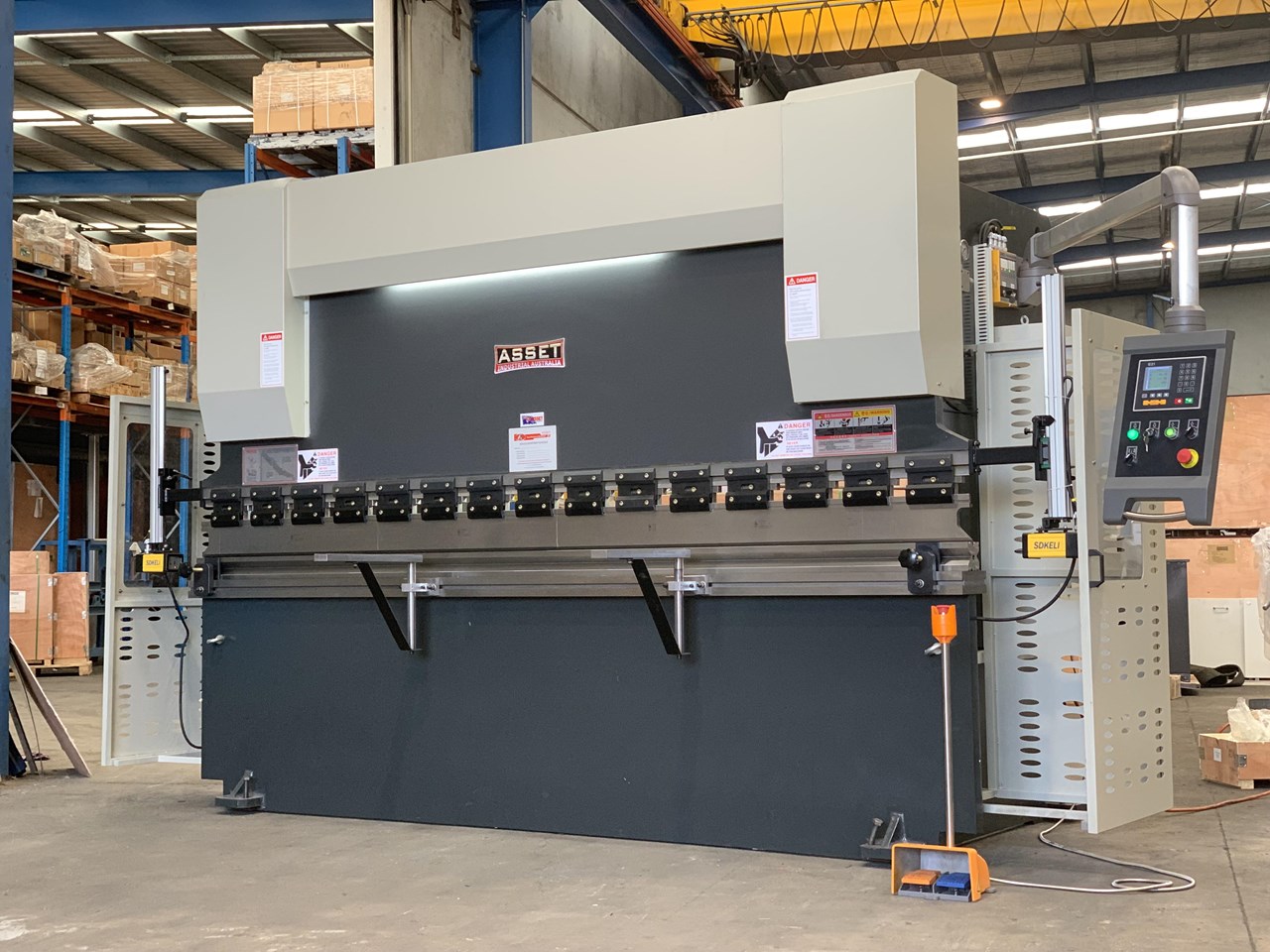

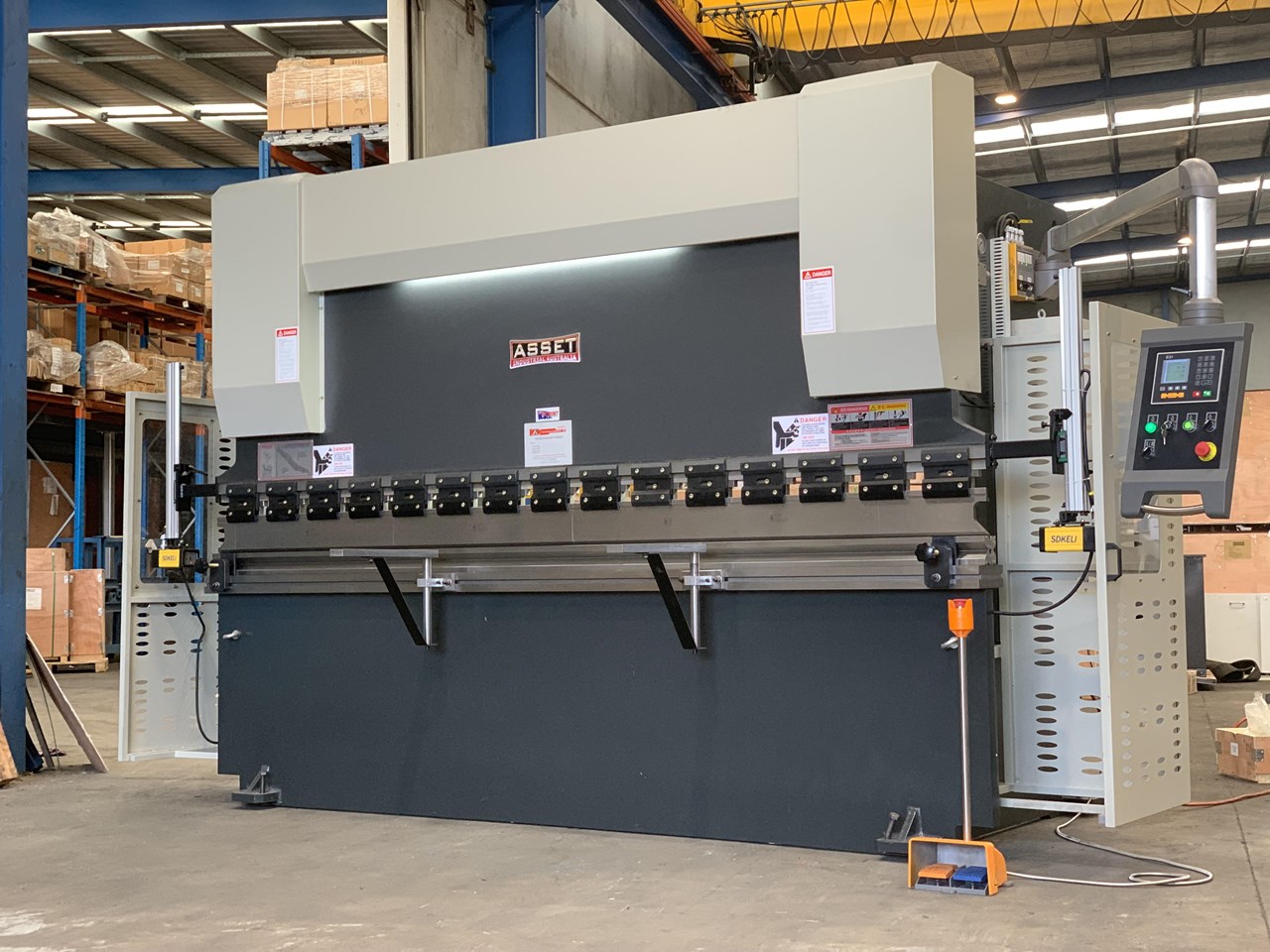

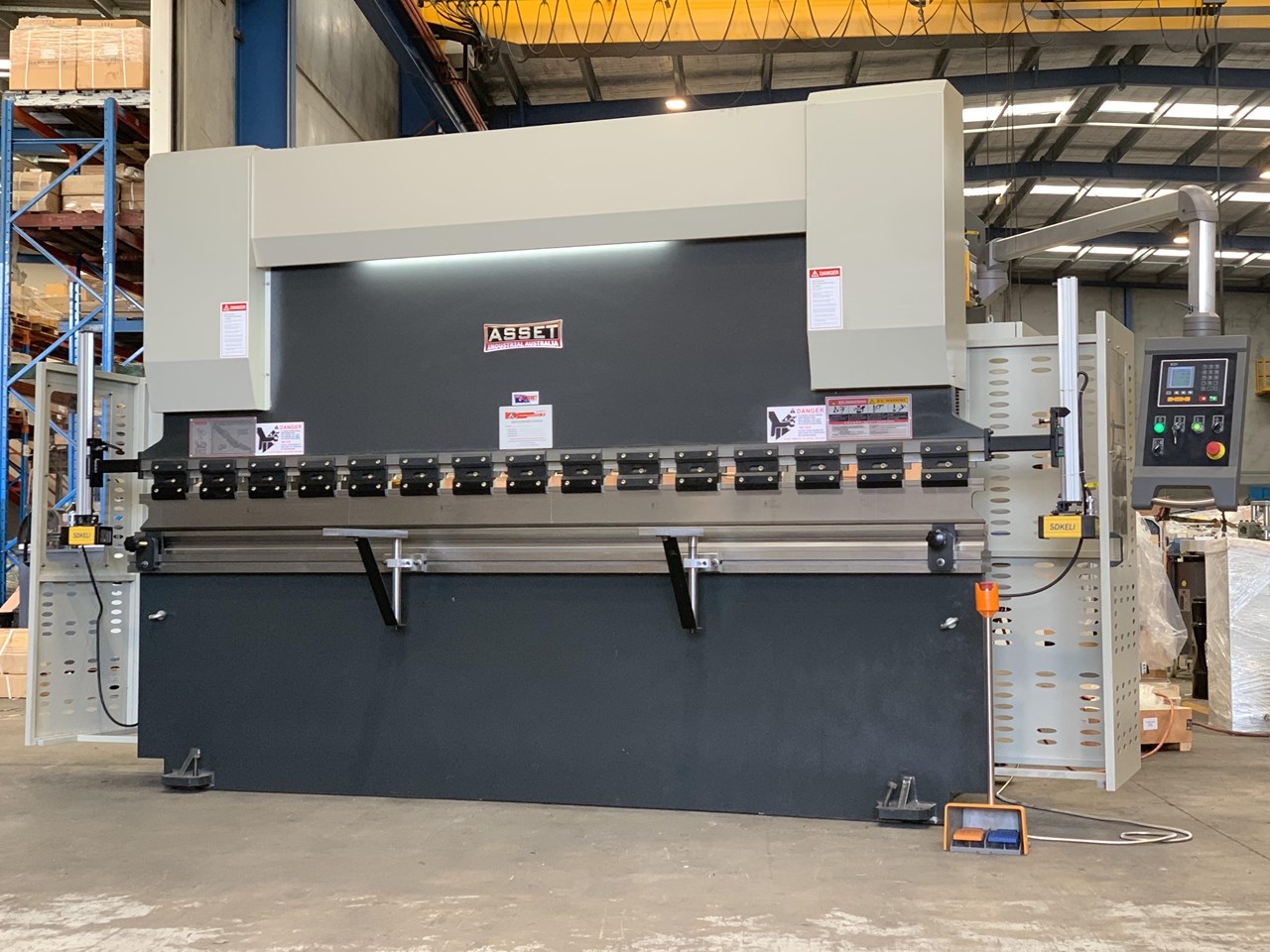

2024 ASSET INDUSTRIAL PB135-3200NC NC PROGRAMMABLE

Sale Price: $41,635* Watch Price Make An Offer
$
For security reasons, do not select "Remember my details" if you are using a shared computer.
View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.
Report Listing

Contact Seller

Phone: 03 9998 4697

Email Advertiser:

For security reasons, do not select "Remember my details" if you are using a shared computer.
View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.

Dealer

Steelmaster Industrial

8 Capital Dr

Dandenong South, VIC

Steelmaster Industrial Visit website

Features

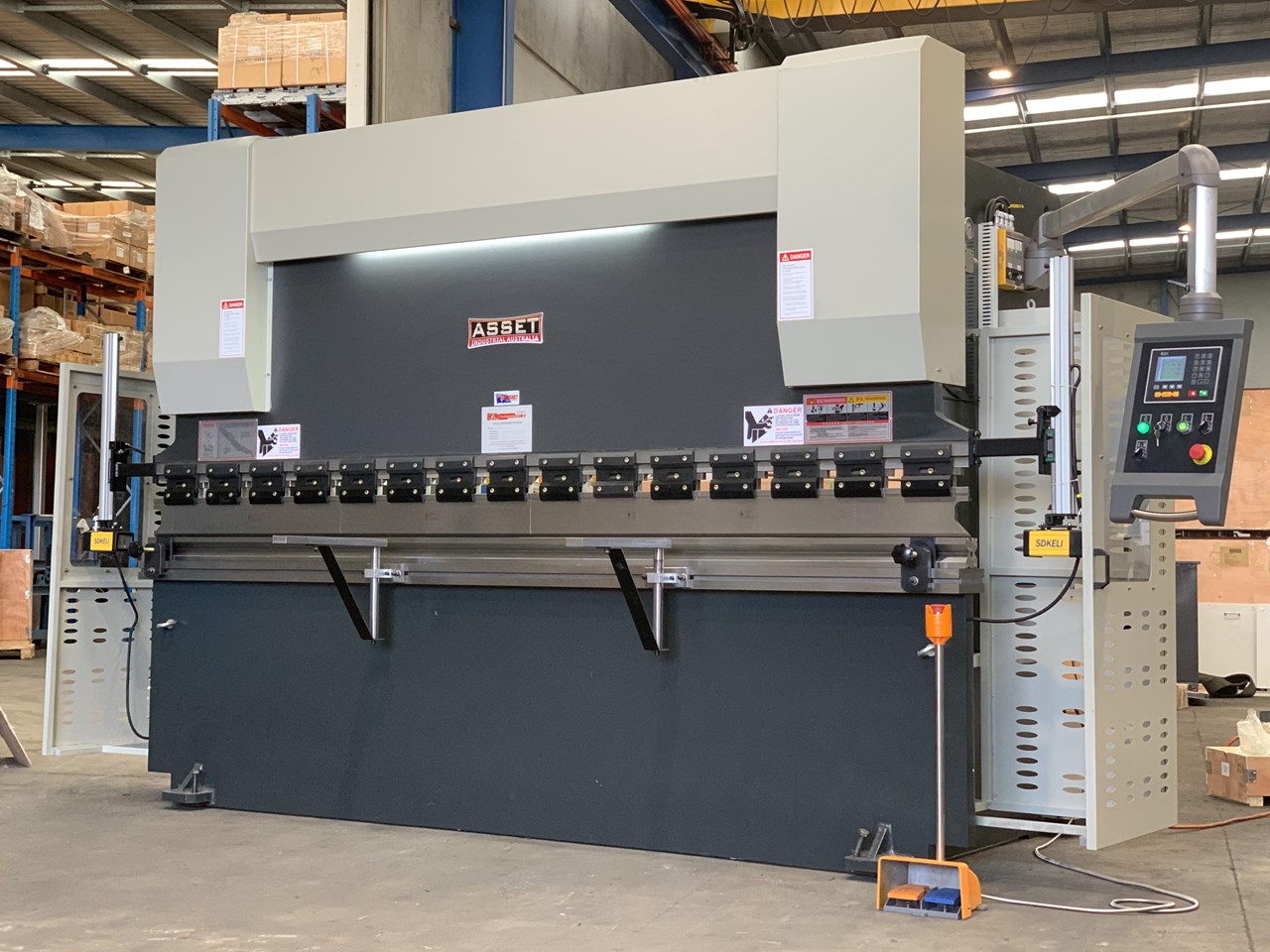

Title 2024 ASSET INDUSTRIAL PB135-3200NC NC PROGRAMMABLE
Type Engineering - Fabrication
Sub Type Press Brakes
Make ASSET INDUSTRIAL
Model PB135-3200NC
Series NC PROGRAMMABLE
Year 2024
Sale Price 37850 $41,635
Listing Type New
Stock Number 19-0352
RefCode TA1037718

Description

Our new ASSET Industrial Pressbrake now offers purchases a new machine, with all modern
day features at a price that you would expect to pay for a used machine.
Etsun 2 x axis E21 NC programmable controller is standard. Deep side throats, large frame widths,
this list goes on!
Offering all the features, new machine warranty, at the right price in this challenging market!

Features
hydraulic synchronised positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
deep side throats and wider distances between the vertical frames offering you more application scope.

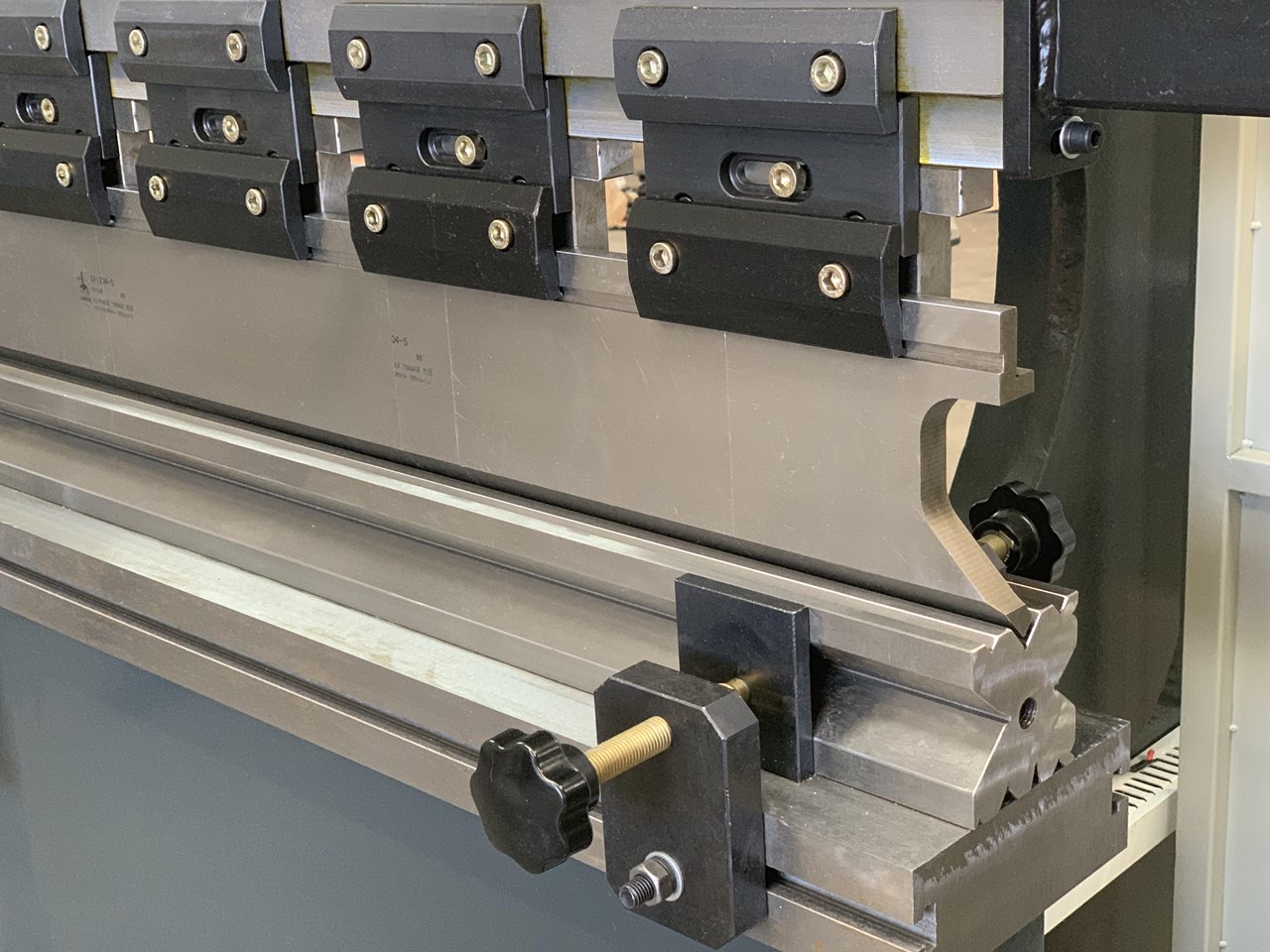

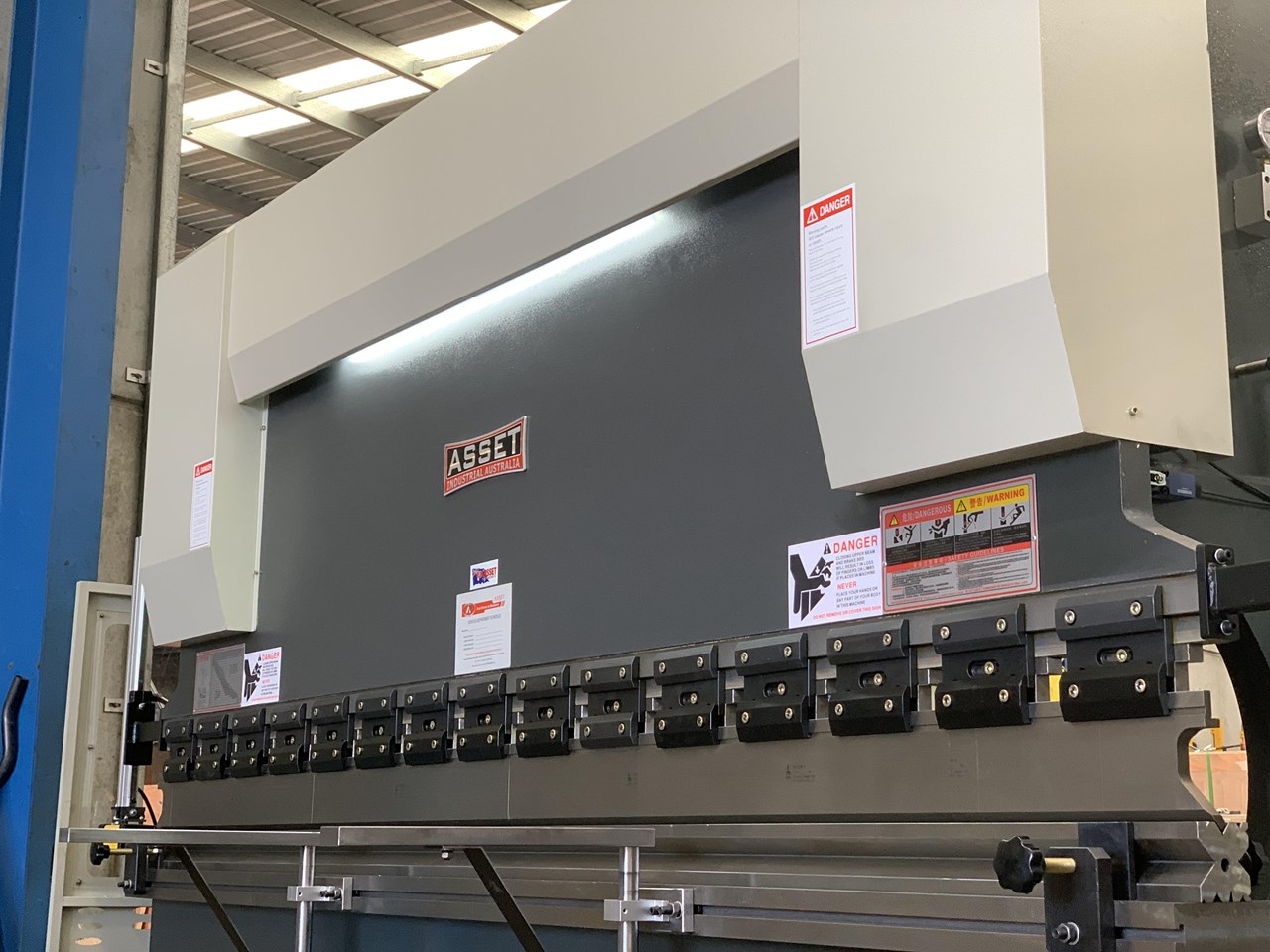

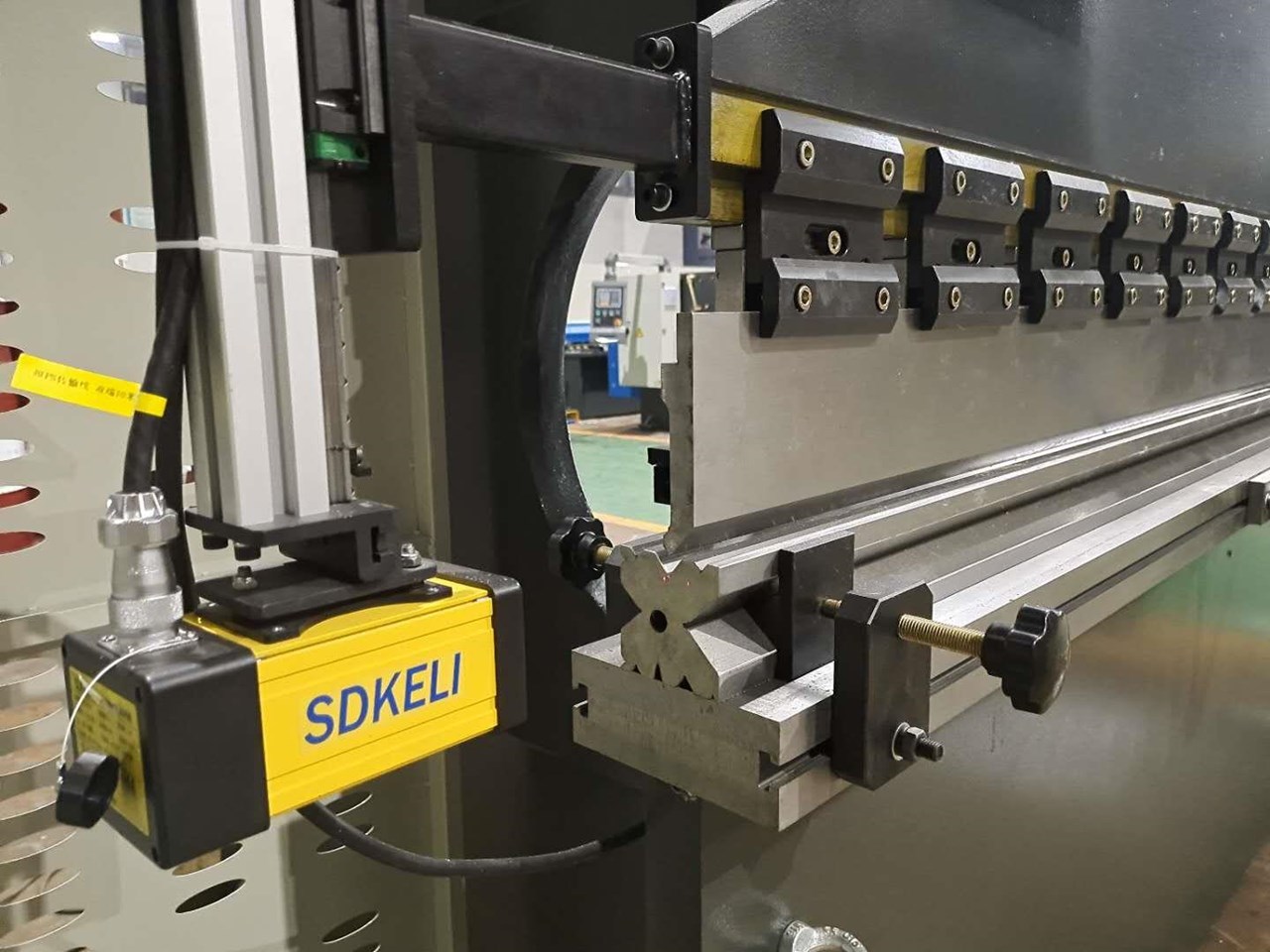

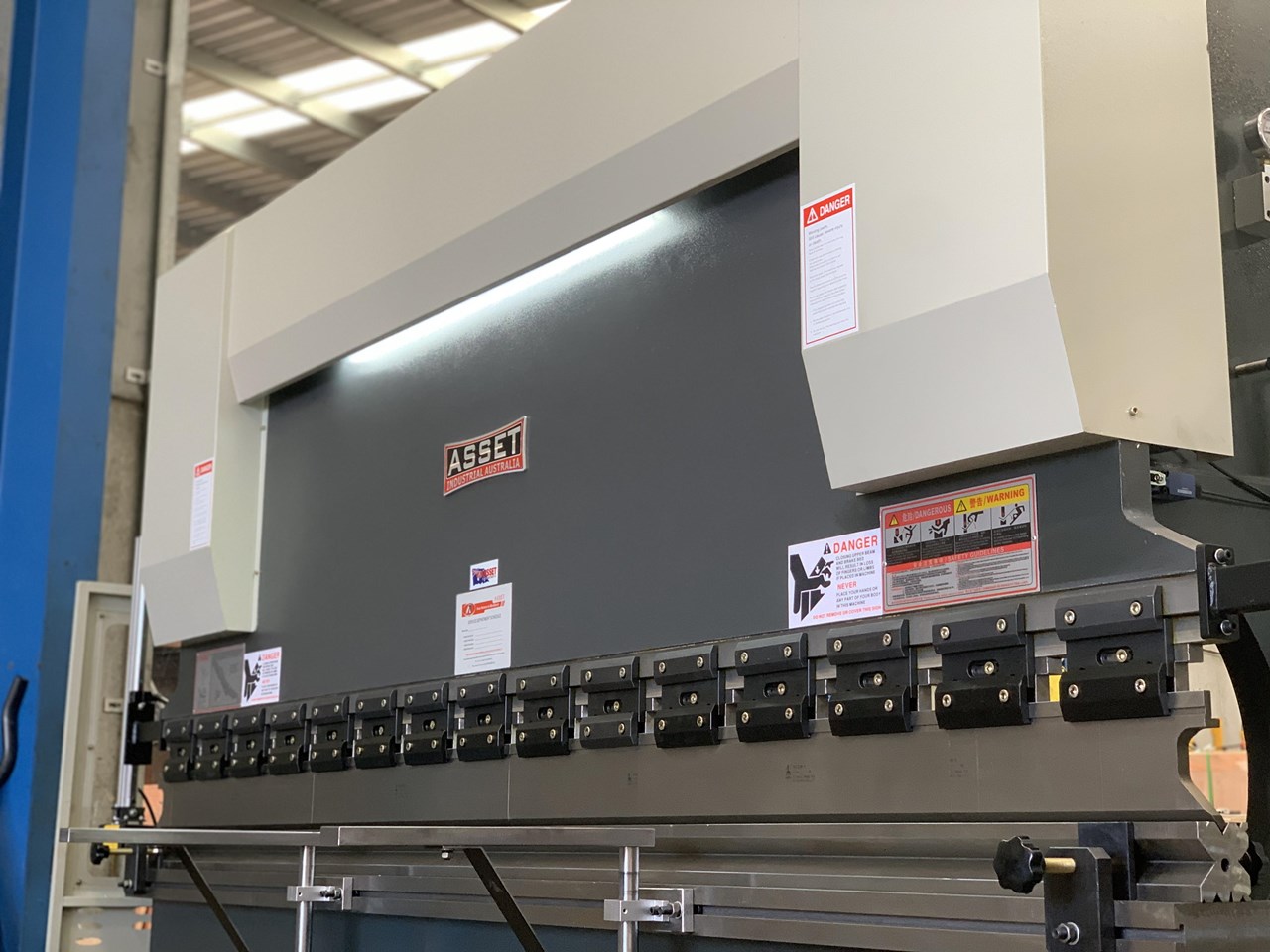

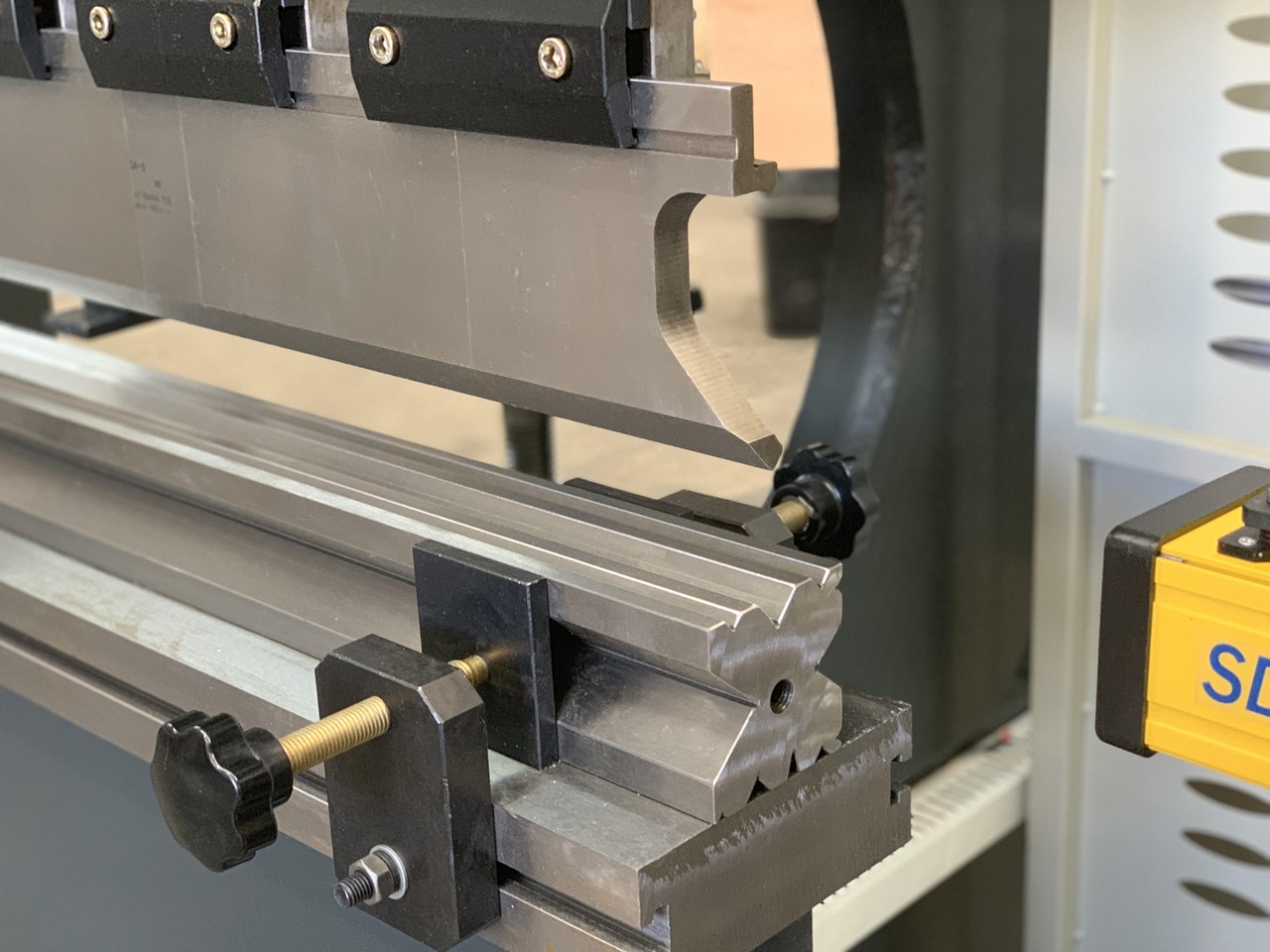

segmented heavy duty 86° offset top tool, segmented for return bend clearance.

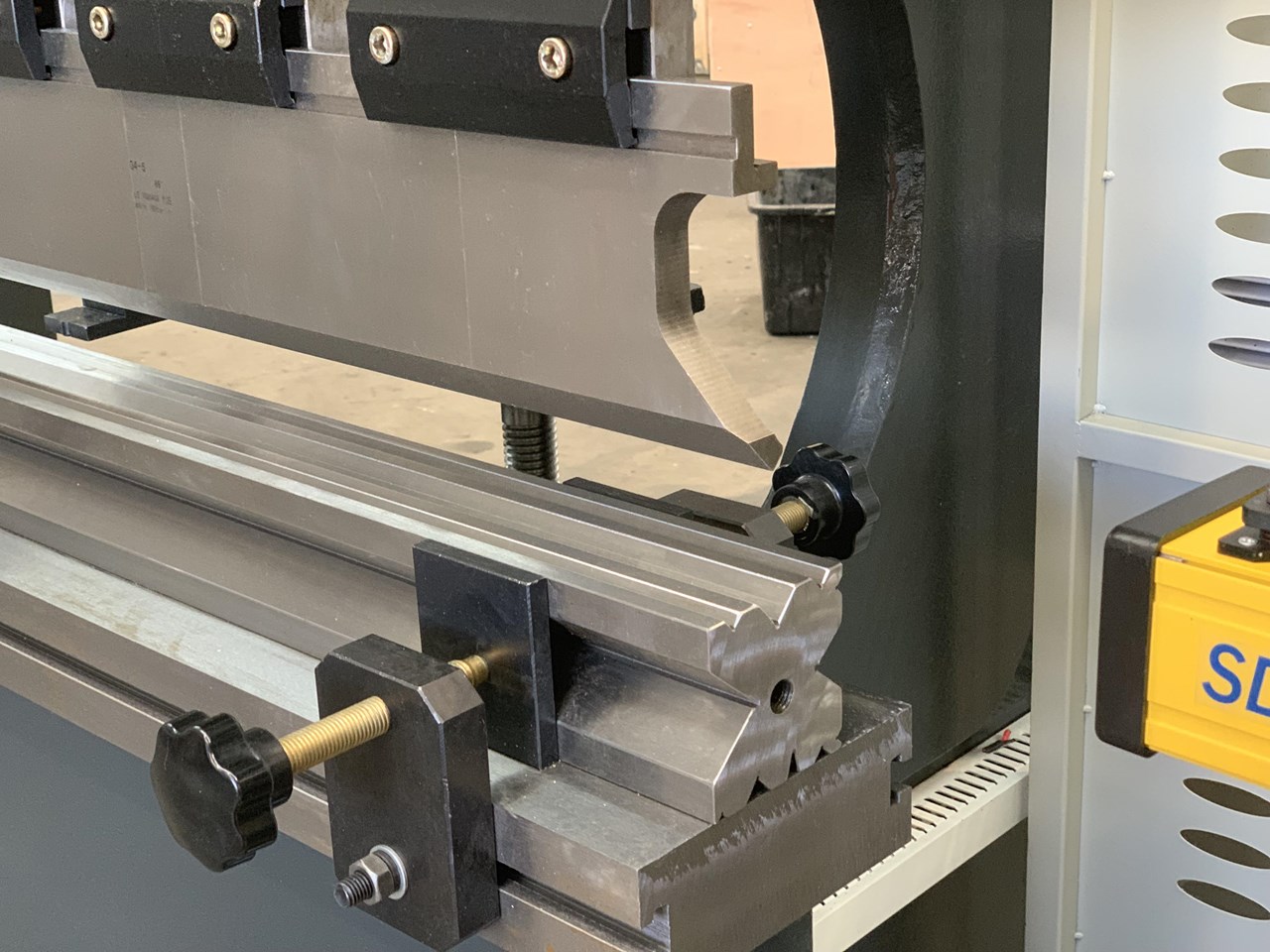

full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.
power operated back gauge with quality support fingers also with vertical adjustment

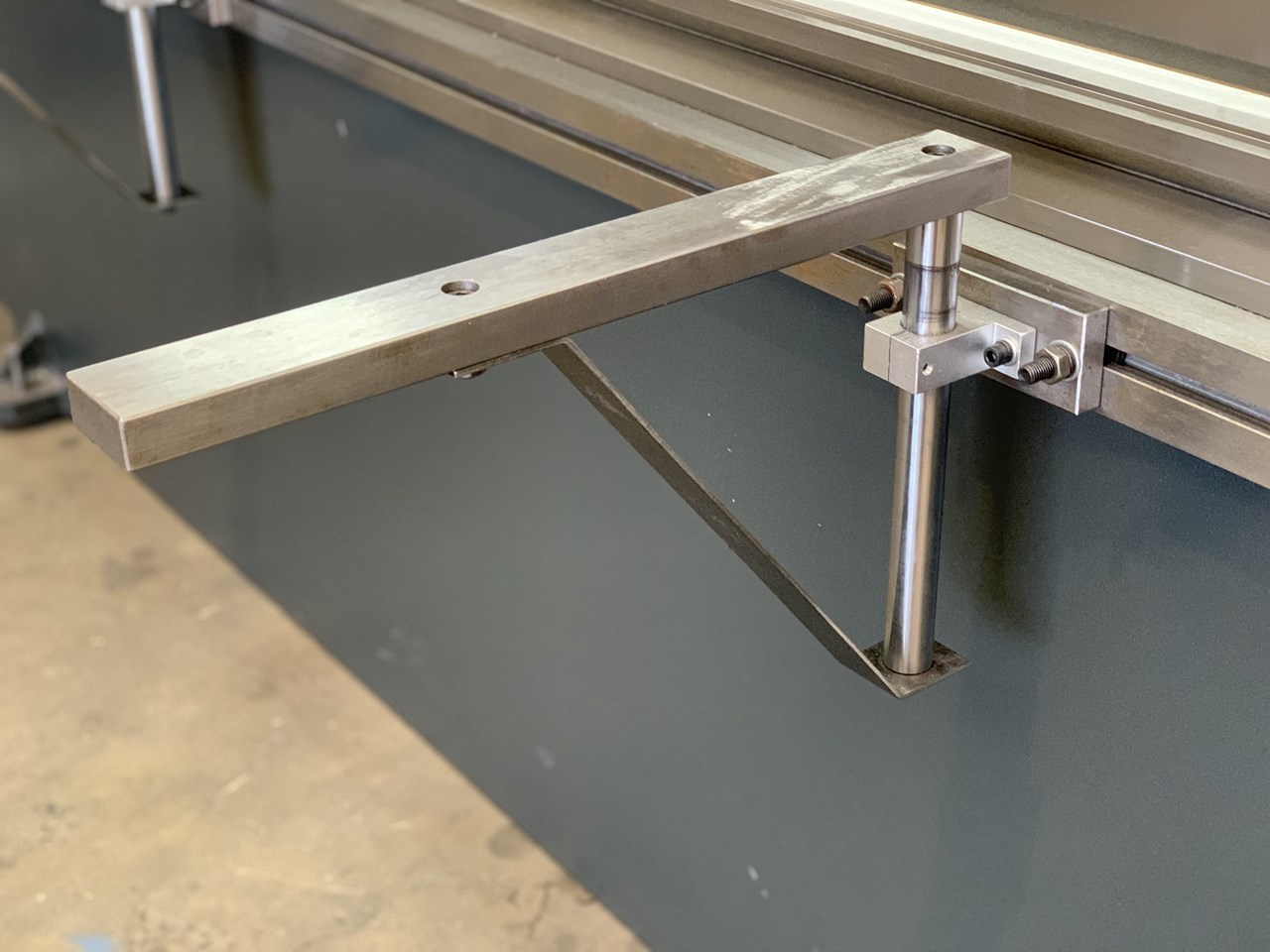

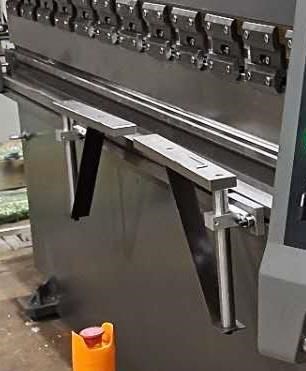

front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.

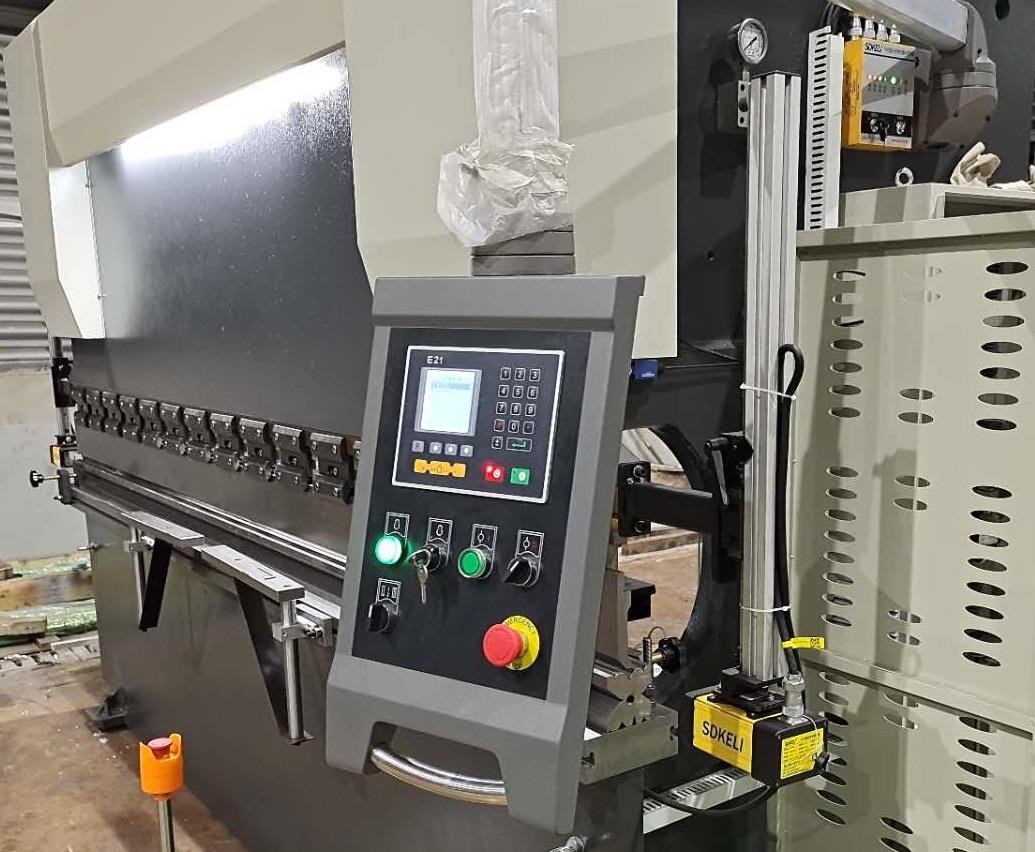

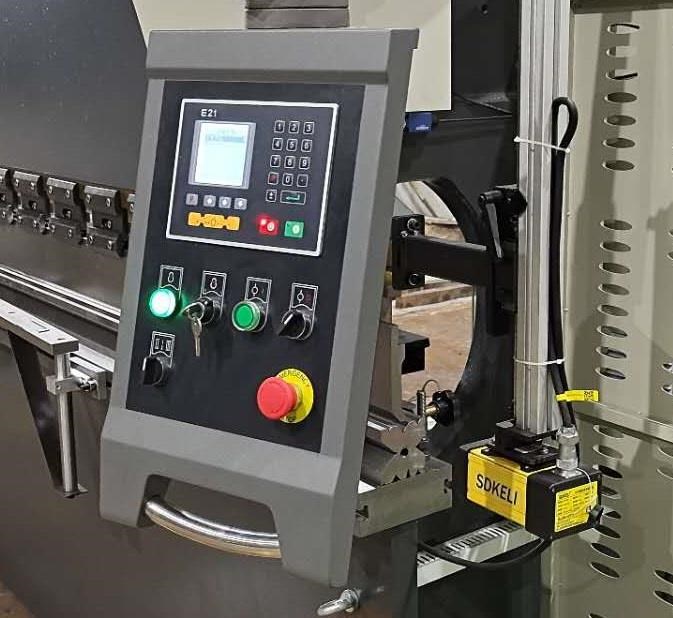

conveniently mounted control box on pendant for quick swivel and adjustments.
integrated hydraulic system allowing rapid approach switching automatically to slow bend.
modern designed pendant foot pedal operation with stainless braided cable.
variable hydraulic pressure control valving fitted standard
safety and material selection bending charts mounted on front beam for easy access.
supplied pre commissioned prior to delivery
pre commissioned prior to delivery
CE compliant

Technical Data Snap-Shot

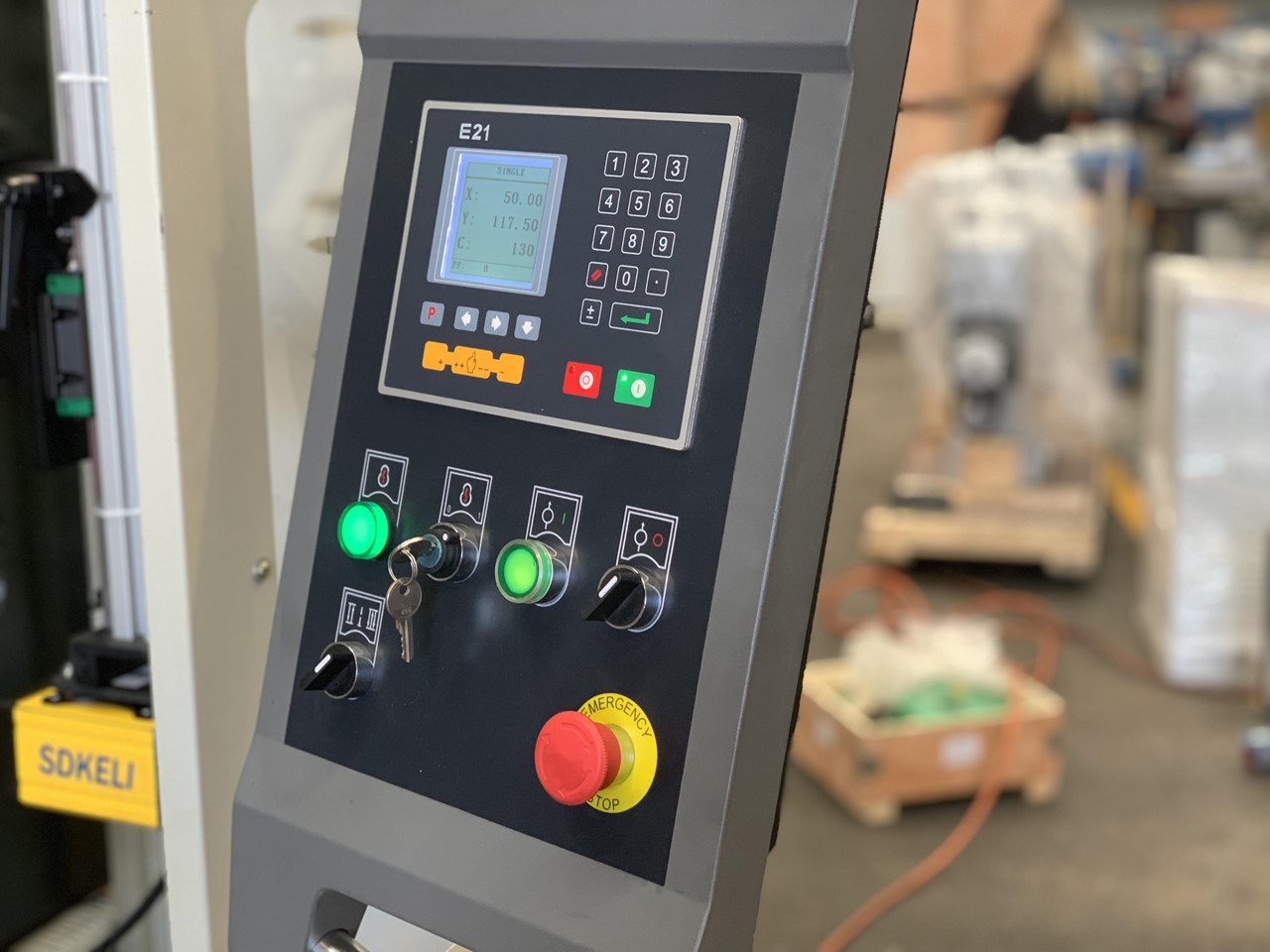

2 x Axis Etsun E21 NC Controller for Depth & Back Gauge
135 Ton Bending Capacity

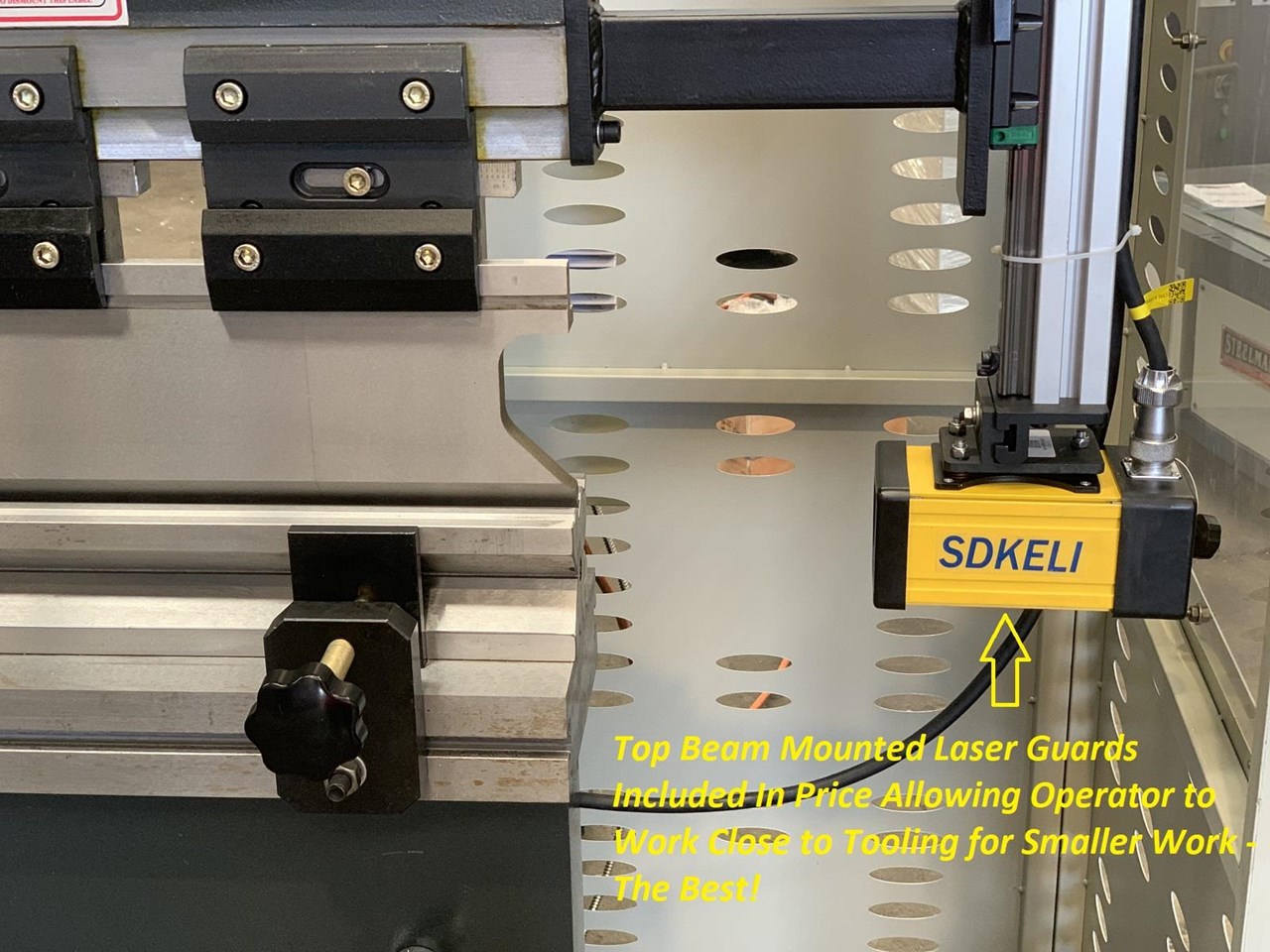

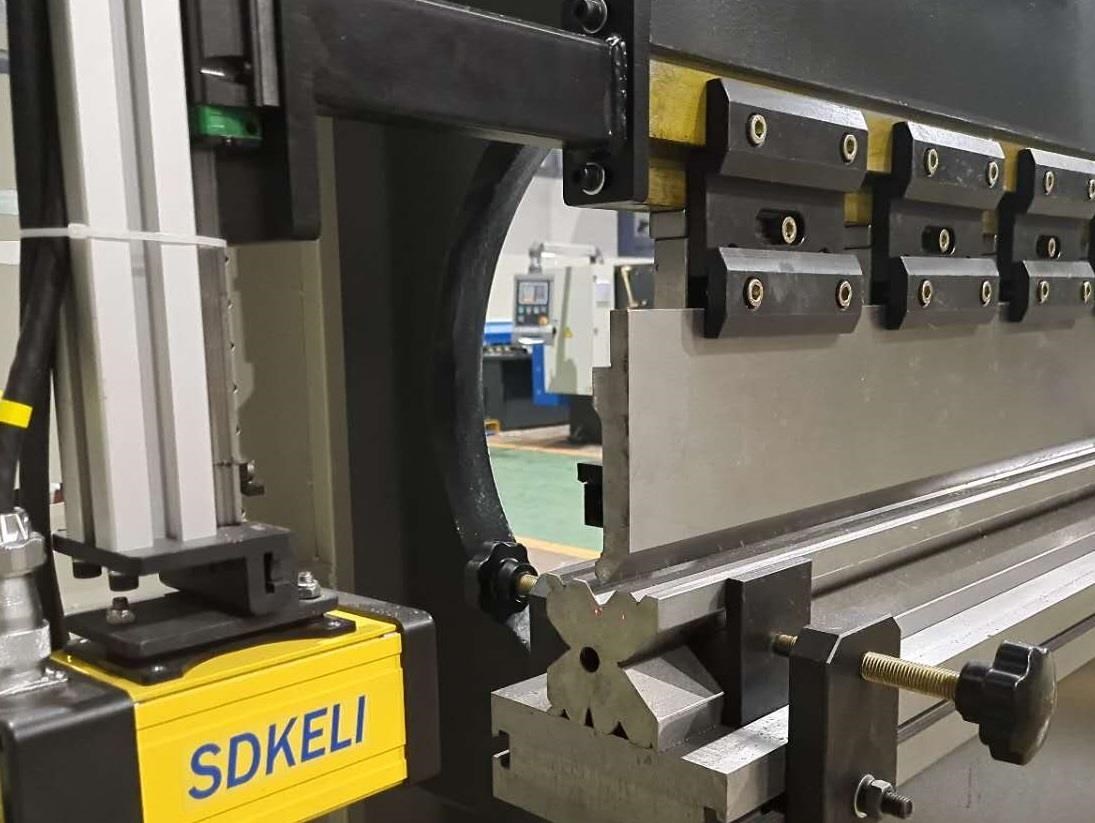

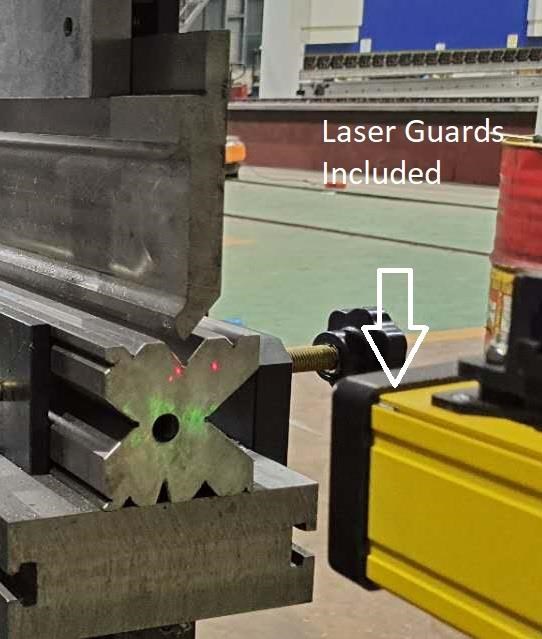

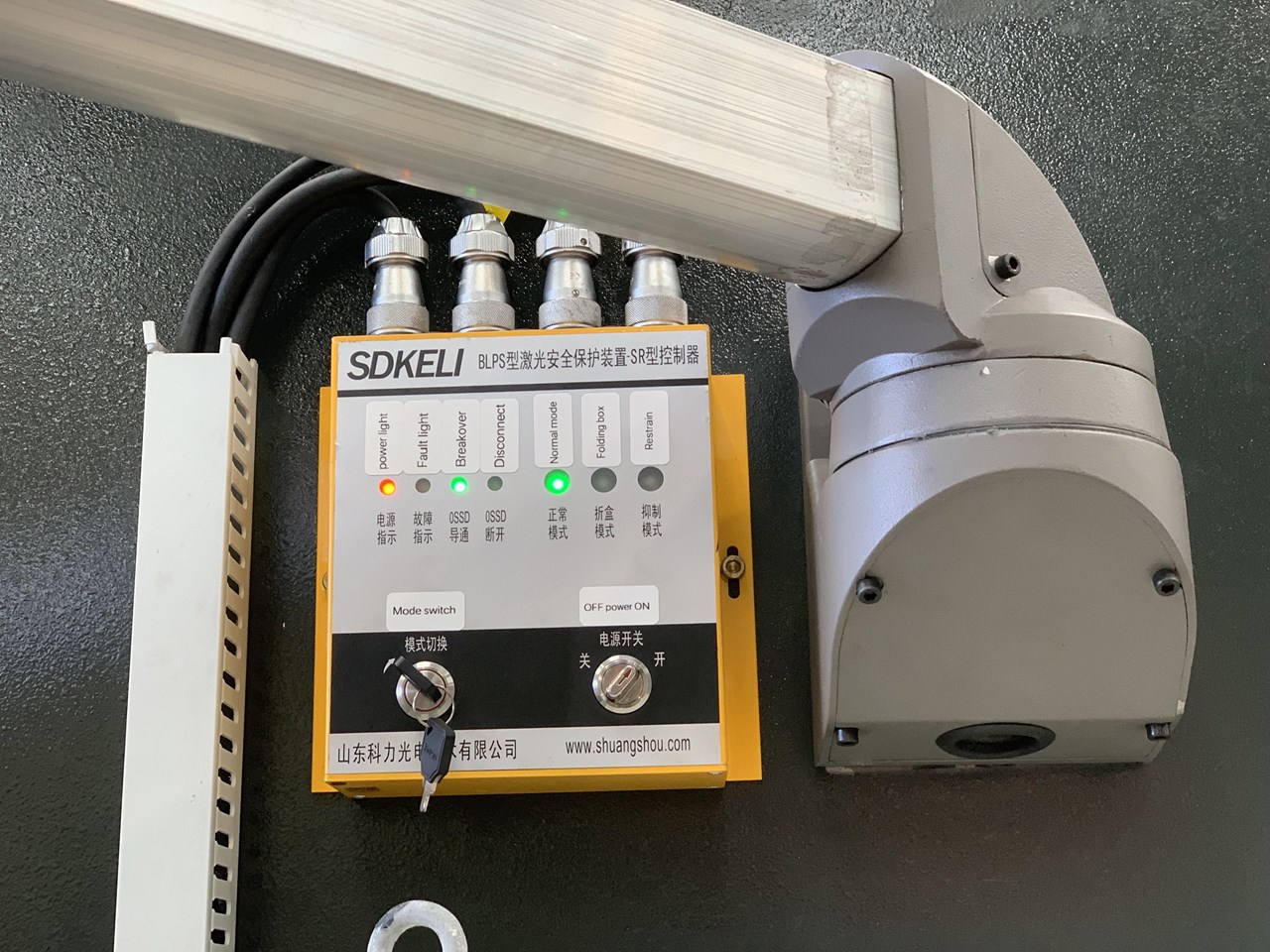

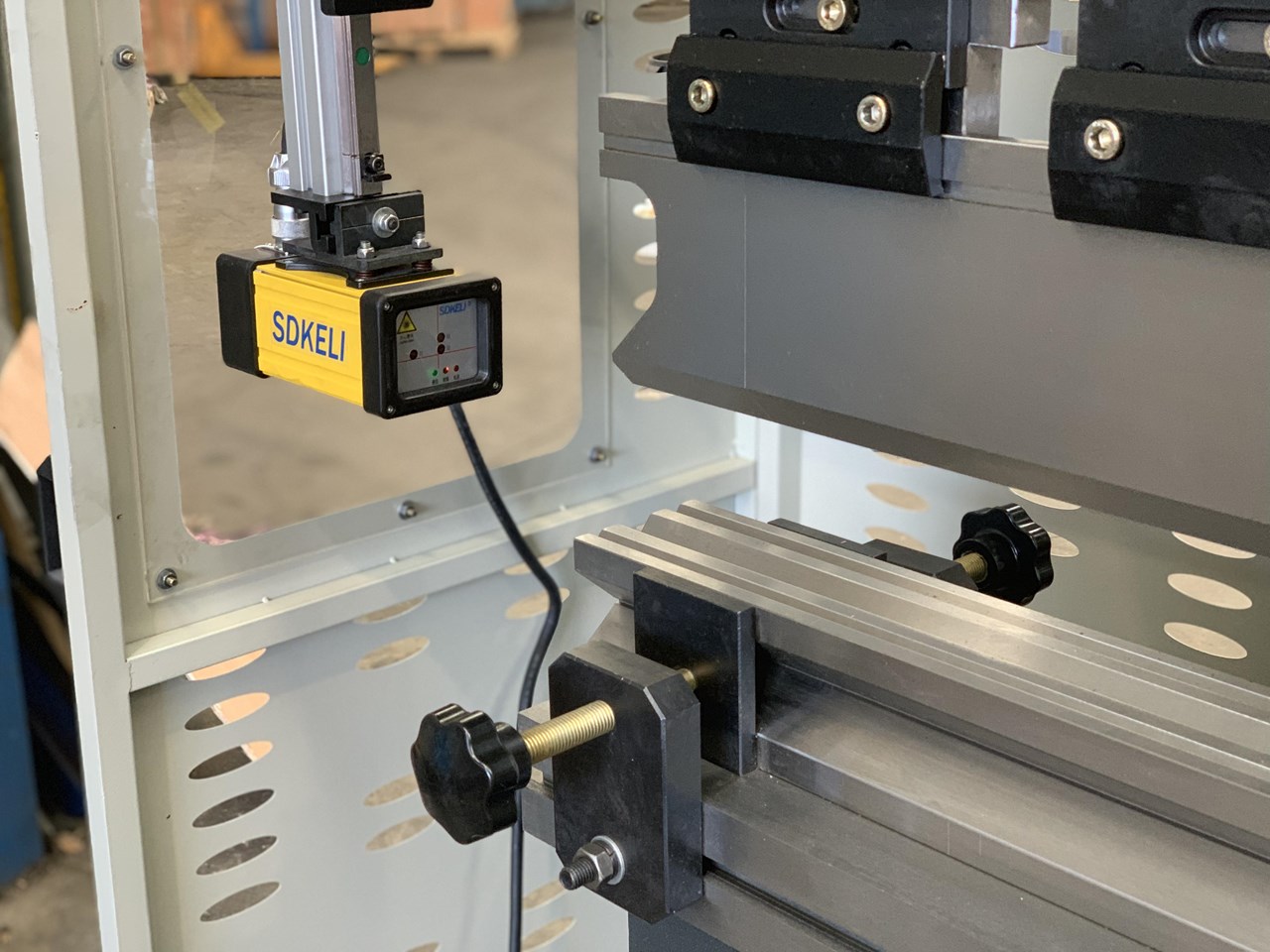

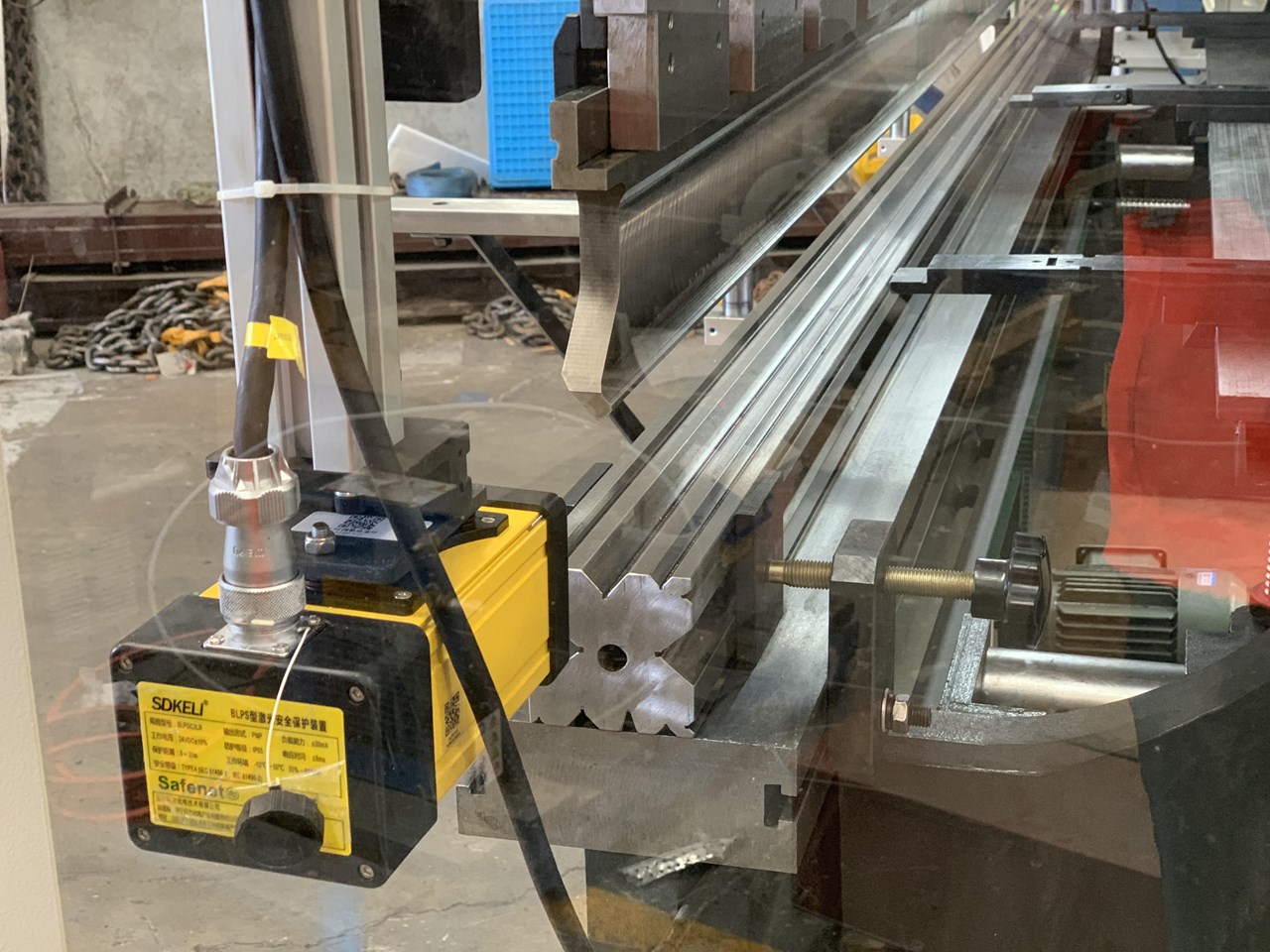

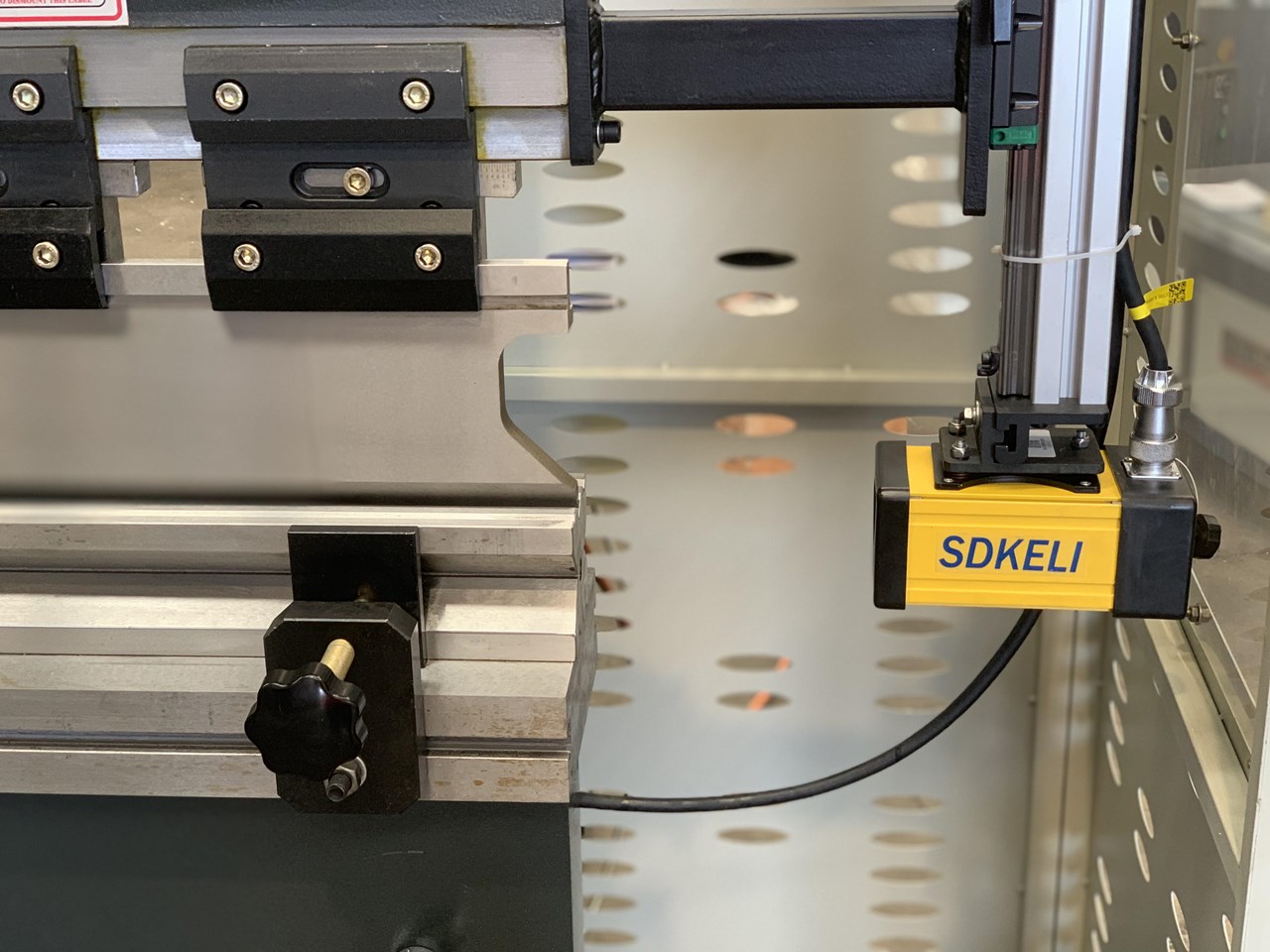

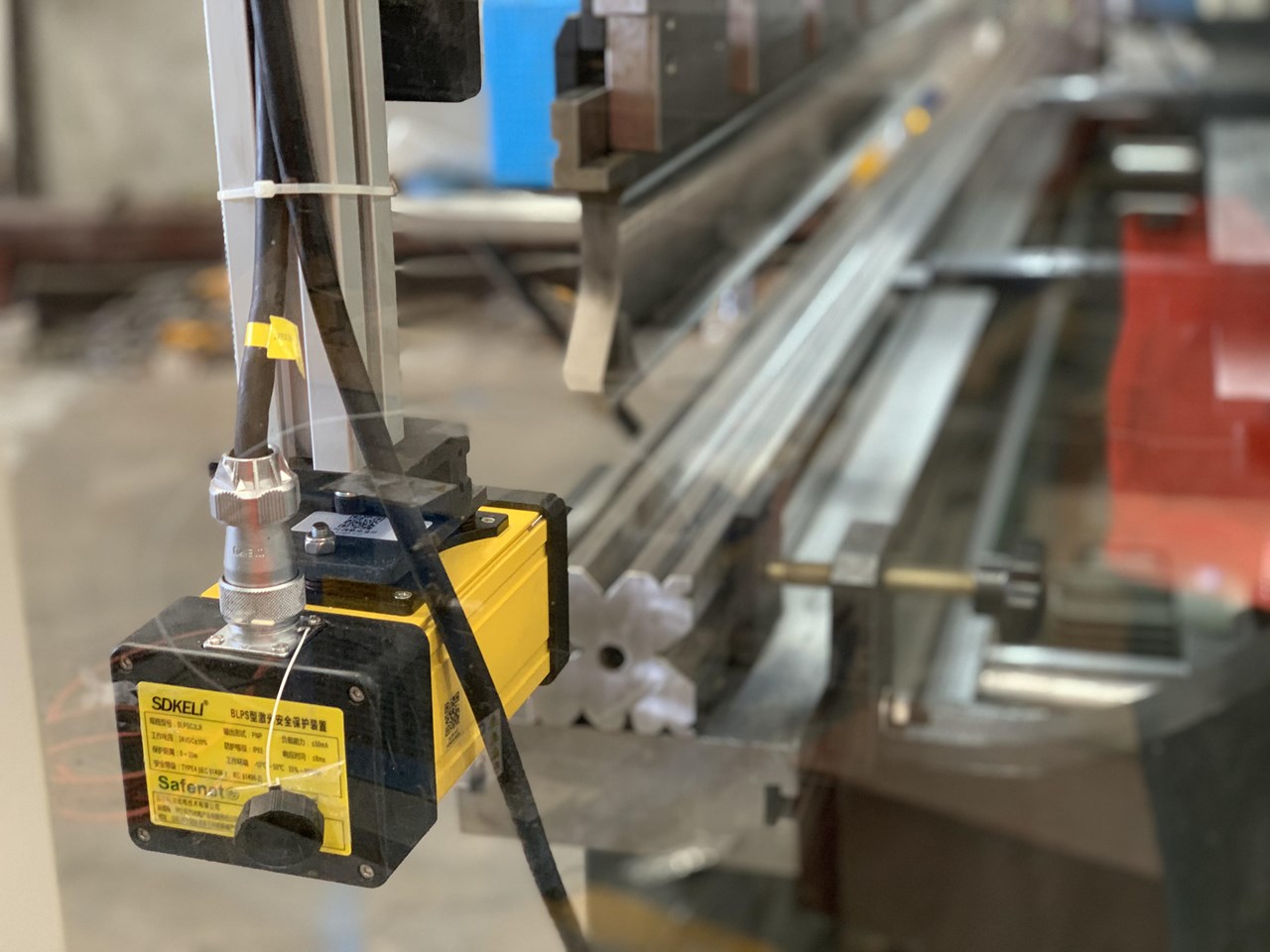

Front OH&S Laser Guards Included in Offer

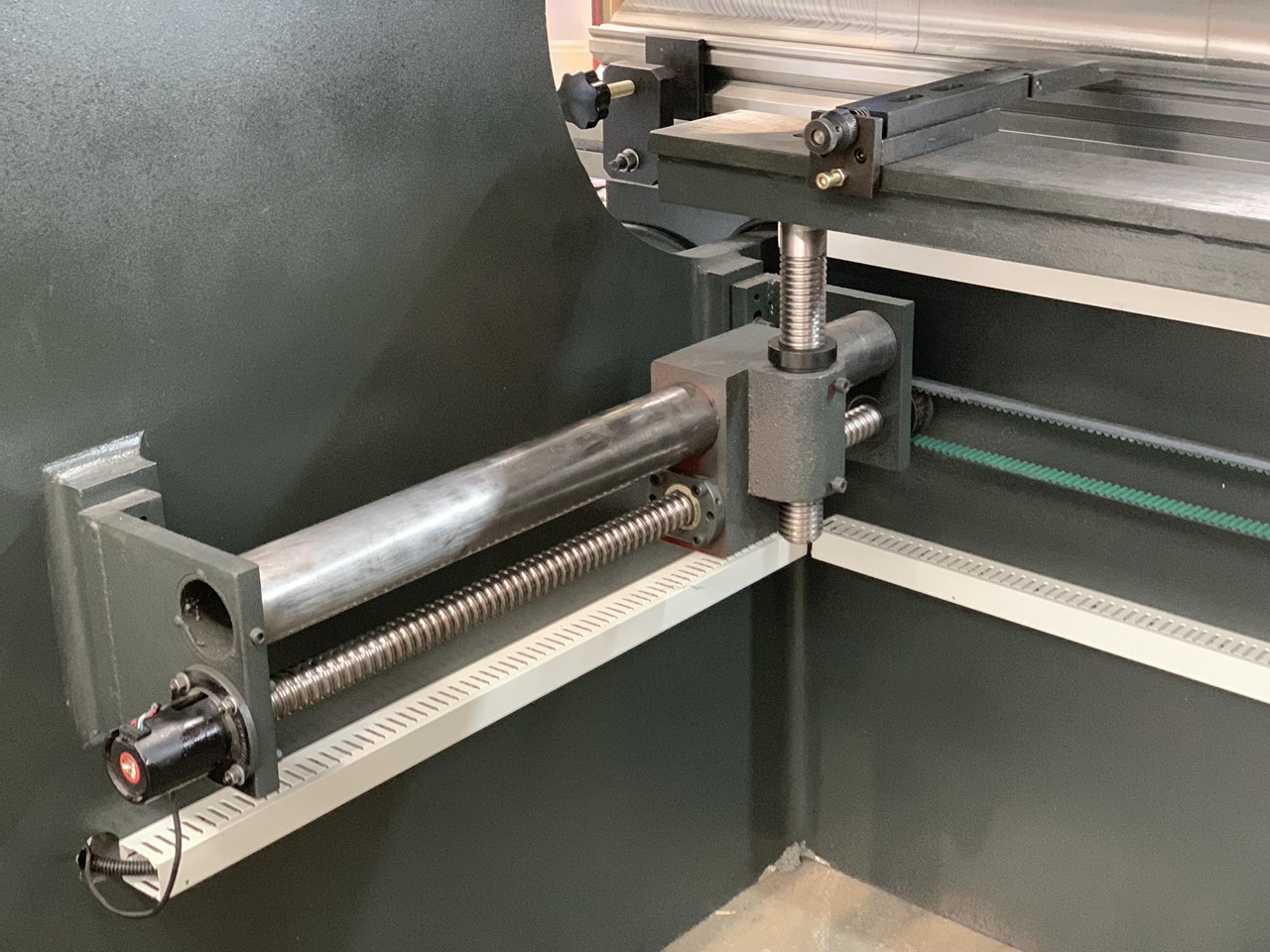

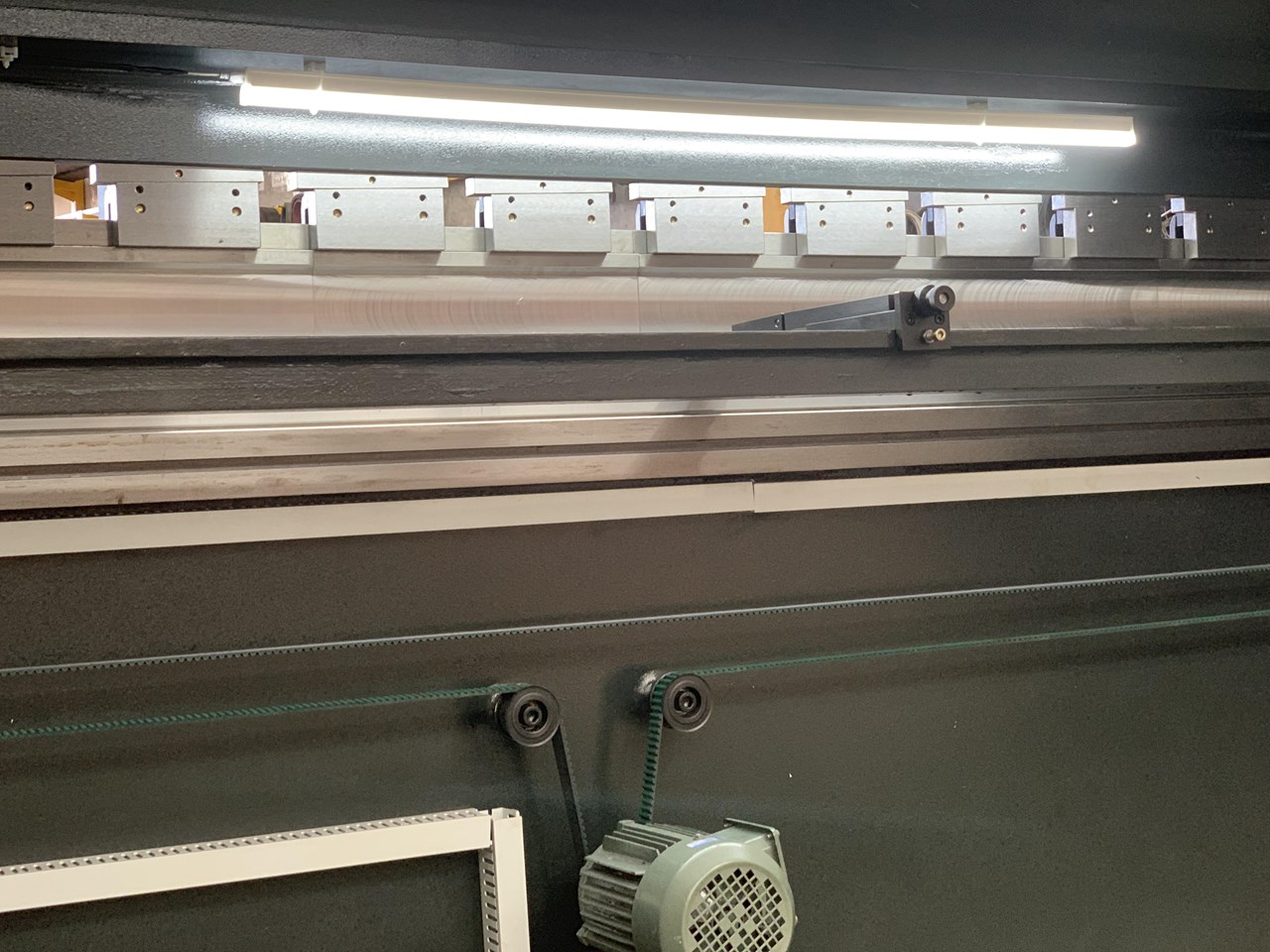

precision ball screw Backgauge
tee slotted front beam
3200mm Bending Length
2650mm Distance Between Frames
320mm Side Throat Depth
150mm Ram Stroke
420mm Open Height
600mm Back Gauge Travel

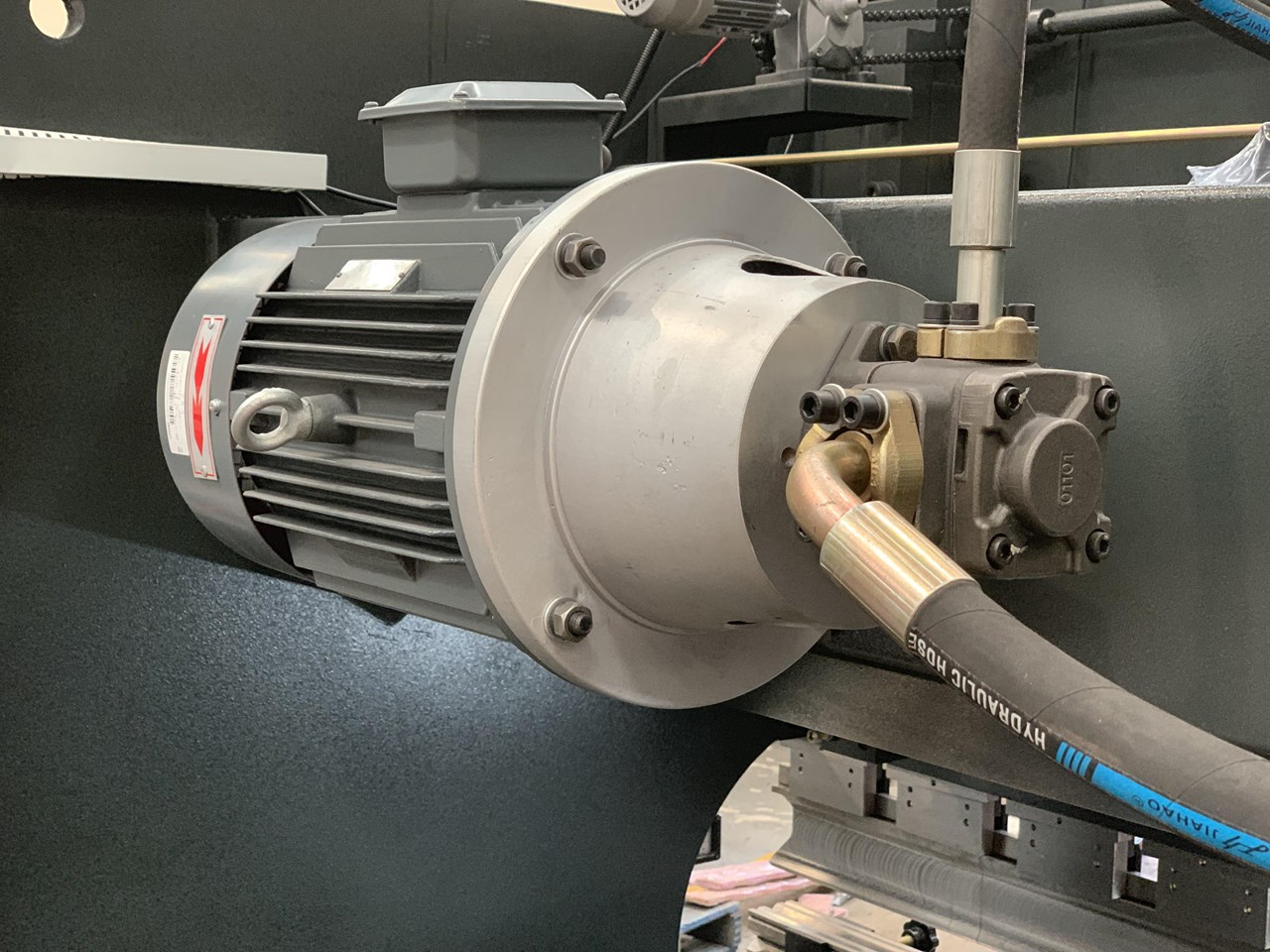

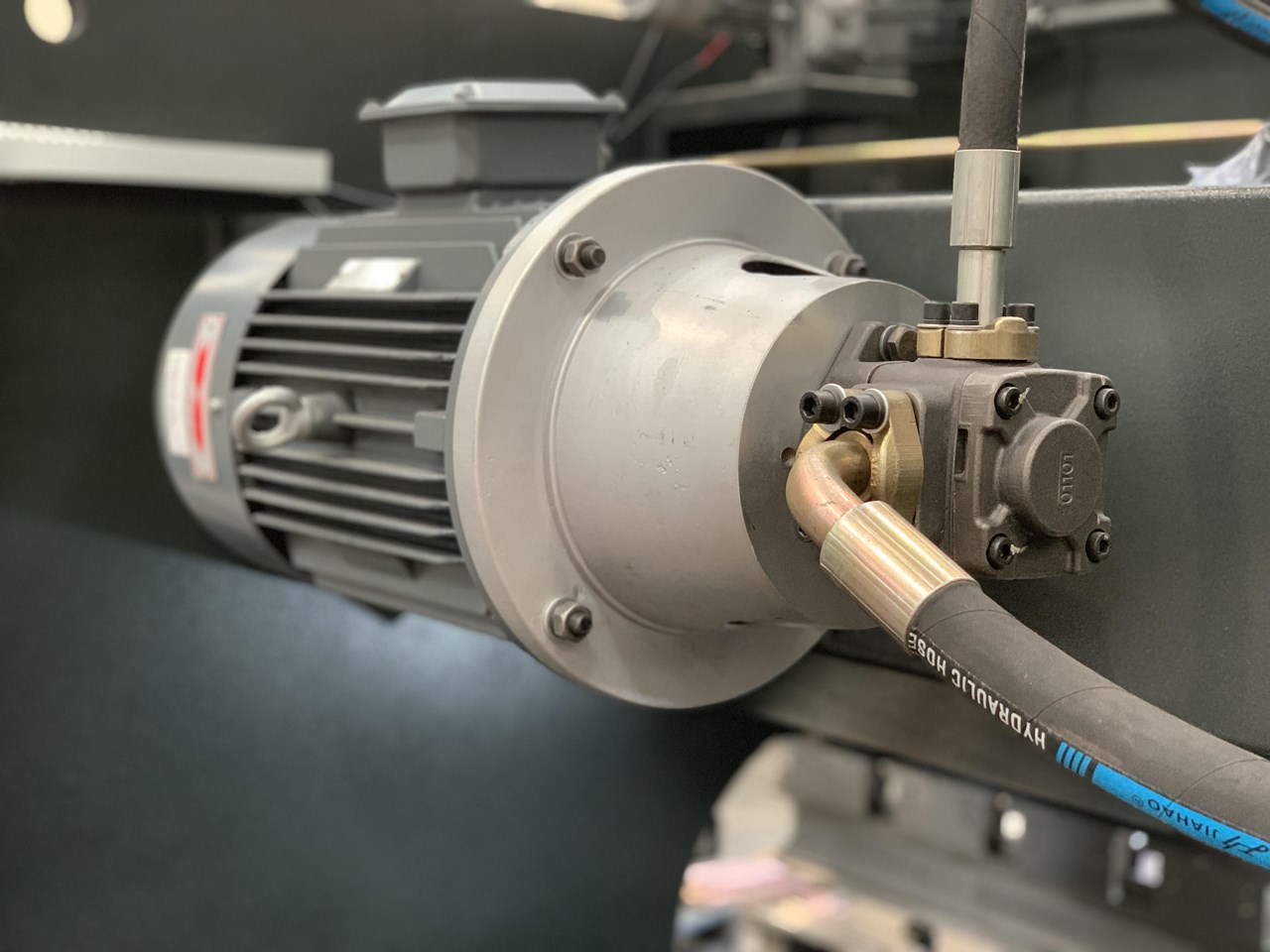

7.5Kw / 415V Motor Power
3580mm x 1850mm x 2690mm Footprint
8800Kg Weight

Standard Tooling Supplied
95mm x 95mm x 3200mm Multi Vee Bottom Vee Block
Segmented Knife Tooling

Optional Items To Be Added
Front OH&S Laser Guards Included in Offer (Included on This Offer)
Quick Release Tool Clamps
Manual Table Crowning
