AXO GODSWILL PAPER SHREDDER PLANT SYSTEM WITH AUTO TIE BALER AND CONVEYOR

This system is in great working condition. It was pull out of a working environment where it was shredding bulk lots of documents.

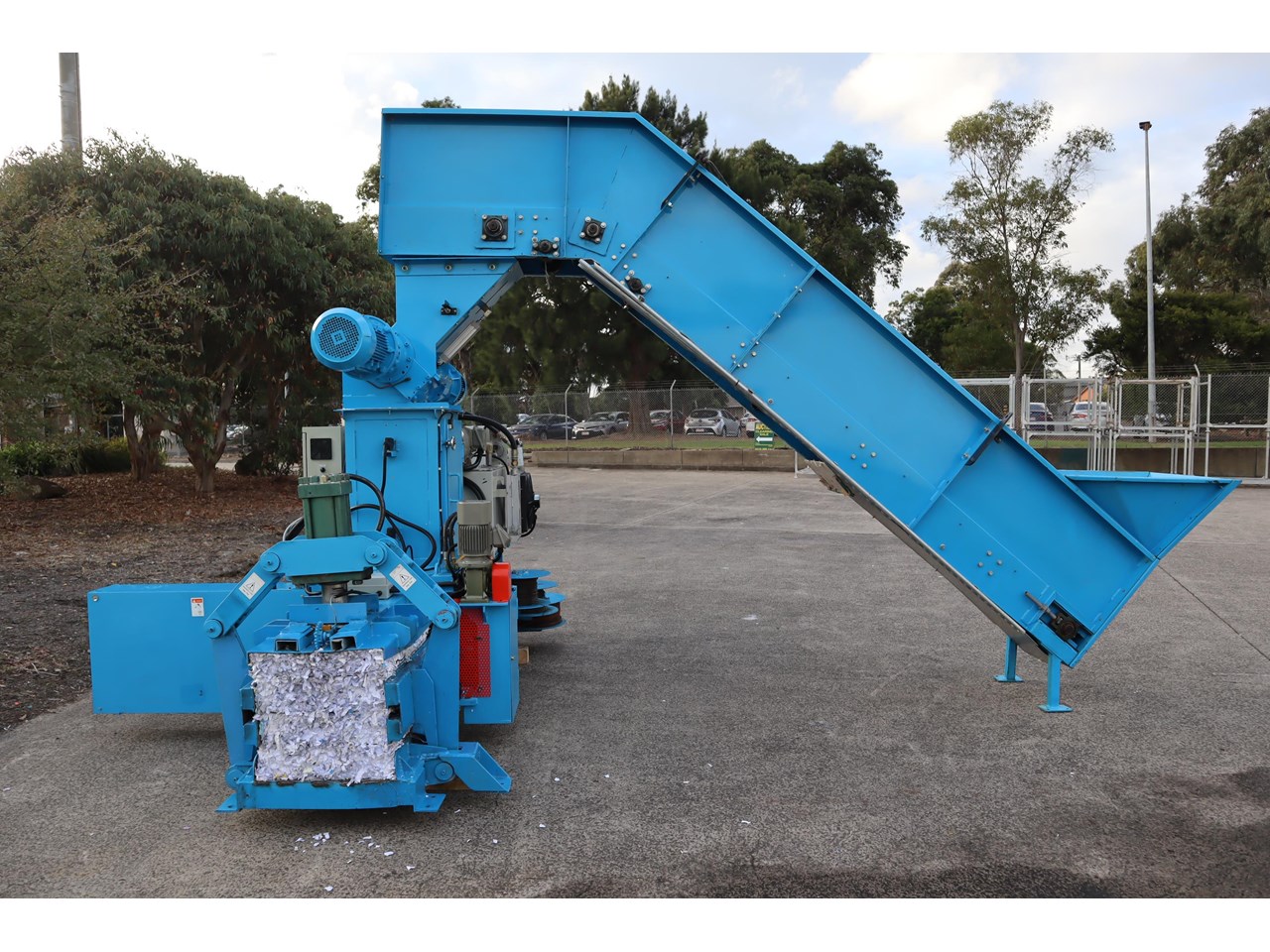

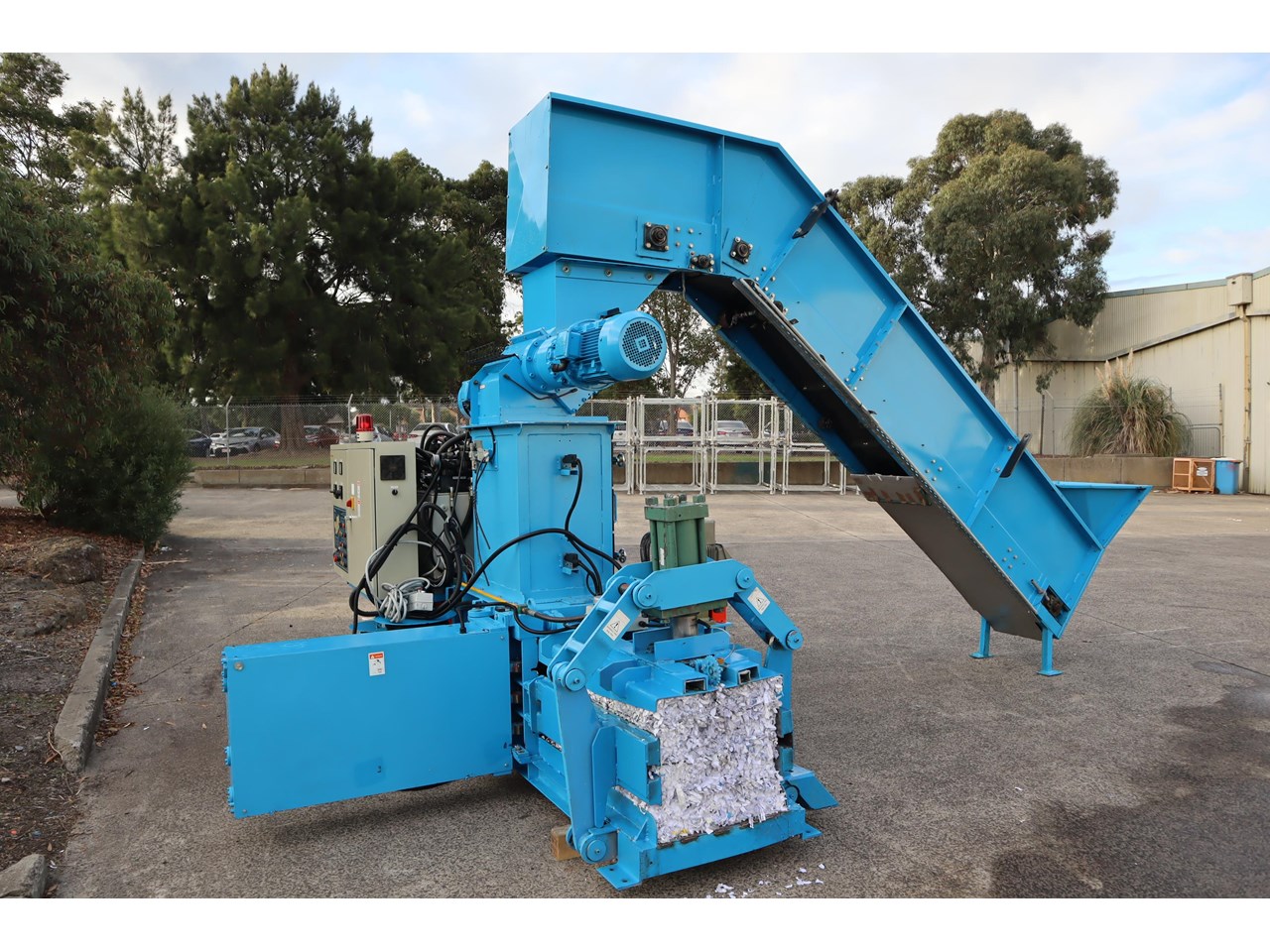

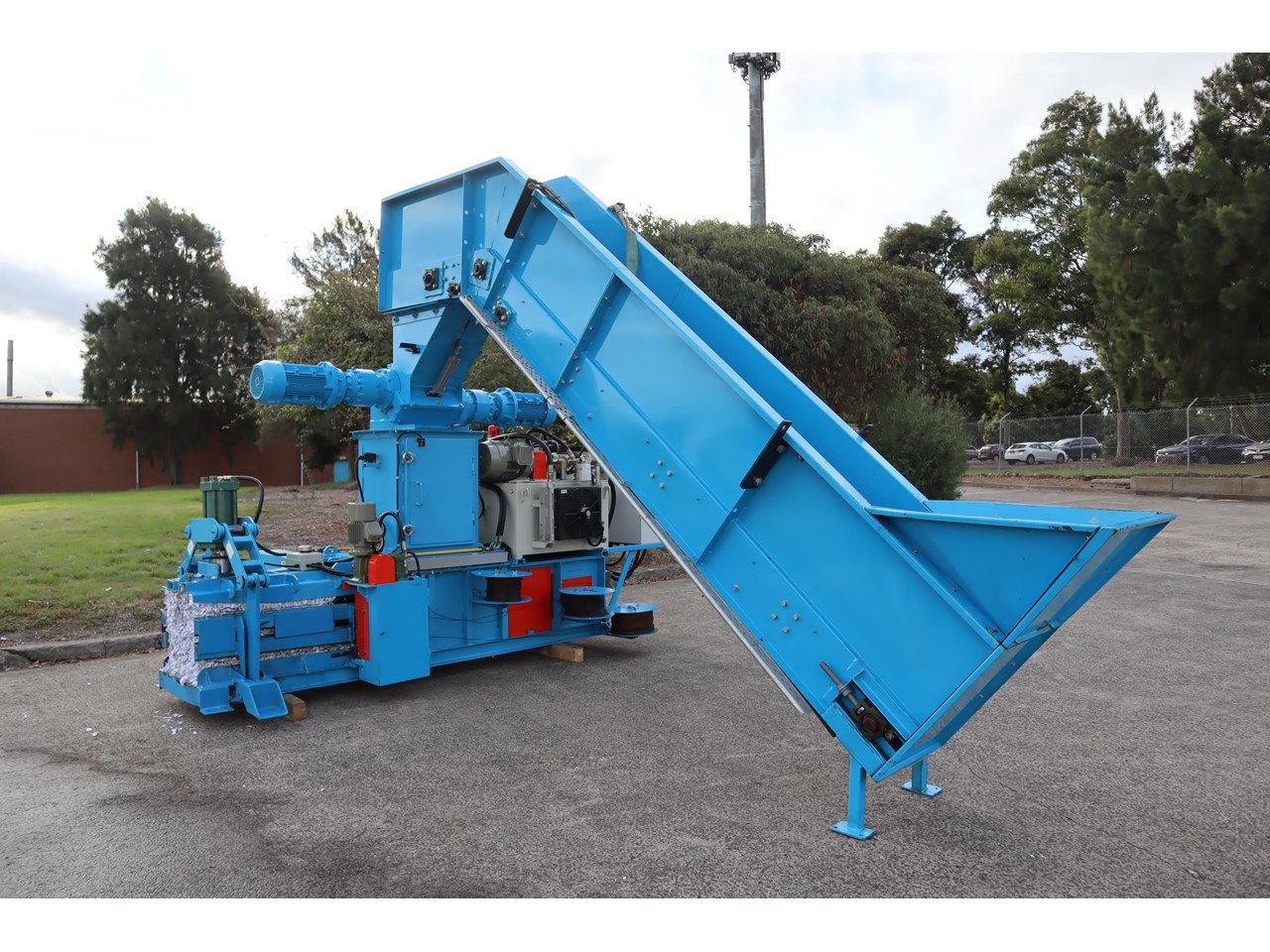

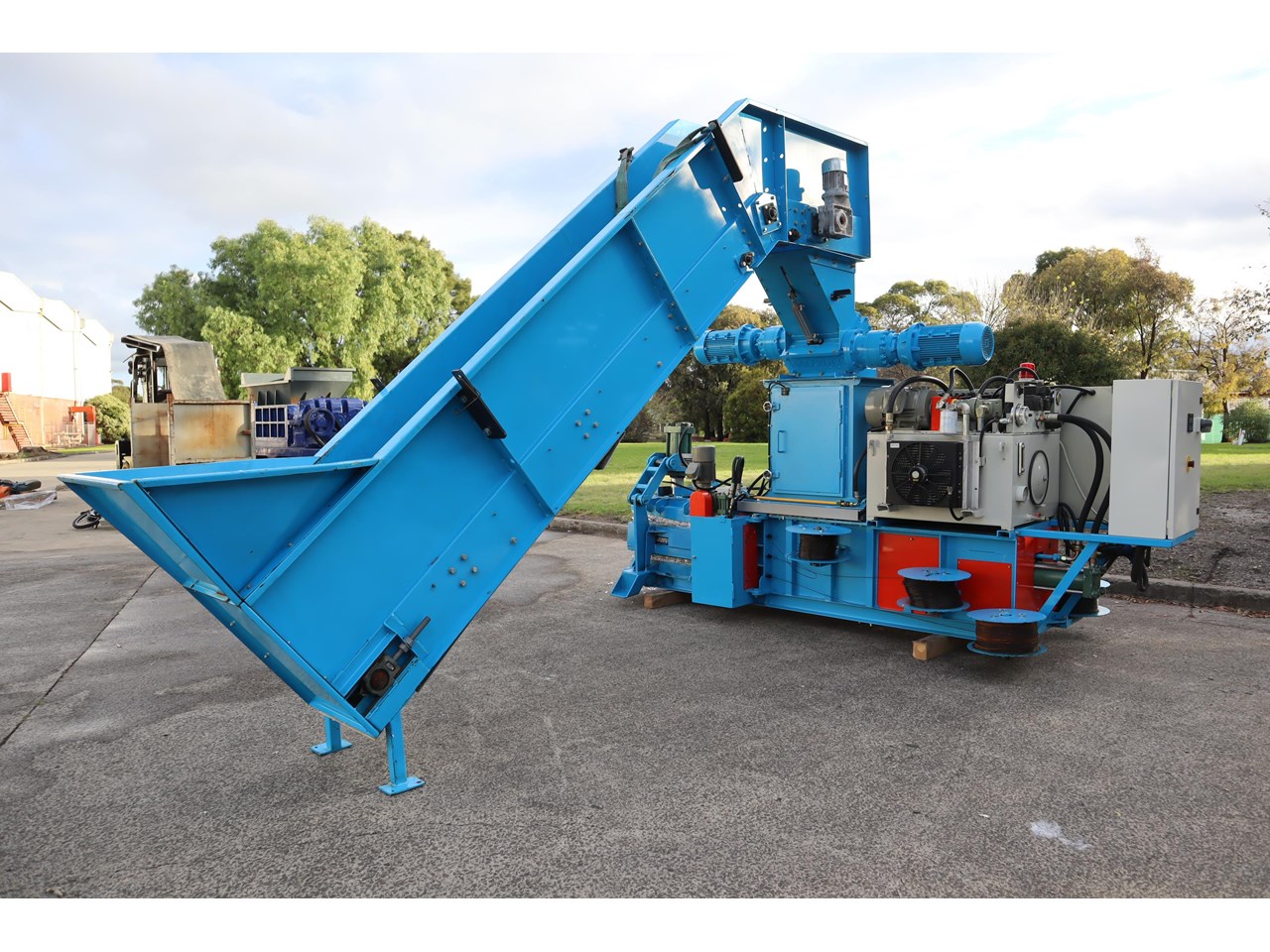

The system consists of a 15kW twin shaft shredder, 10HP auto tie baler, and a large incline infeed conveyor.

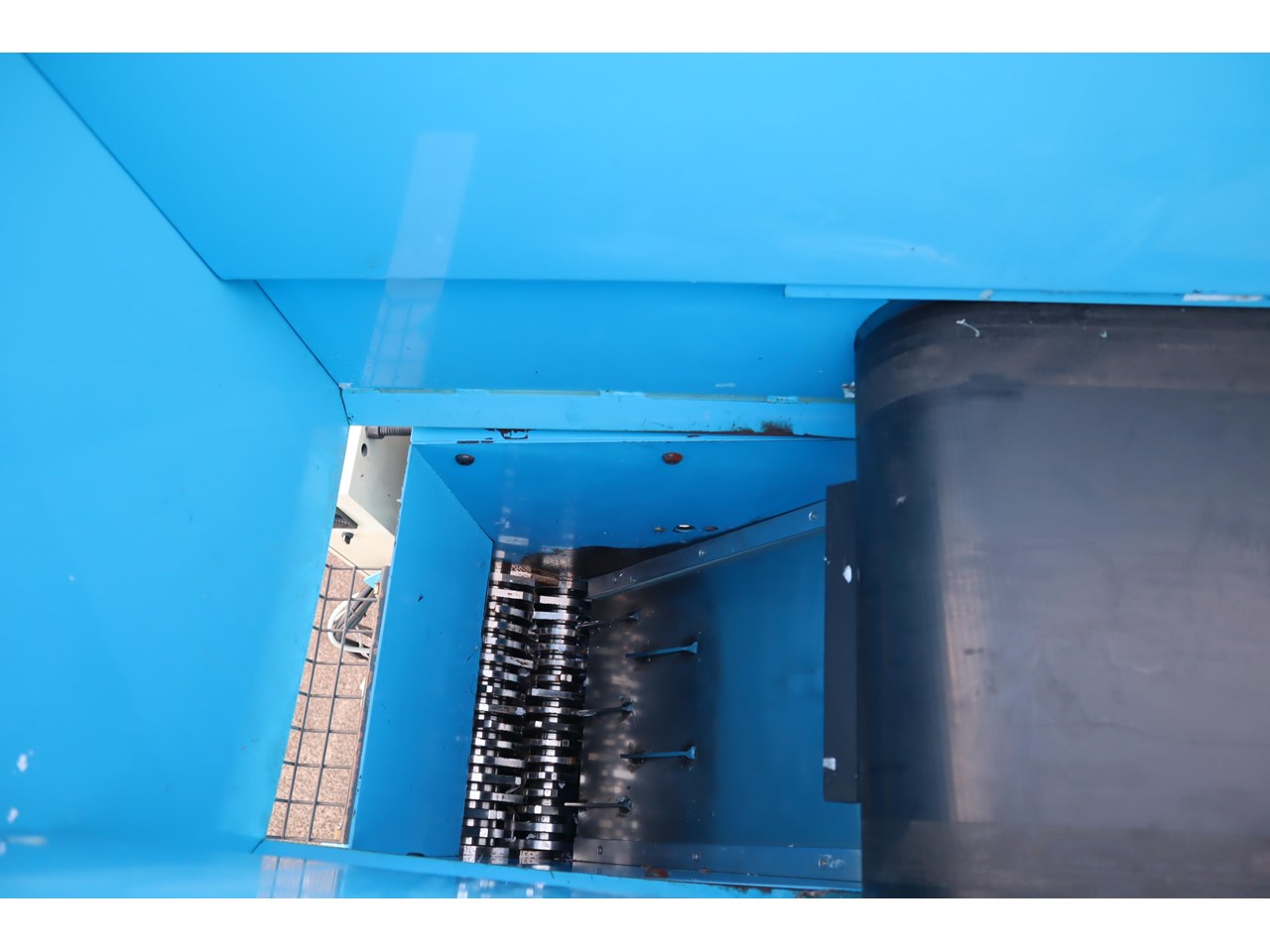

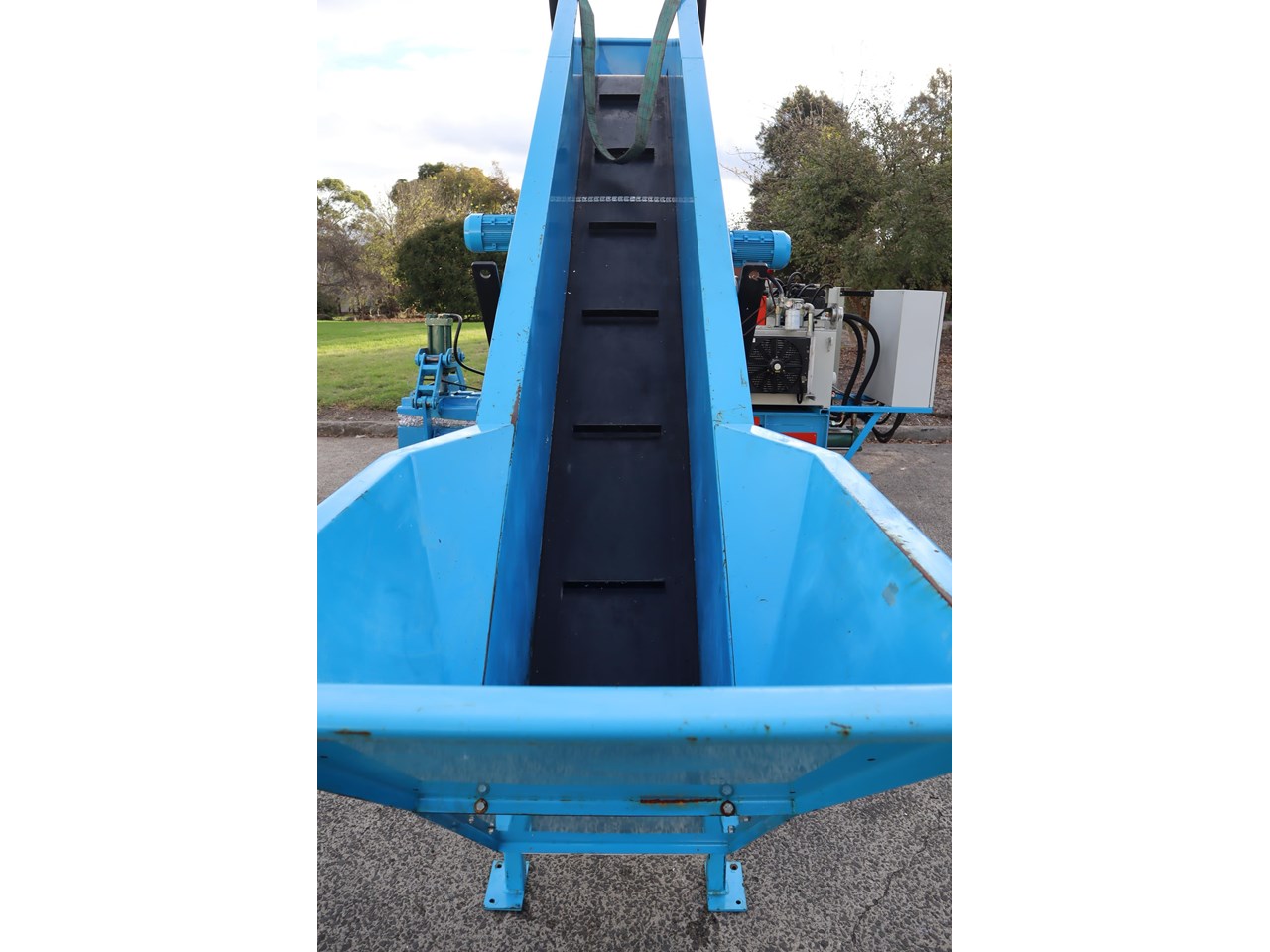

Utilising a 410mm wide infeed conveyor with receiving hopper the WM408E can shred at its optimum efficiency of over 1000kg per hour. The shredded product is fed into an AXO Work-Horse Auto Tie Baler.

The plants use minimal floor space and can be operated by one person.

Shredder Make: AXO
Model: WM408-12E

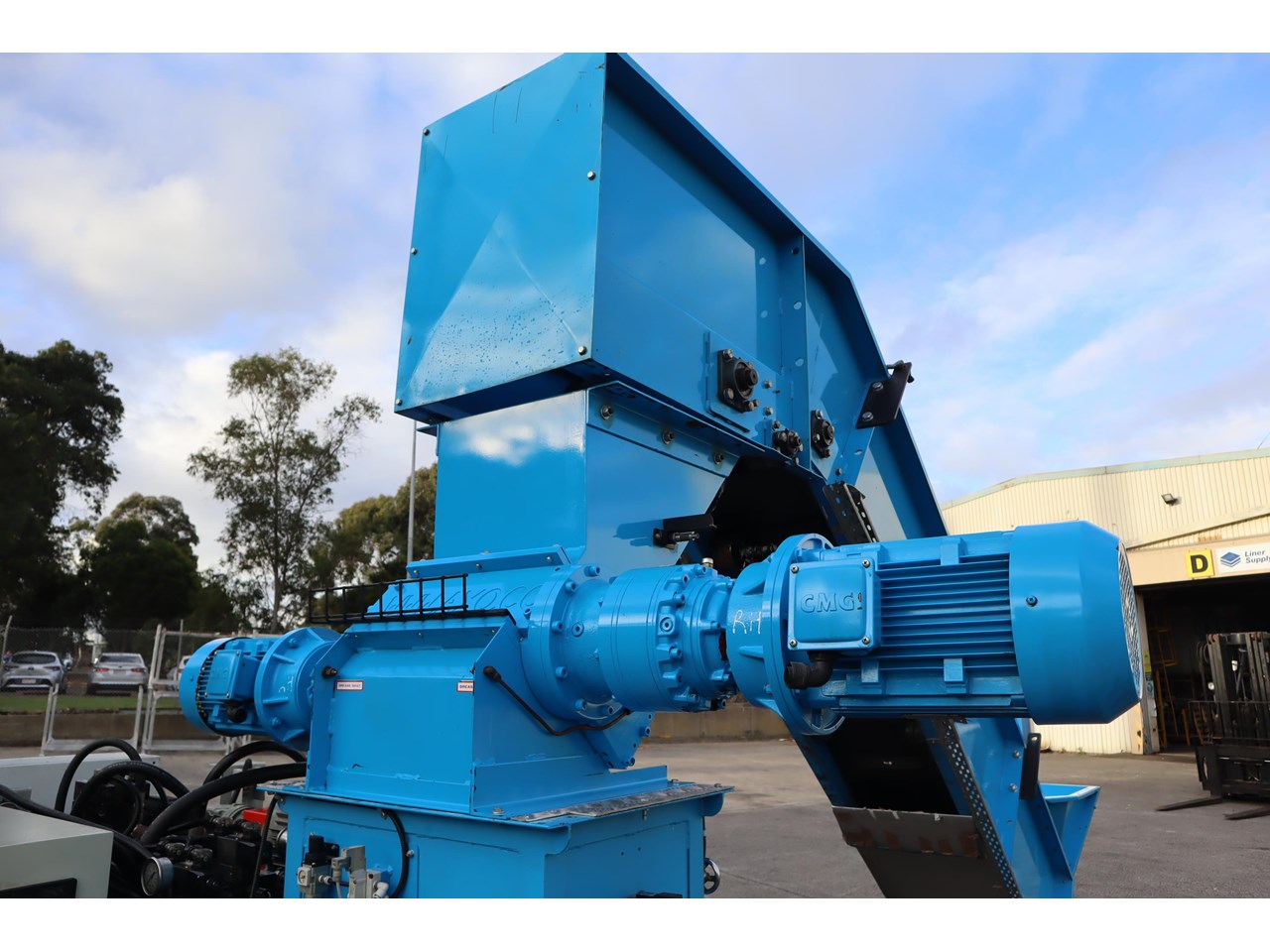

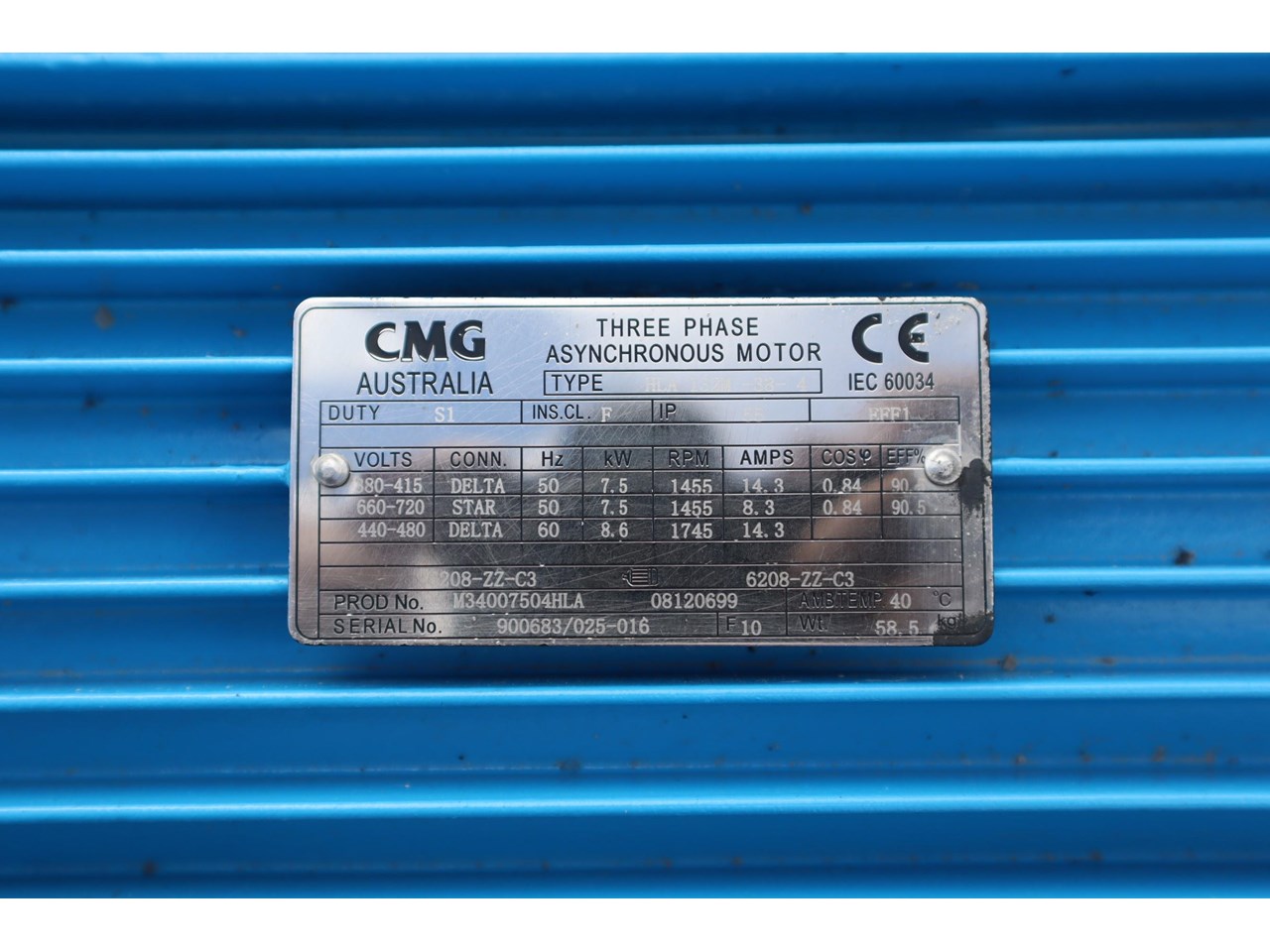

Motors: 15kW (2 x 7.5kW)

Shredder Opening: 600 x 400mm

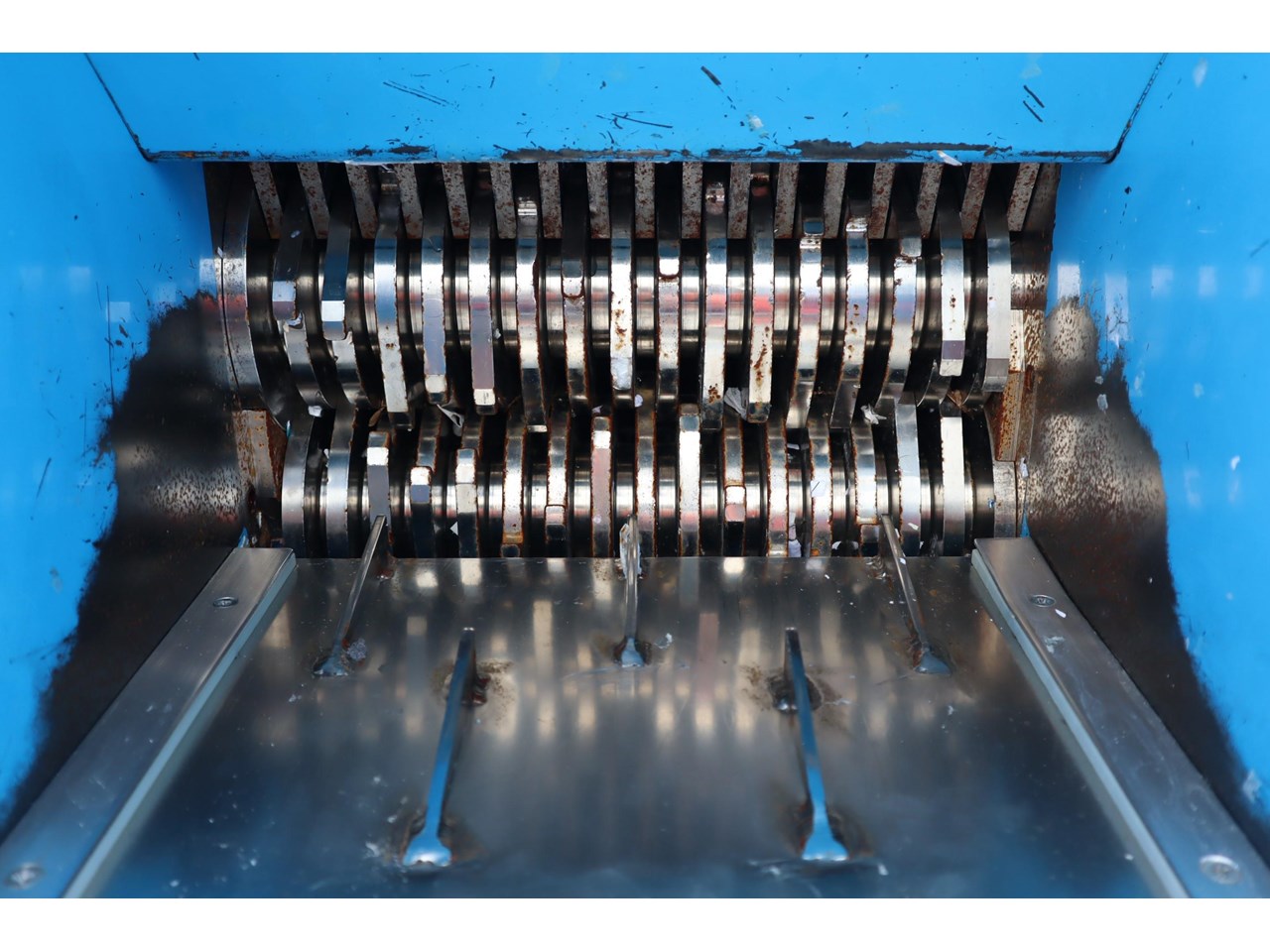

Blade Thickness: 12mm

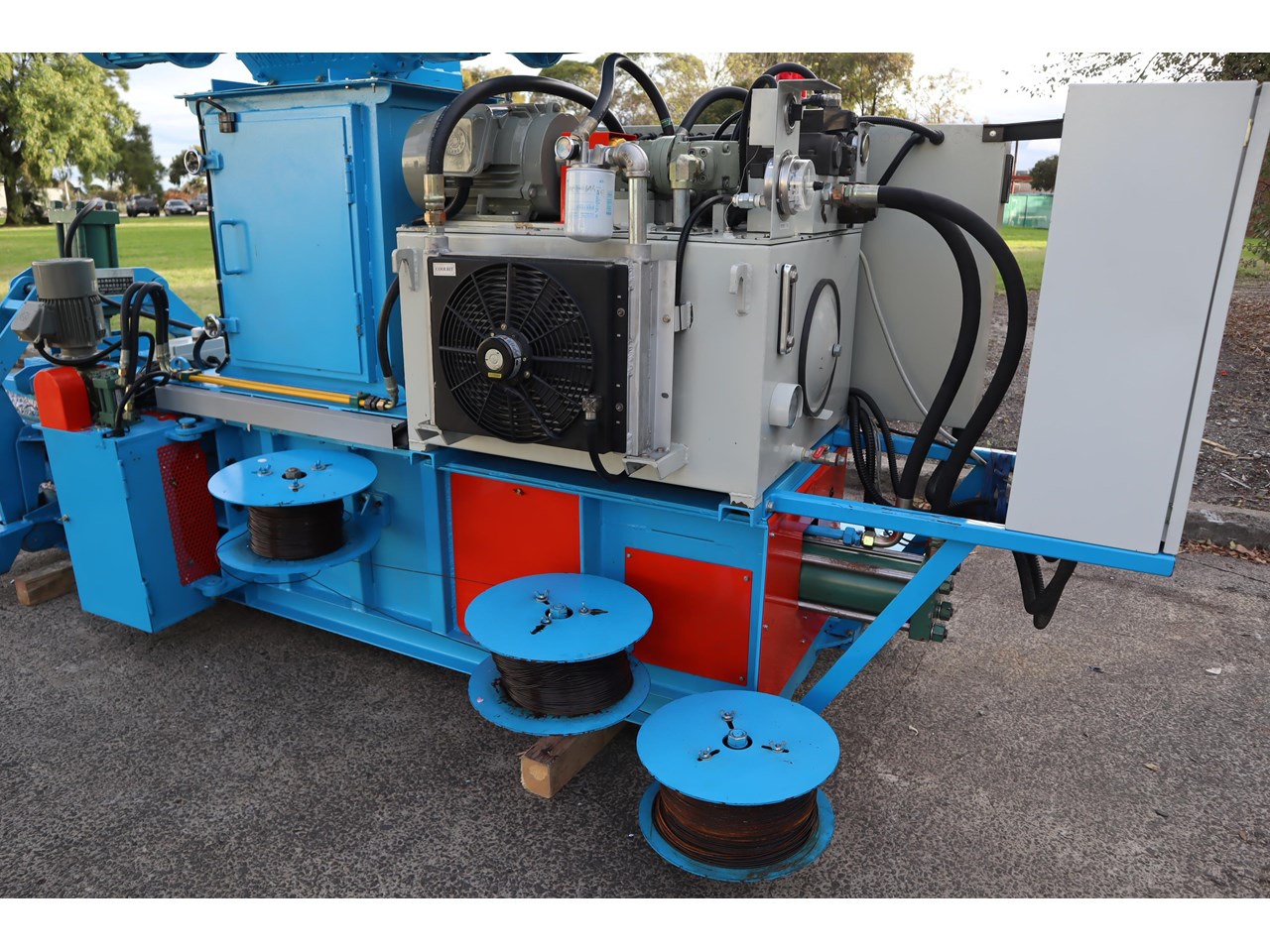

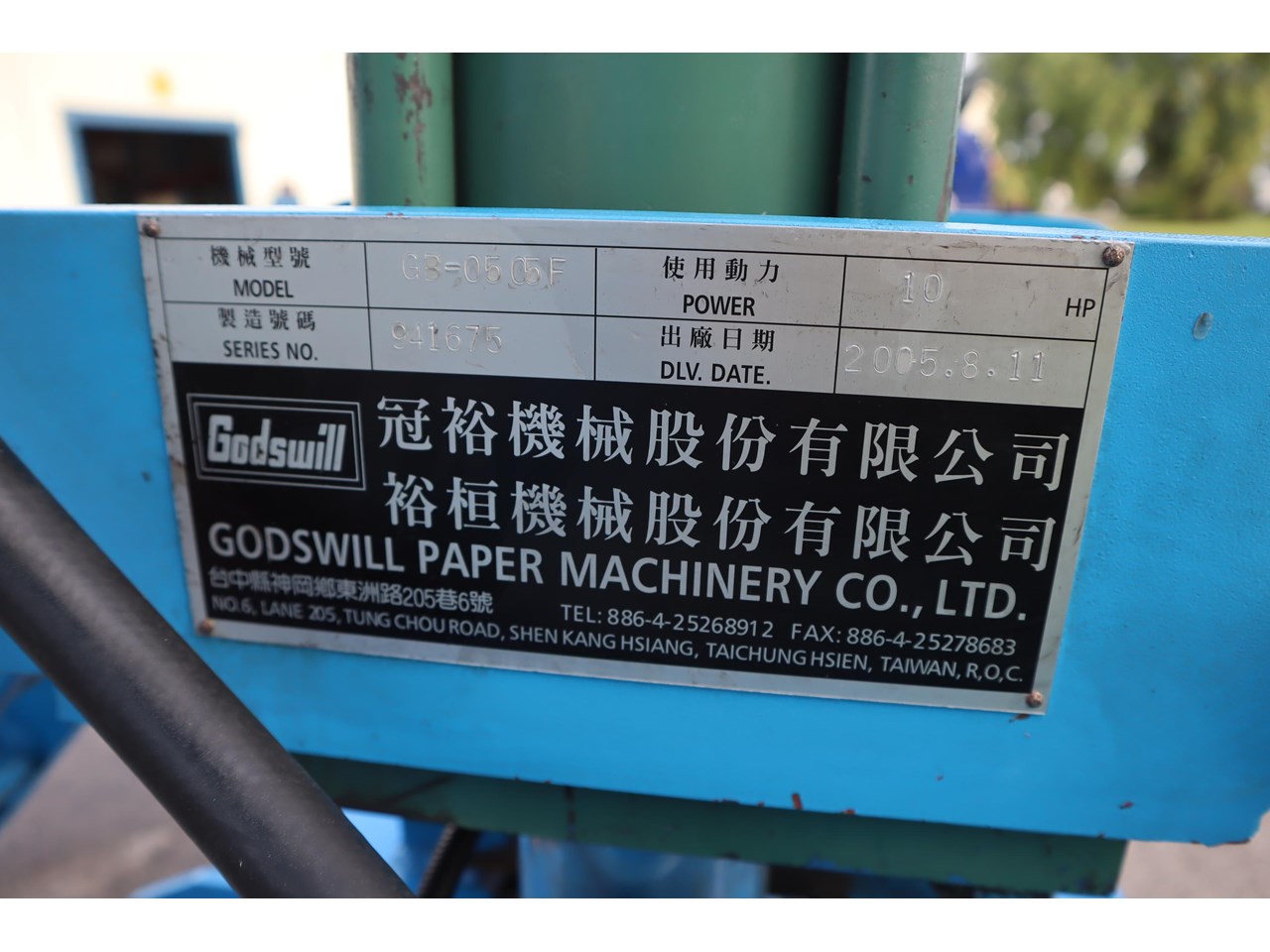

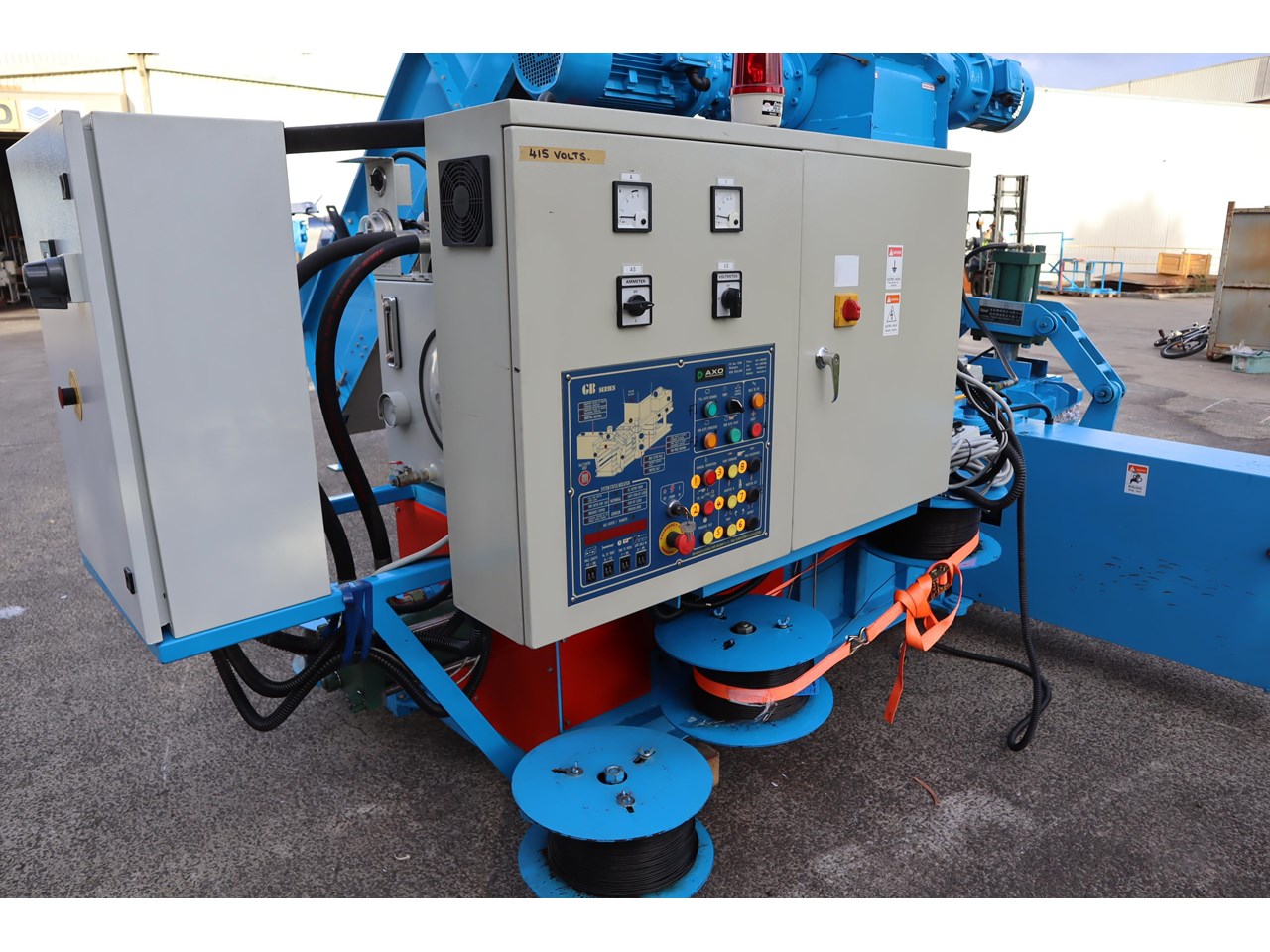

Baler Make: Godswill
Model: GB-0505F
Power: 10HP (7.5kW)

Bale Chamber(mm): 500 x 500 x 900

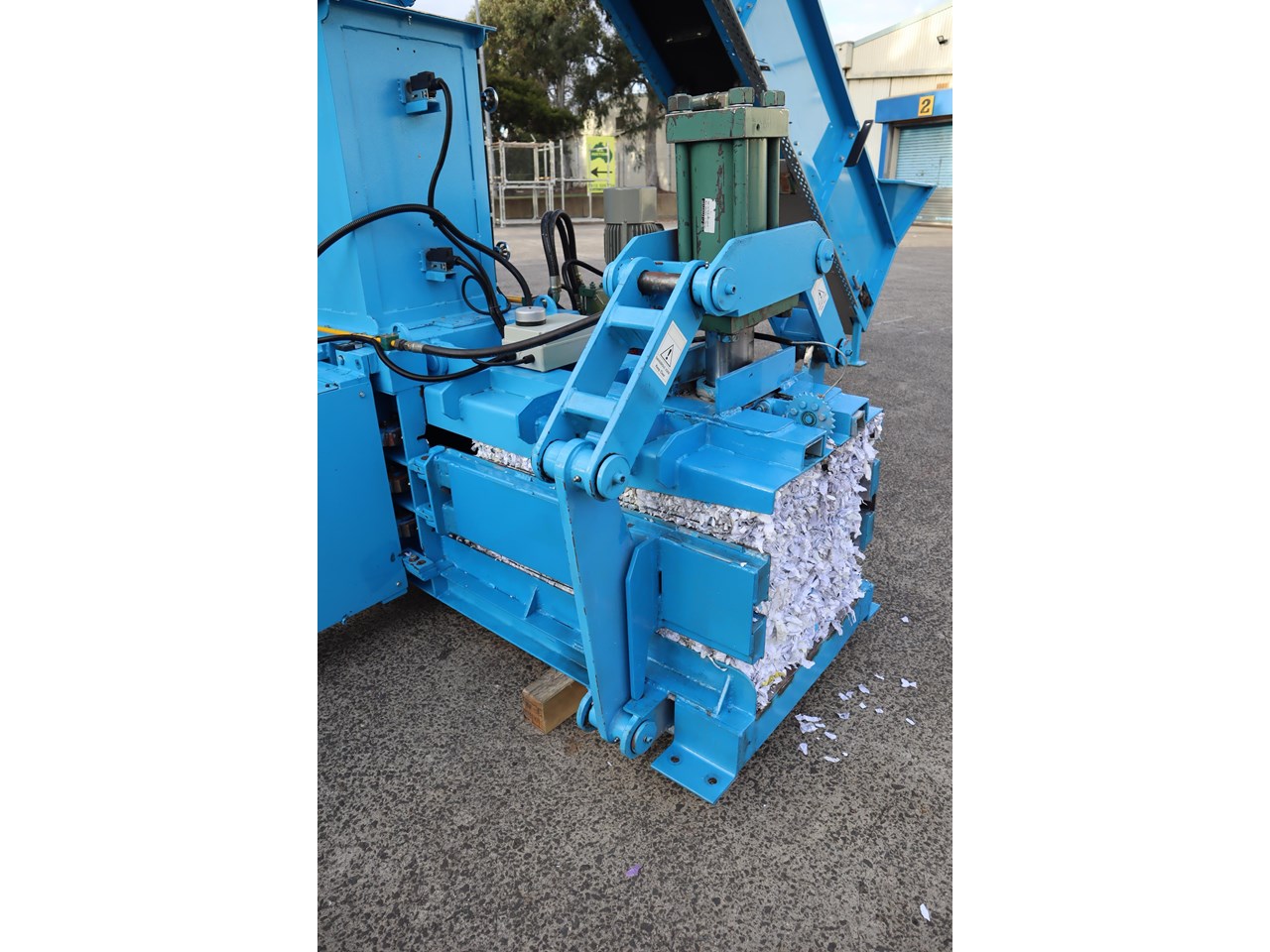

Bale Dimensions(mm): 500 x 500 x 600
Bale Density (O.C.C): 450~500 (kg/ m3)

Max.tdrust Force: 21 Ton (170kg / cm2)
Cycle Time (Unload): 13.8 sec
Production (40~60 kg/m3): 1~1.5 TPH

Weight: ~4 Ton
Overall Dimensions (mm): 3820 l x 2300 w x 2500 h (Dimensions not including conveyor)
