Contact Seller
Features
| Title | BAILEIGH RDB-050 |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BAILEIGH |
| Model | RDB-050 |
| Sale Price | $2,540 GST Exclusive |
| Listing Type | New |
| Stock Number | 931396 |
| RefCode | TA1265619 |
Description
RDB-050 Manual Pipe & Tube Rotary Draw Bender ??3/4`` - ??1-1/2`` NB Pipe Capacity, ??19.05 - ??63.5mm Rou
BAILEIGH RDB-050 Manual Pipe & Tube Rotary Draw Bender ??3/4`` - ??1-1/2`` NB Pipe Capacity, ??19.05 - ??63.5mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8000

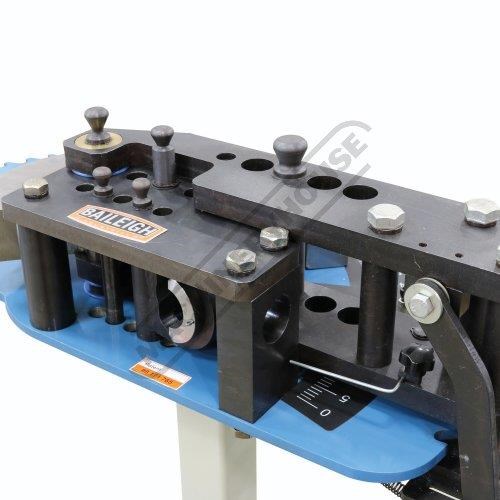

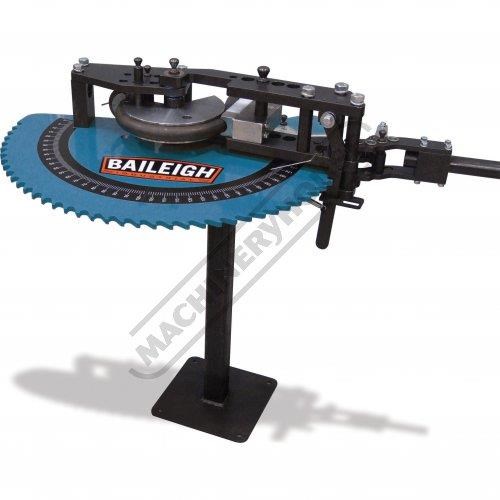

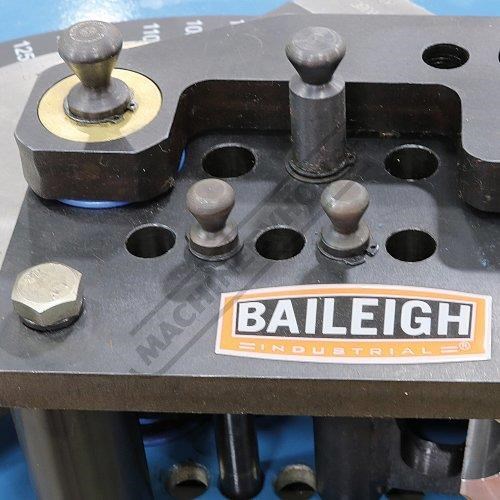

NOTE: Image shown with Optional Tooling.
Need an affordable but powerful bender with enough capacity for almost about any chassis fabrication shop? Baileigh???s patented RDB-050 Manual Tube Bender is revolutionary in function, capacity, and efficiency.

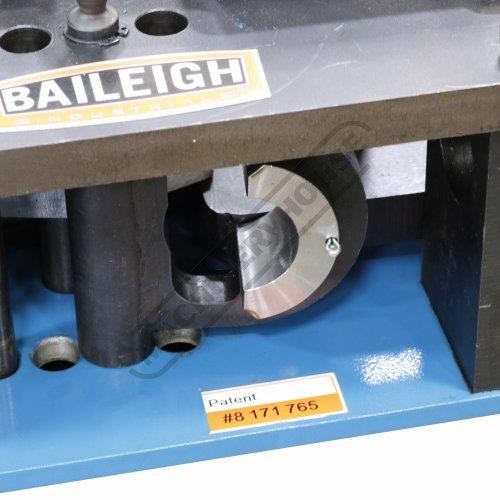

U.S Patent No. #8,171,765
Features:
Tackles up to 63.5mm OD mild steel with a wall thickness of 3.05mm and 50.8mm OD Chromoly with a wall thickness of 3.05mm
Choose from 3 bending speeds depending on material type OD and wall thickness to proper speed for each application
Speed 1 produces 4?? per pull. This speed has the most torque suitable for bending 50.8mm OD Chromoly or 63.5mm OD mild steel
Speed 2 produces 8?? per pull for intermediate materials
Speed 3 produces 12?? per pull for lighter gauge materials
Bends up to 200?? in one shot without you needing to stop and reset the machine

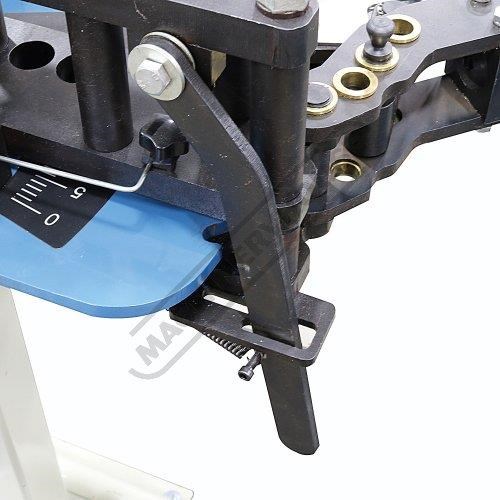

Anti-springback mechanism holds each bend in place as the operator ratchets forward
No assembly or disassembly needed to produce a bend

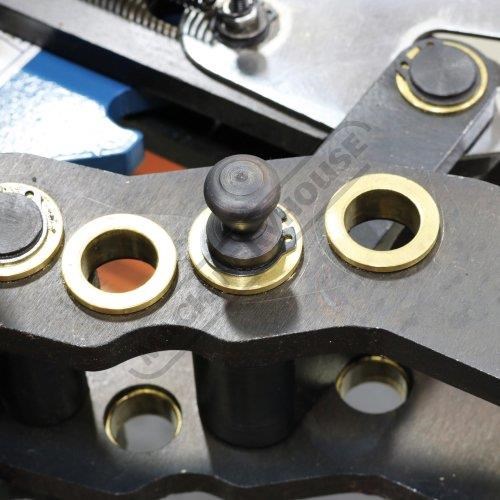

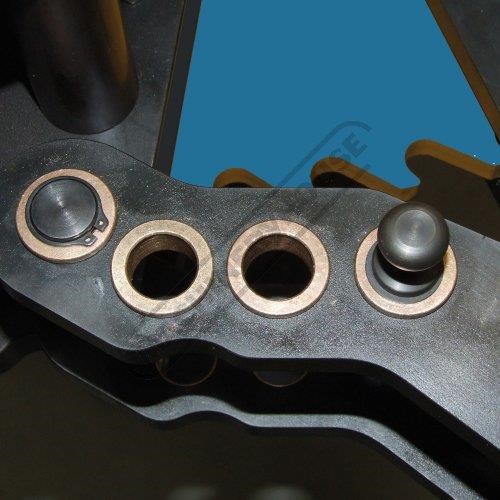

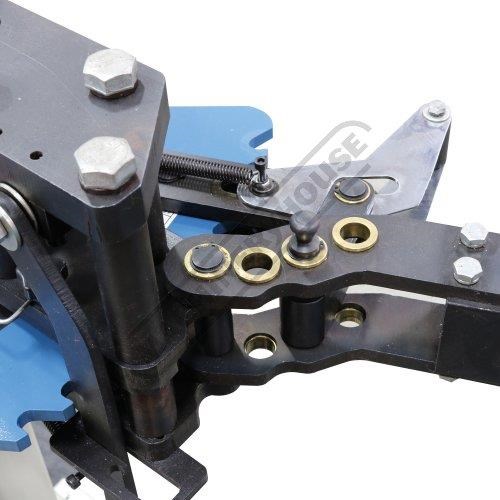

All pivot points use aluminium bronze bushings and thrust washers for long machine life
Quick-release hook arm inserts assist when you???re changing over the machine to a different size of tubing. You can do a complete changeover in 1 minute or less
Just walk up to the machine put your tubing into the hook arm insert and begin bending. When the bend is complete return the machine to the home position pull your bend out???and you???re all set

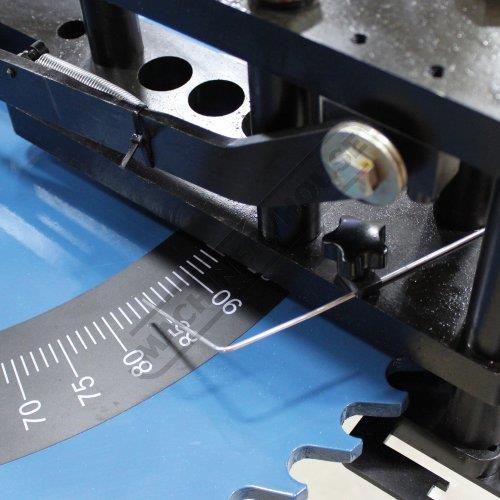

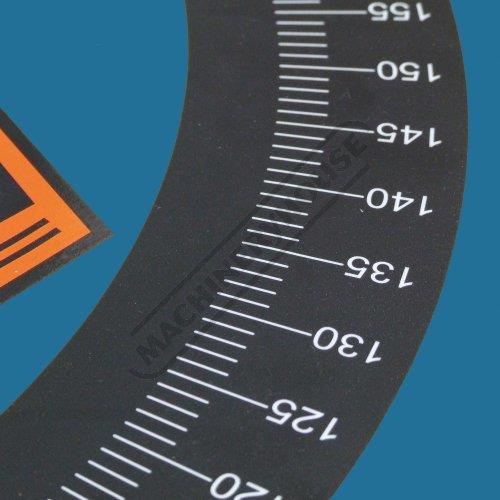

Comes complete with the stand bend handle and degree dial. Just add tooling and you???re ready to bend tube
Includes:
- Stand
Specifications:
ORDER CODE: B8000
MODEL: RDB-050
Material (Type): Pipe & Tube
Material Section (Type): Round
Machine (Type): Manual - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ??3/4`` - ??1-1/2``
Round Tube Range (OD) - Mild Steel (inch / mm): ??19.05 - ??63.5
Square Tube Range (inch / mm): ~
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ~
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ~
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ??63.5 x 3.05
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ??63.5 x 3.05
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ??50.8 x 3.05
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ??50.8 x 3.05
Solid Rod - Mild Steel (inch / mm): ??25.4
Square Tube x Wall Capacity - Mild Steel (inch / mm): ~
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 177.8
Centre Line Radius - Minimum (CLR) (inch / mm): 76.2
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 200??
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 132
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B8000'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
