Contact Seller
Features
| Title | BAILEIGH RDB-500 |
| Type | Engineering - Fabrication |
| Sub Type | Shaping Equipment |
| Class | Shaper |
| Make | BAILEIGH |
| Model | RDB-500 |
| Sale Price | $44,950 GST Exclusive |
| Listing Type | New |
| Stock Number | 498547 |
| RefCode | TA1265746 |
Description

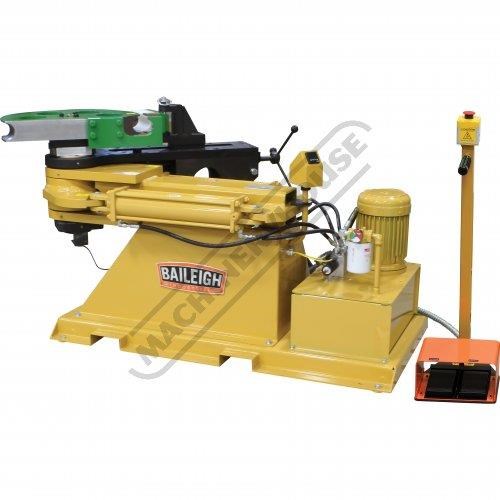

RDB-500 Hydraulic Pipe & Tube Rotary Draw Bender ??1/2`` - ??3`` NB Pipe Capacity, ??6.35 - ??76.2mm Round
BAILEIGH RDB-500 Hydraulic Pipe & Tube Rotary Draw Bender ??1/2`` - ??3`` NB Pipe Capacity, ??6.35 - ??76.2mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8105

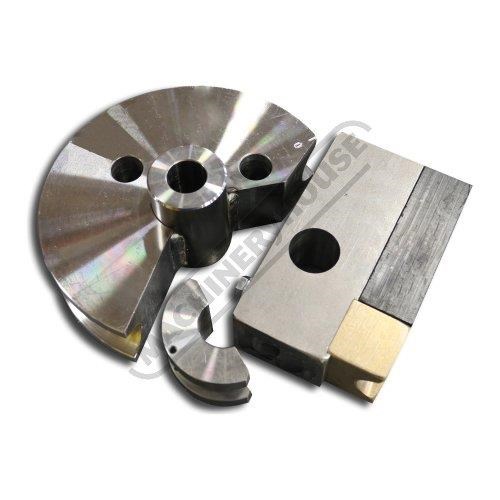

NOTE: Image shown with Optional Tooling.
If you need to bend big pipe???and we mean really big pipe ??? then this is the industrial hydraulic rotary draw bender for you.
Use this machine for: Military production, oil rigs, gas station bumpers, and other applications involving large-radius pipe.
Features:
Why choose the RDB-500 over similar machines?
This pipe bender is made in the USA to the highest quality standards.
You can take on profitable military and industrial bending projects and know that your bender is up to the job.
Includes accuracy-enhancing auto-stop a feature that some companies consider an upgrade.
Fast cycle time makes your shop more efficient.
Easily accommodates 5000+ drop-on tooling options. And if you don???t see the tooling you need we can customize it for you.

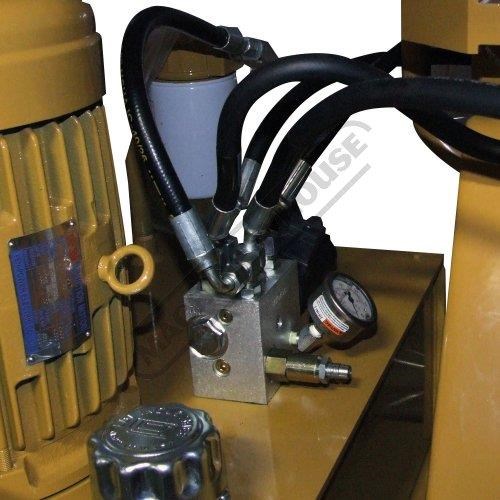

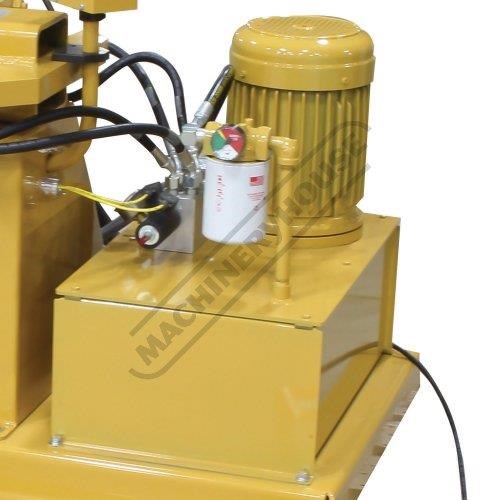

Industrial-grade low-pressure hydraulic system runs on 415 Volt 3-phase power
Handles a maximum capacity of 3`` NB (7/32`` schedule 40) pipe 76.2mm square and 88.9mm round tube (4.77mm wall mild steel)
Maximum centre line radius of 20`` (508mm) depending on wall thickness and material
Bends pipe up to 206?? in a single shot without stopping or ratcheting

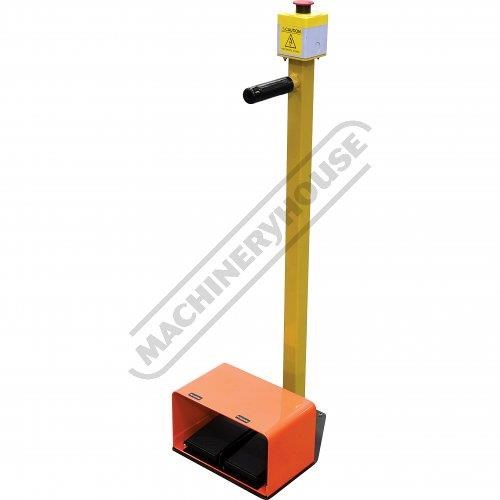

Foot pedal allows you to control the bender at a variable speed

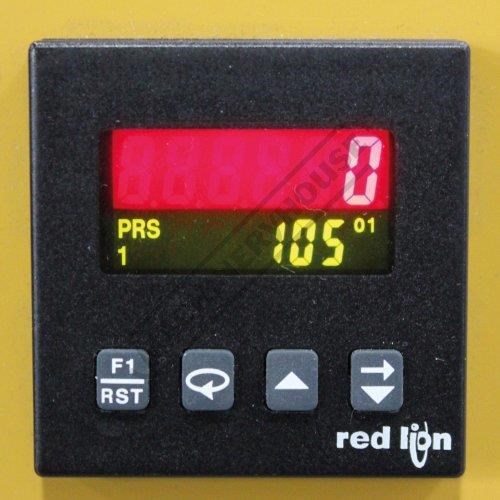

Digital auto-stop lets you specify the desired bend degree for ease and accuracy

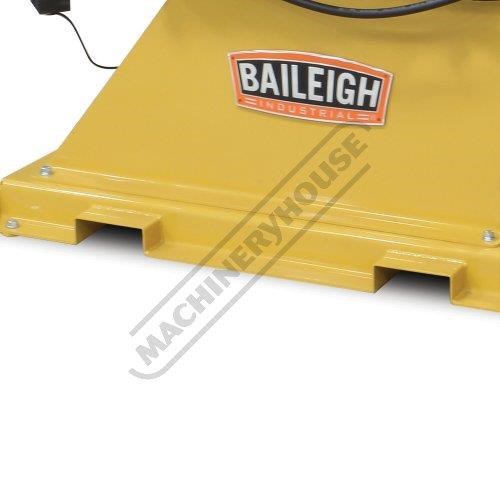

Solid steel framework weighing 816.5kg ensures durability and accuracy
Includes:
- Foot pedal control
Specifications:
ORDER CODE: B8105
MODEL: RDB-500
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): ??1/2`` - v3``
Round Tube Range (OD) - Mild Steel (inch / mm): ??6.35 - ??76.2
Square Tube Range (inch / mm): 19.05 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): ??3`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): ??3-1/2`` (Schedule 40)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): ??2-1/2`` (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): ??76.2 x 6.5
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): ??88.9 x 6.6
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): ??73 x 5
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): ??88.9 x 5
Solid Rod - Mild Steel (inch / mm): 5??0.8
Square Tube x Wall Capacity - Mild Steel (inch / mm): 76 x 6.5
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180?? / 36
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 20`` / 508mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2`` / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 206??
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 879
To Purchase Online Please Visit The Machineryhouse Website & Search For 'B8105'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
