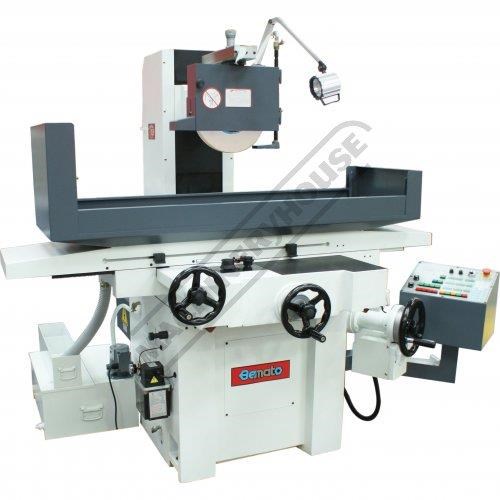

BEMATO BMT 3060AH Precision Hydraulic Surface Grinder
Features
Title | BEMATO BMT 3060AH Precision Hydraulic Surface Grinder |
Type | Engineering - Fabrication |
Sub Type | Grinders |
Make | BEMATO |
Model | BMT 3060AH |
Series | Precision Hydraulic Surface Grinder |
Sale Price | $42,350 |
Listing Type | New |
Stock Number | G248 |
RefCode | TA513725 |
Description
Order Code: G248
BMT-3060AH - Precision Hydraulic Surface Grinder (415V)
670 x 340mm
CALL FOR OUR BEST PRICE
Description
Full Range Available up to 700 x 2050mm Work Tables
When it comes to surface grinding the Bemato BMT-3060AH Automatic AD5 controlled machine is in a class above the rest in precision, quality, accuracy and functionality, this unique machine is accepted and is recognised in the majority of engineering companies' world wide.
Special design features to improve the finished of your work piece such as a AD5 Programmable controller unit allowing operator to work on other projects whilst machine is working in automatic mode. This also has additional functions like rough grinding, finish grinding, spark-out, and rapid auto return when programme has finished and more! Also incorporated within the unit is an electro magnetic chuck with electronic demagnetise.
AD5 Features
Plunge and surface grinding
Minimum incremental feed 0.001mm
2-step grinding procedure: roughing - finishing
Preset spark out
Rapid auto return to home positions
Features
Spindle contains P4 grade pre-loaded precision angular contact bearings. The spindle and motor are dynamically balanced
V-way slides are coated with Turcite-B to minimise friction between slides.
Automatic pressure lubrication system to slide-ways and screws with timer adjustment providing optimum machine conditions
High-tensile ribbed cast iron base and column tempered and stress relived for maximum rigidity and minimum vibration
Automatic down-feed AD5 controller and rapid UP/DOWN system standard on Bemato models
Design and quality assurance exceeds DIN, JIS and ISO standard
Includes
Electromagnetic chuck with demagnetise,
Balancing arbor
Balancing stand
Parallel dresser
Coolant system
Wheel flange
Cross/vertical micro feed
AD 5 Controller
ORDER CODE: G248
Model: BMT-3060AH
AD5 Controller: Yes
Magnetic Chuck Size: 600 x 300mm
Longitudinal Table Traverse Max.: 670mm
Cross Table Traverse Max.: 340mm
Spindle To Table Max.: 500mm (optional 600mm)
Wheel Diameter: 355mm
Vertical Increment Graduations: 0.005mm
Vertical Graduations Per Rev.: 2mm
Spindle Motor: 3.75kW / 5HP
Spindle Motor Voltage: 415V
Weight (nett): 1950.00 Kg
all prices and specifications are subject to change
