Contact Seller
Features
| Title | DOOSAN LYNX 2100LYB |
| Type | Engineering - Fabrication |
| Sub Type | Machining Centres CNC |
| Make | DOOSAN |
| Model | LYNX 2100LYB |
| Sale Price | $156,000 GST Exclusive |
| Listing Type | New |
| Stock Number | 994746 |
| RefCode | TA1265566 |
Description

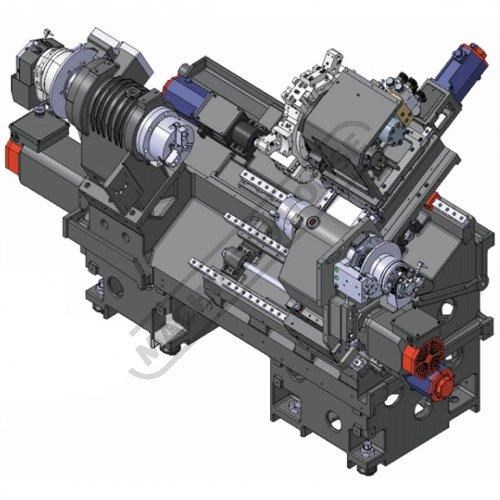

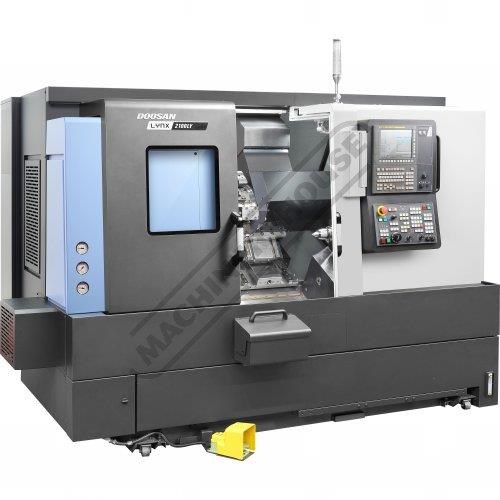

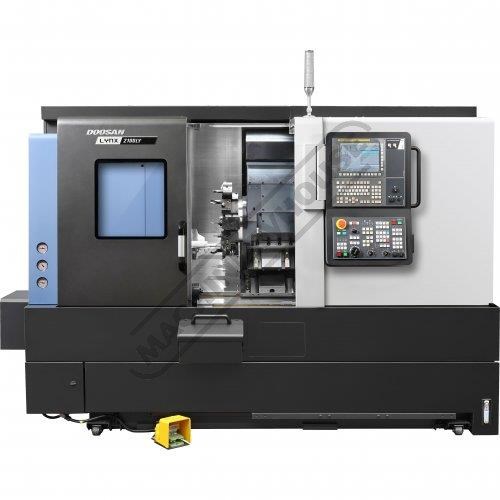

LYNX 2100LYB CNC Turning Centre Y Axis
DOOSAN MACHINE TOOLS LYNX 2100LYB CNC Turning Centre Y Axis
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7063
Basic Specifications
- 600mm Swing Over Bed
- 400mm Swing Over Saddle
- 510mm Turning Length
- 300mm Turning ??
- 105mm (??52.5mm) Y Axis Travel

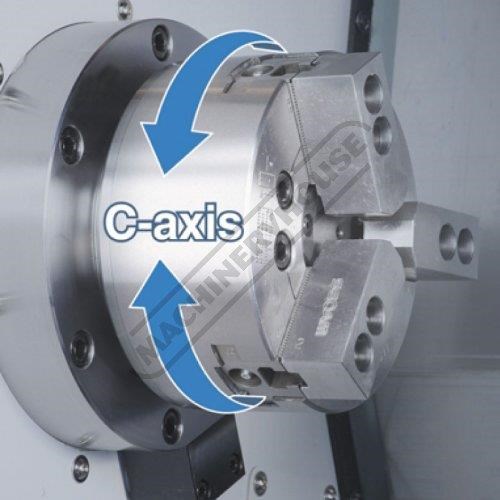

- 360deg (0.001deg Resolution) C Axis
- 150kg Main Spindle Capacity, 300kg Shaft Work Capacity
Main Spindle
- 65mm Bar Capacity
- 200mm ?? Hydraulic Chuck
- 4500RPM Spindle Speed
- 15kW Spindle Power
- 169Nm Spindle Torque
Tailstock
- MT4
- 580mm Travel
- Hydraulic Programmable Positioning

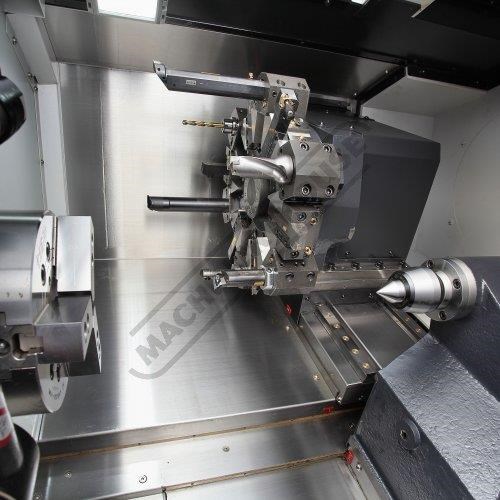

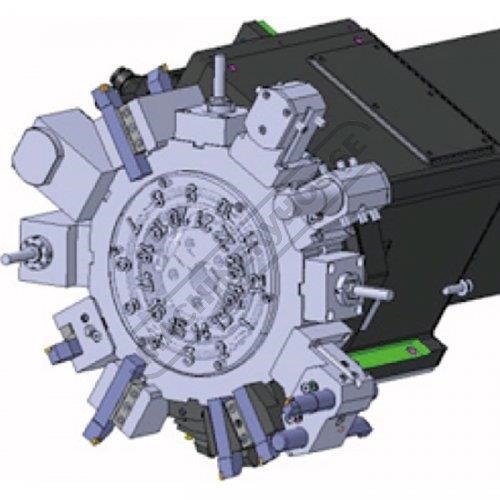

Turret
- BMT 45 Tool Mounting
- 6000RPM Live Tool Speed
- 3.7kW Live Tool Power
- 23.5Nm Live Tool Torque
- 24 Position / 12 Station Turret
- 20mm Square / 32 & 20mm ?? Tool Capacity
- ER20 Live Tool Collet Size
- Eppinger Preci-Flex Tooling System
CNC Control
- Doosan Fanuc I Series (0i-Plus) CNC Controller
- 15`` Colour LCD Monitor
- Rigid-synchronised tapping
- Custom Macro B
- Ethernet Interface
- RS232 Interface
- USB & PCMCIA Memory Card Slot
- Doosan Ezi Guide ``I`` Conversational software:
- Graphical Turning Cycles
- Graphical Milling Cycles
- Full 3D Graphical Simulation
- Onboard G & M code assistance
- + more
Standard Equipment - Included
- 3 Jaw Hydraulic Power Chuck
- Grease Cartridge Auto Lubrication System
- Chuck Cleaning Air Blast
- Eppinger rotary tool holders with Preci-Flex adapter set
- Coolant supply equipment
- Foot switches
- Transformer
- Full enclosure chip and coolant shield with front door interlock
- Hand tool kit
- Automatic lubrication equipment
- Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
- Safety name plates / tags where required
- Risk assessment
- Work light
Optional Equipment Included
- Chuck open close confirmation proximity switches
- Chip Conveyor (Side Discharge, Hinged Belt)
- Auto Tool Setter (Hydraulically operated)
- 7 Bar High Pressure Coolant
- Barfeed Interface
- Parts Catcher with Parts Box
- Programmable Tailstock
- Chuck Cleaning Air Blast
- Auto Power Off Function
Standard Turret Tool Holder Package Included
- 2 x OD Tool Holder (R & L)
- 1 x DBL OD Tool Holder (R & L)
- 2 x ID Tool Holder
- 1 x Triple ID Tool Holder
- 1 x Face Tool Holder (R & L)
- 1 x Cut Off Tool Holder
- 1 x U Drill Cap
- 2 x Straight Milling Unit
- 2 x Angular Milling Unit
- 1 x Boring Sleeve Kit
- 1 x U Drill Sleeve Kit
- 1 x Preci-Flex Adapter Kit
- 1 x ER 20 Milling Collet Set
- 1 x Hard & Soft Jaws Main and Sub
Local Service and Support
- Commissioning & Testing Included
- Comprehensive Operator Training Included
- Hare and Forbes In House Service And Applications Staff
- Ongoing Support For Life Of The Machine
Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:
Specifications:
ORDER CODE: L7063
MODEL: LYNX 2100LYB
Swing (mm): 600
Max Turning Diameter (mm): 300
Turning Length (mm): 510
Chuck Diameter (mm): 200
Bar Diameter Capacity (mm): 65
Tool Stations (No.): 12/24
Spindle Speed (rpm): 4500
Spindle Motor (kW): 15
Guideways: LMG
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axes Resolution (deg): 0.001
Milling Speed (rpm): 6000
Milling Collets: ER20
Sub Chuck Diameter (mm): ~
Y Axis Travel (mm): 105 (??52.5)
To Purchase Online Please Visit The Machineryhouse Website & Search For 'L7063'
