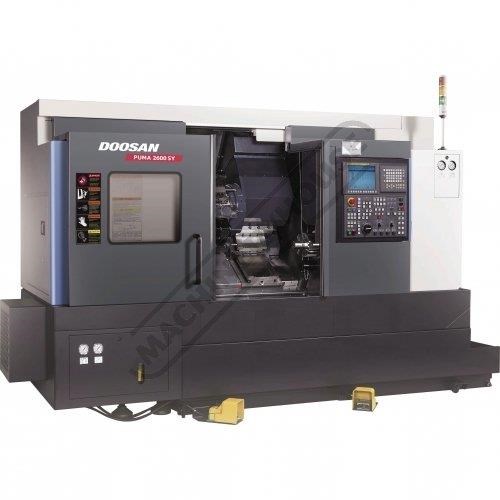

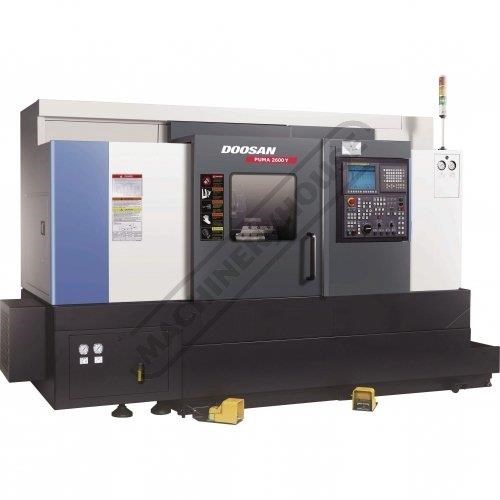

DOOSAN PUMA 2600Y

PUMA 2600Y Y Axis CNC Turning Centre

DOOSAN MACHINE TOOLS PUMA 2600Y Y Axis CNC Turning Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7228

Basic Specifications
??? 780mm Swing Over Bed
??? 630mm Swing Over Saddle
??? 760mm Turning Length
??? 376mm Turning ??
??? 105mm (??52.5mm) Y Axis Travel
??? 3600 (0.0010 Resolution) C Axis
??? 220kg Main Spindle Capacity, 710kg Shaft Work Capacity

Main Spindle
??? 81mm Bar Capacity
??? 255mm ?? Hydraulic Chuck
??? 3500RPM Spindle Speed
??? 22kW Spindle Power
??? 240Nm Spindle Torque

Tailstock
??? MT5
??? 100mm Quill ??
??? 100mm Quill Travel
??? Programmable Positioning

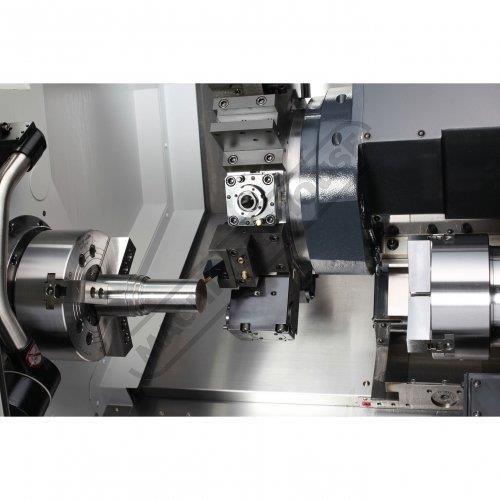

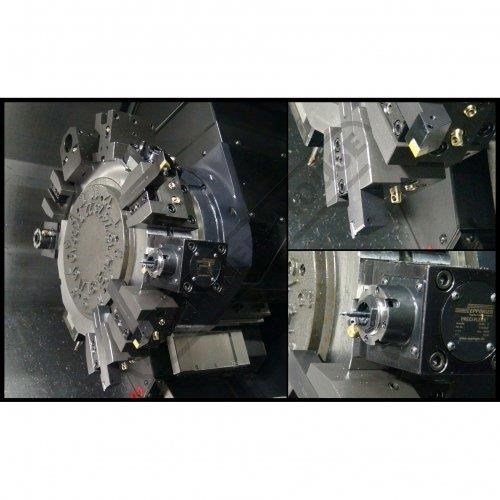

Turret
??? BMT 65 Tool Mounting
??? 5000RPM Live Tool Speed
??? 5.5kW Live Tool Power
??? 47.1Nm Live Tool Torque
??? 12 Station Turret
??? 25mm Square / 50mm ?? Tool Capacity
??? ER32 Live Tool Collet Size
??? Eppinger Preci-Flex Tooling System


CNC Control
??? Doosan Fanuc I Series (0i-Plus) CNC Controller
??? 15??? Colour LCD Monitor
??? Rigid-synchronised tapping
??? Custom Macro B
??? Ethernet Interface
??? RS232 Interface
??? USB & PCMCIA Memory Card Slot
??? Doosan Ezi Guide ???I??? Conversational software:
??? Graphical Turning Cycles
??? Graphical Milling Cycles
??? Full 3D Graphical Simulation
??? Onboard G & M code assistance
??? + more

Standard Equipment - Included
??? 3 Jaw Hydraulic Power Chuck
??? Chuck Cleaning Air Blast
??? Eppinger rotary tool holders with Preci-Flex adapter set
??? Coolant supply equipment
??? Foot switches
??? Transformer
??? Full enclosure chip and coolant shield with front door interlock
??? Hand tool kit
??? Automatic lubrication equipment
??? Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
??? Safety name plates / tags where required
??? Risk assessment
??? Work light


Optional Equipment Included
??? Chuck open close confirmation proximity switches
??? Chip Conveyor (Side Discharge, Hinged Belt)
??? Auto Tool Setter (Hydraulically operated)
??? Coolant Oil Skimmer
??? 7 Bar High Pressure Coolant
??? Barfeed Interface
??? Programmable Tailstock
??? Chuck Cleaning Air Blast

Standard Turret Tool Holder Package Included
??? 4 x OD Tool Holder (R & L)
??? 3 x ID Tool Holder
??? 1 x Face Tool Holder (R & L)
??? 1 x U Drill Cap
??? 2 x Straight Milling Unit
??? 2 x Angular Milling Unit
??? 1 x Boring Sleeve Kit
??? 1 x U Drill Sleeve Kit
??? 1 x Preci-Flex Adapter Kit
??? 1 x ER 32 Milling Collet Set
??? 1 x Hard & Soft Jaws

Local Service and Support
??? Commissioning & Testing Included
??? Comprehensive Operator Training Included
??? Hare and Forbes In House Service And Applications Staff
??? Ongoing Support For Life Of The Machine

Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:


Specifications:
ORDER CODE: L7228
MODEL: PUMA 2600Y
Swing (mm): 780
Max Turning Diameter (mm): 376
Turning Length (mm): 725
Chuck Diameter (mm): 255
Bar Diameter Capacity (mm): 81
Tool Stations (No.): 12
Spindle Speed (rpm): 3500
Spindle Motor (kW): 22
Guideways: Box Guideway
Control: Doosan Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axes Resolution (deg): 0.001
Milling Speed (rpm): 5000
Milling Collets: ER32
Sub Chuck Diameter (mm): ~
Y Axis Travel (mm): 105 (??52.5)
