| Title | DOOSAN PUMA DNT2600M C AXIS |
| Type | Engineering - Fabrication |
| Sub Type | Machining Centres CNC |
| Make | DOOSAN |
| Model | PUMA DNT2600M C AXIS |
| Sale Price | $152,875 GST Exclusive |
| Listing Type | New |
| Stock Number | 882007 |
| RefCode | TA1266994 |
Description

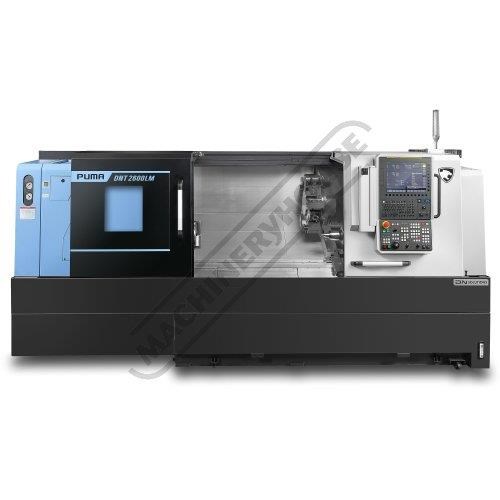

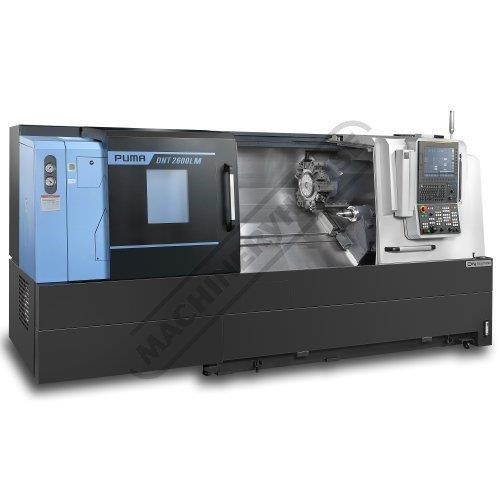

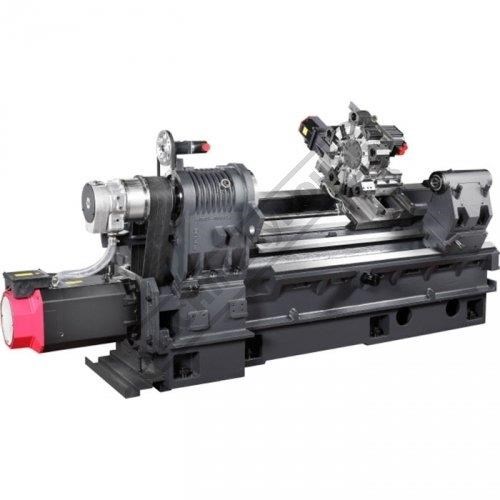

PUMA DNT2600M C Axis CNC Turning Centre
DOOSAN MACHINE TOOLS PUMA DNT2600M C Axis CNC Turning Centre
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L7112
Basic Specifications
??? 650mm Swing Over Bed
??? 460mm Swing Over Saddle
??? 610mm Turning Length
??? 365mm Turning ??
??? 3600 (0.0010 Resolution) C Axis

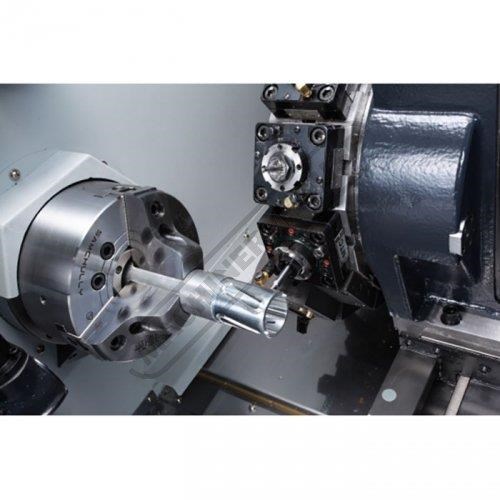

Main Spindle
??? 81mm Bar Capacity
??? 255mm ?? Hydraulic Chuck
??? 3500RPM Spindle Speed
??? 26kW Spindle Power
??? 735Nm Spindle Torque

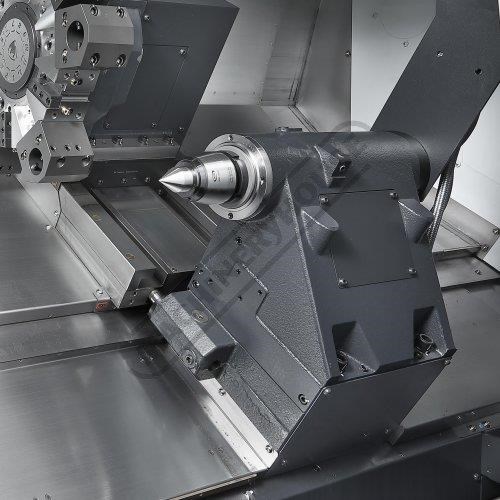

Tailstock
??? MT5
??? 100mm Quill ??
??? 100mm Quill Travel
??? Programmable Positioning

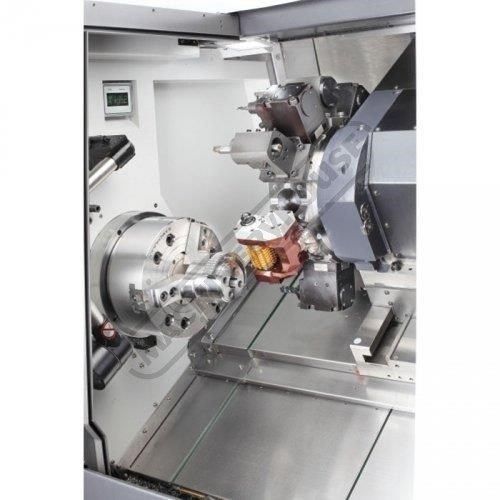

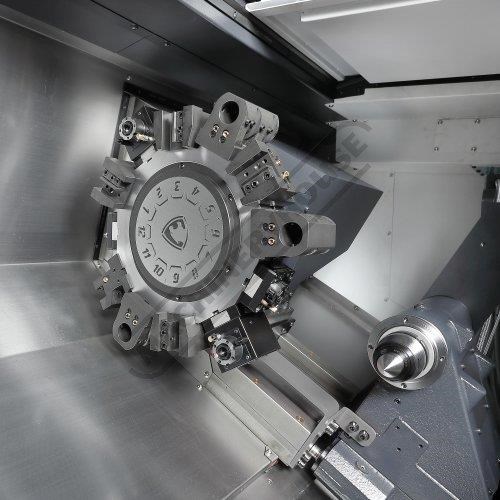

Turret
??? BMT 65 Tool Mounting
??? 5000RPM Live Tool Speed
??? 5.5kW Live Tool Power
??? 70Nm Live Tool Torque
??? 12 Station Turret
??? 25mm Square / 40mm ?? Tool Capacity
??? ER32 Live Tool Collet Size
??? Eppinger Preci-Flex Tooling System
CNC Control
??? DN Solutions Fanuc I Series (0i-Plus) CNC Controller
??? 15??? Colour LCD Monitor
??? Rigid-synchronised tapping
??? Custom Macro B
??? Ethernet Interface
??? RS232 Interface
??? USB & PCMCIA Memory Card Slot
??? Doosan Ezi Guide ???I??? Conversational software:
??? Graphical Turning Cycles
??? Graphical Milling Cycles
??? Full 3D Graphical Simulation
??? Onboard G & M code assistance
??? + more
Standard Equipment - Included
??? 3 Jaw Hydraulic Power Chuck
??? Eppinger rotary tool holders with Preci-Flex adapter set
??? Coolant supply equipment
??? Foot switches
??? Transformer
??? Full enclosure chip and coolant shield with front door interlock
??? Hand tool kit
??? Automatic lubrication equipment
??? Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
??? Safety name plates / tags where required
??? Risk assessment
??? Work light
Optional Equipment Included
??? Chuck open close confirmation proximity switches
??? Chip Conveyor (Side Discharge, Hinged Belt)
??? Auto Tool Setter (Hydraulically operated)
??? Coolant Oil Skimmer
??? 7 Bar High Pressure Coolant
??? Barfeed Interface
??? Programmable Tailstock
Standard Turret Tool Holder Package Included
??? 4 x OD Tool Holder (R & L)
??? 3 x ID Tool Holder
??? 1 x Face Tool Holder (R & L)
??? 1 x U Drill Cap
??? 2 x Straight Milling Unit
??? 2 x Angular Milling Unit
??? 1 x Boring Sleeve Kit
??? 1 x U Drill Sleeve Kit
??? 1 x Preci-Flex Adapter Kit
??? 1 x ER 25 Milling Collet Set
??? 1 x Hard & Soft Jaws
Local Service and Support
??? Commissioning & Testing Inc0luded
??? Comprehensive Operator Training Included
??? Hare and Forbes In House Service And Applications Staff
??? Ongoing Support For Life Of The Machine
Features:
Doosan Machine Tools changes its name to DN Solutions
Read more at:
Specifications:
ORDER CODE: L7112
MODEL: PUMA DNT2600M
Swing (mm): 630
Max Turning Diameter (mm): 365
Turning Length (mm): 610
Chuck Diameter (mm): 250
Bar Diameter Capacity (mm): 81
Tool Stations (No.): 12
Spindle Speed (rpm): 3500
Spindle Motor (kW): 22
Guideways: Box Guideway
Control: DN Solutions Fanuc I Series (0i-Plus)
Programming: EZI Guide I Conversational
C Axis Resolution (deg): 0.001
Milling Speed (rpm): 5000
Milling collets: ER2
Sub Chuck Diameter: ~
Y Axis Travel: ~
To Purchase Online Please Visit The Machineryhouse Website & Search For 'L7112'
