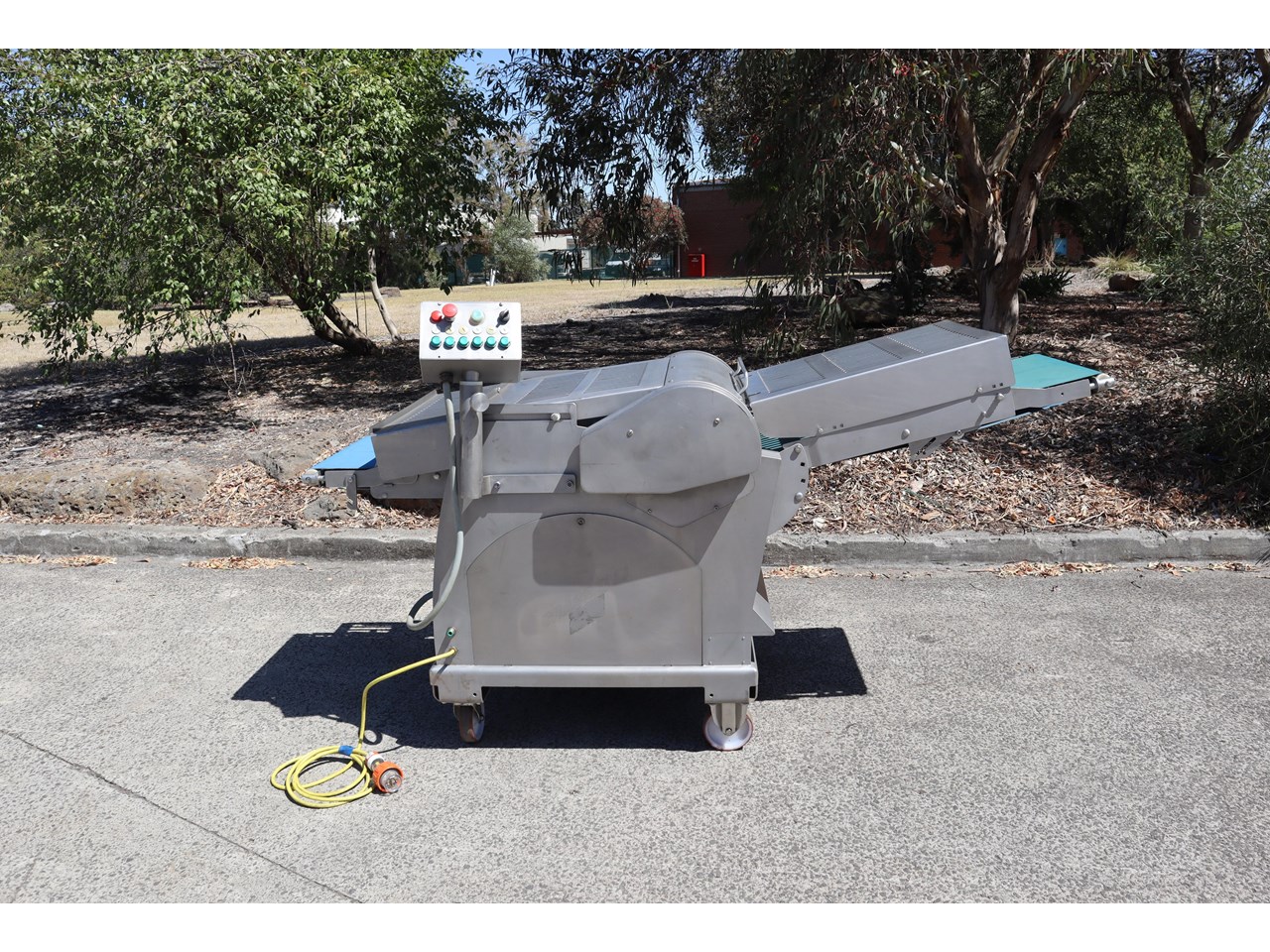

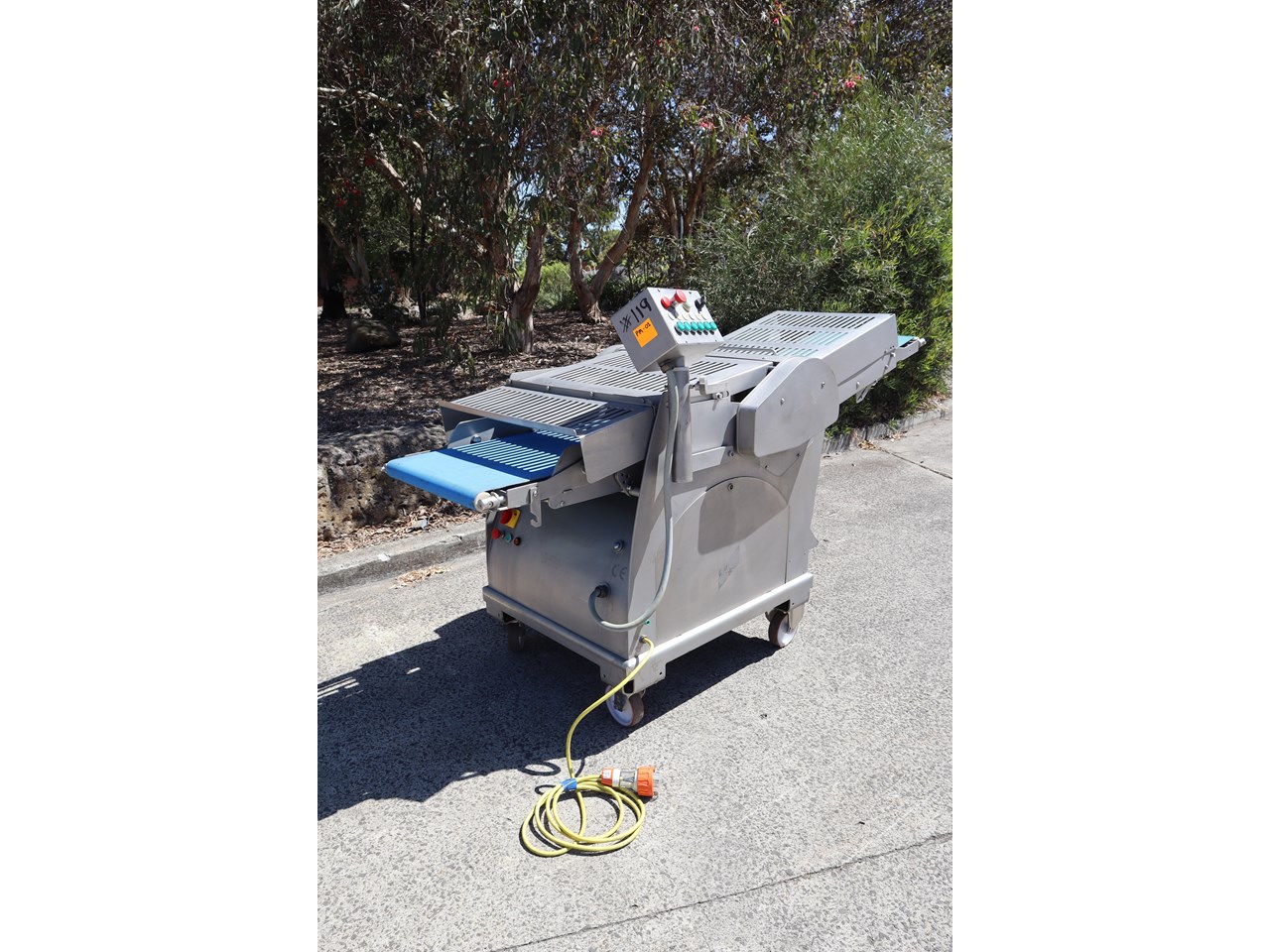

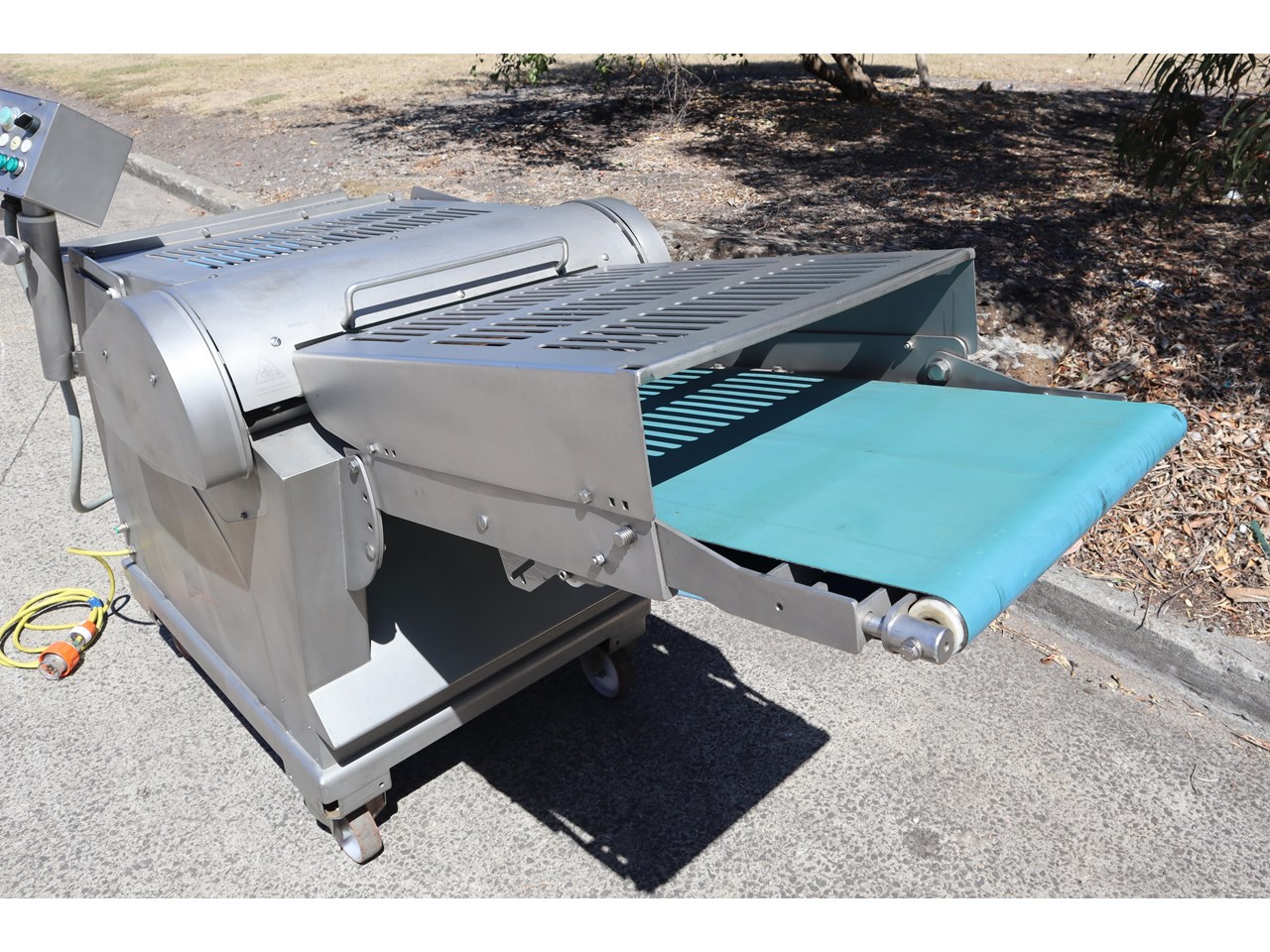

GRASSELLI AB520-DD COMMERCIAL AUTOMATIC PORK SKINNER DERINDER

This skinner is in great working condition.

Automatically skins/derinds the full range of pork cuts including bellies, boneless loins, boneless legs, shoulders and difficult pieces like jowls and small trim.

Features full 520 mm skinning / derinding width for even the widest cuts.

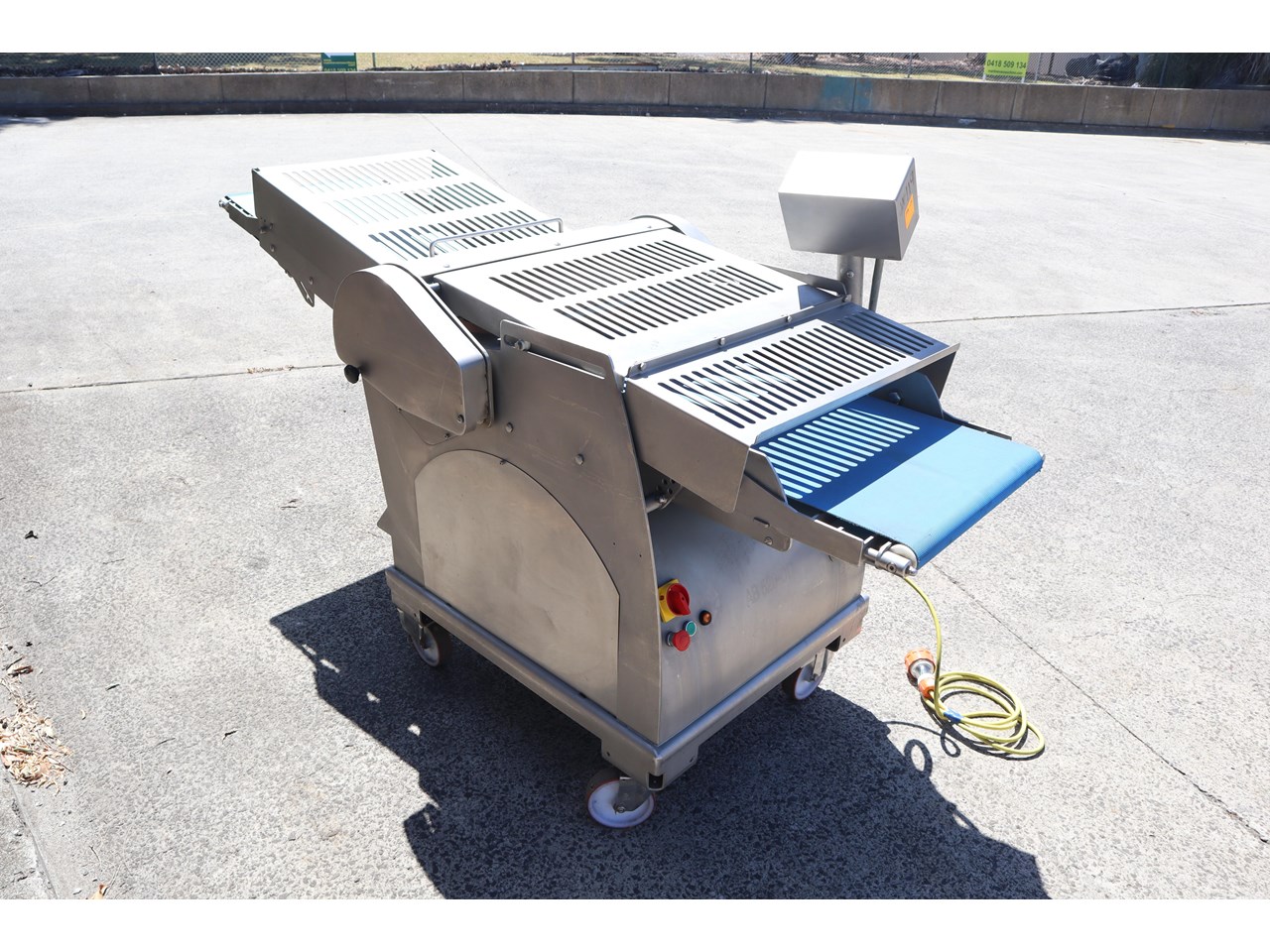

The Grasselli model AB 520 DD pork Derinder and Defatter automatically derinds and defats to pre-selected fat depth, boneless pork loins, backs, bellies and shoulder meat for efficient fat depth and yield control. Infeed and outfeed conveyors are height adjustable for linking a second unit or in-line system installation. Full 520mm derinding width.

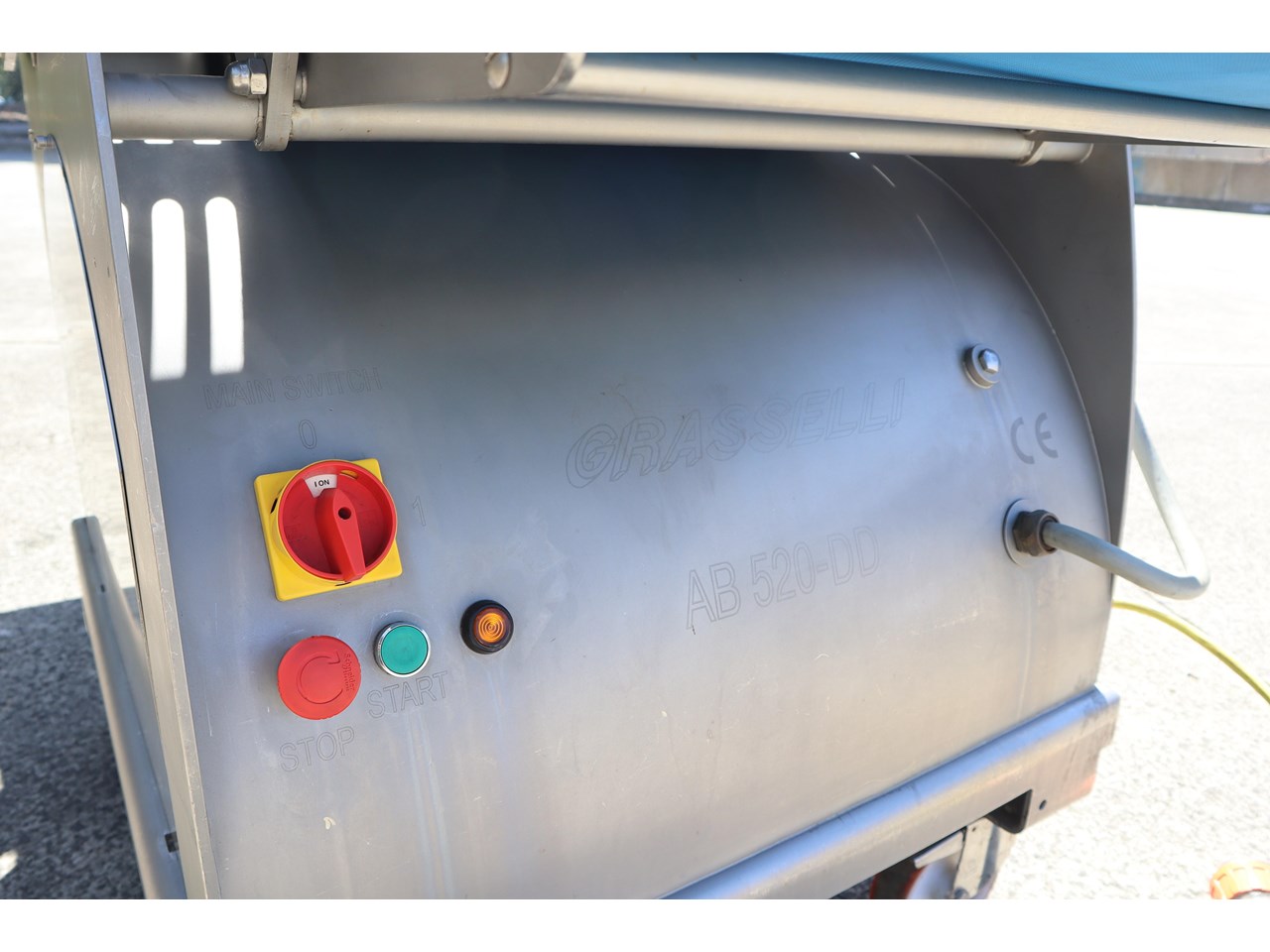

The AB 520 DD is operated and controlled by electronics, electrics and pneumatic combined in one system.

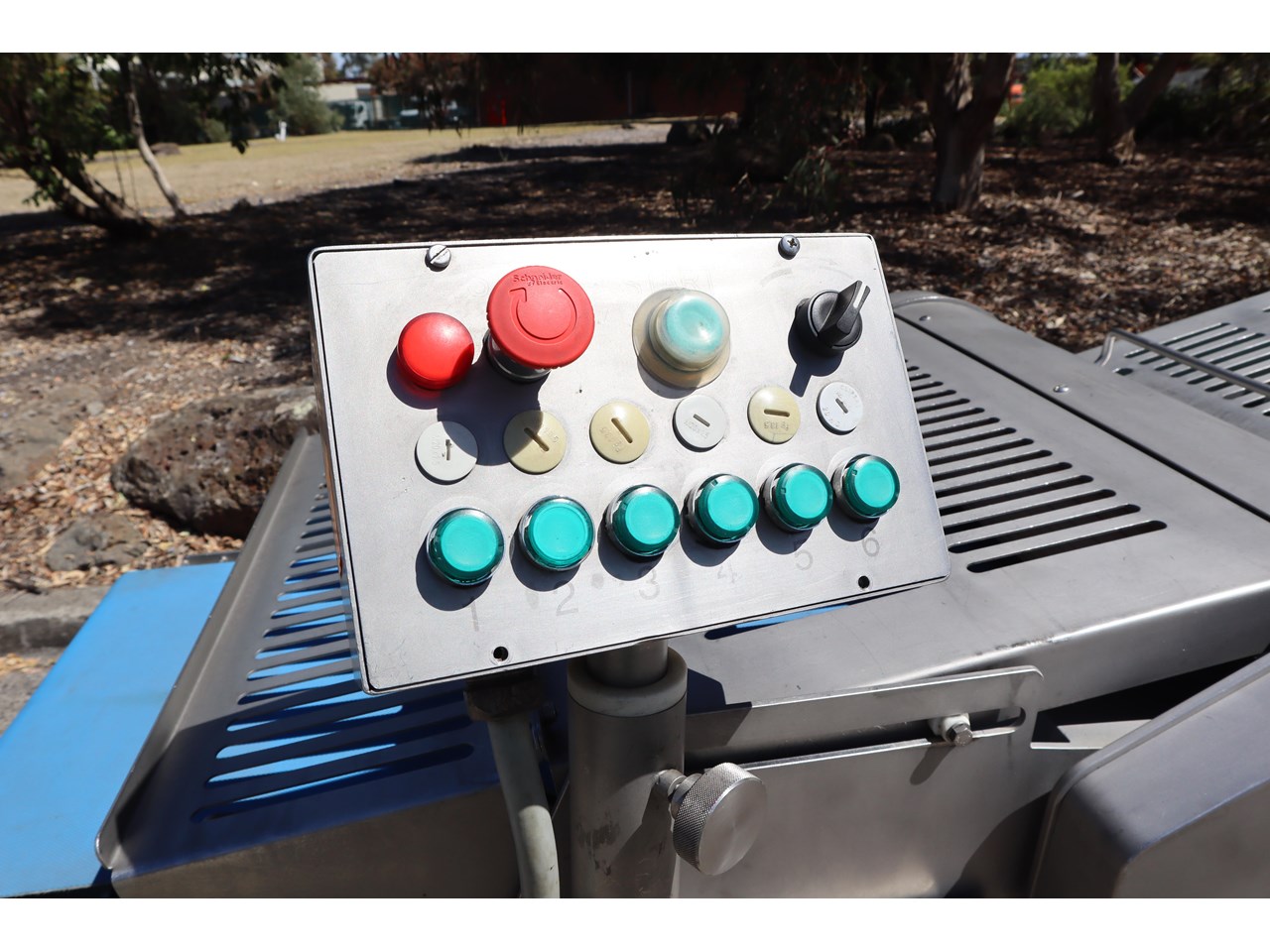

Electronics control pre-selection of fat depth whilst electrics provide motive power. Pneumatics give infinitely variable control over product hold down pressure. Incorporating quick height adjustment enabling a range of products to be derinded on one unit with minimal down time. Electric and pneumatically activated toothroll enables easy rind pick up with extended blade life. Electric and pneumatic systems are linked to provide full safety.

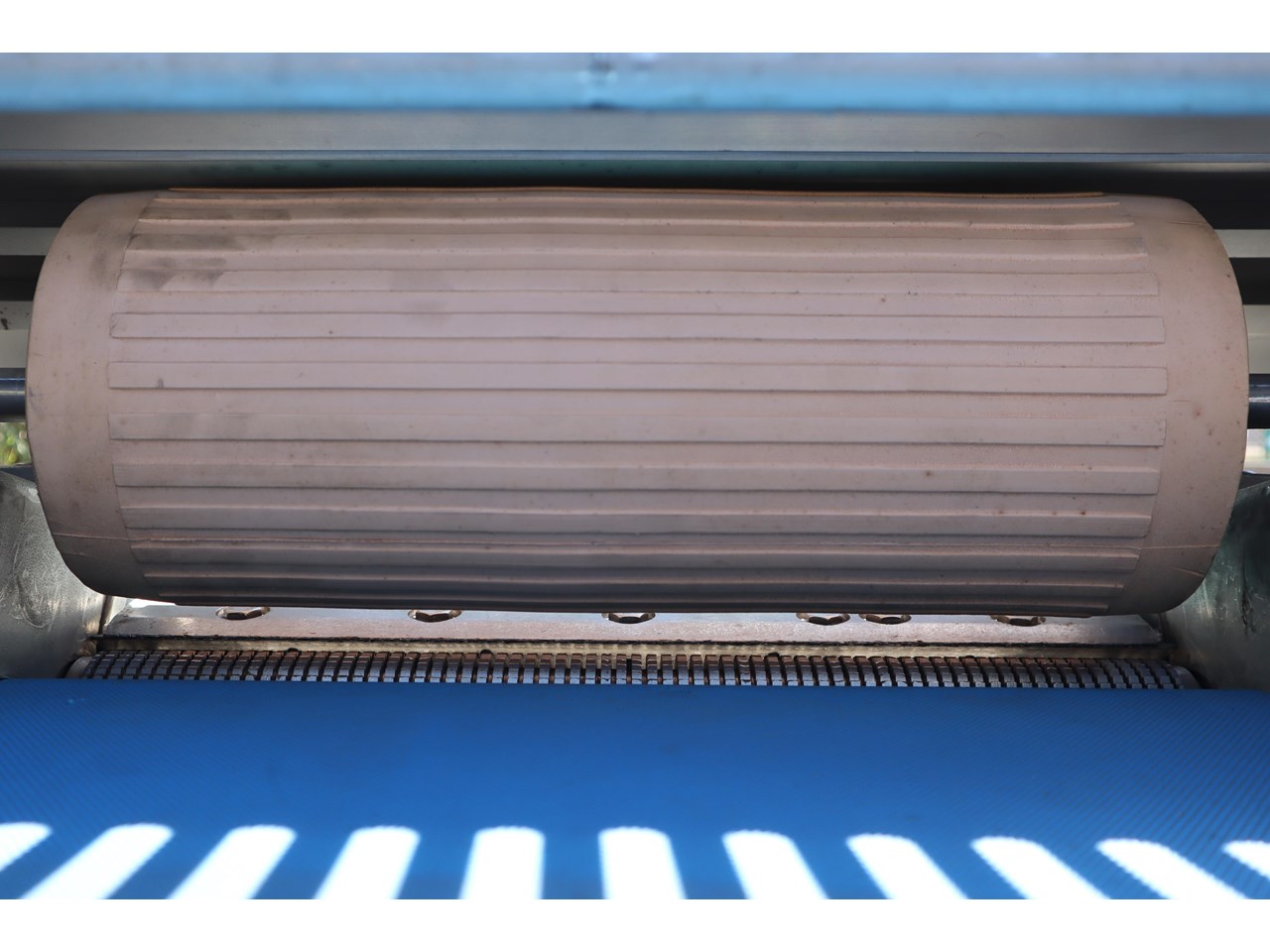

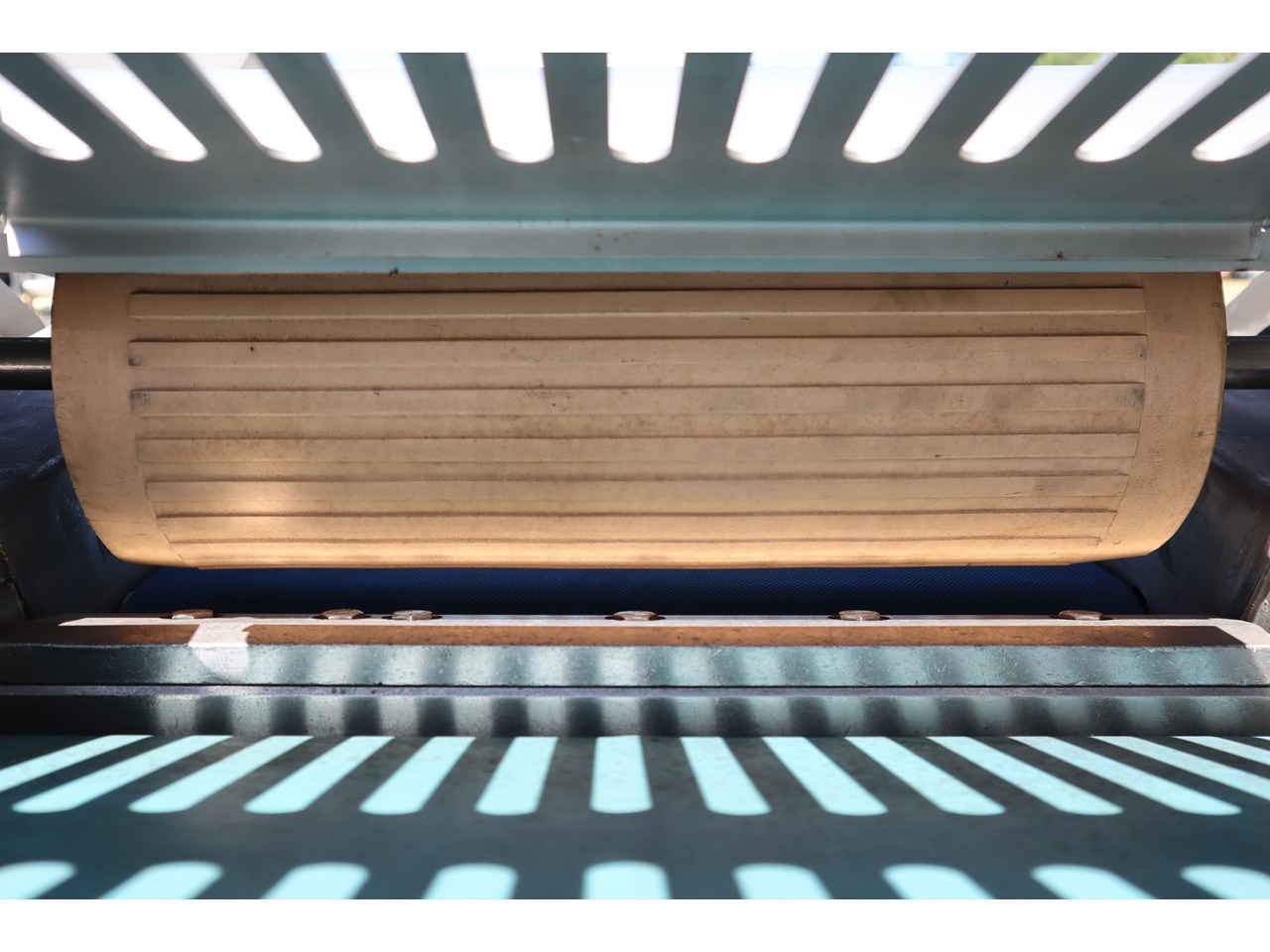

Non toxic rubber rollers gently but firmly position product during the derind/defat process and are available in different versions to suit various applications. Complete roller assemblies can be changed in minutes. The AB 520 DD is constructed of totally stainless materials plus, the design features efficient, hygienic quick strip-down.

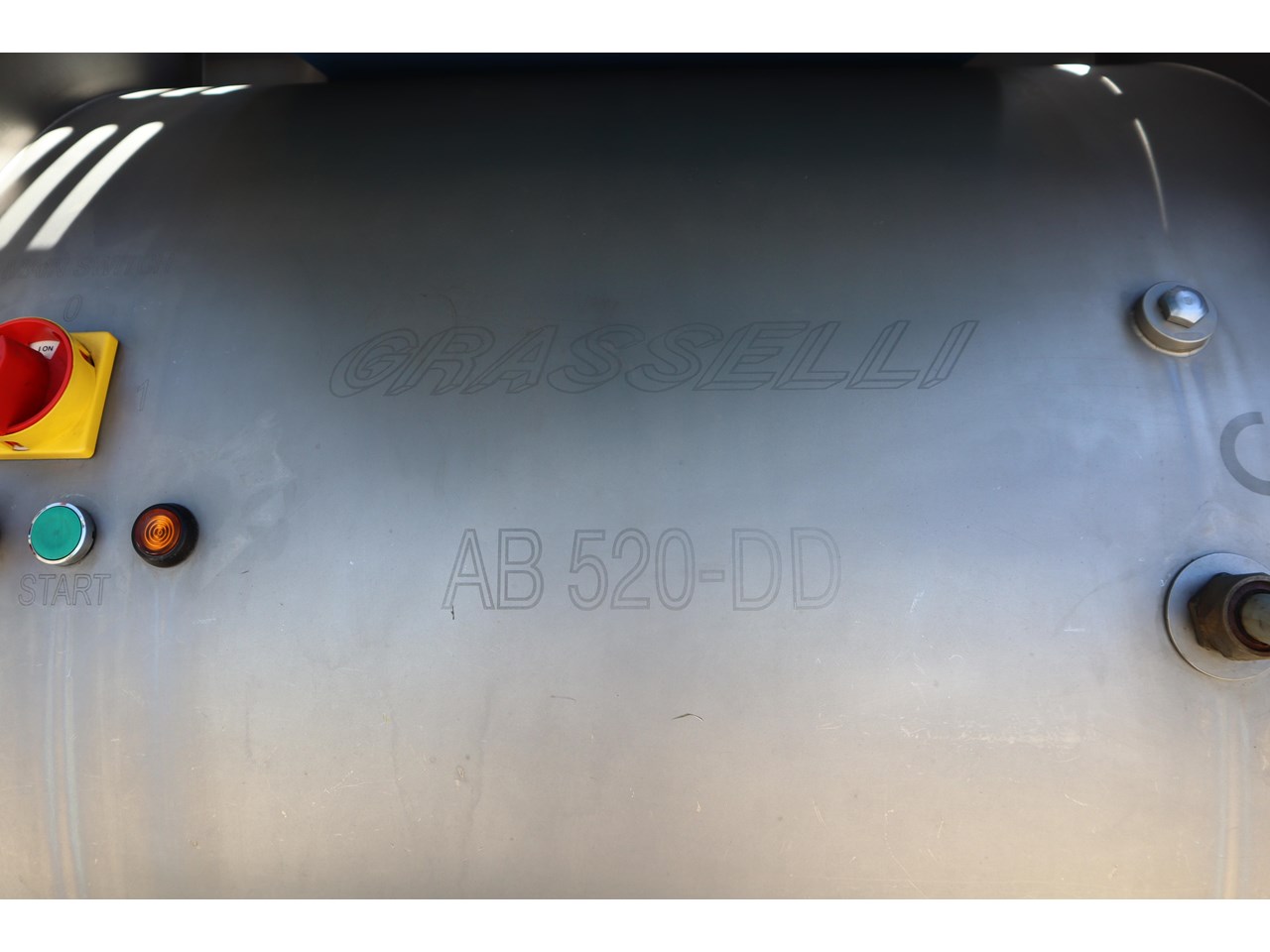

Make: Grasselli
Model: AB520-DD
Year: 1998
Made in Italy

SPECS
Derinding Width: 520mm

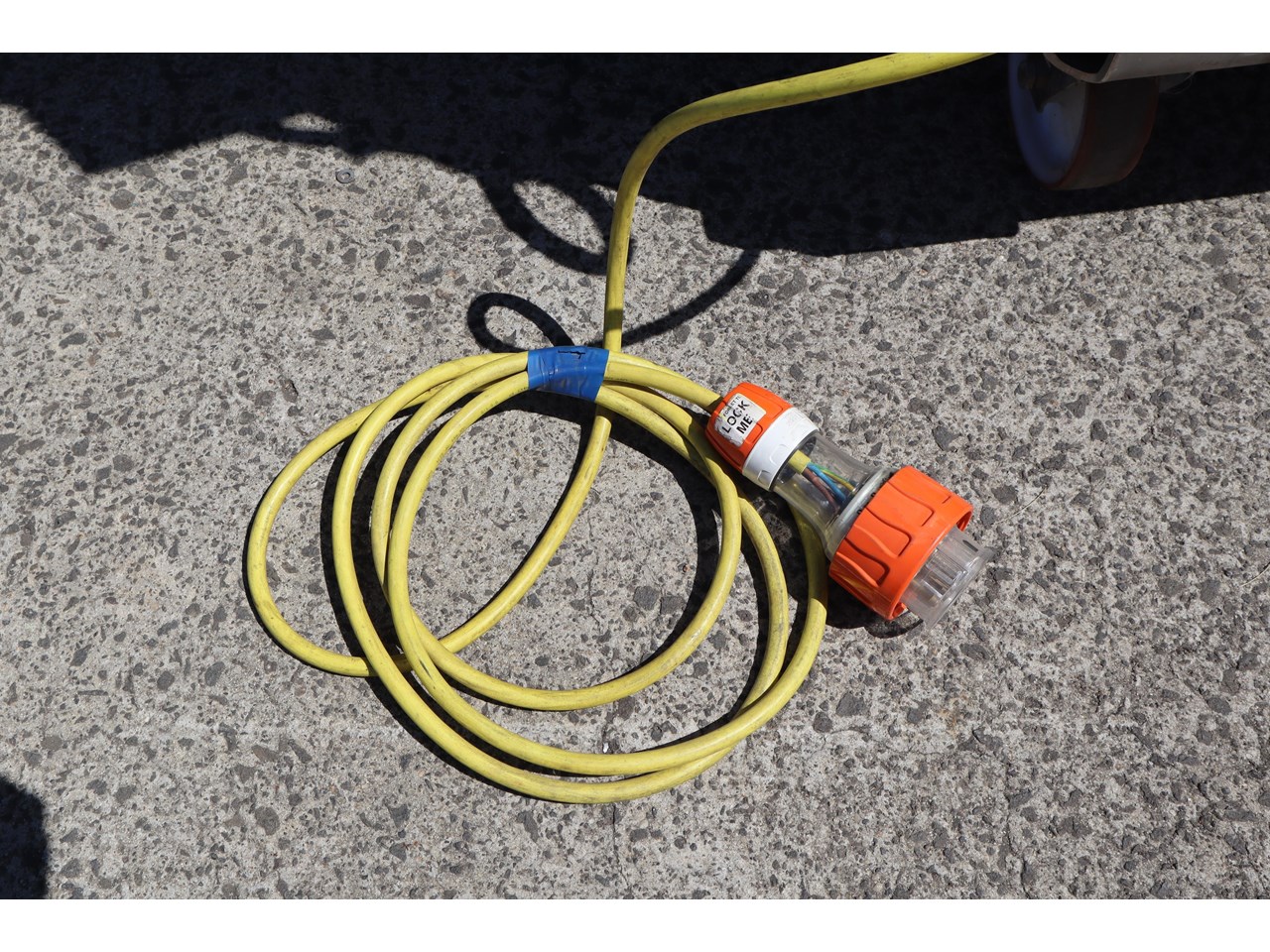

Voltage: 380V 3 Phase
Power: 2.2kW

Overall Dimensions (mm): 2330 x 1020 x 1350 H

Reference: PM-01
