HAFCO CP-60LT

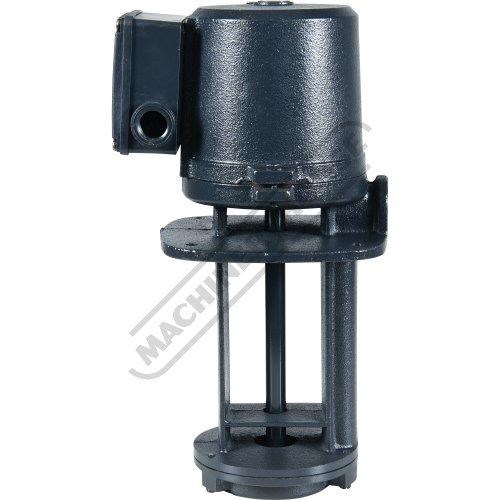

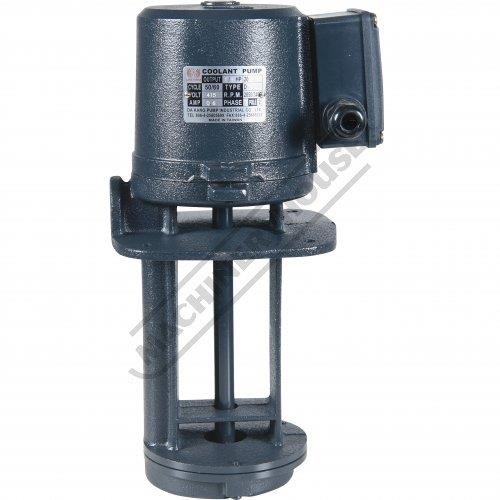

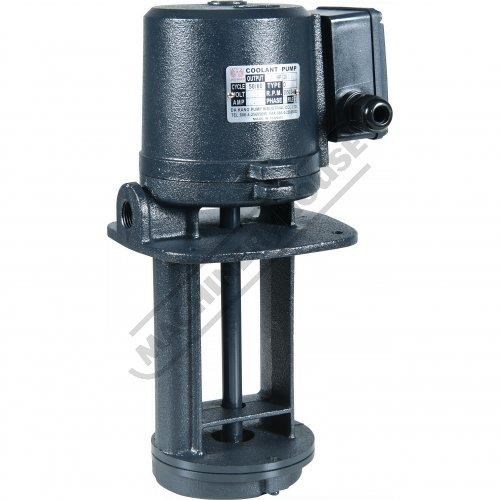

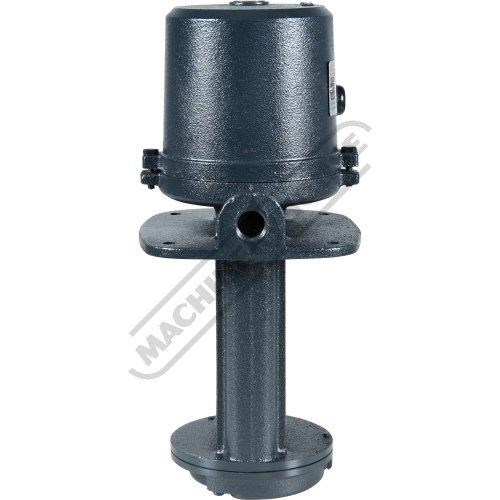

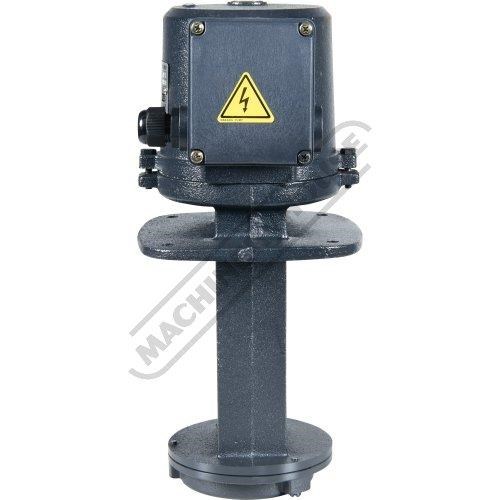

CP-60L3 Coolant Pump 1/4hp, 415V Motor 180mm Submersible Leg & 70 Litres/Min. At 1 Metre Lift

HAFCO CP-60L3 Coolant Pump 1/4hp, 415V Motor 180mm Submersible Leg & 70 Litres/Min. At 1 Metre Lift
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P230

Manufactured in Taiwan

180mm Leg COOLANT PUMP BARE - 415V
Bare pump for almost any application

Features:
70 litres/min. at 1 metre lift
180mm submersible leg
High-tensile cast iron housing
Non-corrosive plastic impellers

Please Note: Motor housing should never be submersed or have any fluid splashed on it


Specifications:
ORDER CODE: P230
MODEL: CP-60L3
Type: Coolant Pump
Tank Capacity (Litre): ~
Discharge at 1 metre Lift (L/min): 70
Length (L) (mm): 360
Submerge Depth (L1) (mm): 180
4 Mount Holes (PCD) (mm): 158
Threaded Outlet (BSPT): ??1/2``
A (mm): 160
B (mm): ~
C (mm): 339
D (mm): 174
E (mm): 160
F (mm): 120
G (mm): 189
H: 1/2`` PT
I (mm): 158
J (mm): 8
K (mm): ~
Motor Power (hp): 1/4
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 370 x 200 x 210
Nett Weight (kg): 11.5


To Purchase Online Please Visit The Machineryhouse Website & Search For 'P230'
