| Title | HAFCO METALMASTER AL-410 |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | HAFCO METALMASTER |
| Model | AL-410 |
| Sale Price | $9,000 GST Exclusive |
| Listing Type | New |
| Stock Number | 129466 |
| RefCode | TA1266924 |
Description

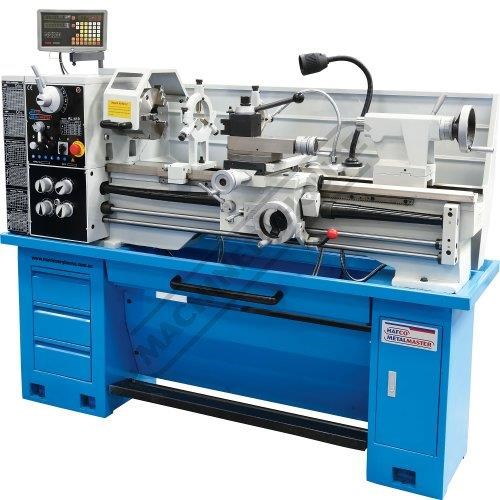

AL-410 Centre Lathe ??400 x 1000mm Turning Capacity - ??52mm Spindle Bore Includes Digital Readout Sys
HAFCO-METALMASTER AL-410 Centre Lathe ??400 x 1000mm Turning Capacity - ??52mm Spindle Bore Includes Digital Readout System & Quick Change Toolpost
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L569D
Features:

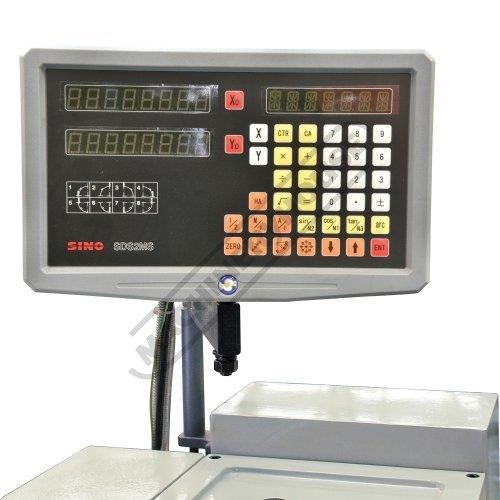

2 Axis digital readout system

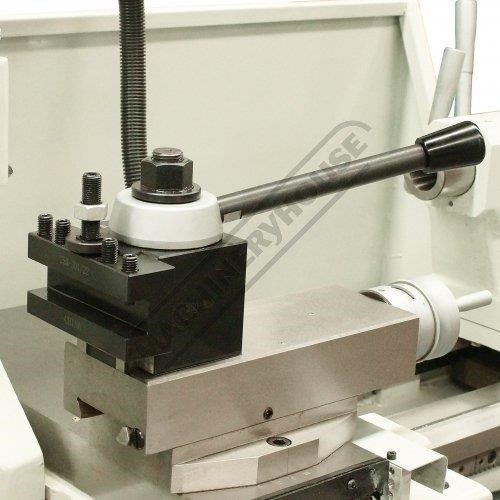

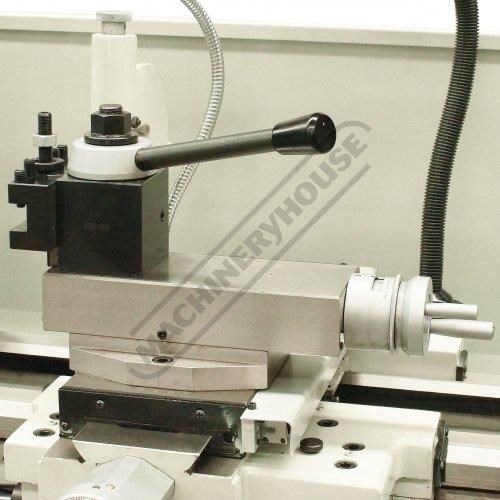

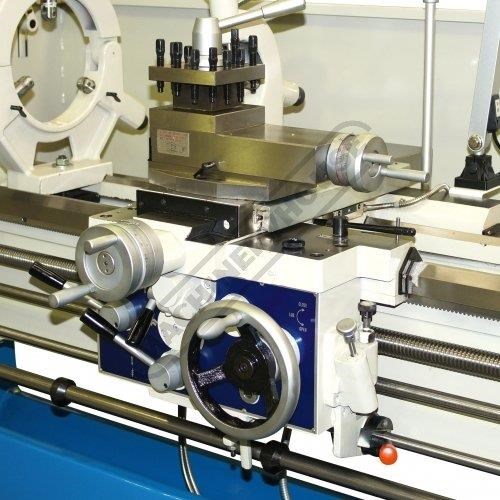

Quick change toolpost with 5 holders

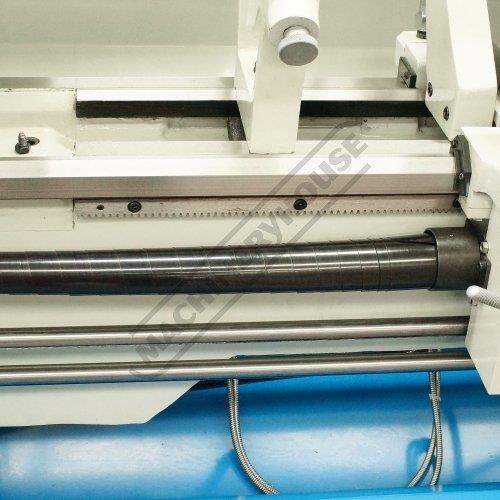

Concertina leadscrew cover

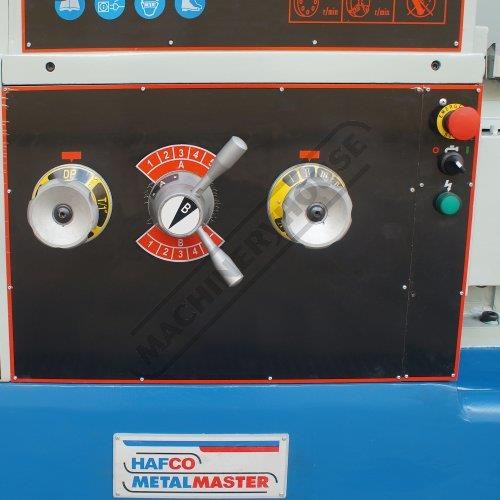

Gear drive headstock for quick change of spindle speeds

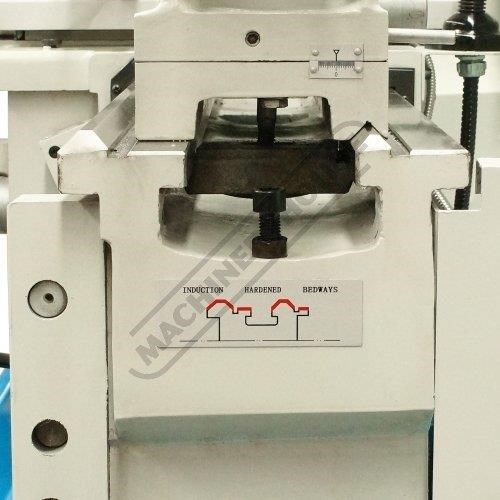

Precision 'V'-beds are hardened and ground incorporating a rigid webbed casting

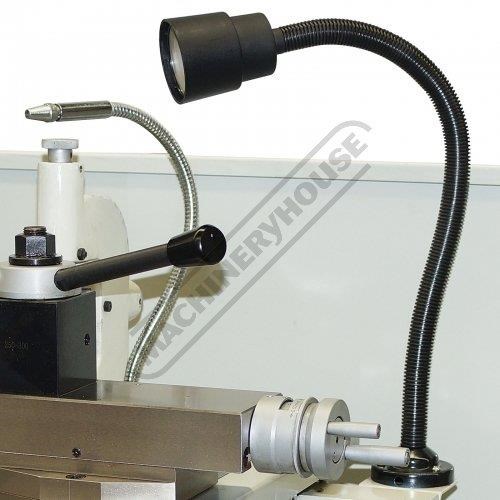

Low voltage work light
Foot operated spindle brake with safety cut out switch
Slide out front swarf tray for easy cleaning
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle

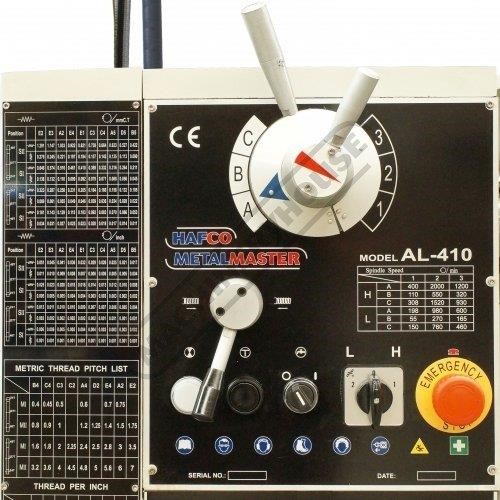

Inching button is incorporated on the control panel for convenient spindle speed selection

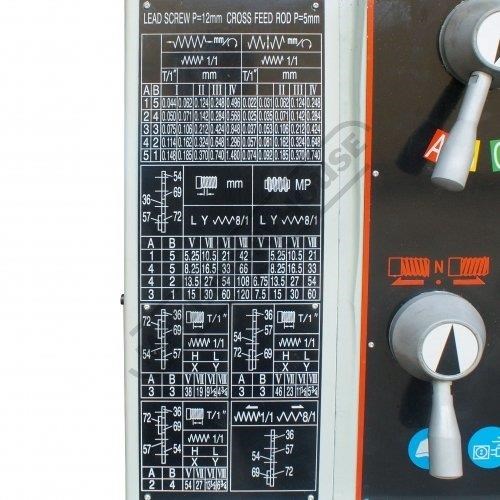

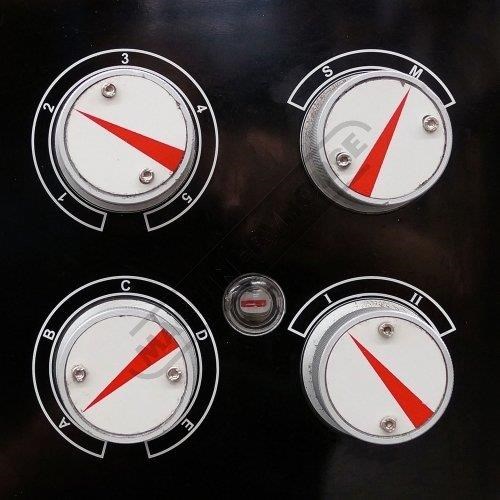

Enclosed quick action gearbox for thread cutting and auto feeding
Powered longitudinal and cross feeds
D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle hand-wheel)

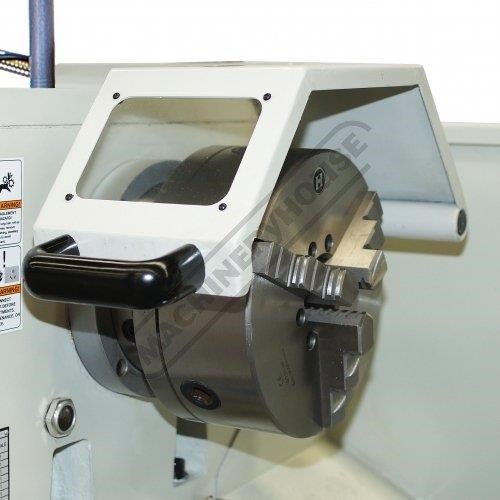

Chuck & change gear guards are fitted with micro switches

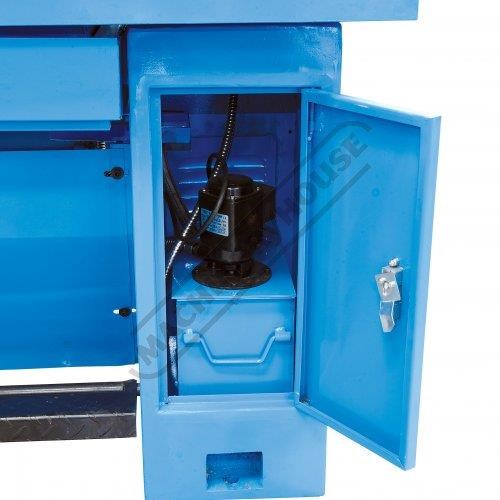

Coolant system with flexible hose
Slide out swarf tray
Includes:
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 5 holders
- 200mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate
- Fixed steady
- Travelling steady
- Change gears
- Dead centres

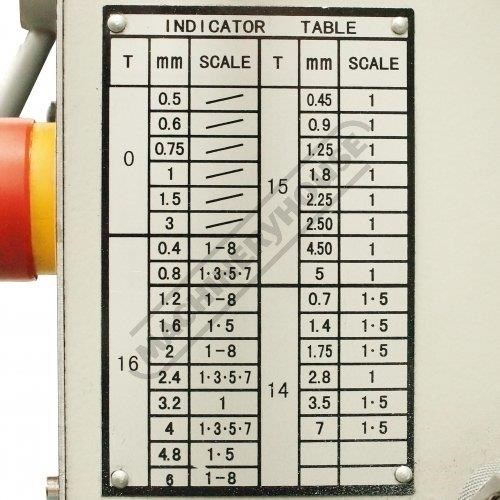

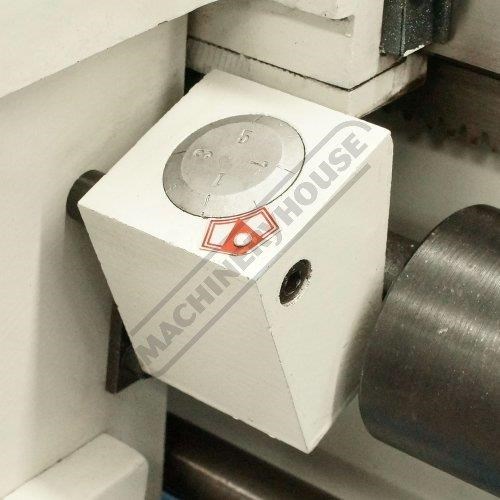

- Thread-chasing dial
- Work light

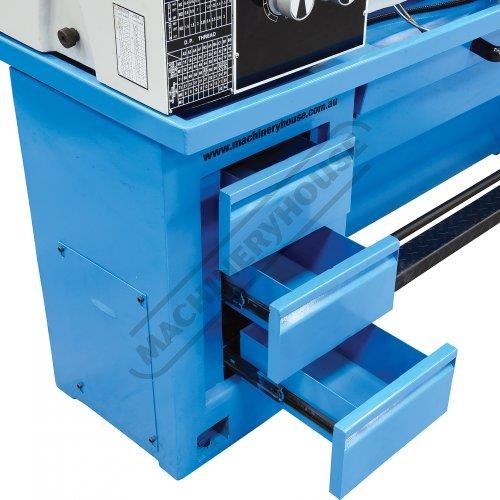

- Stand
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet
Specifications:
ORDER CODE: L569D
MODEL: AL-410
Swing Over Bed (mm): 400
Distance Between Centres (mm): 1000
Spindle Bore (mm): 52
Swing In Gap (mm): 520
Swing Over Cross-slide (mm): 250
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 16
Centre Height (mm): 200
Spindle Nose Size or Type: D1-5 Camlock
Bed Width (mm): 218
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 250
Compound Slide Travel (mm): 80
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.011 - 0.276
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.052 - 1.291
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 32 (0.4 - 7)
Imperial Thread Steps & TPI (No. / TPI): 36 (4 - 60)
3 Jaw Chuck Diameter (mm): 200
4 Jaw Chuck Diameter (mm): 200

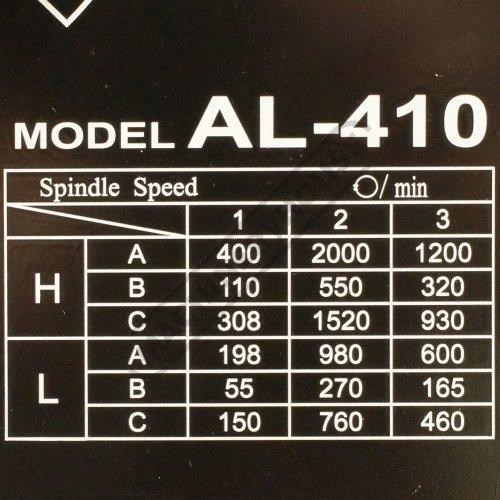

Spindle Steps / Speeds (No. / rpm): 18 (65 - 2000)
Motor Power (kW / hp): 2.4 / 3.2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 850
To Purchase Online Please Visit The Machineryhouse Website & Search For 'L569D'
