Features
| Title | HAFCO METALMASTER BM 40V |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | BM 40V |
| Sale Price | $14,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 7065 |
| RefCode | TA1269503 |
Description

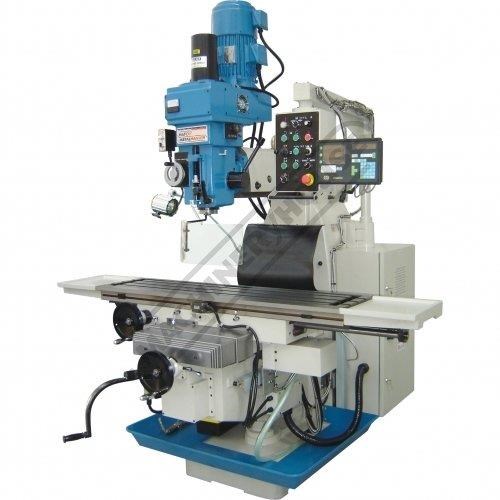

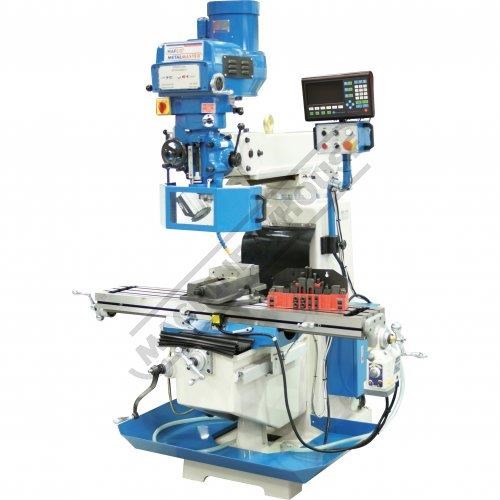

BM-40V Industrial Turret Milling Machine Table Travel: (X) - 860mm (Y) - 360mm (Z) - 425mm Includes
HAFCO-METALMASTER BM-40V Industrial Turret Milling Machine Table Travel: (X) - 860mm (Y) - 360mm (Z) - 425mm Includes Digital Readout System, Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M607D
The BM-40V Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.
This medium robust milling machine package is next in the line up from the BM-30A model and is also complete with a few of the most desirable features for example, easy to use variable spindle speed dial, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, heavy duty X-axis auto power-feed with adjustable feed stops, 3-axis digital readout system fitted, manual operated oil pump to keep slides in perfect working order and also includes a machine vice & clamp kit set to get you started.
Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite?? cast iron. The key to the undisputed success of Meehanite?? metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.
To conclude this BM-40V turret milling machine is the most common size machine that???s found in approximately 70% of engineering workshops and when its put to the test it certainly performs its duties with no hesitation.
Features:

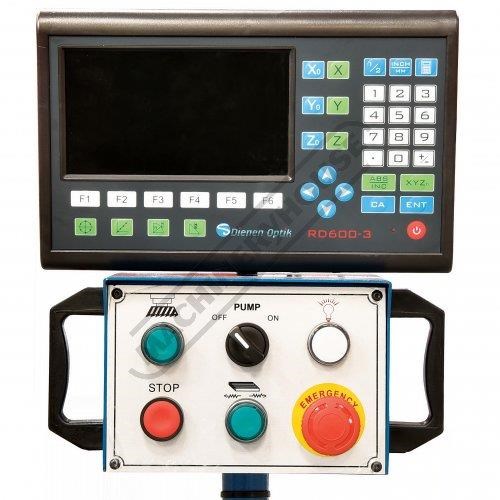

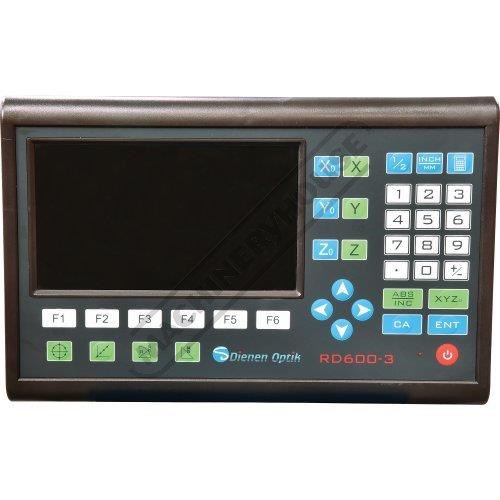

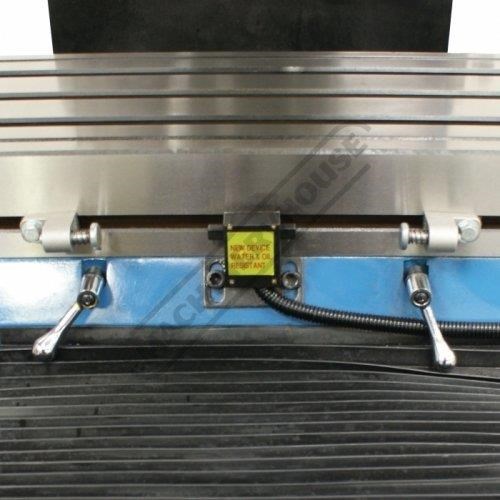

3 Axis digital readout fitted

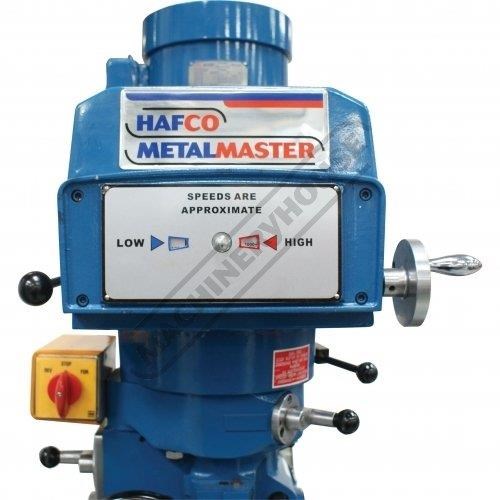

3HP 415V motor dial variable speed system (BM-40V)

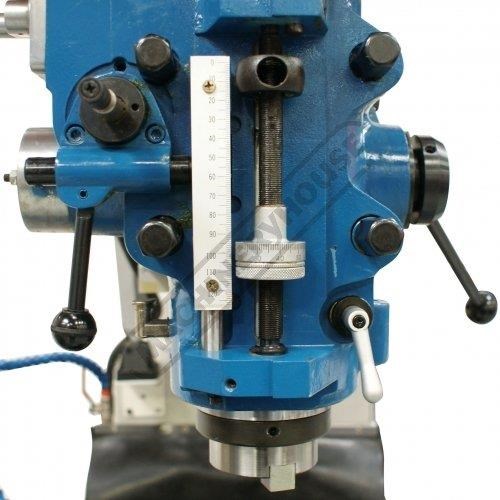

NT30 spindle taper with a chrome & ground quill

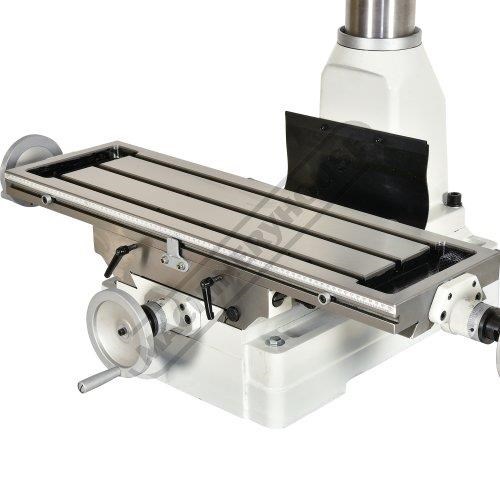

Hardened & ground work table & slide-ways
Turcite ``B`` coated X & Y Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

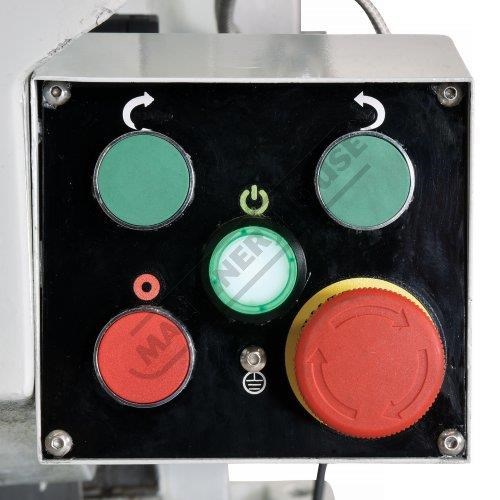

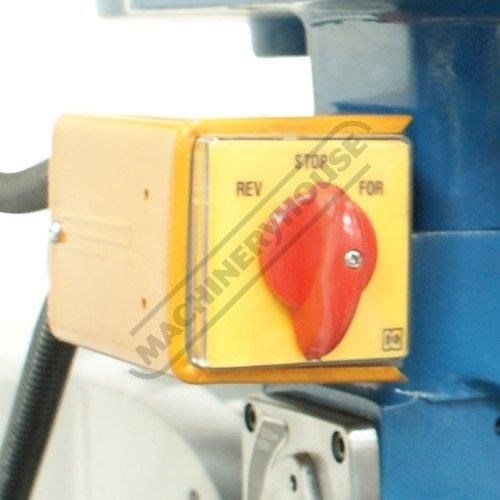

Quality electrics & overload protection in an easy access enclosure

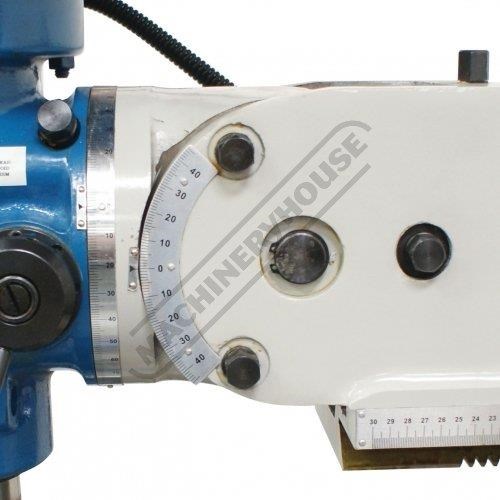

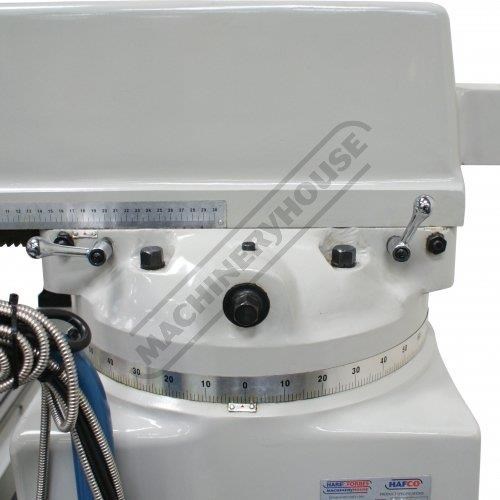

Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

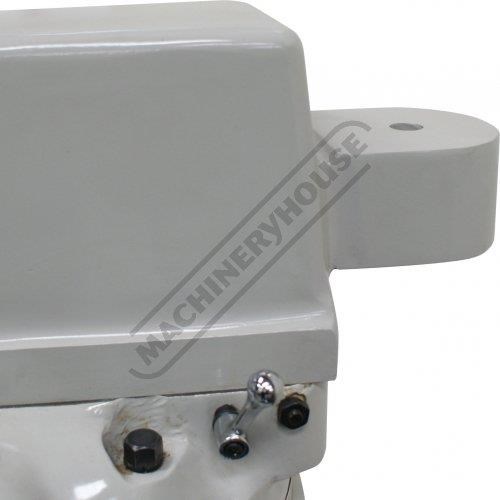

The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

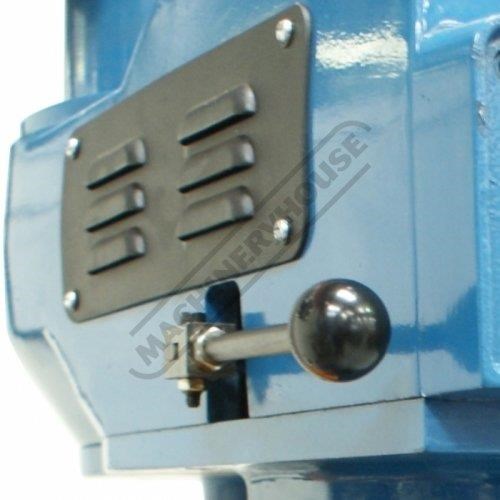

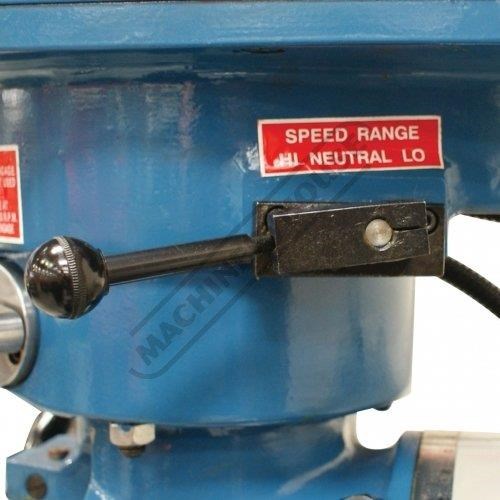

High / neutral and low gear selection lever to maximise torque

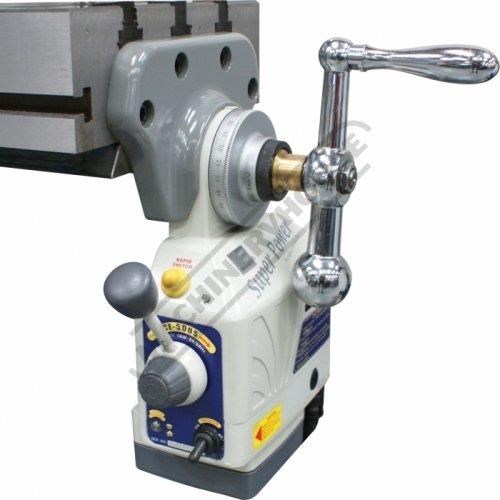

Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
Metric dial graduations @ 0.02mm for X Y & Z-Axis

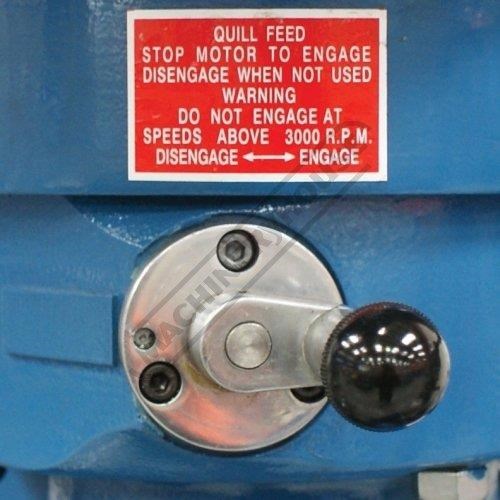

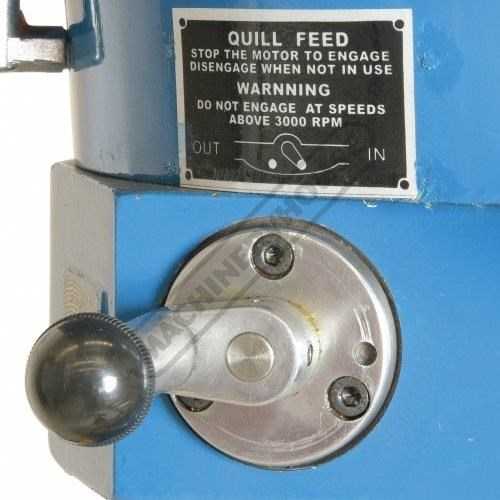

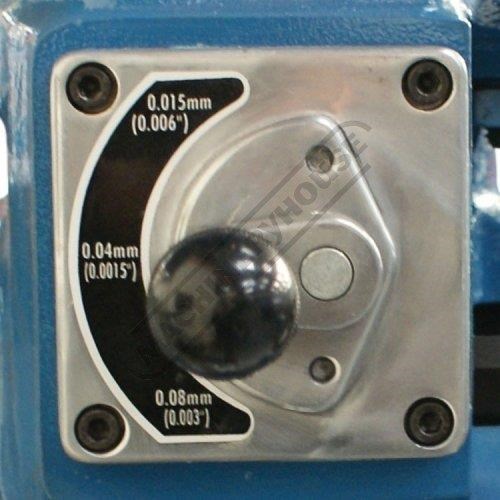

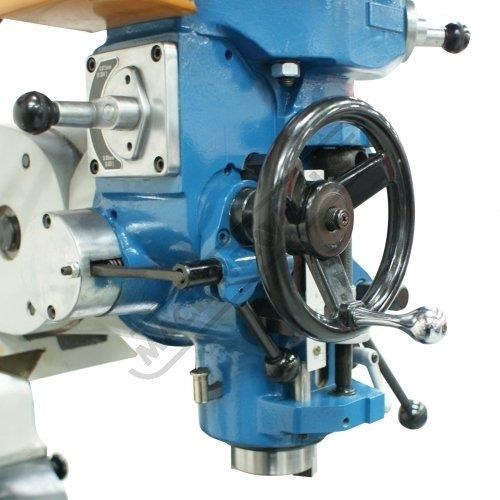

Automatic quill feed 0.015 0.04 0.08mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

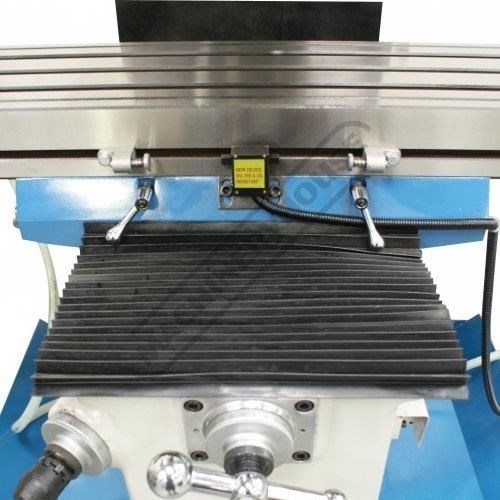

Slide-way covers Y & Z-Axis
Mill head tilts to ??45?? forward and back
Mill head tilts to ??90?? left and right

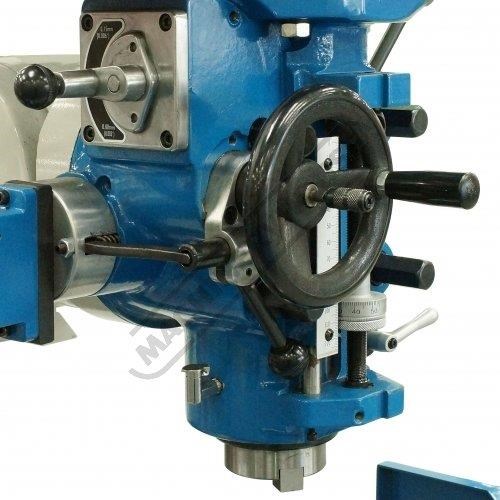

Manual quick action quill lever
Mechanical spindle brake

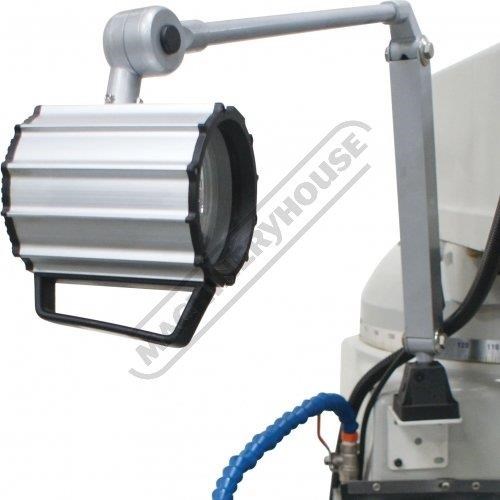

Low voltage LED work light
Tool box and manual
Includes:
- 3-Axis digital readout fitted
- One-shot oil lubrication pump and reservoir

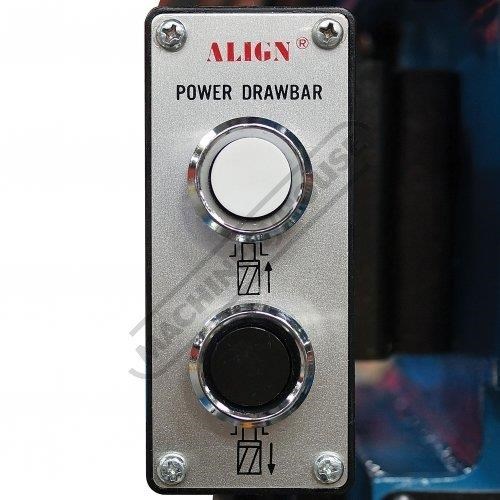

- Drawbar M12 thread

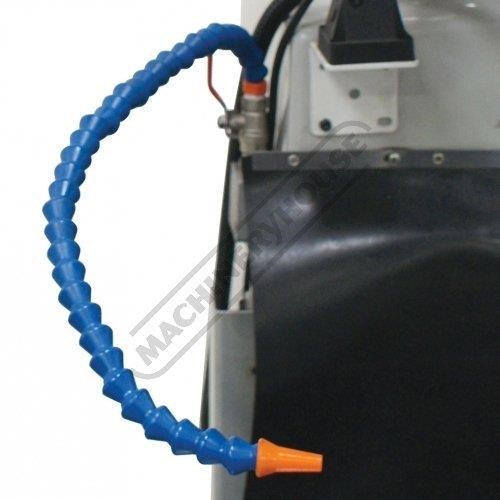

- Coolant system
- Slide-way covers
- X-Axis power-feed
- LED work light
- Machine vice (150mm)
- Clamp kit
- Safety cutter guard
- Swarf tray
Specifications:
ORDER CODE: M607D
MODEL: BM-40V
Digital Readout: 3-Axis Digital Readout
Type: Vertical
Table Size (mm): 1370 x 254
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 860
Cross Travel (Y-Axis) (mm): 360
Vertical Travel (Z-Axis) (mm): 425
Type of Slides: Dovetail
Ram Travel (mm): 508
Spindle to Table (mm): 505
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 735
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): ??45??
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.015 / 0.04 / 0.08
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 300
Spindle Speeds Vertical (No./ rpm): Variable (70 - 3500)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1300
