| Title | HAFCO METALMASTER DASHIN CHAMPION 1550 |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | HAFCO METALMASTER |
| Model | DASHIN CHAMPION 1550 |
| Sale Price | $28,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 7017 |
| RefCode | TA1266980 |
Description

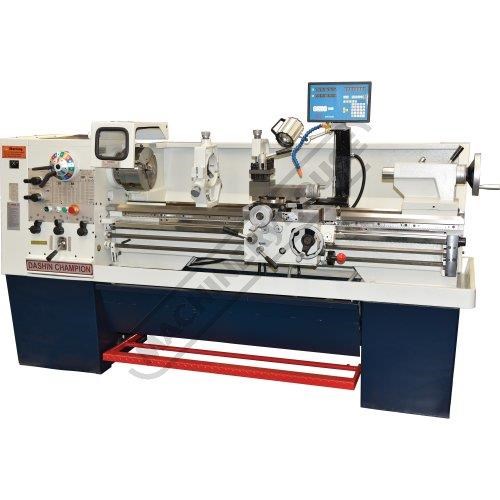

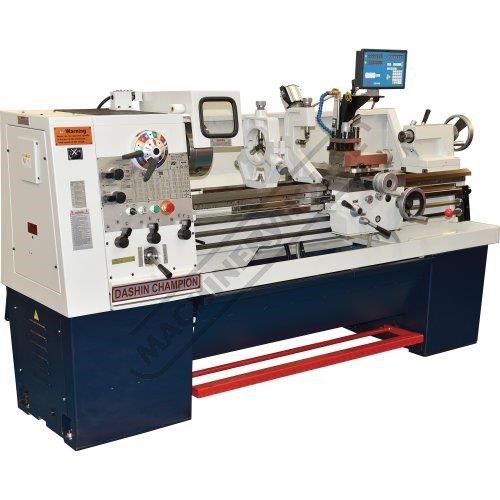

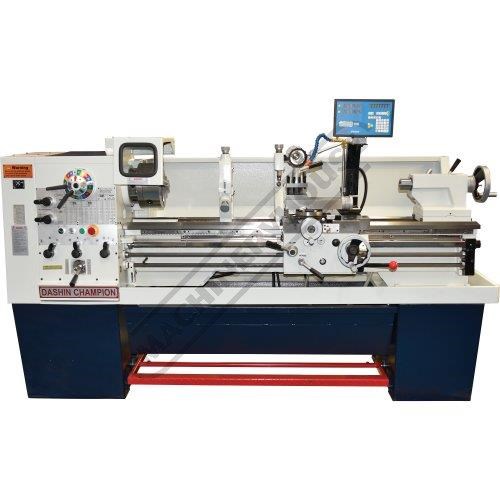

CHAMPION 1550 Centre Lathe ??390 x 1250mm Turning Capacity - ??55mm Spindle Bore Includes Digital Read
JESCO CHAMPION 1550 Centre Lathe ??390 x 1250mm Turning Capacity - ??55mm Spindle Bore Includes Digital Readout System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L254D
Manufactured in Taiwan, Jesco has been producing high-quality center lathes for over 30 years. As the OEM manufacturer for a prominent British lathe brand, Jesco ensures exceptional craftsmanship and reliability.

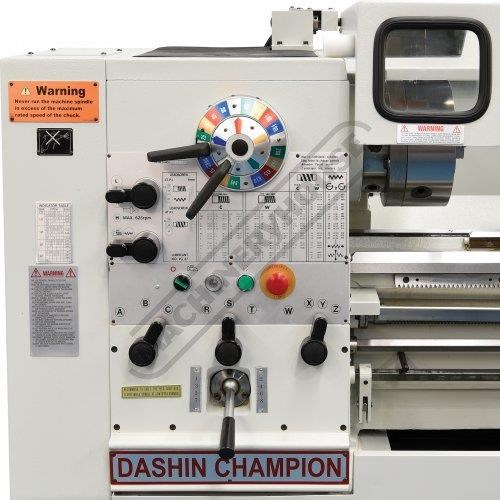

The Champion model stands out with its geometric progression gear speed selector, ensuring effortless and precise speed adjustments. This all-inclusive lathe package is equipped with essential features to deliver precise, high-quality metal parts, making it the trusted choice for professionals who demand excellence in metal turning.
Features:

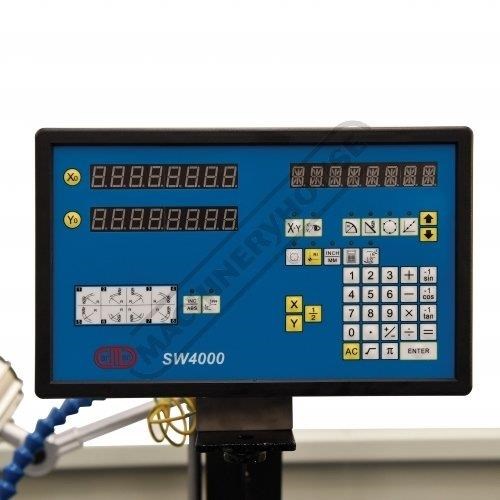

2 Axis digital readout system
Precision Taiwanese machine sold for over 45 years
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Overload protection on drive motor and coolant system

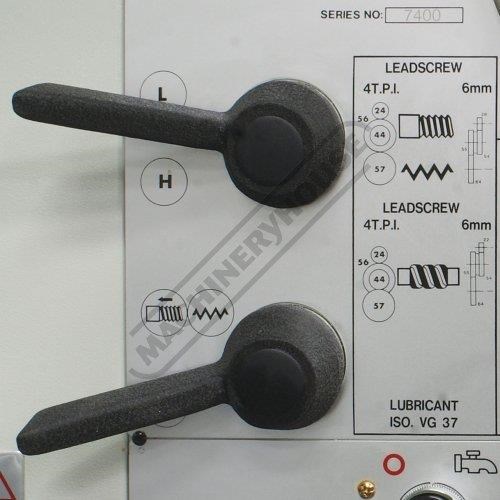

Universal enclosed gearbox incorporating metric & imperial thread capabilities

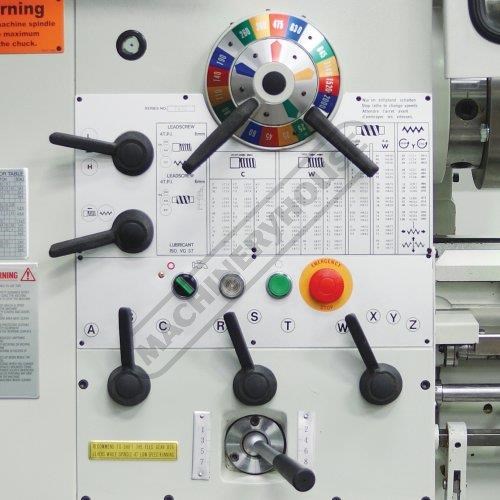

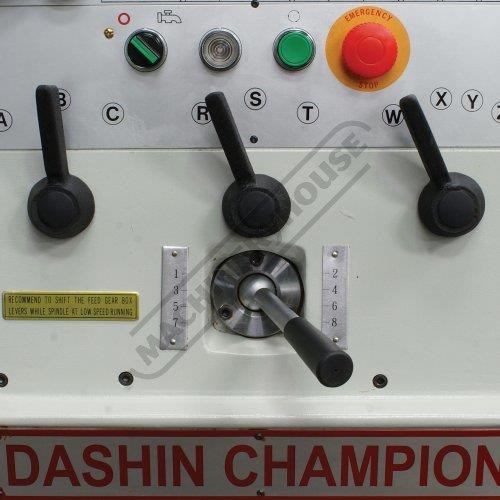

Inching button incorporated on the control panel for convenient spindle speed selection

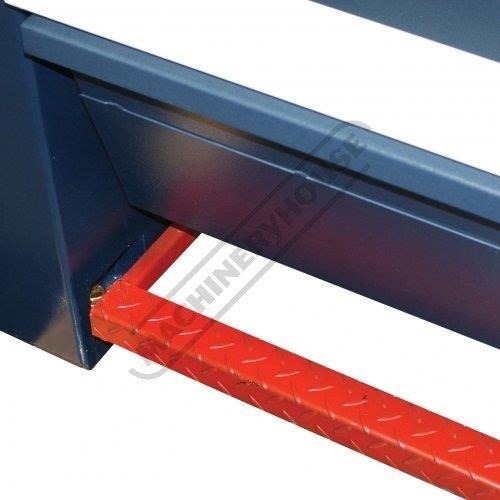

Foot operated spindle brake with safety cut out switch
270mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 610mm

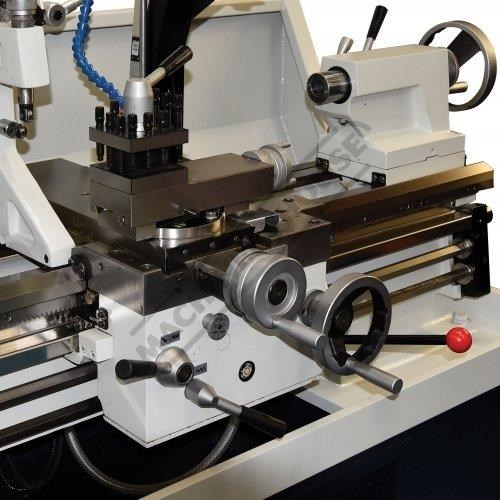

Powered longitudinal and cross feeds

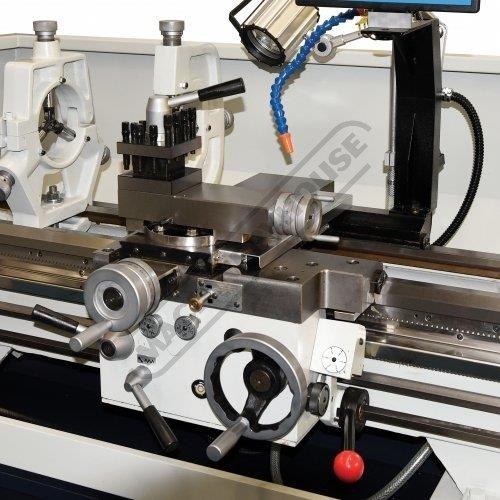

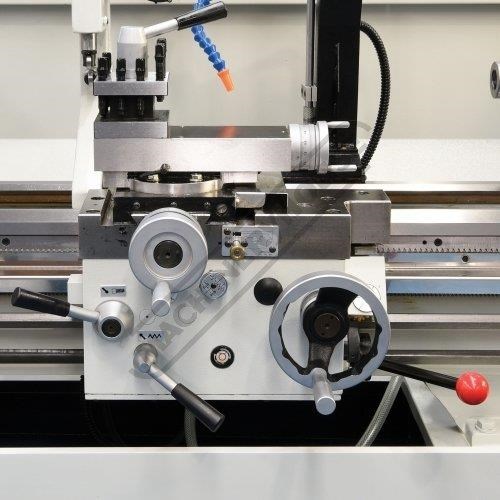

Clutch in apron enabling pressure adjustment for feeding in both axis
Dual calibrated dials incorporating metric & imperial graduations on Cross and Compound Dials

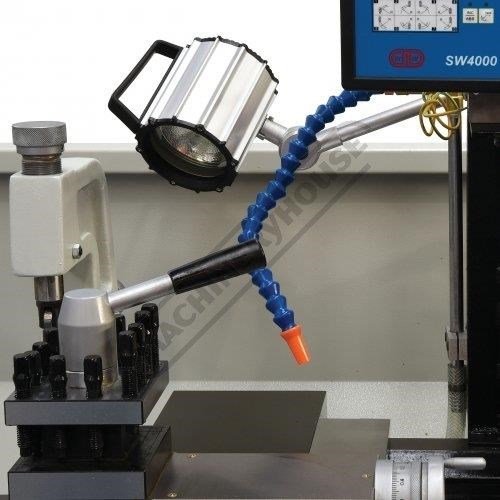

Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Lubrication pump on saddle oiling slides

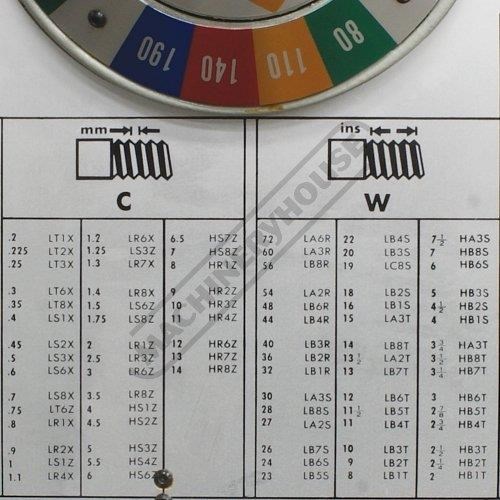

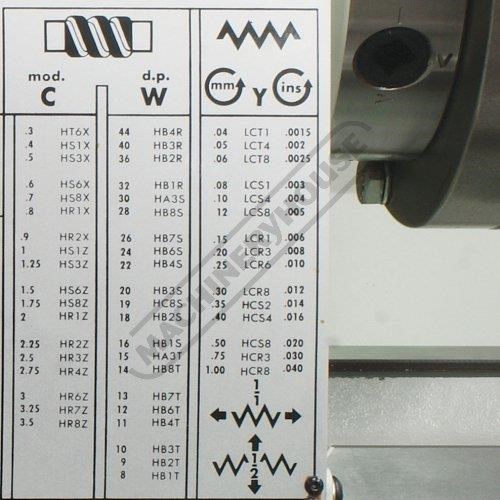

Change gears for metric and imperial thread cutting
D1-6 camlock spindle for quick chuck removal

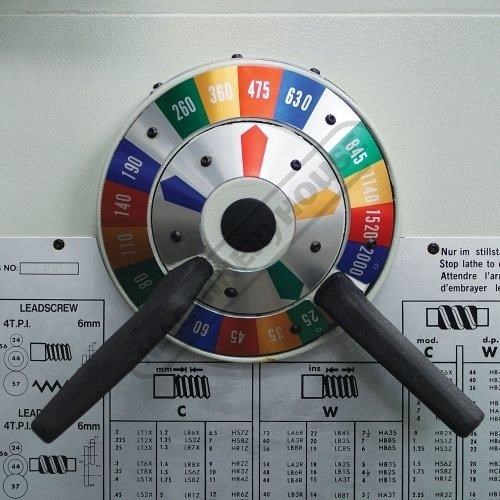

16 spindle speeds from 25-2000rpm in geometric progression
Large 55mm spindle bore
5.5kW / 7.5HP 415V main motor
Includes:
- 2 Axis digital readout system

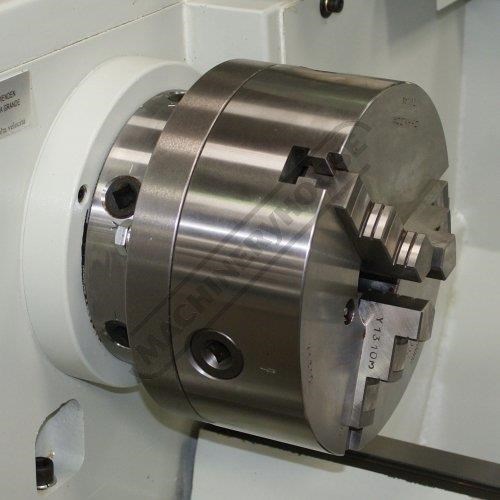

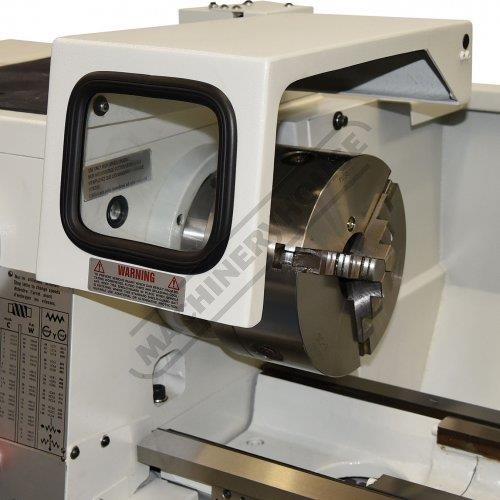

- 232mm 3-jaw chuck with reverse jaws
- 250mm 4-jaw chuck
- Leadscrew cover
- Face plate
- Fixed steady
- Travelling steady
- Dead centres

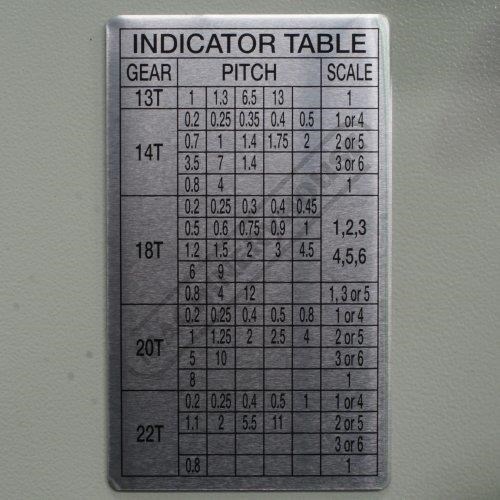

- Thread chasing dial
- Foot brake
- Coolant system
- Rear splash guard
- Spindle reducing bush
Specifications:
ORDER CODE: L254D
MODEL: DASHIN CHAMPION 1550
Swing Over Bed (mm): 390
Distance Between Centres (mm): 1250
Spindle Bore (mm): 55
Swing In Gap (mm): 610
Swing Over Cross-slide (mm): 240
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 20
Centre Height (mm): 195
Spindle Nose Size or Type: D1-6 Camlock
Bed Width (mm): 270
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 230
Compound Slide Travel (mm): 120
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.50
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.040 - 1.00
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 39(0.2 - 14)
Imperial Thread Steps & TPI (No. / TPI): 40(2 - 72)
3 Jaw Chuck Diameter (mm): 232
4 Jaw Chuck Diameter (mm): 250
Spindle Steps / Speeds (No. / rpm): 16 (25 - 2000)
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1500
To Purchase Online Please Visit The Machineryhouse Website & Search For 'L254D'
