Contact Seller
Features
| Title | HAFCO METALMASTER DASHIN CHAMPION 2500VS |
| Type | Engineering - Fabrication |
| Sub Type | Lathes |
| Make | HAFCO METALMASTER |
| Model | DASHIN CHAMPION 2500VS |
| Sale Price | $35,250 GST Exclusive |
| Listing Type | New |
| Stock Number | 134422 |
| RefCode | TA1266899 |
Description

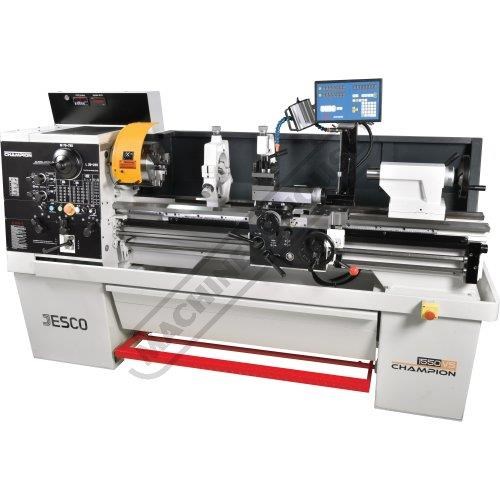

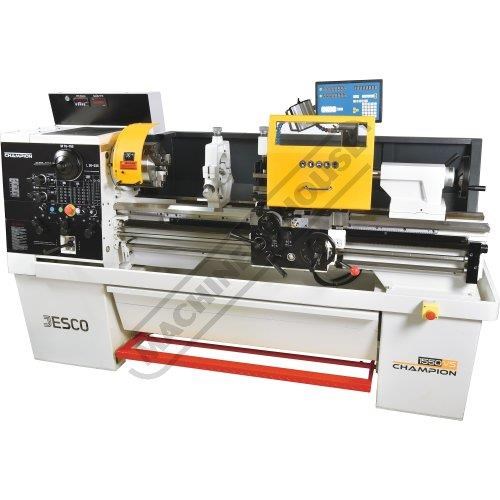

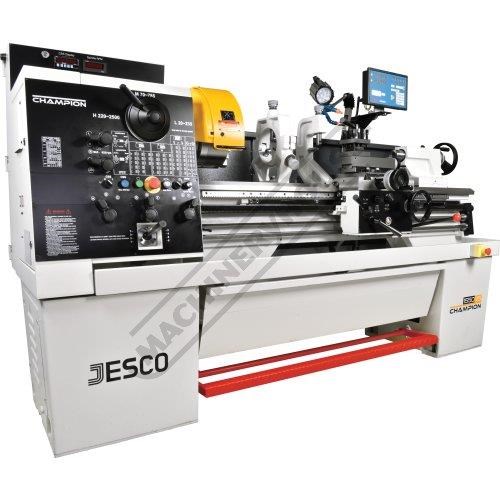

CHAMPION 1550VS Centre Lathe ??390 x 1250mm Turning Capacity - ??55mm Spindle Bore Includes Digital Re
JESCO CHAMPION 1550VS Centre Lathe ??390 x 1250mm Turning Capacity - ??55mm Spindle Bore Includes Digital Readout System, Variable Spindle Speed & (CSS) Constant Surface Speed System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L255VS
Manufactured in Taiwan, Jesco has been producing high-quality center lathes for over 30 years. As an OEM manufacturer for a leading British lathe brand, Jesco is renowned for its exceptional craftsmanship and reliability.
The Variable Speed Champion lathe offers a spindle speed of up to 2500 RPM and features a constant surface speed function (CSS) that adjusts the spindle speed automatically to maintain a constant cutting speed between the tool and the workpiece surface. It is especially useful for achieving consistent finishes and efficient cutting during operations like turning, facing, or tapering.

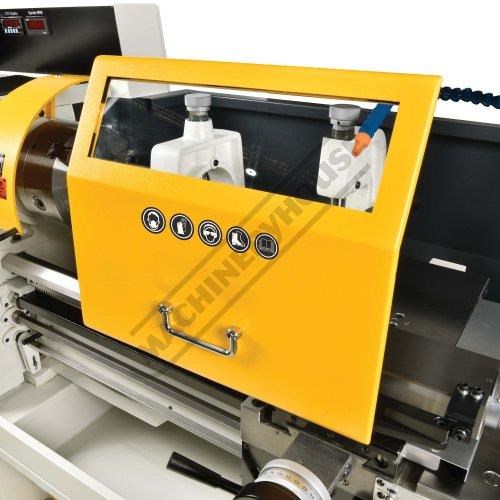

Designed with operator safety in mind, it includes features such as leadscrew covers, chuck and chip guards, an emergency stop switch, and a convenient footbrake. Additionally, all models can be specially ordered with premium digital readout systems from brands like Fagor, Easson, Carmar, Heidenhain, Sony, Mitutoyo, and Measumax.
Features:

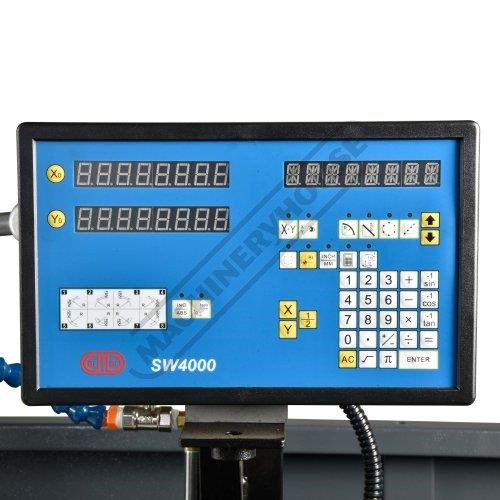

2 axis digital readout system
Schneider Electric Varispeed high-performance Low-noise Inverter drive

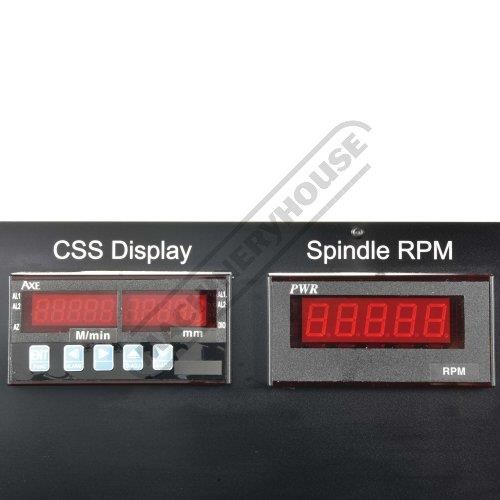

Constant surface speed cutting - Allows for auto acceleration of the spindle when facing or reducing diameters
Electronic variable speed system 18-2500rpm with high/low speed selector - low noise emissions below 80dba
Foot operated electromagnetic spindle brake for safety
Feed shaft fitted with torque limiting safety clutch
Precision Taiwanese machine sold for over 45 years
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground

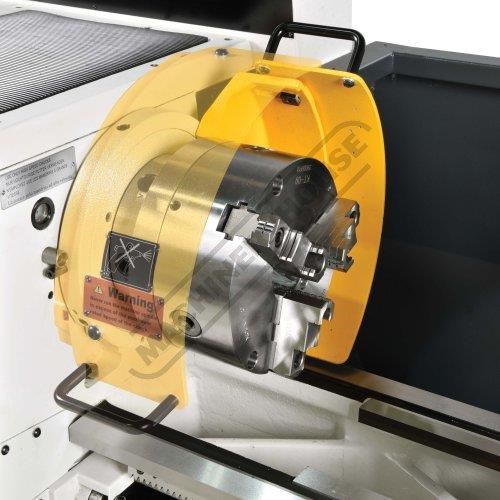

Chuck guard with safety micro switch cut out
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities

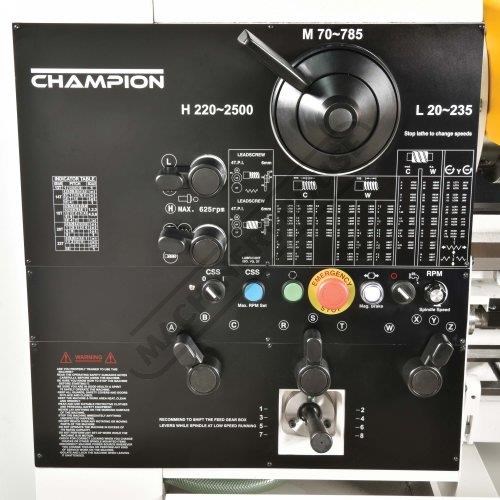

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
270mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 610mm

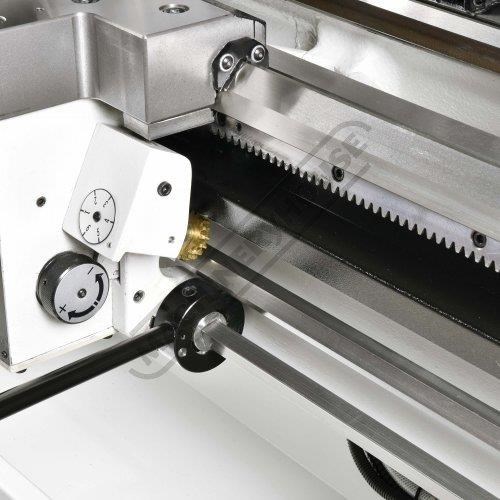

Powered longitudinal and cross feeds
Clutch in apron enabling pressure adjustment for feeding in both axis
Metric calibrated dials with clearly marked graduations

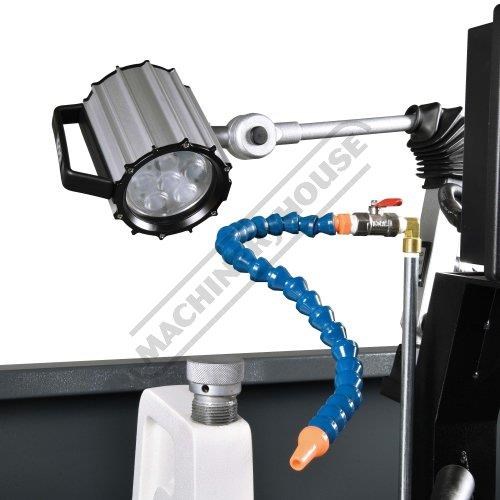

Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox

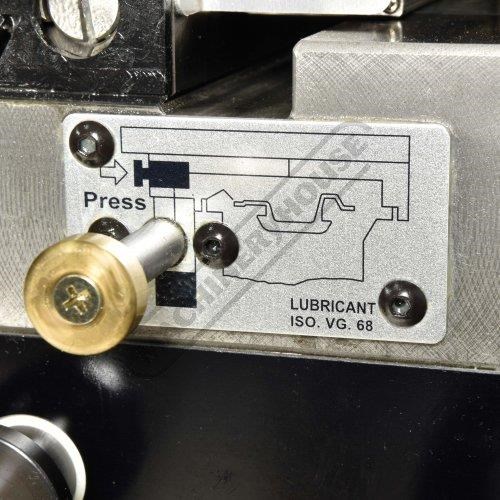

Lubrication pump on saddle oiling slides
Change gears for metric and imperial thread cutting
Includes:
- 230mm 3-jaw ``Steel Body`` chuck with reverse jaws
- 250mm 4-jaw chuck

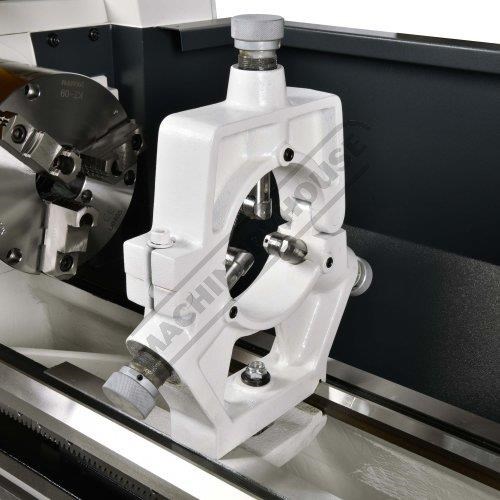

- Fixed Steady with roller bearings

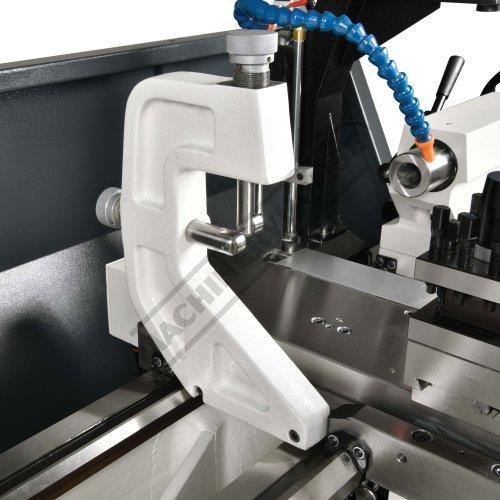

- Travelling steady with roller bearings
- Chuck guard
- Dead centres

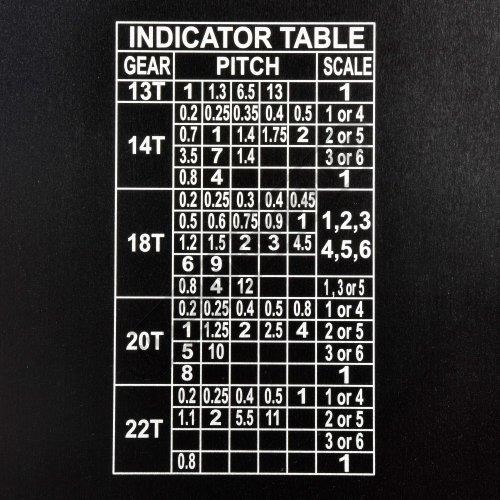

- Thread chasing dial
- Foot brake
- Coolant system
- Rear splash guard
- Spindle reducing bush
- Instruction booklet
Specifications:
ORDER CODE: L255VS
MODEL: DASHIN CHAMPION 2500
Swing Over Bed (mm): 390
Distance Between Centres (mm): 1250
Spindle Bore (mm): 55
Swing In Gap (mm): 610
Swing Over Cross-slide (mm): 240
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 20
Centre Height (mm): 190
Spindle Nose Size or Type: D1-6
Bed Width (mm): 270
Headstock Spindle Taper (MT): 6

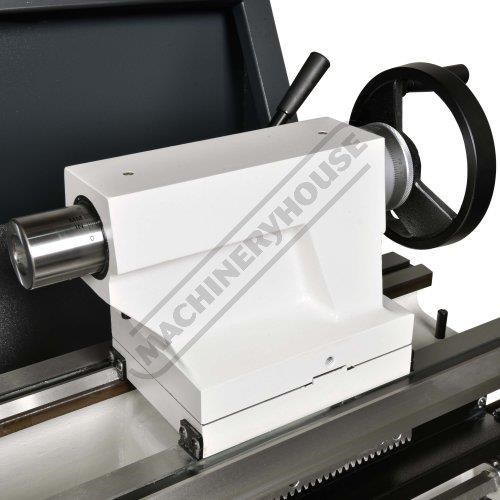

Tailstock Taper (MT): 4
Cross Slide Travel (mm): 230
Compound Slide Travel (mm): 120
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.02 - 0.5
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.040 - 1.00
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 39(0.2 - 14)
Imperial Thread Steps & TPI (No. / TPI): 45(2 - 72)
3 Jaw Chuck Diameter (mm): 230
4 Jaw Chuck Diameter (mm): 250
Spindle Steps / Speeds (No. / rpm): Variable (18 - 2500)
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1500
To Purchase Online Please Visit The Machineryhouse Website & Search For 'L255VS'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
