Features
| Title | HAFCO METALMASTER DMF-44 |
| Type | Engineering - Fabrication |
| Sub Type | Geared Head Pedestal Drill |
| Make | HAFCO METALMASTER |
| Model | DMF-44 |
| Sale Price | $3,000 GST Exclusive |
| Listing Type | New |
| Stock Number | 886820 |
| RefCode | TA1266376 |
Description

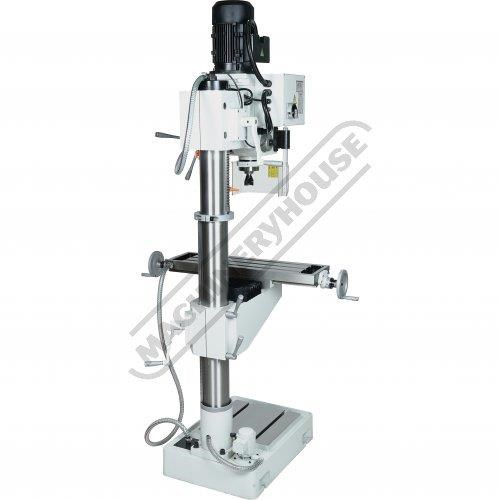

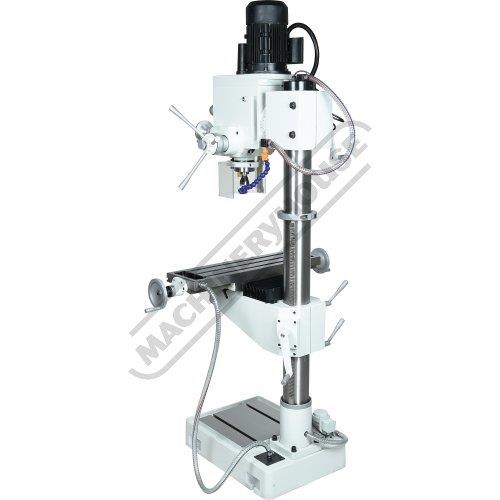

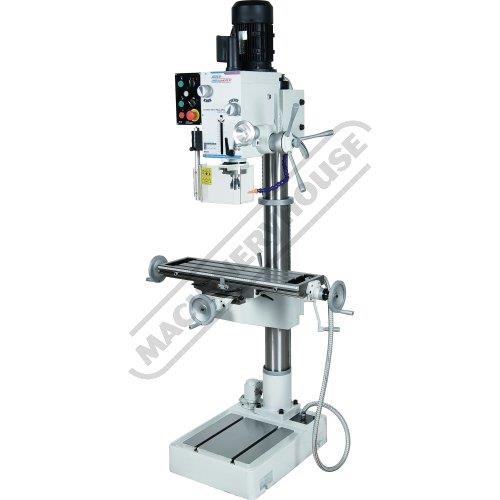

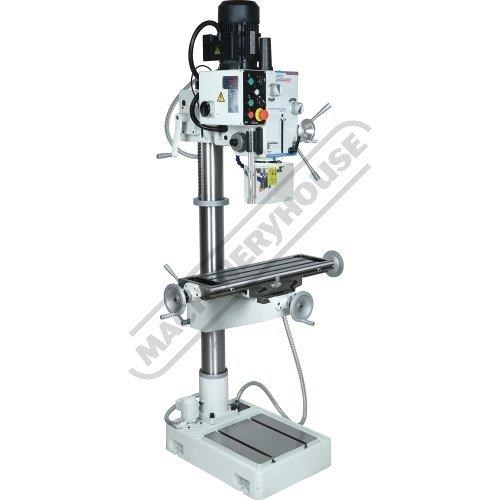

DMF-44 Pedestal Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 200mm (Z) - 850mm
HAFCO-METALMASTER DMF-44 Pedestal Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 200mm (Z) - 850mm 31.5mm Drilling Capacity, Includes Coolant System & Thread Tapping Function
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D185

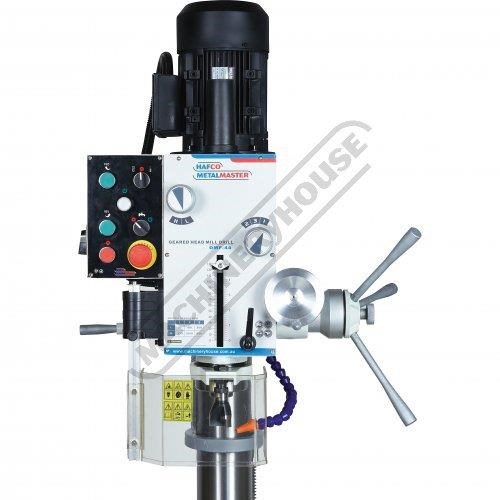

The DMF-44 pedestal milling & drilling machine offers a new dimension of milling capabilities compared to the standard conventional mill drills, as this machine allows you to have a longer job to fit onto the table or even mount your work directly to the machine base for maximum height clearance.

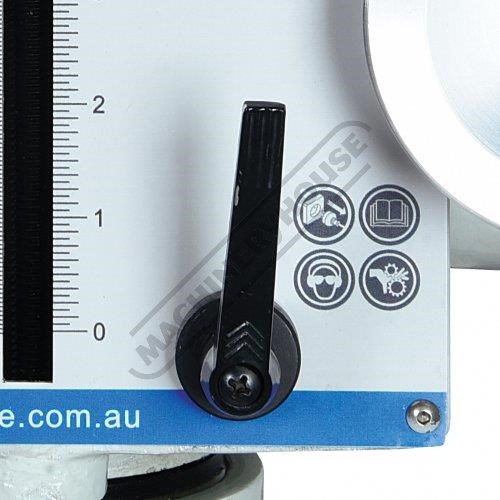

This machine has a tapping function switch to allow you to control the required depth when tapping holes. The milling head also has provisions to adjust up and down in addition to the worktable movement up & down as well, given you the optimum options to best suit your requirements.
The spindle on this machine is a 3 morse taper that is driven by a 2hp, 240V motor via gears in the head to ensure maximum drive without any slippage that can occur & generally inherited with belt drive heads.
Features:
Ideal for home or light industrial workshop use
Geared head drill & mill machine with 3 morse taper spindle

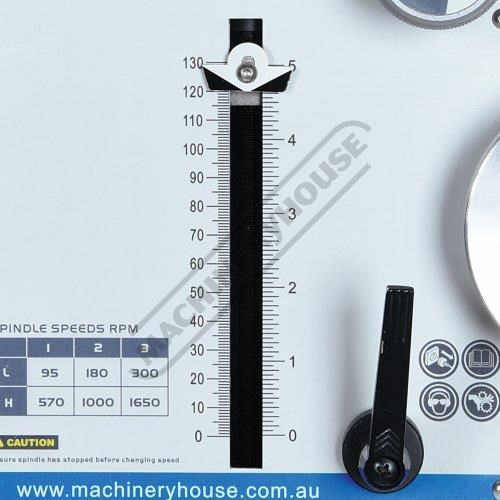

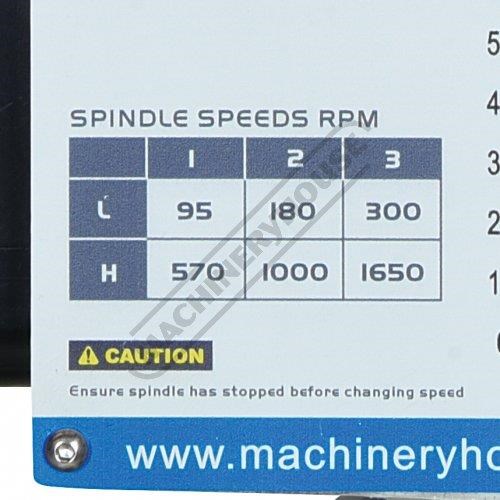

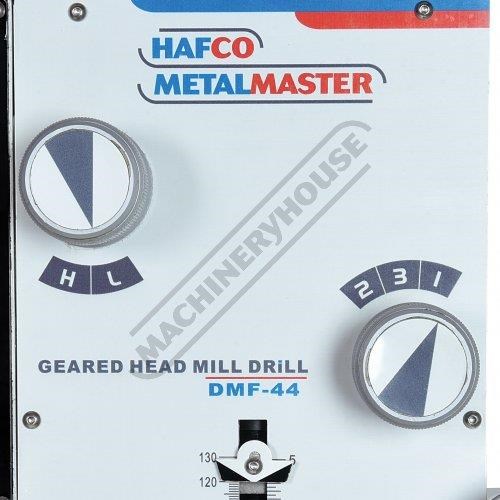

6 drilling speeds from 95-1650rpm
Thread tapping function

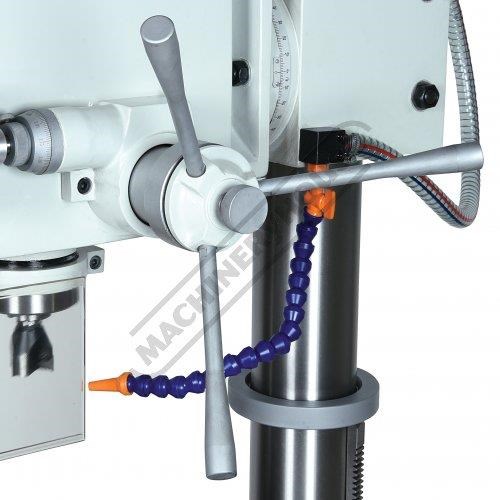

Coolant pump system with flexible hose

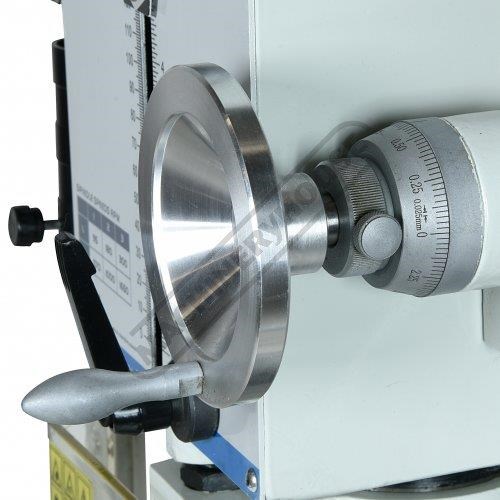

Micro down feed adjustment

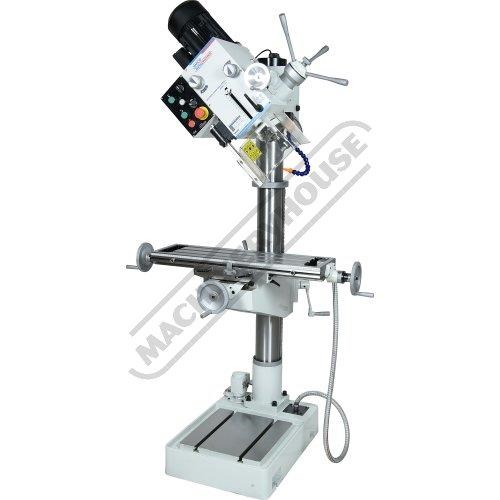

Mill head tilts to ??90??
Milling table travels 480 x 200mm

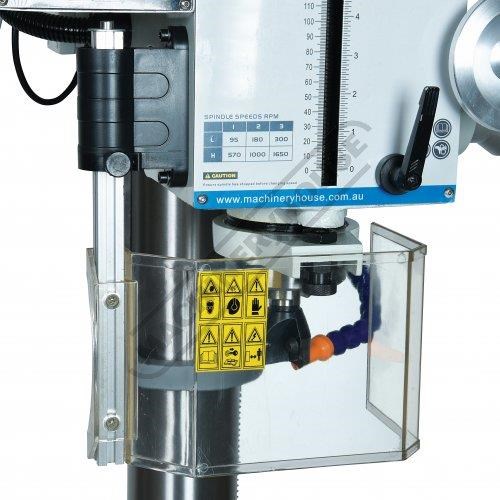

Interlocked spindle safety guard

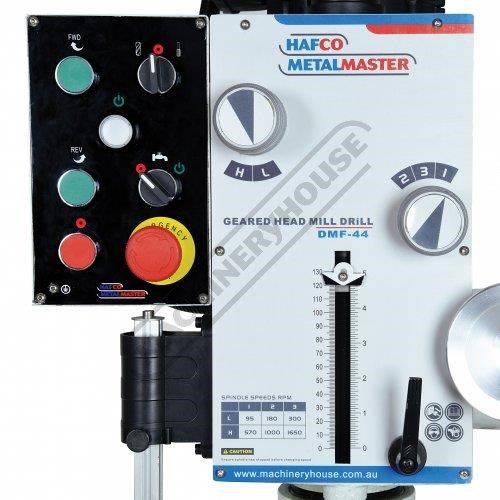

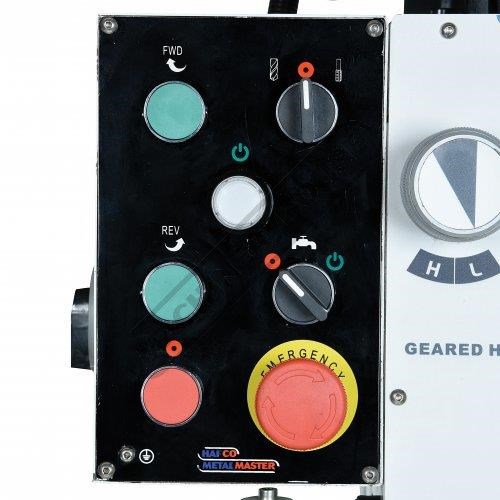

Emergency stop switch and overload protection
Adjustable accurate depth setting for increased productivity

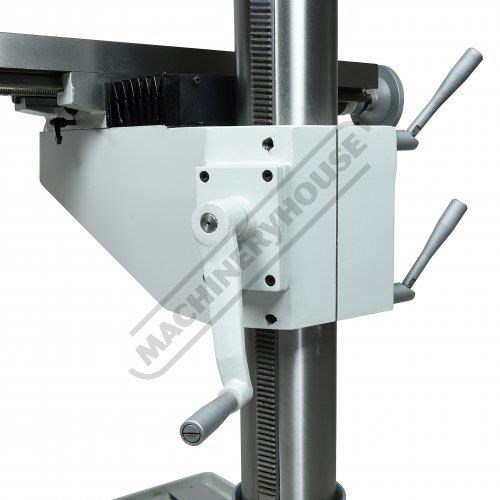

Rack and pinion wind-up table

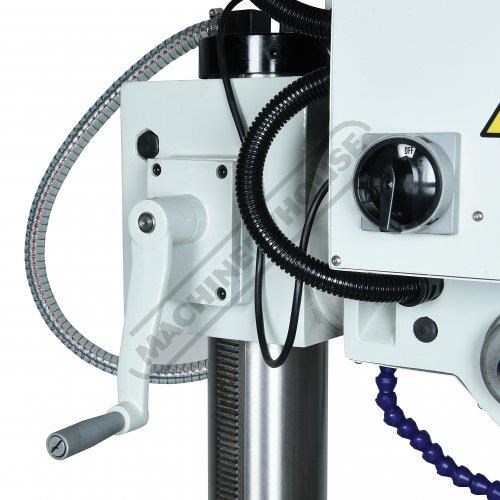

Rack and pinion wind-up drill head
Thick walled column ensuring greater rigidity

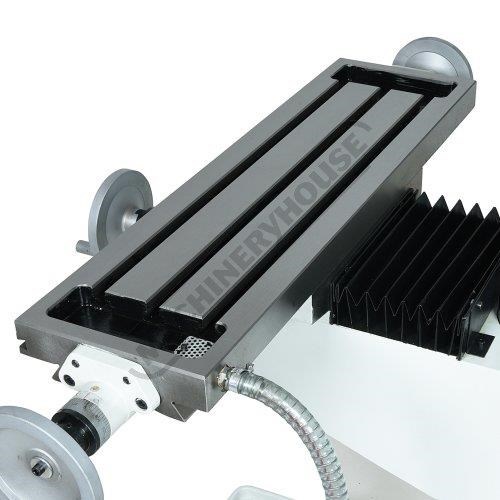

Concertina slide way cover on y axis
Adjustable gibs on table
14mm T slotted work table and base
1.5kW 240V motor
Includes:
- Interlocked spindle safety guard
- Face milling cutter with inserts
- 13mm keyed drill chuck and arbor
- Chuck key to suit
- MT3 to MT2 drill sleeve adapter
- Drill drift tool to remove drill chuck or taper shank drills
- M12 x 1.75mm drawbar
- 1/2`` x 12TPI drawbar
Specifications:
ORDER CODE: D185
MODEL: DMF-44
Digital Readout: Optional
Type: Vertical
Table Size (mm): 730 x 210
Column Type: ??125mm
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 480
Cross Travel (Y-Axis) (mm): 200
Vertical Travel (Z-Axis) (mm): 850
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 630
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 75
Throat Depth (max.) (mm): 280
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 28
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Optional
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 6 (95 - 1650)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 1.5 / 2
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 390
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D185'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
