Features

Title HAFCO METALMASTER RR 10 Ring Rolling Machine 50mm
Make HAFCO METALMASTER
Sale Price $2,145
Listing Type New
Stock Number s681
RefCode TA514345

Description

HAFCO METALMASTER Ring Rolling Machine RR-10 50mm

CALL FOR OUR BEST PRICE

Order Code: S681
RR-10 - Ring Rolling Machine
50 x 10mm Flat Bar

Features
Hardened 98mm top & 118mm bottom rolls
30mm heat treated drive shaft
Cast iron housing on heavy duty stand
Gear driven rolls
Heavy duty steel fabricated frame
Bottom rolls are knurled for additional grip on material
Manual screw adjustment of top roller
Adjustable side support guide rolls
Standard flat & angle rolls are included
One piece guiding mono block mounted on cross head

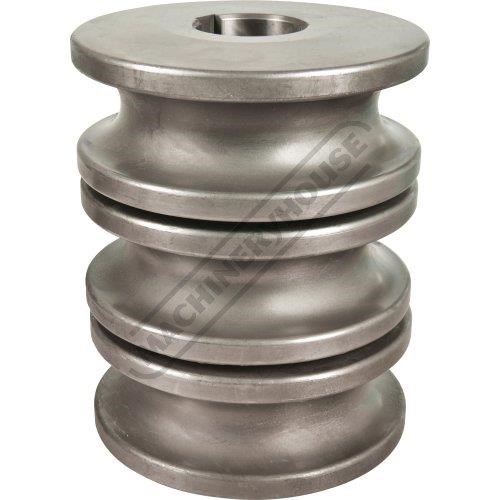

  • Additional dies are required to roll round bar, round pipe/tube & square tube

Specifications:
ORDER CODE: S681
Model: RR-10
Roll Diameter: Ø118mm
Flat Bar on Edge Capacity (Size / Min. Radius): 30 x 10mm
Flat Bar Capacity (Size / Min. Radius): 50 x 10mm / ~
Square Bar Solid Capacity (Size / Min. Radius): 20 x 20mm / ~
Dimensions (L x W x H): 500 x 480 x 680mm
Weight (Nett): 185kg

all prices and specifications are subject to change
