K & W MT5

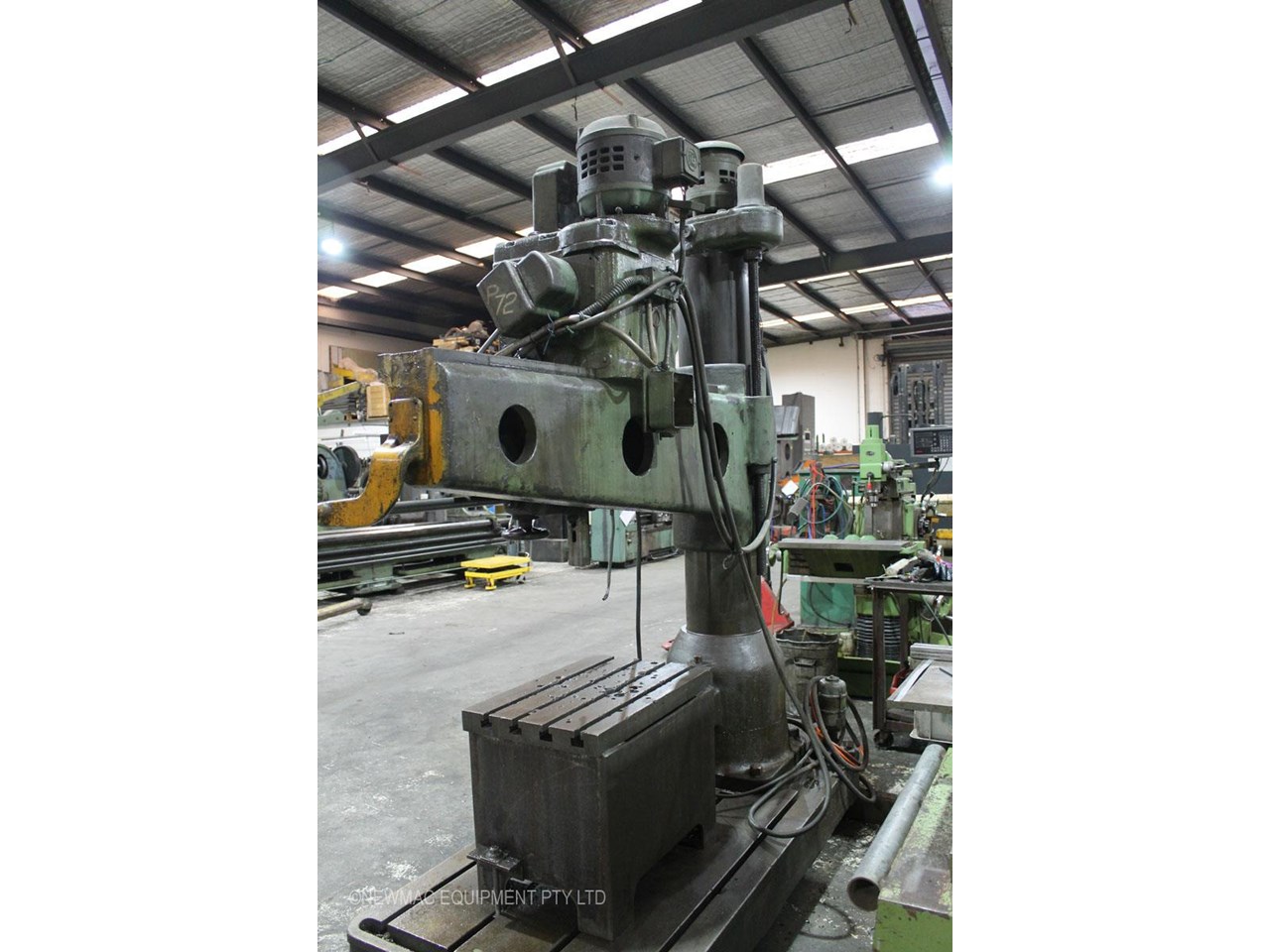

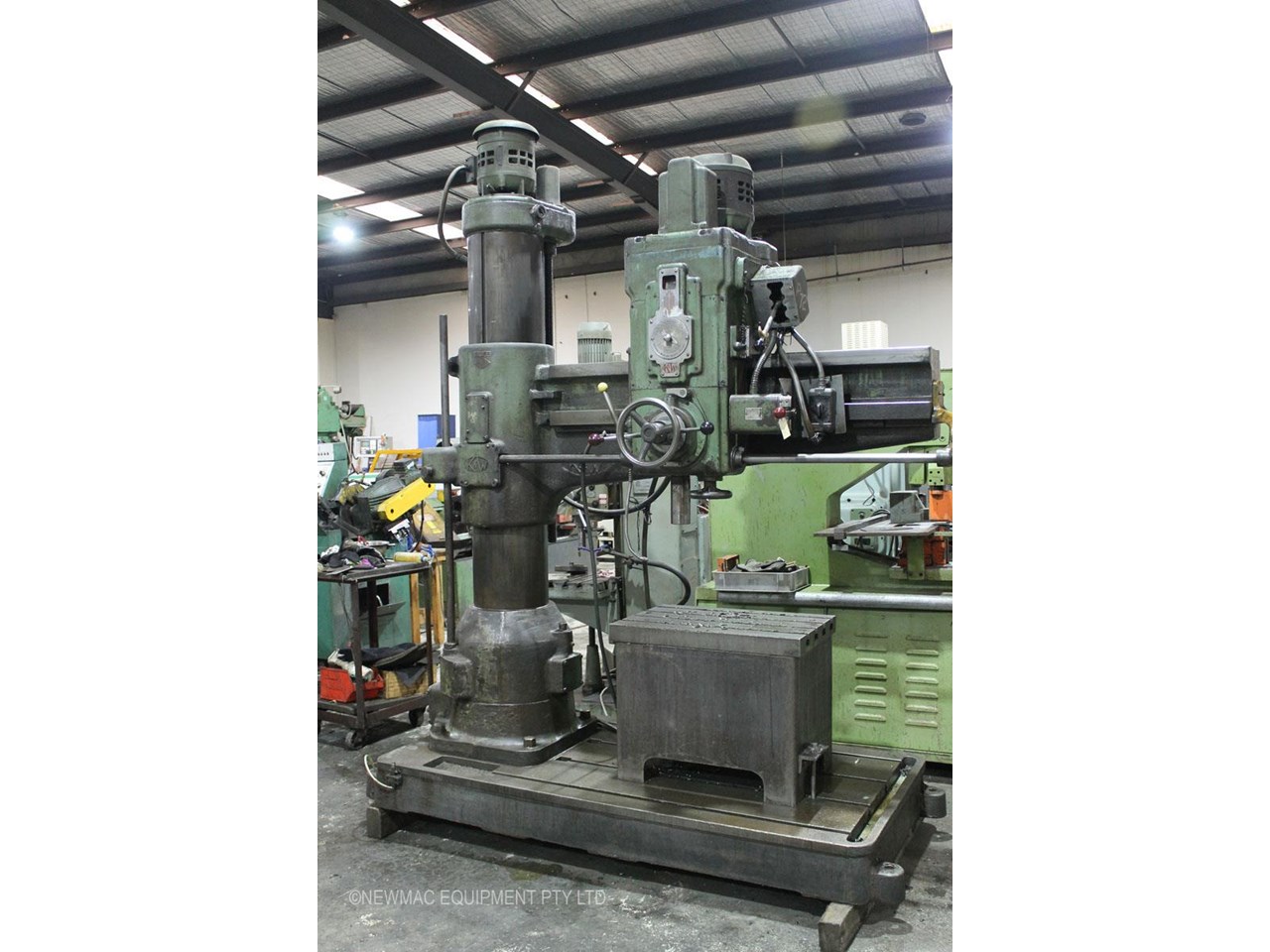

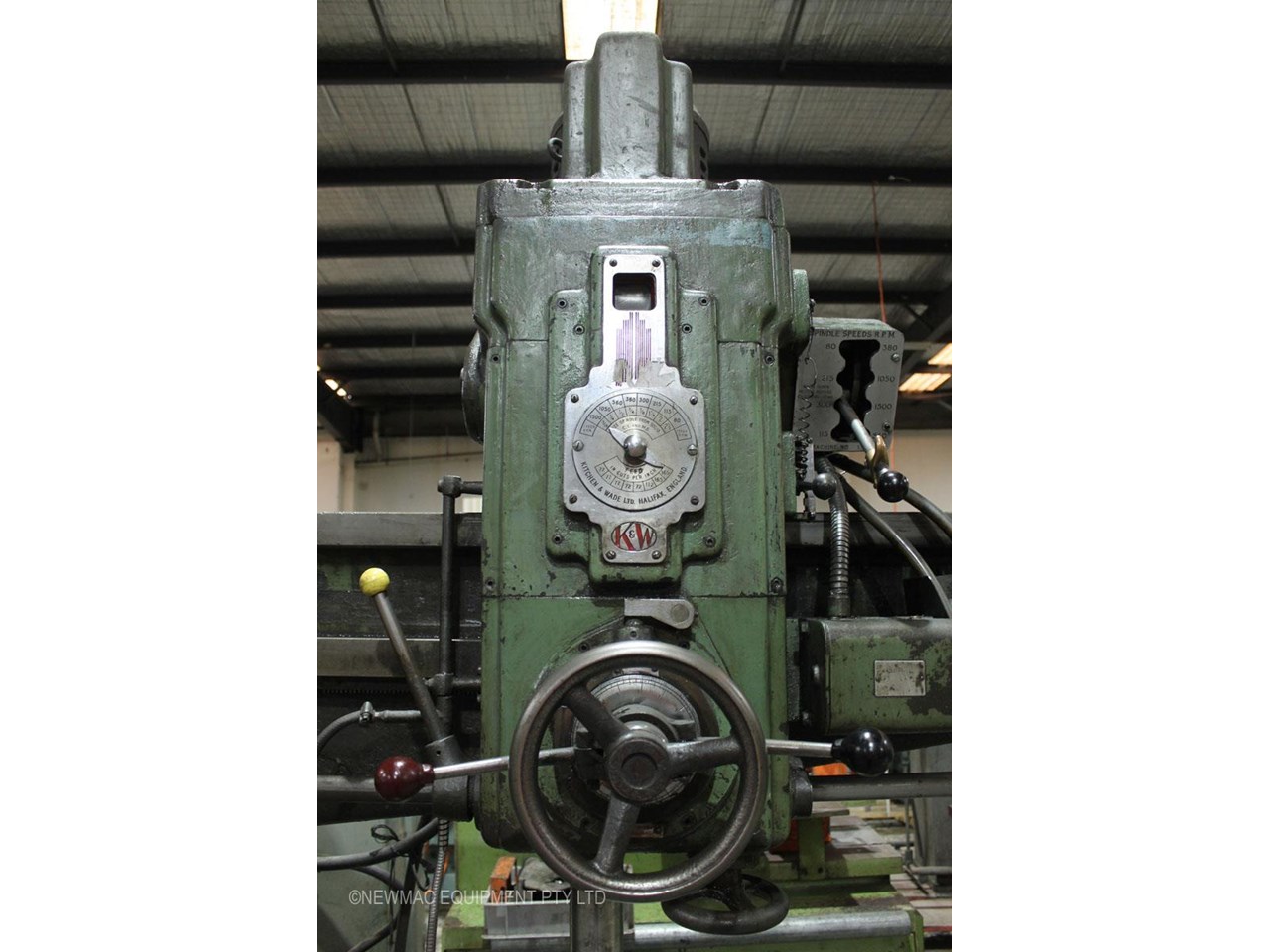

We have a used K & W Radial Arm Drilling Machine for sale.

Specifications are as follows

Max drilling diameter in mild steel 50mm
Distance from centre of the spindle to the column, max 1400mm
Distance from box table to spindle nose, max 700mm, min 0mm
Distance from baseplate to spindle nose, max 1300mm
Spindle taper morse taper 5
Quill travel 300mm

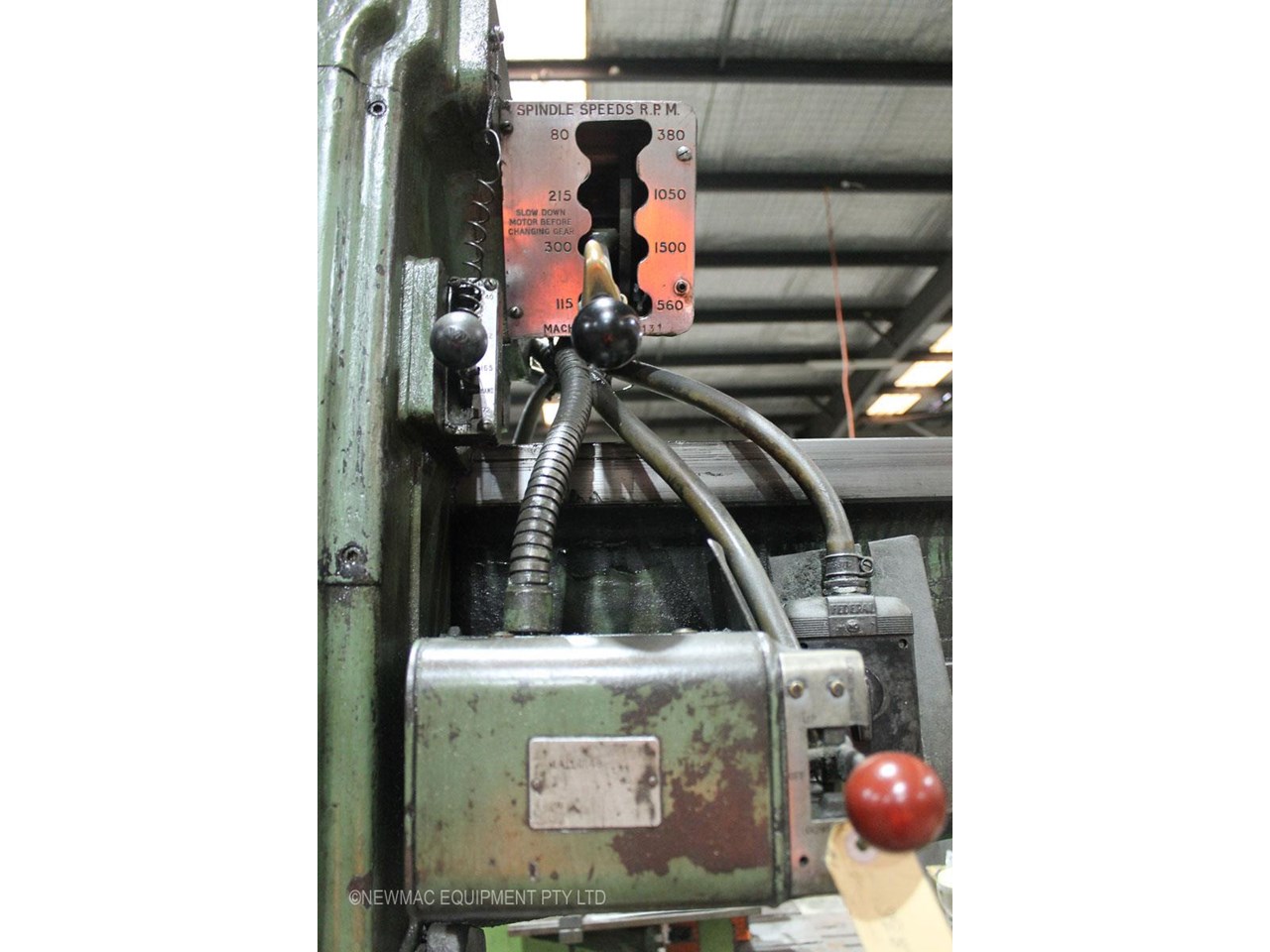

8 spindle speeds 80 to 1500 RPM

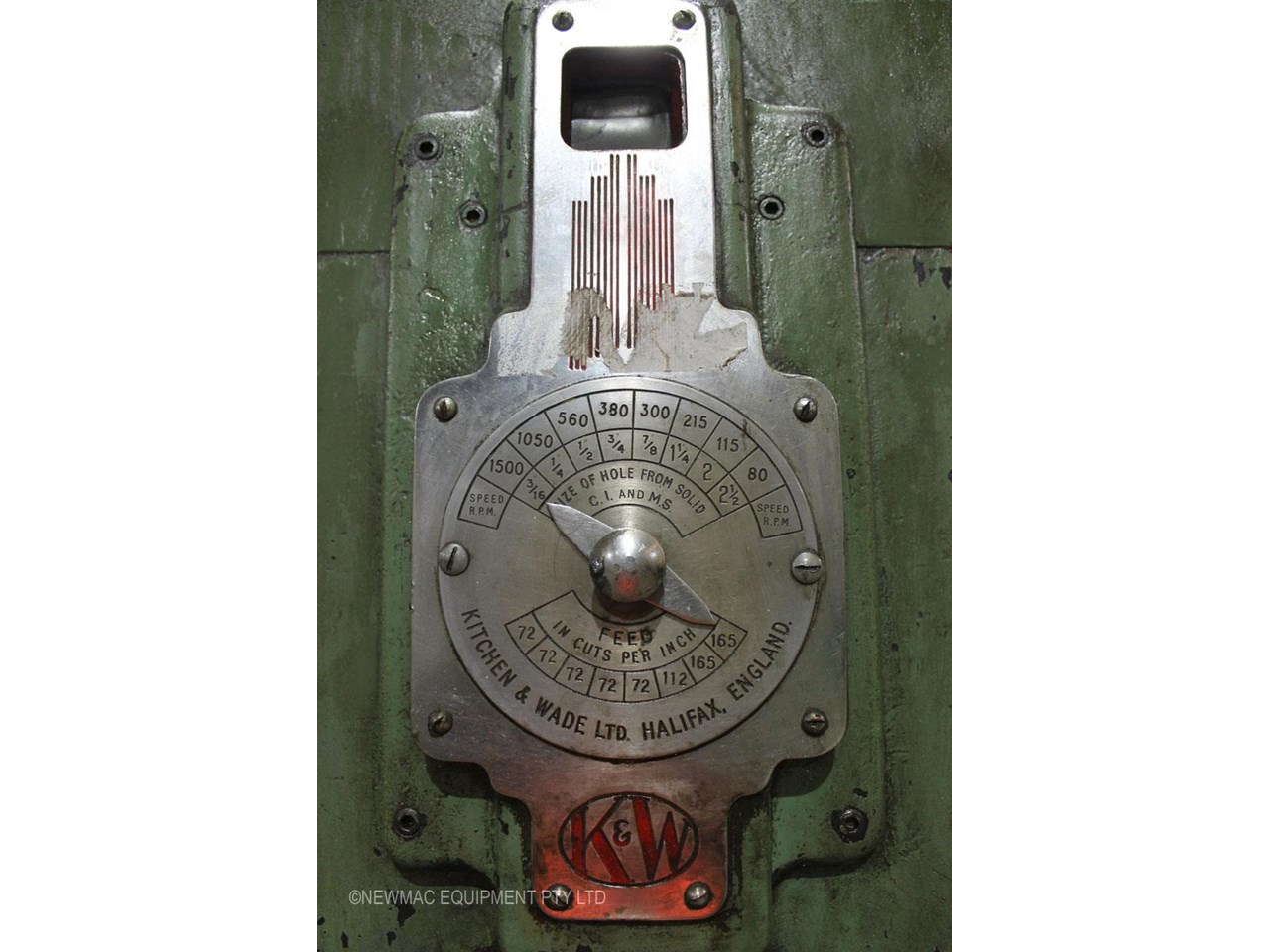

4 spindle feeds

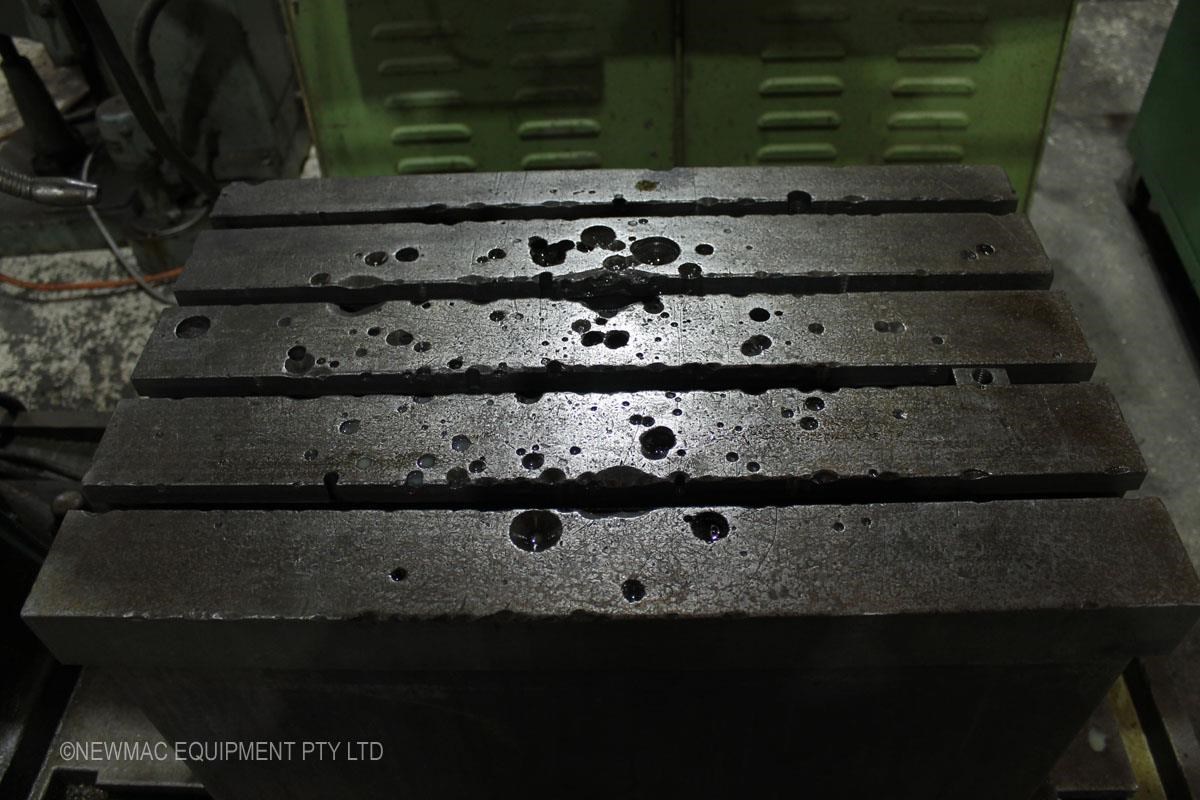

Box table 700mm x 4600mm x 570mm high
Overall dimensions 2100mm x 1100mm x 2800mm high
Net weight 3 tons
Testing of Machinery Try Before You Buy

We are happy to test run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job prior to purchase.

This machine is in our warehouse so feel free to pop in to inspect the machine at your convenience.

We are always interested in purchasing metalworking machinery, if you have machines surplus to requirements or you are closing down, please feel free to contact us here at Newmac Equipment
