KIHEUNG RTW1000
Contact Seller
Features
| Title | KIHEUNG RTW1000 |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | KIHEUNG |
| Model | RTW1000 |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | S40 |
| RefCode | TA805817 |
Description

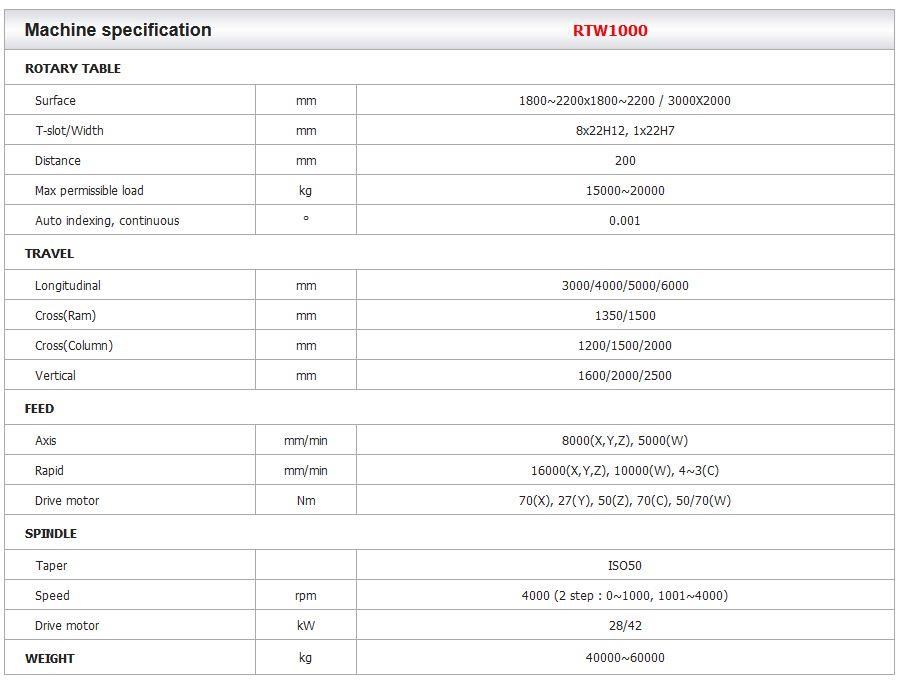

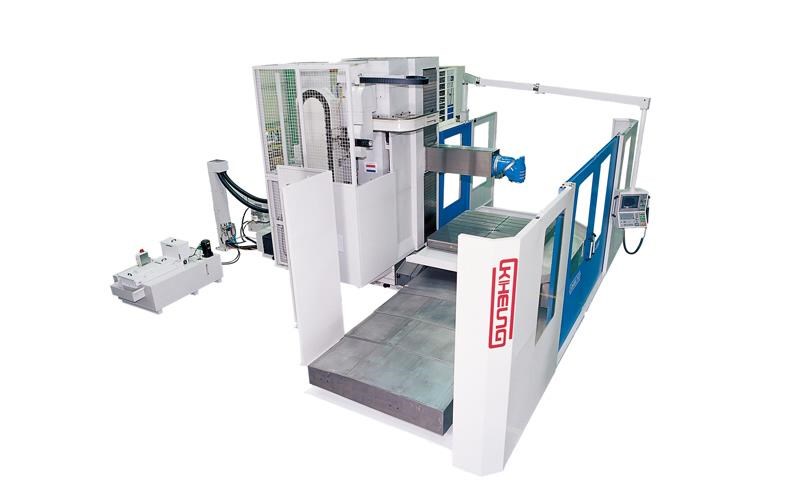

CNC Bed type milling machine RTW1000

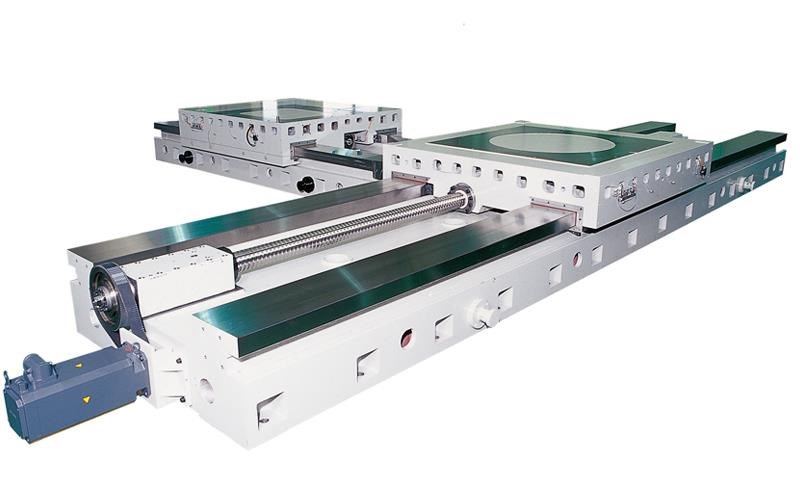

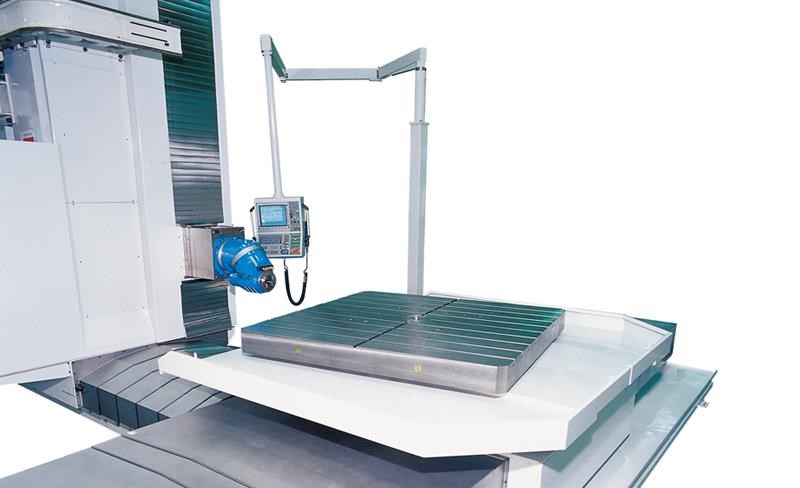

RTW1000 is designed for heavy machining and big sized parts with moving column and big rotary table! This big rotary table can support work piece up to 20,000kg. This integrated system with NC rotary table into 3 axis (X,Y,Z) + 2 axis (C,W) adopts a column movement while rotary table moves longitudinally so the machine gives you much more convenience in multi-face machining in single setup.

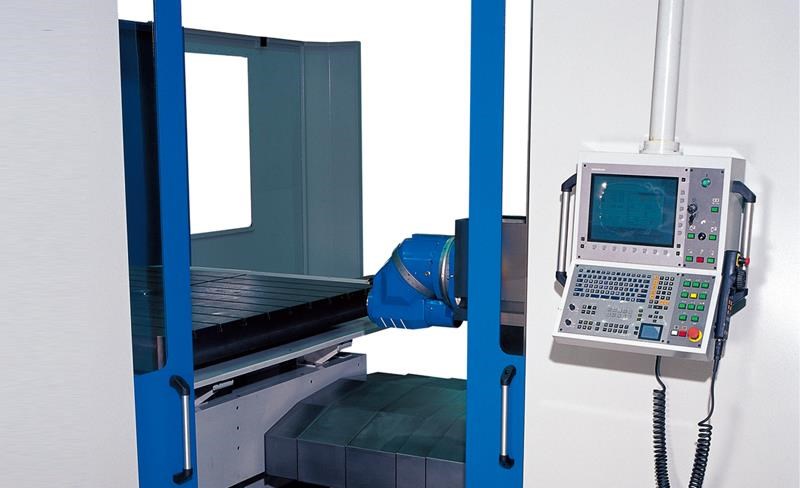

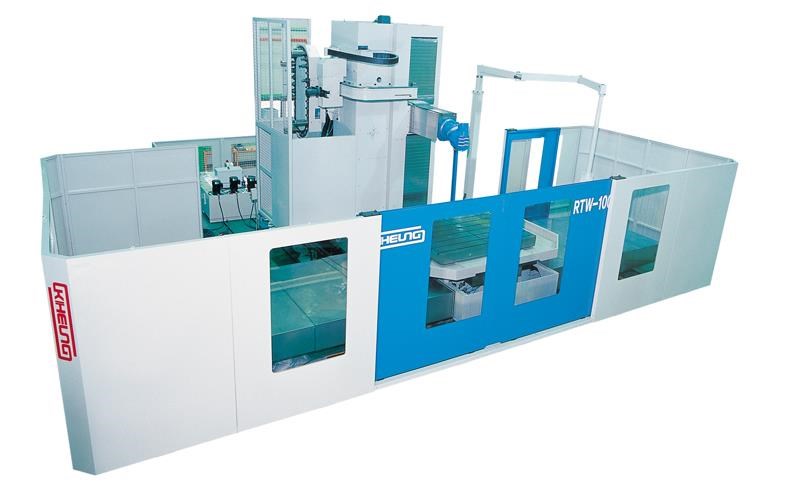

Also double work scope due to column cross and ram cross movement is the extremely stable with high rigidity suitable for more deep hole operations and fine finishing operations. Column cross movement till 2000mm and Ram cross movement till 1500mm perform 5-face machining of the big and long work piece efficiently with high accuracy. And it is very easy access at any working area with two front doors and one rear door, and the operator protections are provided including complete enclosures which allow a perfect chip disposal, and can be the noise damper.
