MACHTECH SPBB 160-4100C CNC5

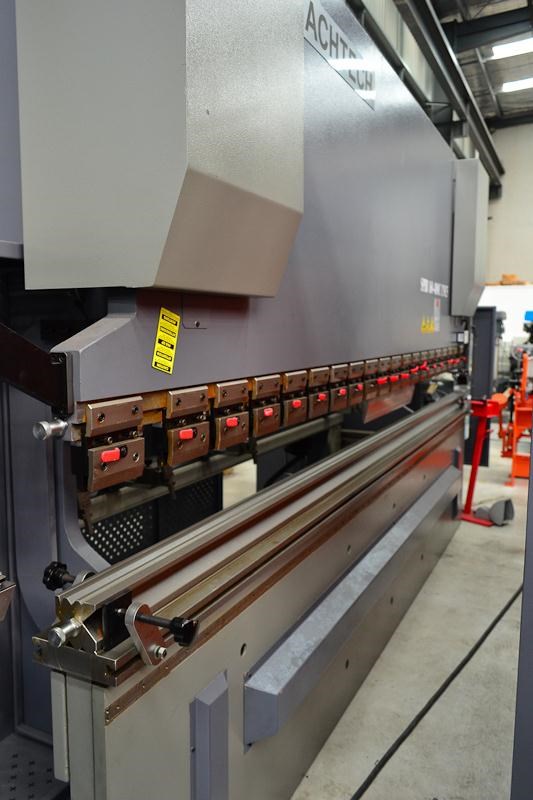

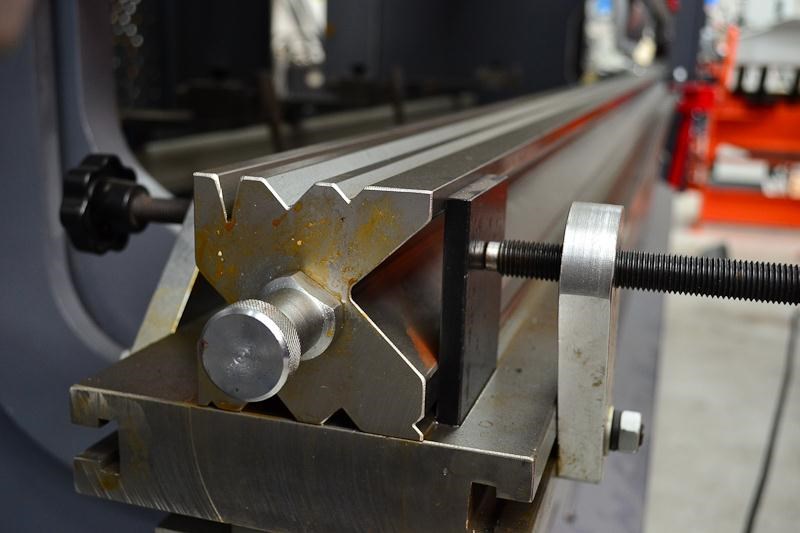

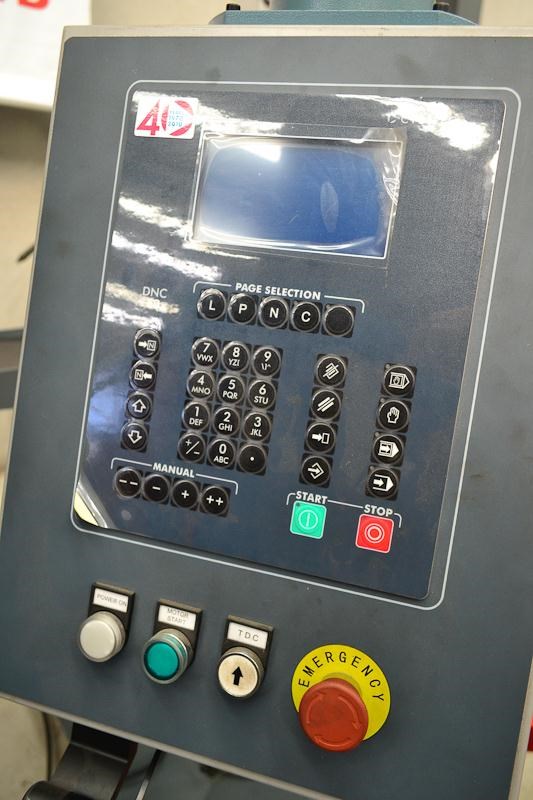

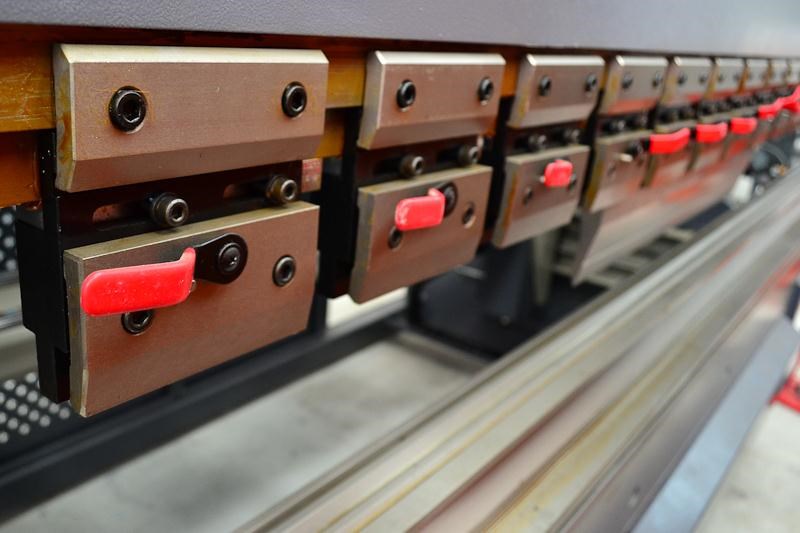

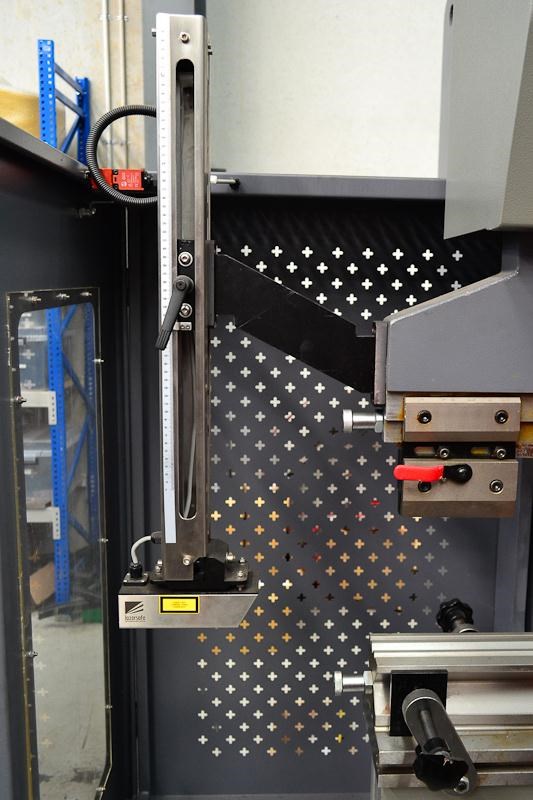

NEW Machtech Synchro SPBB 160-4100C CNC5 Hydraulic Downstroke Pressbrake.Features include: - 160 ton bending force - 4100mm maximum bending length - 3300mm between frames - 445mm open height - 350mm throat depth - 160mm stroke - Cybelec DNC60S CNC control with colour graphical 2D offline programming software - 5 axis CNC control. Y1, Y2, X, R & V (hydraulic crowning compensation) - front sheet supports running freely on a linear guide - 4 freemoving backgauge fingers running on a linear rail - conventional table with 125 x 125mm multi-vee die block - Eurostyle 2V quick change tooling system available as an optional extra - Eurostyle top tooling - quick clamping system for Eurostyle top tools - Lazersafe LZS003 safety guards - side and rear fences with safety interlock - motor power: 11kW - machine weight: 11,100kg - machine size: 4300 x 1720 x 2540mmThese pressbrakes are manufactured to the highest standards with a fully annealed frame and triple lower beam crowning system controlled throughCNC.These machines use Argo/Hoerbiger hydraulics, Schneider electrics, Argo/Voith pump and other world class components.
