MEASU-MAX 22-145

22-145 Depth Micrometer 0-50mm Metric

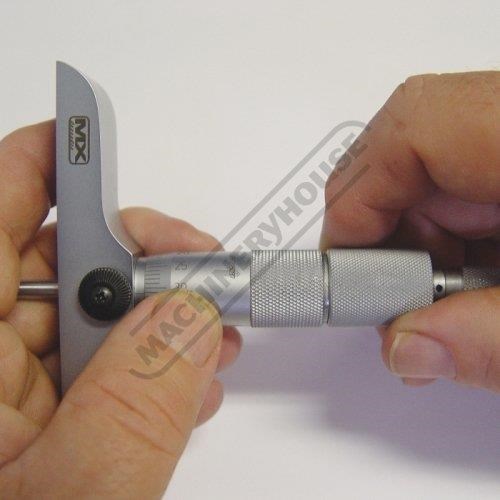

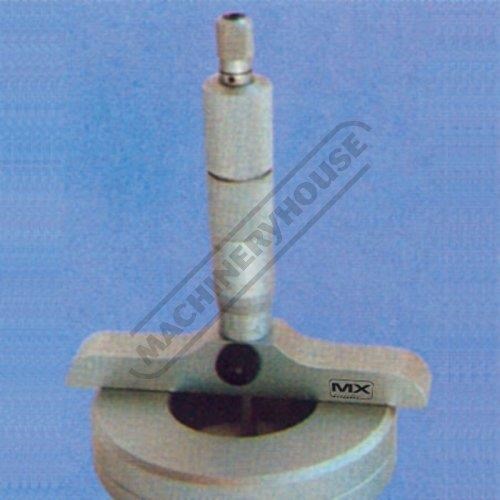

MEASUMAX 22-145 Depth Micrometer 0-50mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q145

Features:
High accuracy interchangeable rods with hardened and micro lapped flat anvils provide a wide measuring range

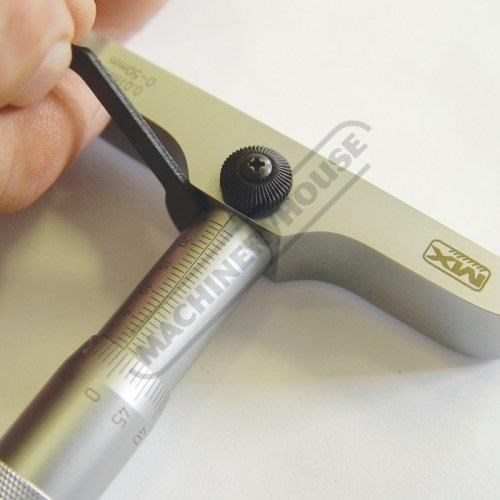

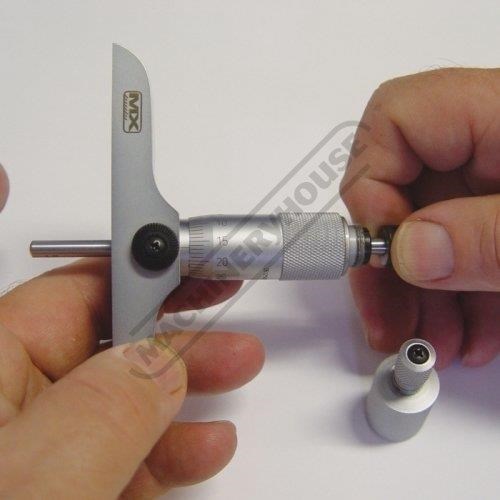

The interchangeable rods are held securely under the top ratchet section and have individual adjustment for resetting if required
The base is hardened ground and lapped for accuracy
Ratchet stop for exact repetitive readings
Positive locking clamp

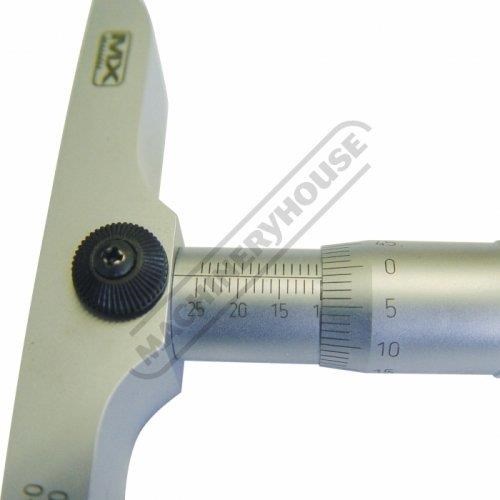

Resolution: Metric 0.01mm


Specifications:
ORDER CODE: Q145
Range (mm / inch): 0 - 50mm
Graduation (mm): 0.01
Accuracy (mm / inch): ??0.004mm
A (mm / inch): 100mm

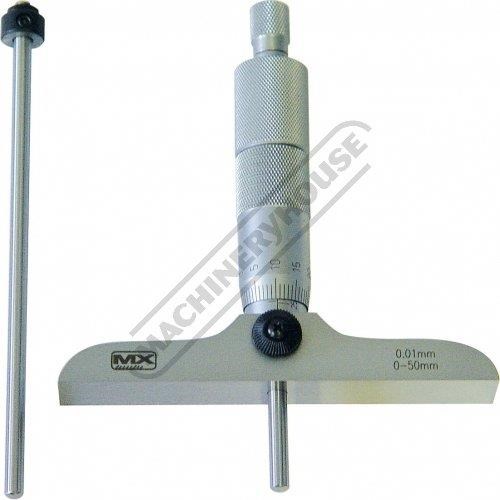

Rods (No.): 2


To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q145'
