MEASU-MAX 34-230

34-230 Dial Bore Gauge 35-50mm

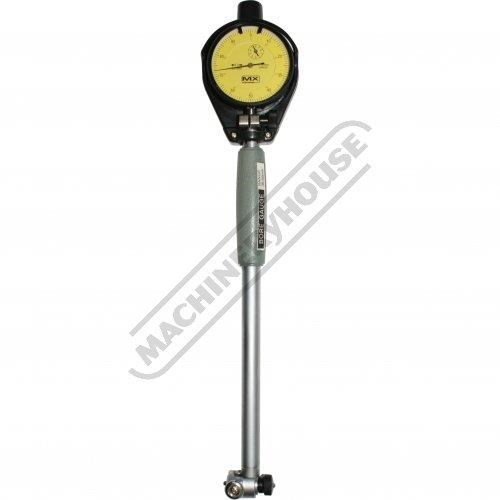

MEASUMAX 34-230 Dial Bore Gauge 35-50mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q230

Features:
Suitable for the inspection of deep internal diameters
Moveable anvil on one side with interchangeable insert type anvils on the other side (above 35mm)
Self aligning mechanism by centering plate
Easy anvil replacement
Dial face cover supplied
Dial indicator stem 8mm
For imperial reading or data output the Q2205 (34-2205) can be used instead of the dial indicator supplied


Specifications:
ORDER CODE: Q230
Range (mm / inch): 35 - 50mm
Accuracy (mm): 0.01mm
Readable Depth (mm / inch): 125mm
Anvils (No.): 4
Spacers (No.): 4


To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q230'
