MEASU-MAX 70-608

70-608 Nut & Bolt Identification Set Metric - Imperial & Whitworth Includes Bolt & Screw Measuring G

MEASU-MAX 70-608 Nut & Bolt Identification Set Metric - Imperial & Whitworth Includes Bolt & Screw Measuring Gauge
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q608

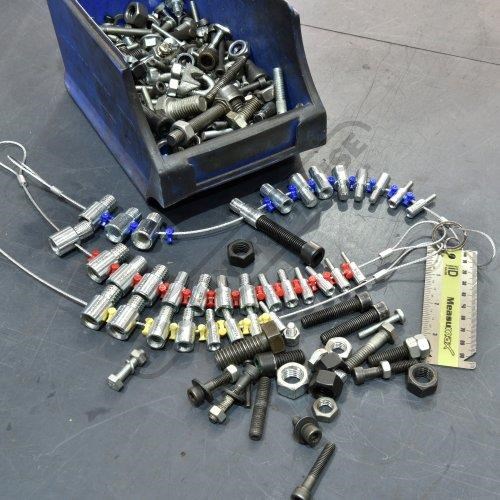

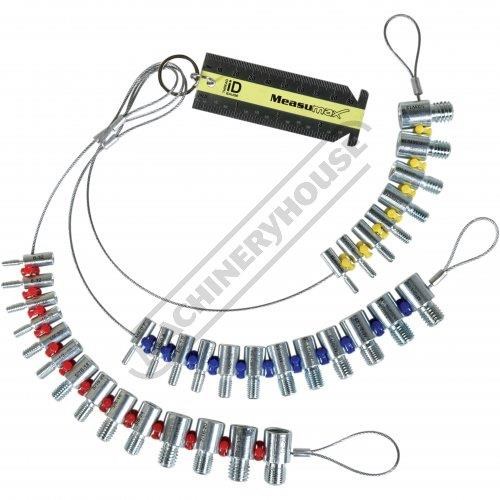

A handy item for any toolbox to be able to identify both external & internal threads. Includes popular sizes for metric in coarse & fine threads, Imperial in both UNF & UNC along with Whitworth. They come standard threaded on stainless steel wire & includes our specially designed ID ruler to able to quickly check bolt lengths.

Features:

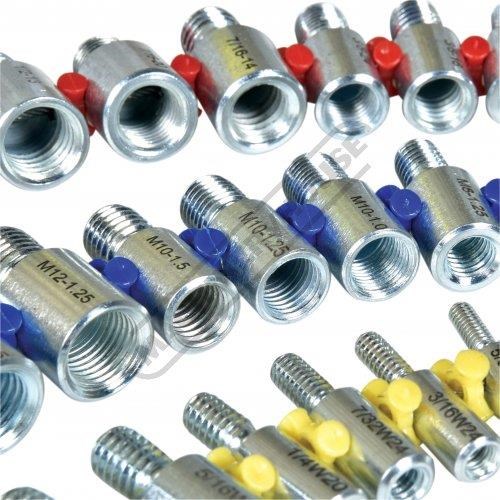

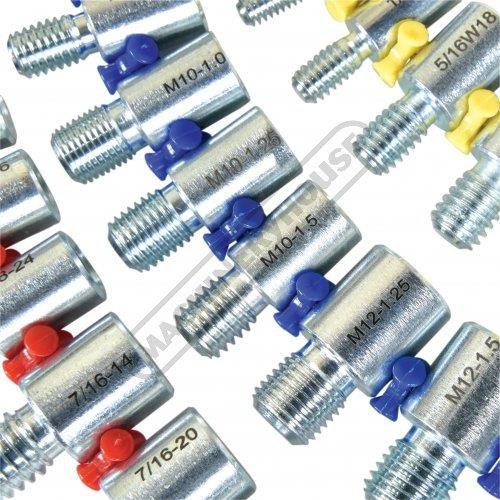

Metric 60 Degree (Coarse & Fine)
??? M4 x 0.7
??? M5 x 0.8
??? M6 x 1.0
??? M7 x 1.0
??? M8 x 1.0
??? M8 x 1.25
??? M10 x 1.0
??? M10 x 1.25
??? M10 x 1.5
??? M12 x 1.25
??? M12 x 1.5
??? M12 x 1.75

Imperial 60 Degree (UNC & UNF)
??? #6 - 32tpi
??? #8 - 32tpi
??? #10 - 24tpi
??? #10 - 32tpi
??? 1/4`` x 20tpi
??? 1/4`` x 28tpi
??? 5/16`` x 18tpi
??? 5/16`` x 24tpi
??? 3/8`` x 16tpi
??? 3/8`` x 24tpi
??? 7/16`` x 14tpi
??? 7/16`` x 20tpi
??? 1/2`` x 13tpi
??? 1/2`` x 20tpi

Whitworth 55 Degree (BSW)
??? 5/32`` x 32tpi
??? 3/16`` x 24tpi
??? 7/32`` x 24tpi
??? 1/4`` x 20tpi
??? 5/16`` x 18tpi
??? 3/8`` x 16tpi
??? 7/16`` x 14tpi
??? 1/2`` x 12tpi

Includes:

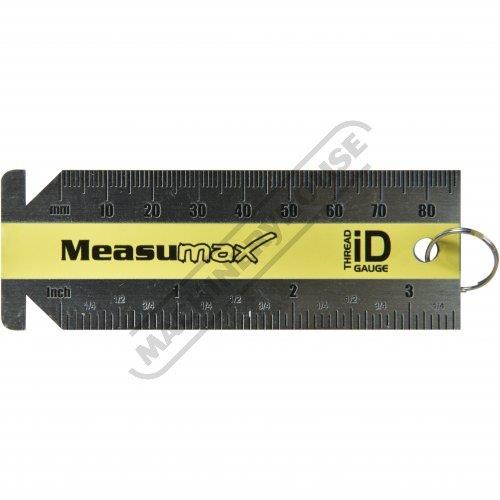

- Includes Bolt & Screw Measuring Gauge



Specifications:
ORDER CODE: Q608
Measuring units: Metric - Imperial & Whitworth
