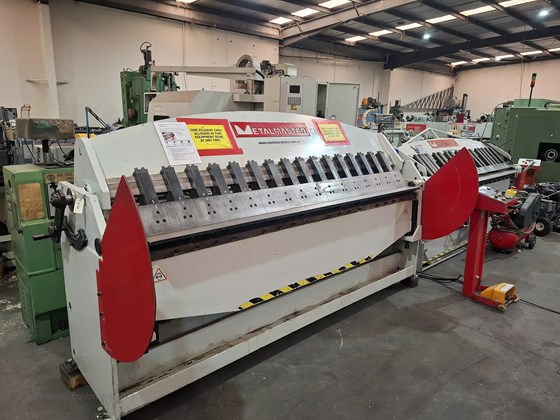

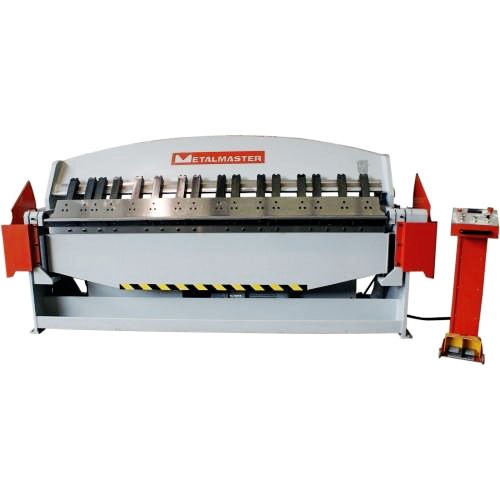

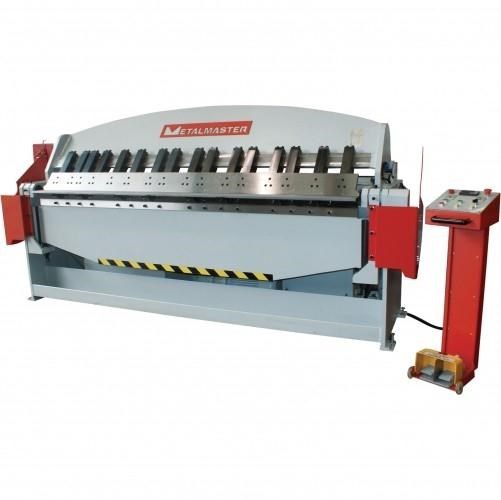

METALMASTER HYDRAULIC PANBRAKE PB860A

HYDRAULIC PANBRAKE
2500mm x 6mm
PB860A

"CALL FOR OUR BEST PRICE"

Features
2500mm x 6mm bending capacity
Heavy duty steel fabricated construction
Roving foot pedal incorporates control panel for maximum flexibility
Unique moving guards ensures the front of the machine is clear for unobstructed loading/unloading of material
Quality hydraulic and electrical components supplies by leading manufactures including Rexroth, Telemechanique and Merlin Gerin

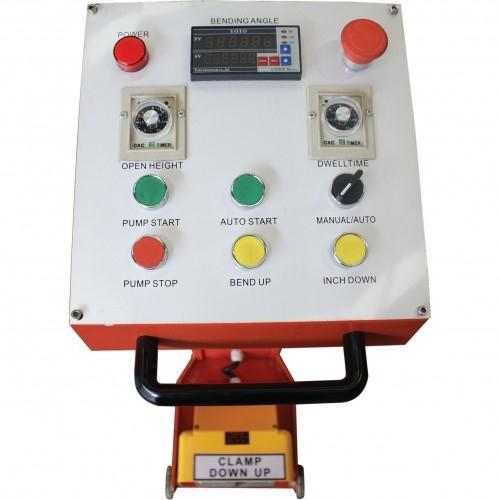

Easy to use single angle programmable controller incorporating digital readout for angles from 0-130º
Capable of bending boxes up to 190mm depth
Rapid adjustment of head to optimise radius of bend for material from 1-4mm
Auto cycle: after clamping bottom beam will bend to preset angle and return, head unclamps to set position
Simple opening height adjustment by timer
Adjustable dwell timer ensures consistent bending angle

Specifications:
CODE:S586
MODEL:PB-860A
MILD STEEL:6mm
BENDING LENGTH:2500mm
MOTOR:7.5HP
VOLTAGE:415V
WEIGHT (NETT):3800kg


Listed price and specification are subject to change
