Features
| Title | SAHINLER HPK-100NC |
| Type | Engineering - Fabrication |
| Sub Type | Rolls - Roll Formers |
| Class | Section Roll |
| Make | SAHINLER |
| Model | HPK-100NC |
| Sale Price | $53,500 GST Exclusive |
| Listing Type | New |
| Stock Number | 315942 |
| RefCode | TA1267534 |
Description

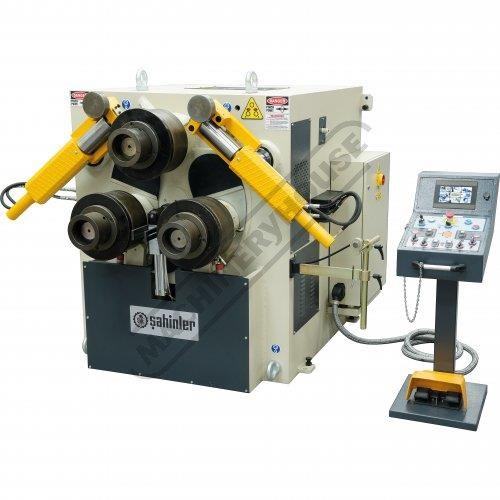

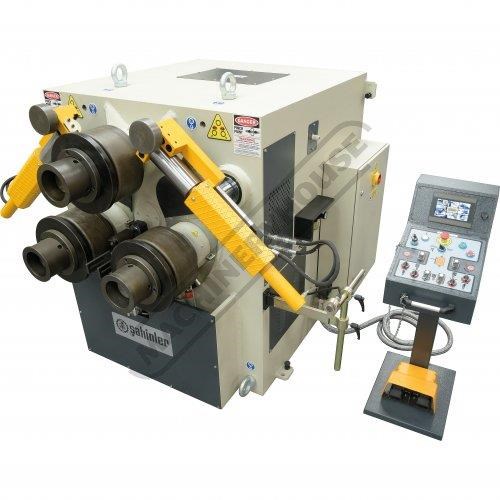

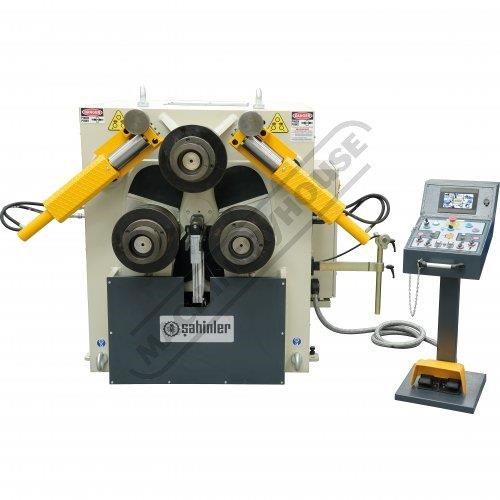

HPK-100NC Hydraulic Section & Pipe Rolling Machine 100 x 100 x 12mm Angle Capacity Includes 3-Axis 7

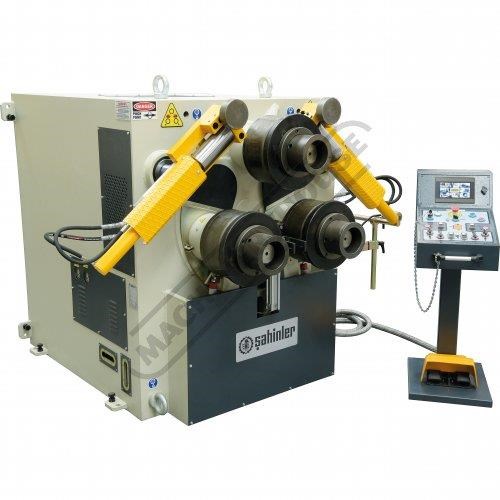

SAHINLER HPK-100NC Hydraulic Section & Pipe Rolling Machine 100 x 100 x 12mm Angle Capacity Includes 3-Axis 7.7`` Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S758C

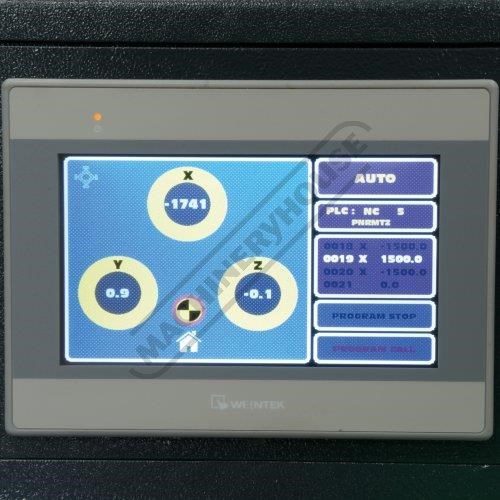

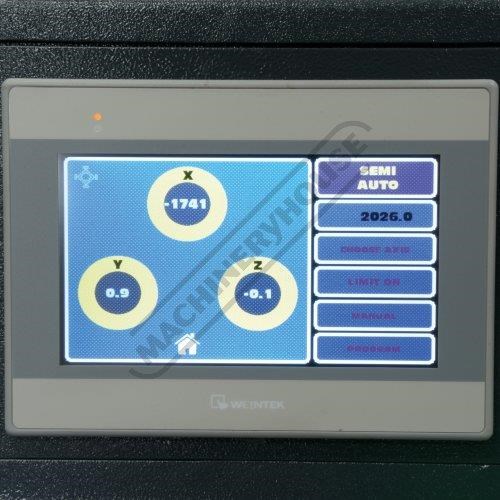

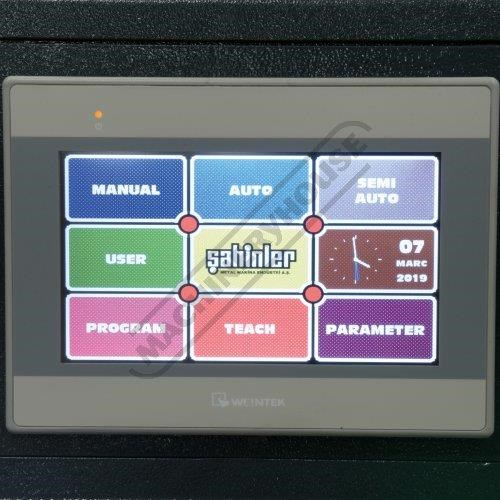

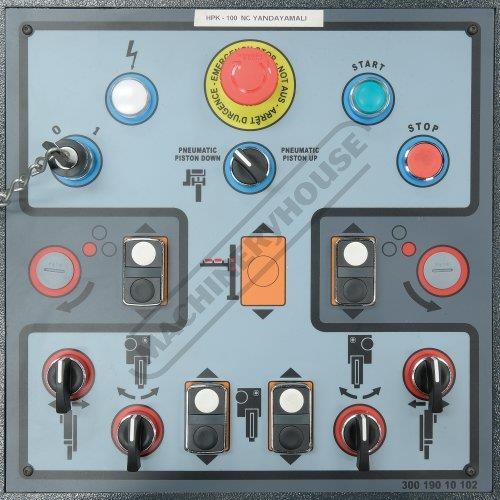

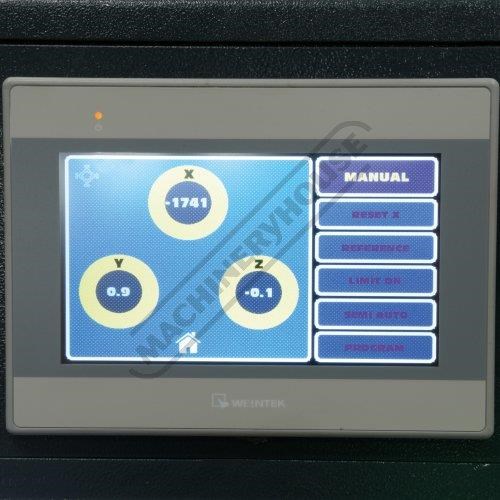

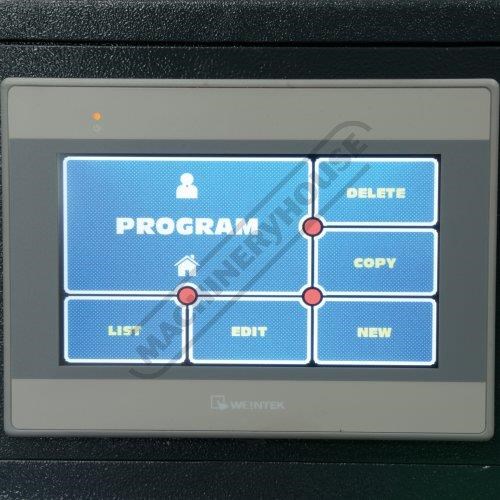

NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.
Features:

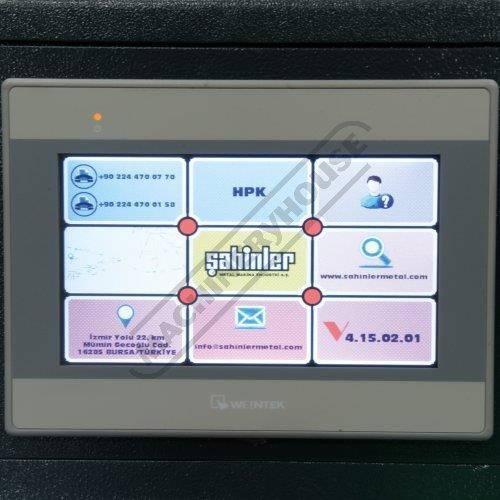

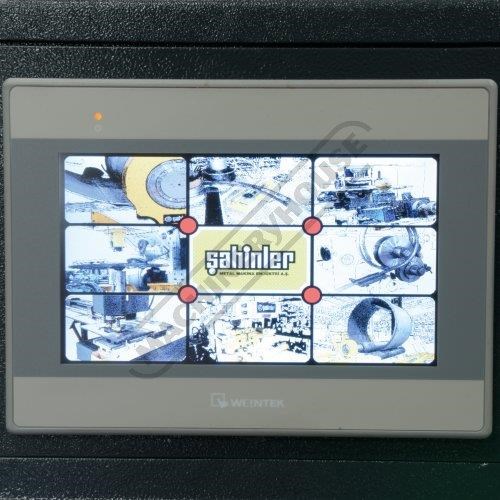

NC 3-Axis easy view 7.7`` control panel
Rolls are hardened & made from high quality steel

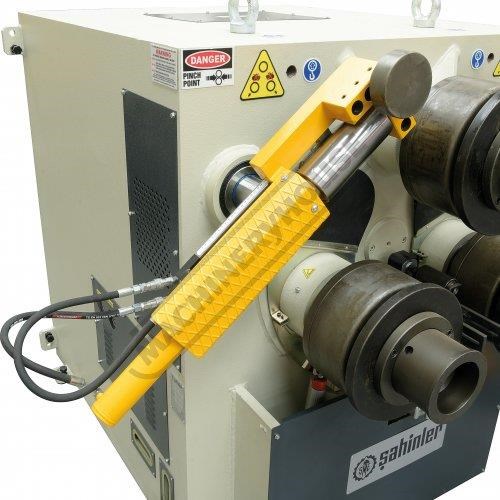

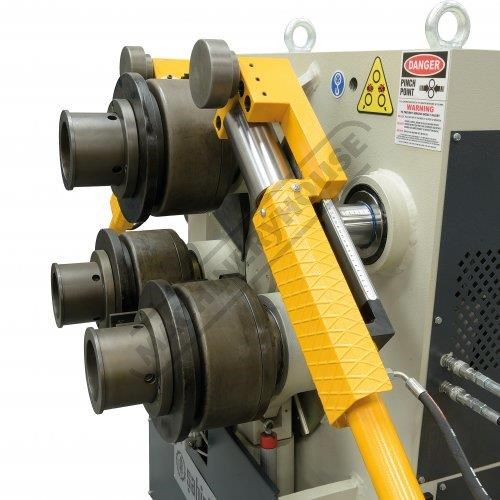

3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position

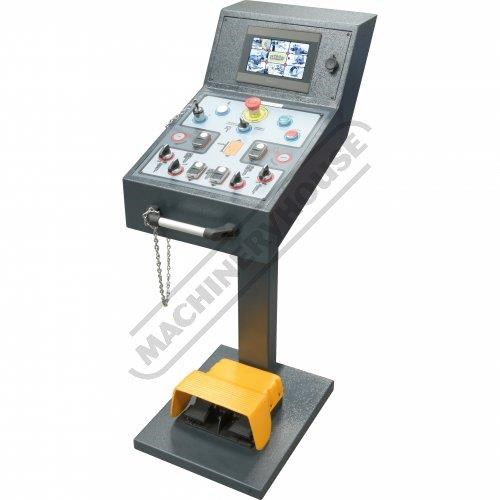

Roving foot pedal control with emergency stop
Hydraulic lateral angle guide rolls
Three rollers are powered
European quality
Includes:
- Includes standard rolls
- Independently adjustable hydraulic bottom rollers for pre-bend
- 3-Axis hydraulic lateral angle guide rollers
Specifications:
ORDER CODE: S758C
MODEL: HPK-100NC
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (??) (mm): 100
Lower Roll Shaft Diameter (??) (mm): 100
Top Roll Diameter (??) (mm): 315
Lower Roll Diameter (??) (mm): 315
Flat Bar Edge Capacity - MS (size / ??) (mm): 100 x 20 / 800
Flat Bar Capacity - MS (size / ??) (mm): 200 x 30 / 1200
Square Bar Solid Capacity - MS (size / ??) (mm): 60 x 60 / 750
Rectangle Tube Capacity - MS (size / ??) (mm): 100 x 40 x 4 / 1300*
Square Tube Capacity - MS (size / ??) (mm): 80 x 50 x 5 / 1500*
Round Bar Solid Capacity - MS (size / ??) (mm): ??75 / 800*
Round Tube Capacity - MS (size / ??) (mm): ??125 x 2.5 / 1400*
Round Pipe Capacity - MS (size / ??) (inch / mm): ??4`` x 6.02mm / 1000mm*
Angle Capacity - MS (size / ??) (mm): 100 x 100 x 12 / 1000
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 2000 x 1450 x 1700
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 3650
To Purchase Online Please Visit The Machineryhouse Website & Search For 'S758C'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
