SAHINLER HPK-80NC
Finance Estimate
From $165.47*
per week
From 8.42% p.a. #
comparison rate
Interest rate from 7.90% p.a.,
5 year term, 20% deposit.
Get my Online Quote »
* # View disclaimer
* This weekly repayment estimate is provided by Stratton Finance Pty Ltd (ABN 63 070 636 903, Australian Credit
Licence no. 364340) ("Stratton"). Stratton is a finance broker.
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.42% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.42% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
Finance Estimate
From $165.47*
per week
From 8.42% p.a. #
comparison rate
Interest rate from 7.90% p.a.,
5 year term, 20% deposit.
Get my Online Quote »
* # View disclaimer
* This weekly repayment estimate is provided by Stratton Finance Pty Ltd (ABN 63 070 636 903, Australian Credit
Licence no. 364340) ("Stratton"). Stratton is a finance broker.
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.42% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
This repayment is calculated with an interest rate of 7.90% p.a. over a term of 60 months with a 0% residual / balloon payment. Other residual / balloon amounts are available. The vehicle price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the vehicle.
The comparison rate of 8.42% is based on a secured 5-year loan of $30,000. WARNING: This comparison rate is true only for the examples given and may not include all fees and charges. Different terms, fees or other loan amounts might result in a different comparison rate.
In order to provide this estimate, Stratton are required to make several eligibility assumptions, including full-time employment status and property ownership. To comply with regulations, consideration must be given for credit score and loan to value ratio (LVR), this estimate has been calculated with a credit score of 601 and an LVR of 111%.
This estimate is based on several assumptions outlined above and should be used for information purposes only and is not an offer of finance on particular terms. Credit fees, service fees and charges may apply. Credit to approved applicants only.
A quote, details of all fees and charges may be obtained by contacting Stratton via stratton.com.au or calling 1300 STRATTON (1300 787 288).
Contact Seller
Features
| Title | SAHINLER HPK-80NC |
| Type | Engineering - Fabrication |
| Sub Type | Rolls - Roll Formers |
| Class | Section Roll |
| Make | SAHINLER |
| Model | HPK-80NC |
| Sale Price | $34,750 GST Exclusive |
| Listing Type | New |
| Stock Number | 106769 |
| RefCode | TA1268417 |
Description

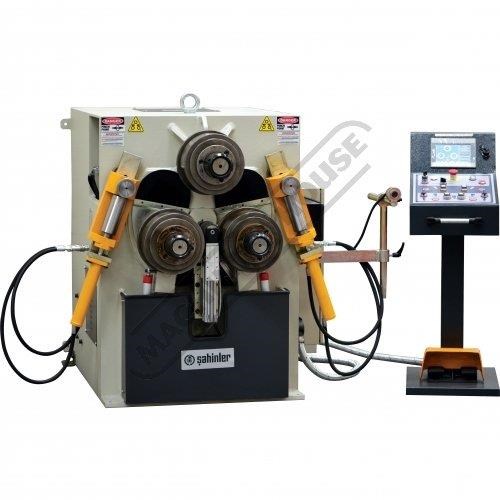

HPK-80NC NC Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes 3-Axis 7.7`` Easy Vi
SAHINLER HPK-80NC NC Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes 3-Axis 7.7`` Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S756C

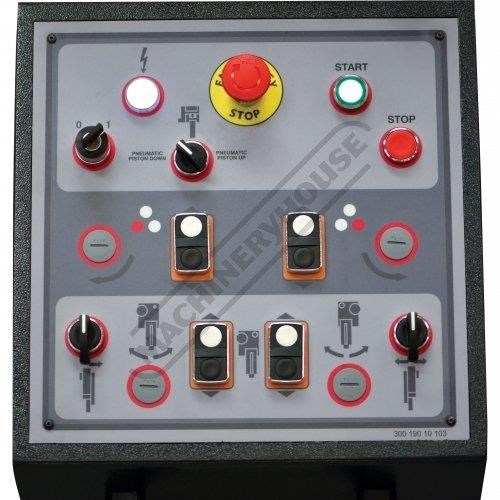

NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.
Features:

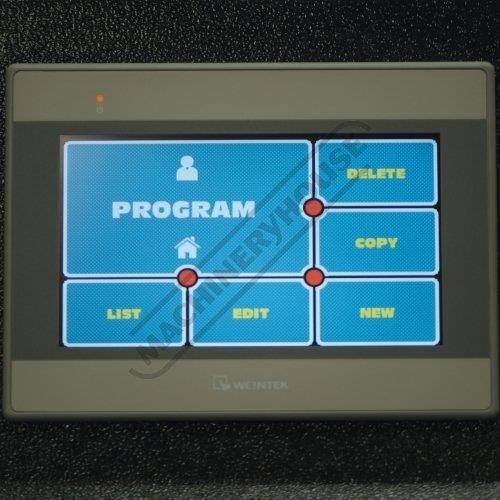

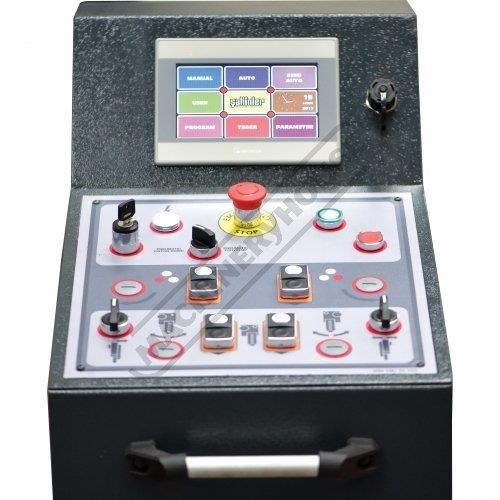

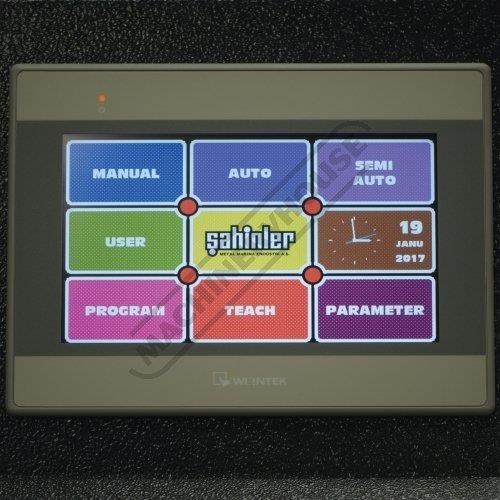

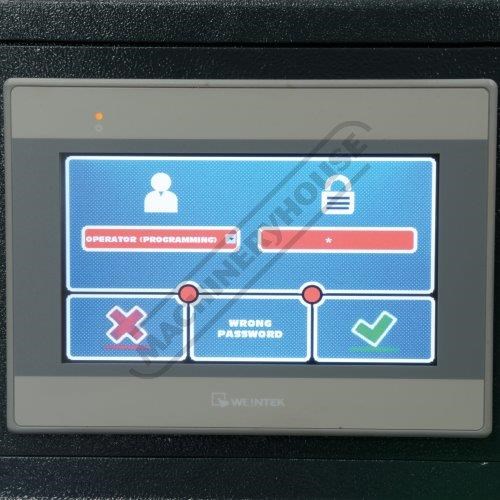

NC 3-Axis easy view 7.7`` control panel

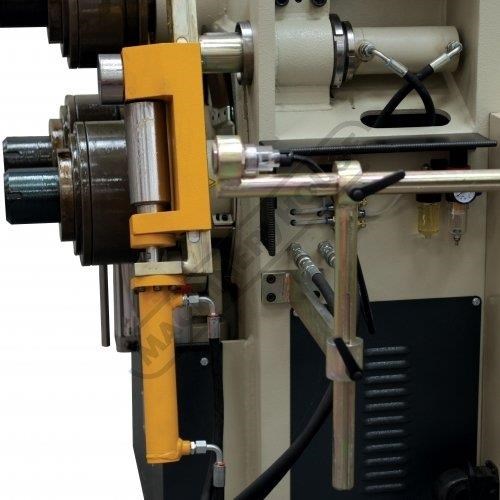

3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Three rollers are powered
European quality
Includes:
- Includes standard rolls

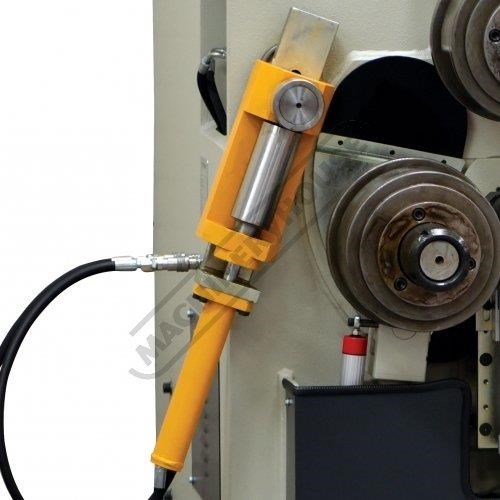

- Hydraulic lateral angle guide rollers
- Independently adjustable hydraulic bottom rollers for pre-bend
Specifications:
ORDER CODE: S756C
MODEL: HPK-80NC
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (??) (mm): 80
Lower Roll Shaft Diameter (??) (mm): 70
Top Roll Diameter (??) (mm): 245
Lower Roll Diameter (??) (mm): 245
Flat Bar Edge Capacity - MS (size / ??) (mm): 80 x 20 / 800
Flat Bar Capacity - MS (size / ??) (mm): 125 x 25 / 600
Square Bar Solid Capacity - MS (size / ??) (mm): 45 x 45 / 500
Rectangle Tube Capacity - MS (size / ??) (mm): 80 x 25 x 3 / 800*
Square Tube Capacity - MS (size / ??) (mm): 70 x 70 x 3 / 1300*
Round Bar Solid Capacity - MS (size / ??) (mm): ??50 / 500*
Round Tube Capacity - MS (size / ??) (mm): ??100 x 2.5 / 1200*
Round Pipe Capacity - MS (size / ??) (inch / mm): ??3`` x 5.48mm / 800mm*
Angle Capacity - MS (size / ??) (mm): 80 x 80 x 8 / 800
Motor Power (kW / hp): 4 / 5.3
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 1450 x 1000 x 1400
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 1700
To Purchase Online Please Visit The Machineryhouse Website & Search For 'S756C'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
SAHINLER HPK-80NC NC Section & Pipe Rolling Machine 80 x 80 x 8mm Angle Capacity Includes 3-Axis 7.7`` Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S756C
NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.
Features:
NC 3-Axis easy view 7.7`` control panel
3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Three rollers are powered
European quality
Includes:
- Includes standard rolls
- Hydraulic lateral angle guide rollers
- Independently adjustable hydraulic bottom rollers for pre-bend
Specifications:
ORDER CODE: S756C
MODEL: HPK-80NC
Powered Driven Rolls (Qty): 3
Bending Rolls (Type): Hydraulic - Left & Right
Top Roll Shaft Diameter (??) (mm): 80
Lower Roll Shaft Diameter (??) (mm): 70
Top Roll Diameter (??) (mm): 245
Lower Roll Diameter (??) (mm): 245
Flat Bar Edge Capacity - MS (size / ??) (mm): 80 x 20 / 800
Flat Bar Capacity - MS (size / ??) (mm): 125 x 25 / 600
Square Bar Solid Capacity - MS (size / ??) (mm): 45 x 45 / 500
Rectangle Tube Capacity - MS (size / ??) (mm): 80 x 25 x 3 / 800*
Square Tube Capacity - MS (size / ??) (mm): 70 x 70 x 3 / 1300*
Round Bar Solid Capacity - MS (size / ??) (mm): ??50 / 500*
Round Tube Capacity - MS (size / ??) (mm): ??100 x 2.5 / 1200*
Round Pipe Capacity - MS (size / ??) (inch / mm): ??3`` x 5.48mm / 800mm*
Angle Capacity - MS (size / ??) (mm): 80 x 80 x 8 / 800
Motor Power (kW / hp): 4 / 5.3
Voltage / Amperage (V / amp): 415
Dimensions (L x W x H) (mm): 1450 x 1000 x 1400
Note: Requires Additional Tooling (No / Yes*): Yes*
Nett Weight (kg): 1700
To Purchase Online Please Visit The Machineryhouse Website & Search For 'S756C'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
