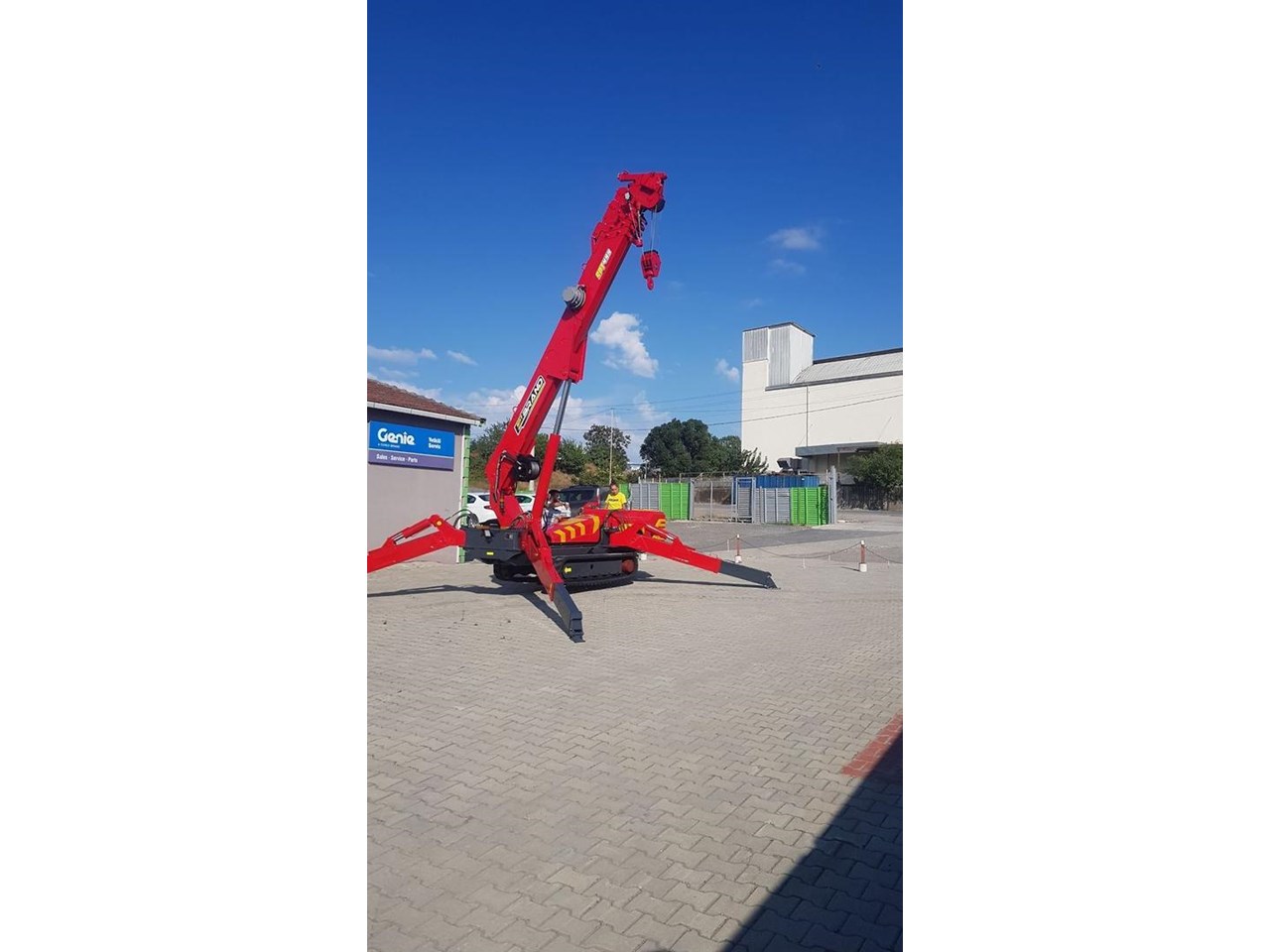

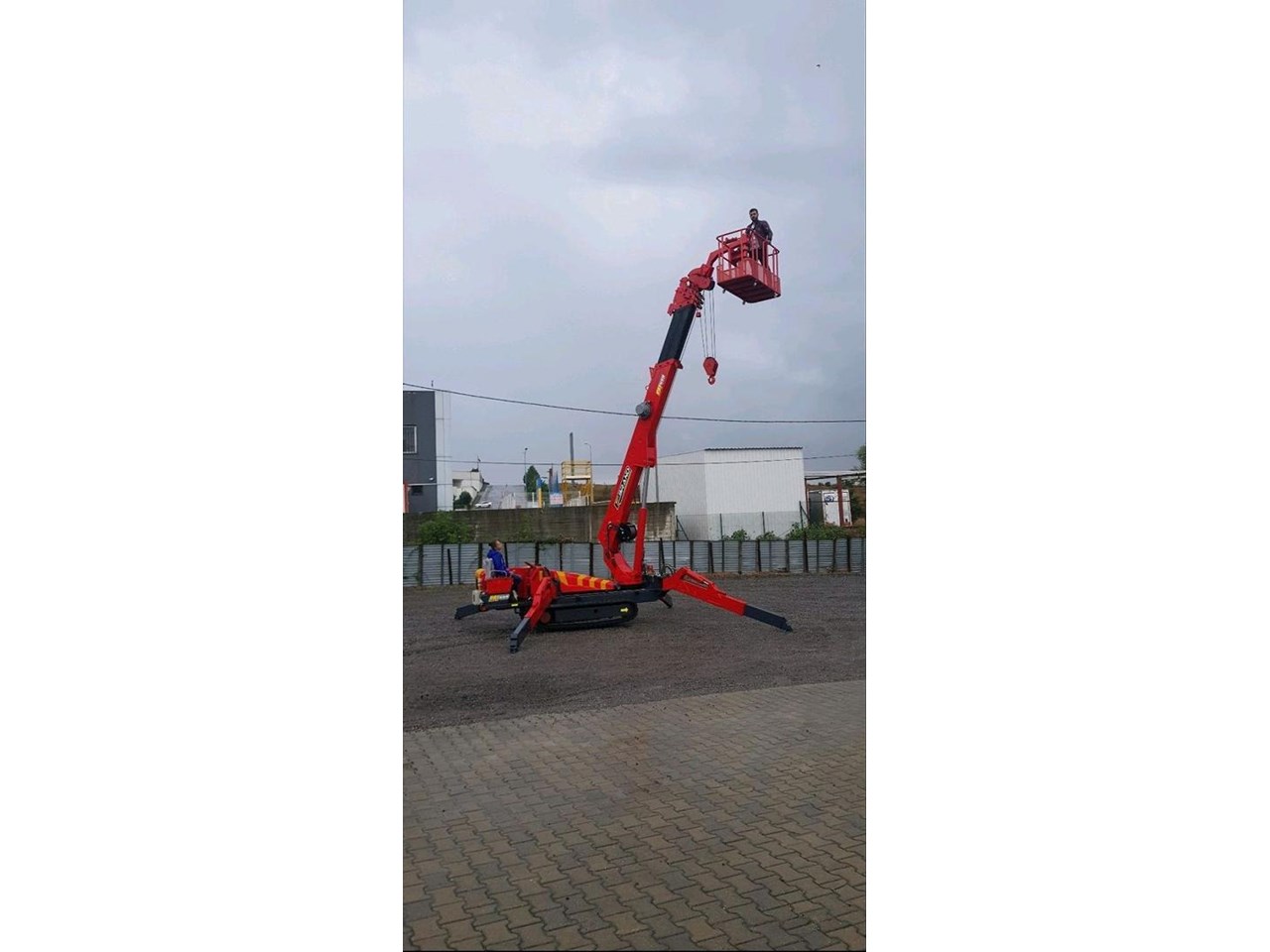

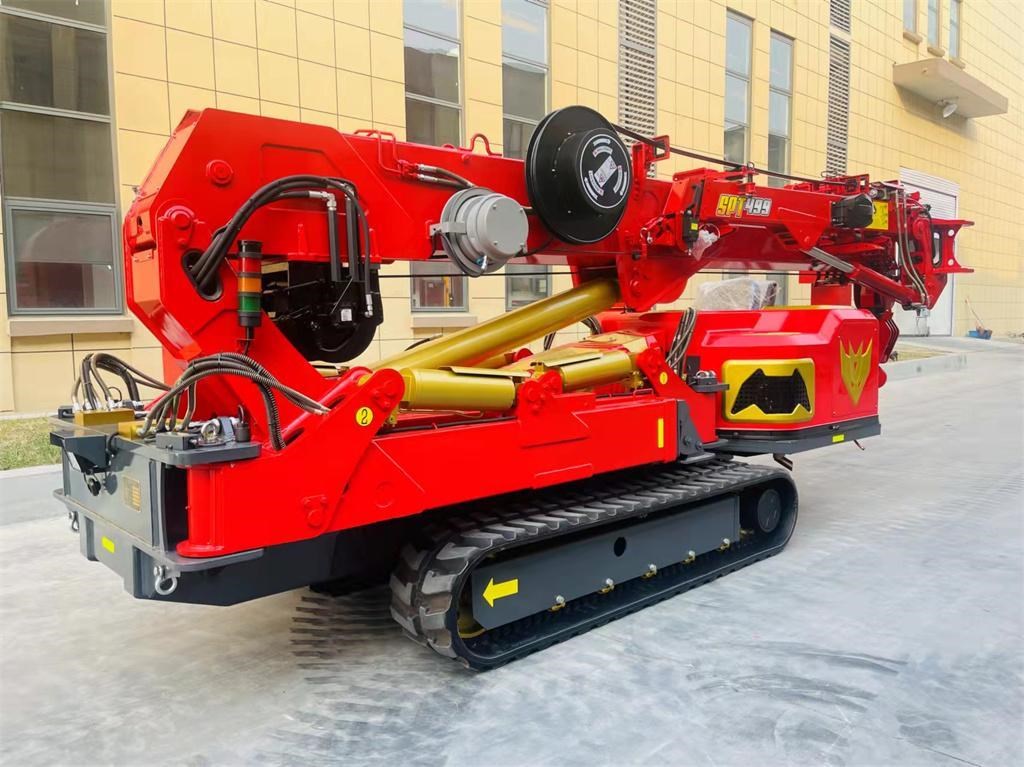

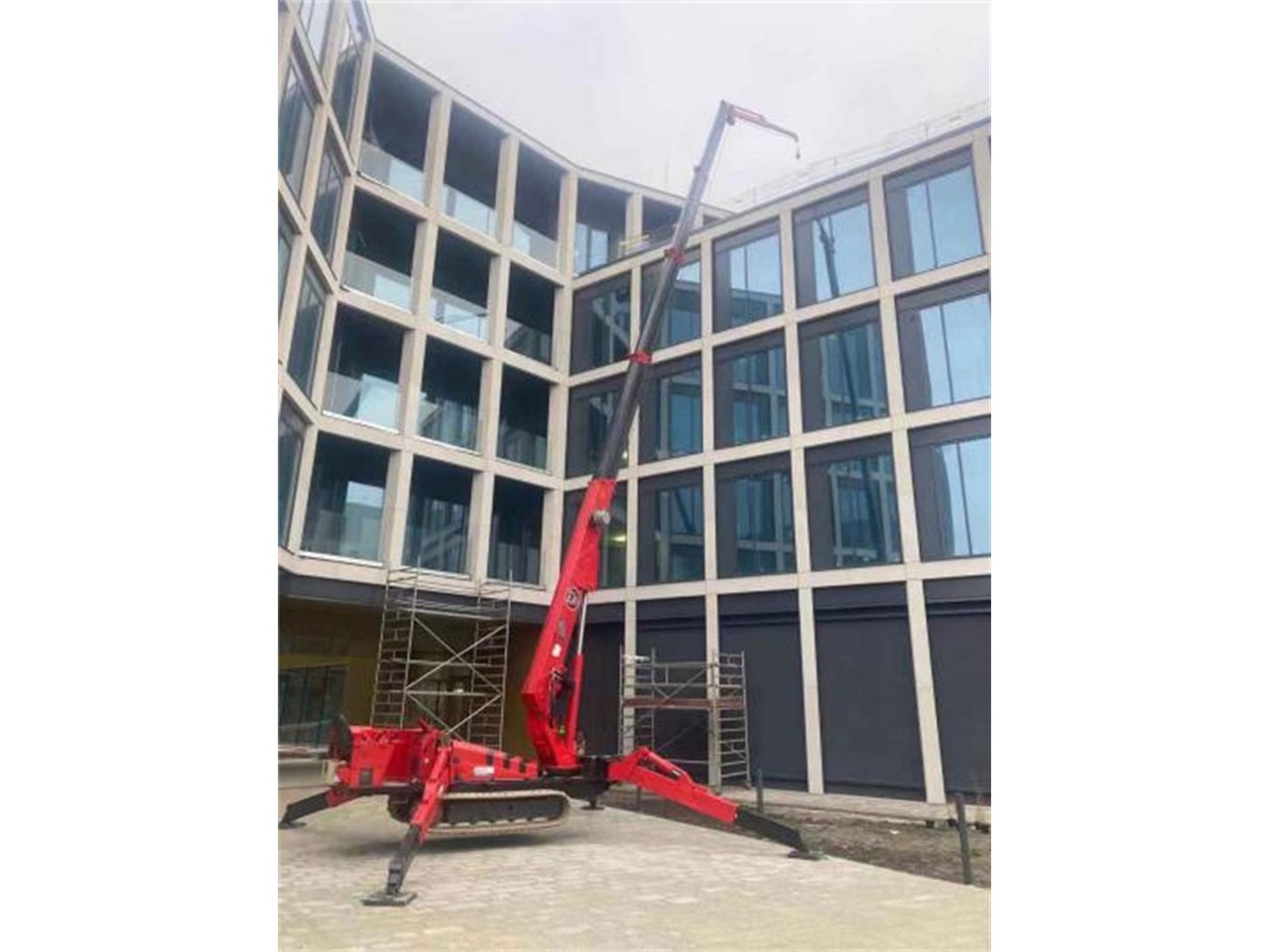

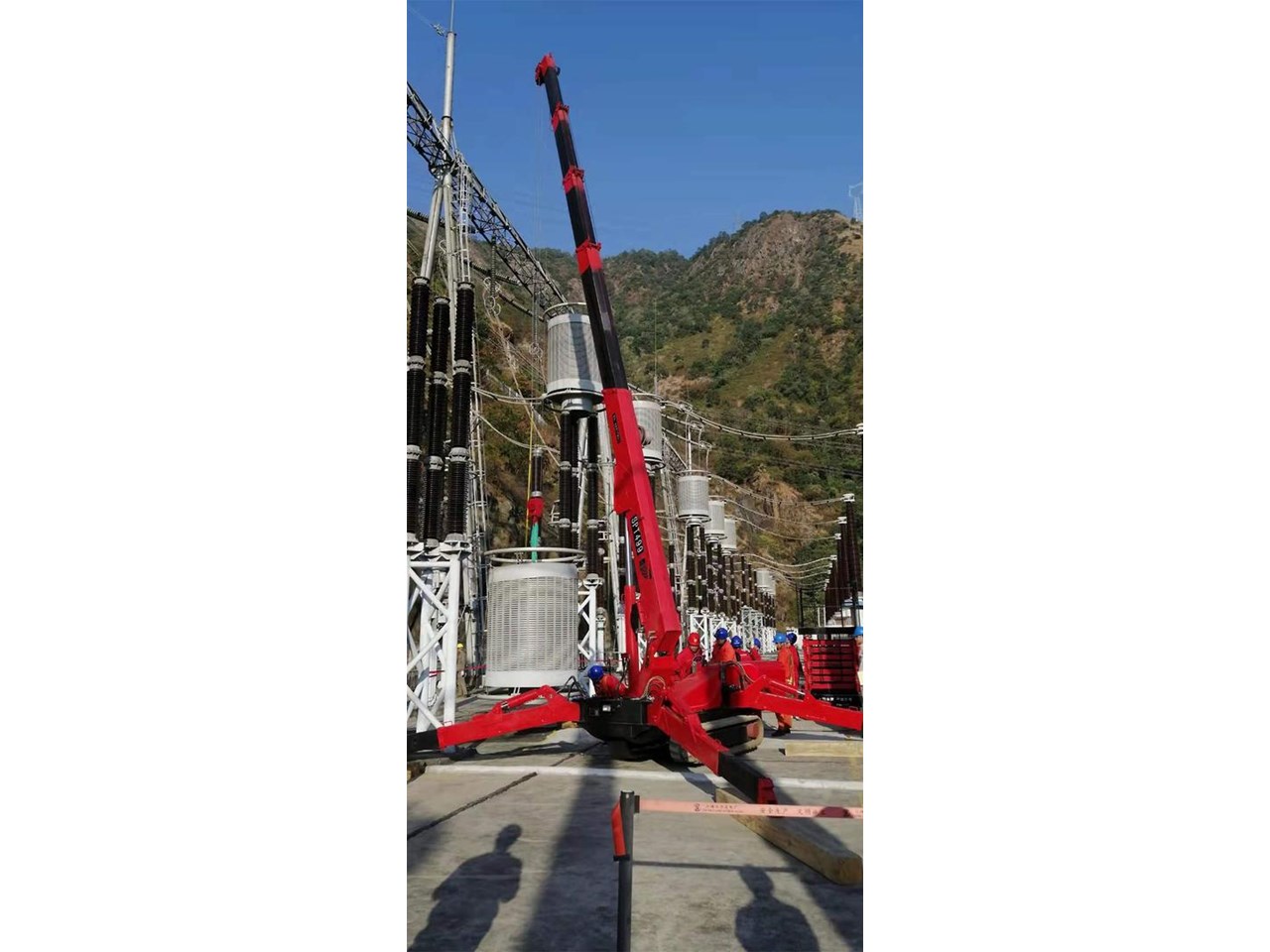

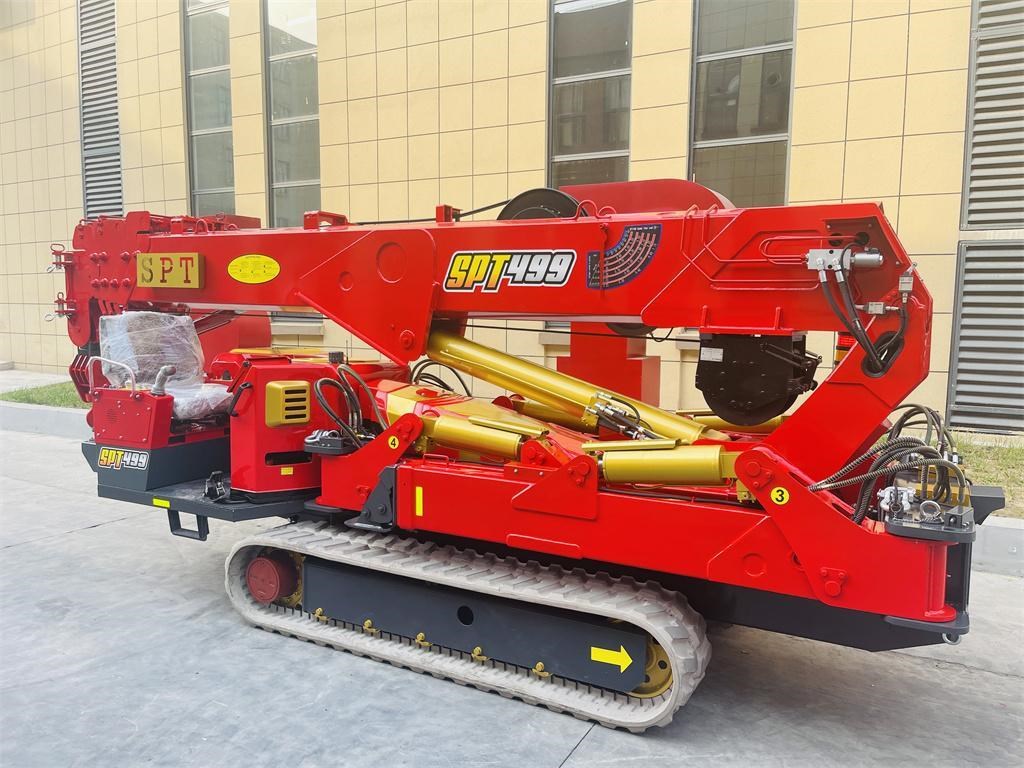

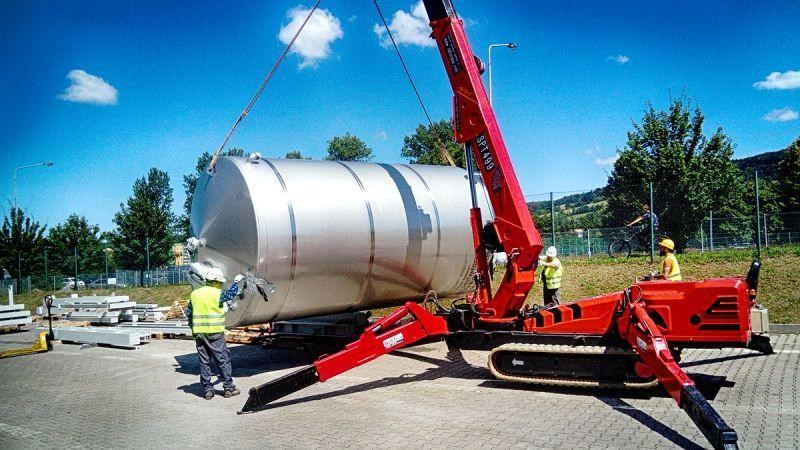

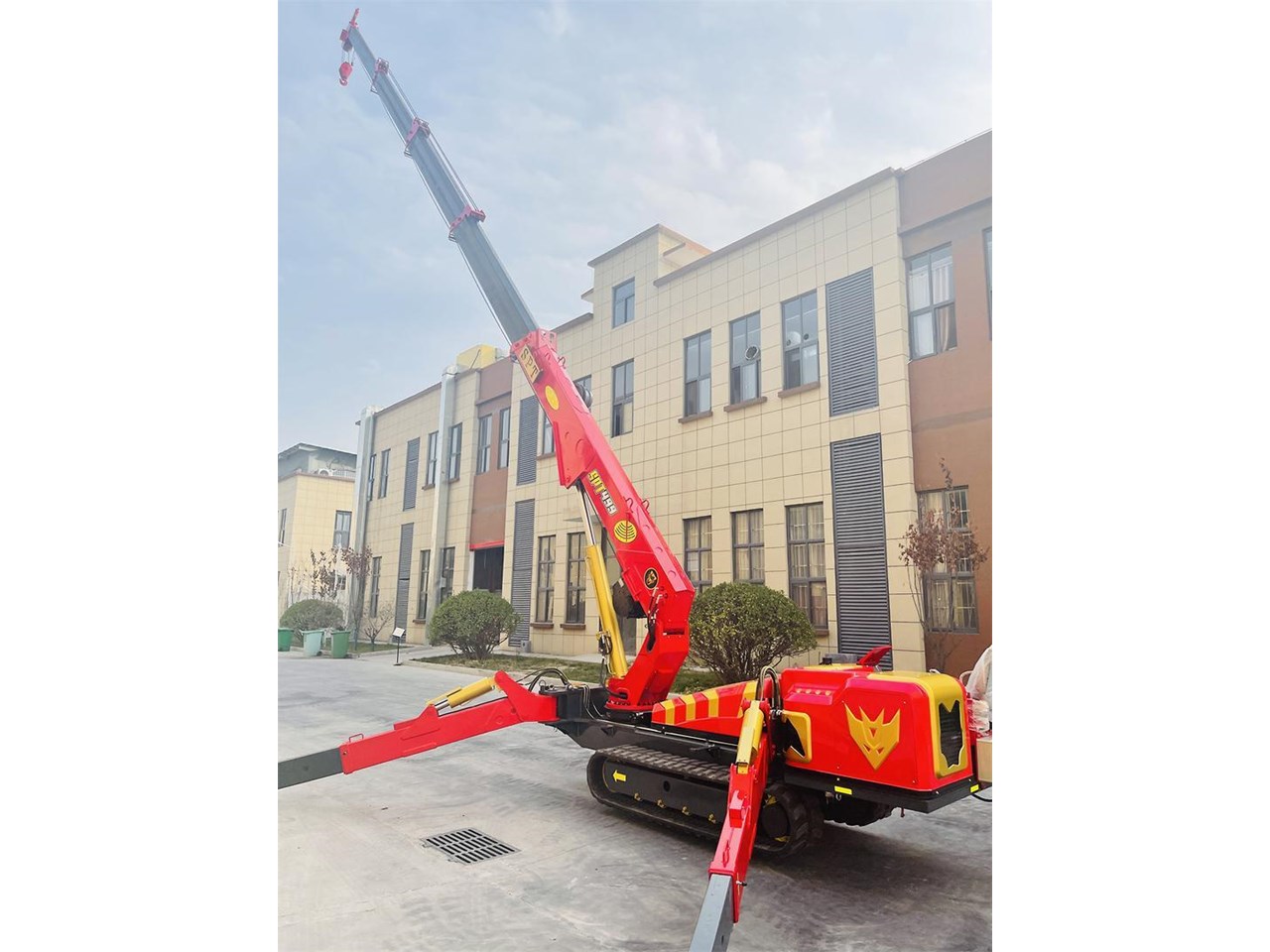

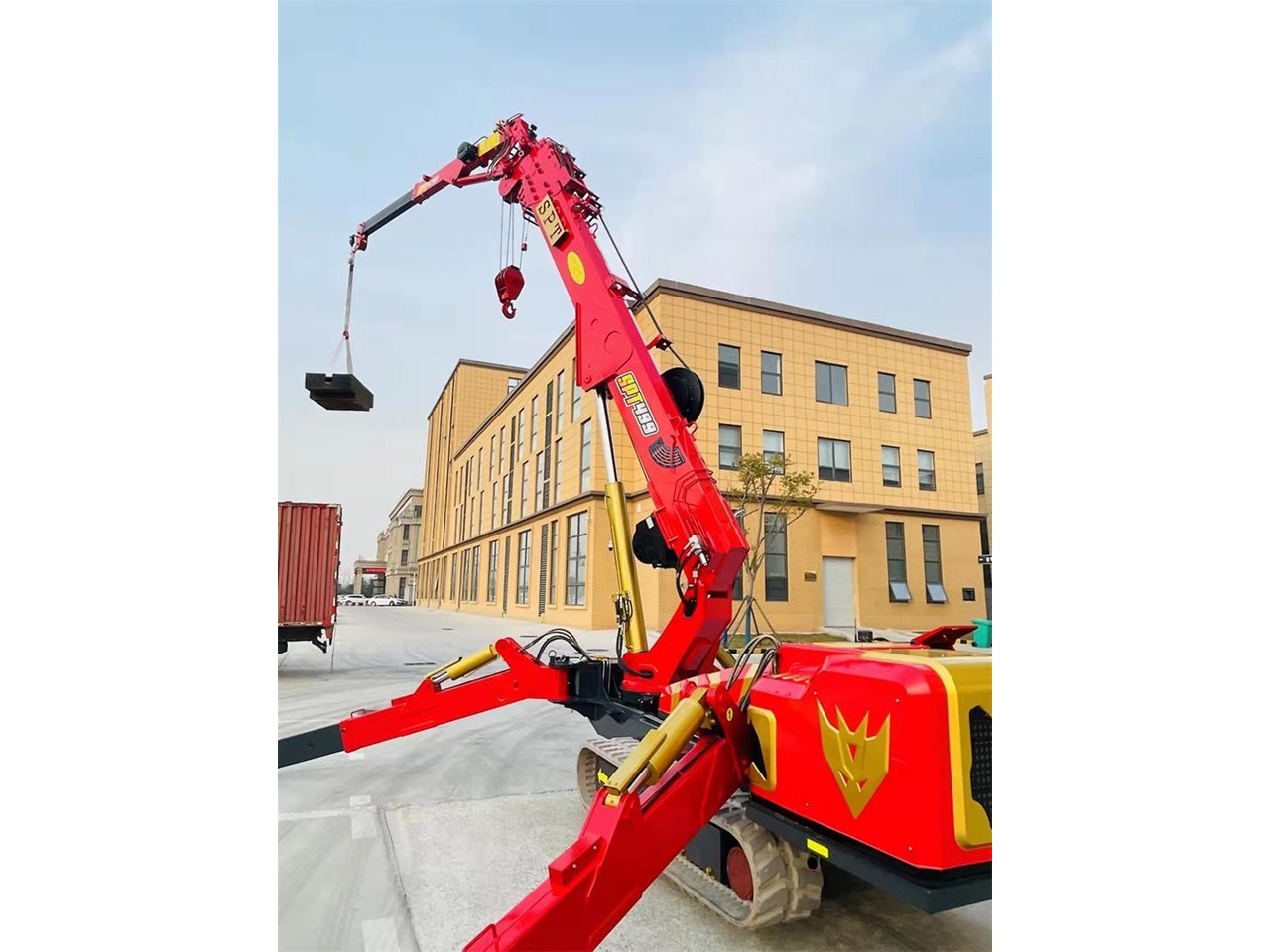

|Title||2023 SPT SPT499 MINI CRAWLER CRANE NATIONWIDE MACHINERY GROUP|
Capacity: 5.0t×3.0m Working radius: 16.50m×0.30t Ground lifting height: 17.5Mx1.30t Underground lifting height: 17.5mX2.5t(4 fall) 35mX2t(2 fall) 70mX1t(1 fall) Winch device Hook speed 0-14m/min (4 fall) Rope type 10mm×80m Telescopic system Boom form: 5 section boom, hexagonal box construction Boom length/Time: 5.05m-17.00m/45sec Up and downs Boom Angle/Time: 0-80°/18sec Slew system Slew Angle/Speed: 0-360°(continuous)/30sec Outrigger Outrigger active form Manual+Hydraulic Maximum extended dimensions (mm) 5560(Length)X5850(Front)X5760(Back) Traction system Walking way Hydraulic motor drive?2 speed Walking speed: 0-2.5km/ h Grade ability: 20° (36%) Ground length×width 1810mm×350 mm Ground pressure: 47kpa(0.48 kgf / cm²) Electric motor Voltage: AC380V(Optional) Power/Speed: 7.5kw/1440 min-1 Sound level: Rated speed =78dB(A) (1m) Diesel engine Model: V1505 (Kubota) Type/Displacement: 4 cylinder water cooled/1.498L Rated output: 18.5kw/2300 min-1 Starting method: Electric Operating temperature: -5°C~40°C Fuel/Volume: Diesel/40L Battery capacity: 12v 45AH Specific fuel consumption: 264g/kW-h Sound Level: Rated speed =84dB(A) (1m) Applied regulation/Altitude: EPA-Tier4,EC stage V/1200m Operate system Type of operation (crane, walk, leg, accelerator)Wireless remote control and Dual axis joystick controller Operating characteristic: Full proportional control and Proportional joystick control Dimension: Length×Width×Height 5480mm×1400mm×2000mm Weight (Without optional equipment): 6200kg Standard equipment Diesel engine and motor (Dual power), Proportional joystick control and wireless proportional remote (Dual operation mode), Intelligent display screen, Moment limiter, Over hoist alarm and automatic stop device, Three-winding alarm and automatic stop device, Automatic hook stow, Outrigger position detector device, Outrigger off ground (or crane body 3-degree inclination)alarm and automatic stop device, Slinging rope detachment protector, EMO switch, Three color lamp, Remote control lamp, Voice prompt, Walking/Outrigger/Boom three-mode interlock system, Data records Optional equipment: Searcher hook, Fly jib, Single fall hook, Outrigger Pads, Man basket. We pride ourselves on being the recognised, Authorised Distributor for Zoomlion, Sunward and JAC Australia. We have been the accredited distributors and maintenance providers for Zoomlion, Sunward cranes for over 20 years and in that time have built up a direct link to the factory. This enables us to offer professional and reliable services on all cranes, machinery, parts and lifting accessary for your Zoomlion, Sunward and JAC products. Our product range includes new and used cranes including truck cranes, mini crawler cranes, tower cranes, construction hoist, lattice/hydraulic boom crawler cranes, hoist as well as spare parts so whatever your crane or machinery needs, you can be sure that we have the expertise and experience to meet them. Contact us today to discuss your requirements. The Federal government is currently offering a generous tax incentive for businesses that purchase new heavy machinery before June 2023. This incentive can save your business thousands of dollars in the first year, so don't miss out! The market for heavy machinery is constantly changing, so it's important to act now to take advantage of this great opportunity. If you need any assistance or would like more information on anything we offer, please don't hesitate to contact us today! We look forward to hearing from you soon. All prices are subject to changing freight charges and currency changes. Please contact our Sales Office for current rates and charges and more information.
