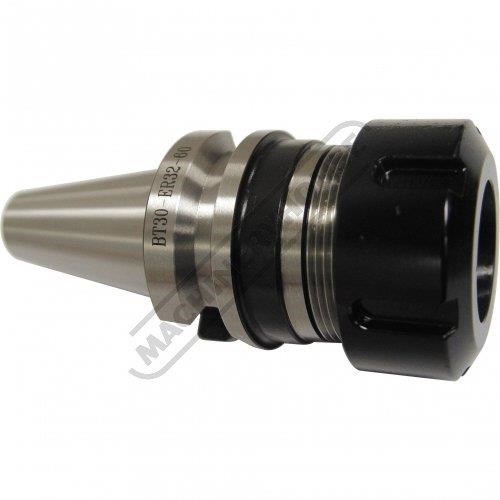

TOOLMASTER BT30 X ER32-60

BT30 x ER32-60 Collet Chuck ??2-??20mm Range 25,000rpm Speed Rating

TOOLMASTER BT30 x ER32-60 Collet Chuck ??2-??20mm Range 25,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T332

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
Manufactured to MAS403BT30 standard
M12 Pull Stud thread
60mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T332
MODEL: BT30 x ER32-60
Speed Rating (rpm): 25,000
Taper (BT): BT30
Capacity (mm): 2 - 20
L (mm): 60
D (mm): 50
Collet Type (ER): ER32
Nett Weight (kg): 0.8
