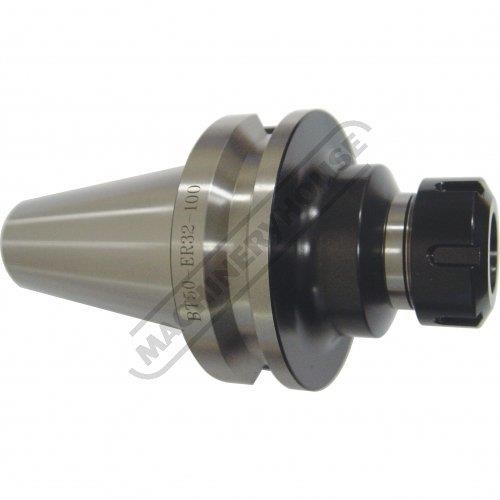

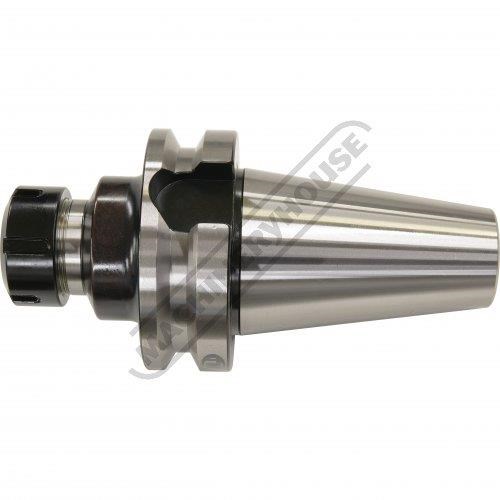

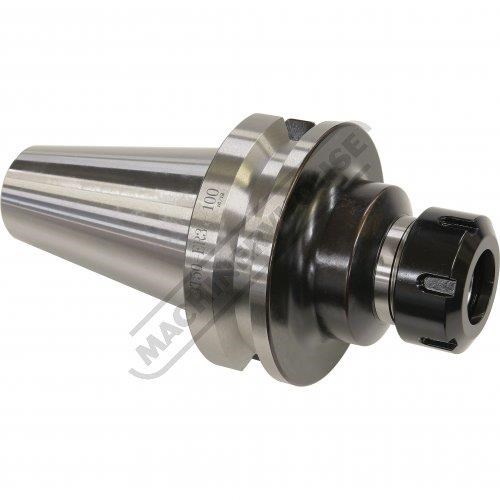

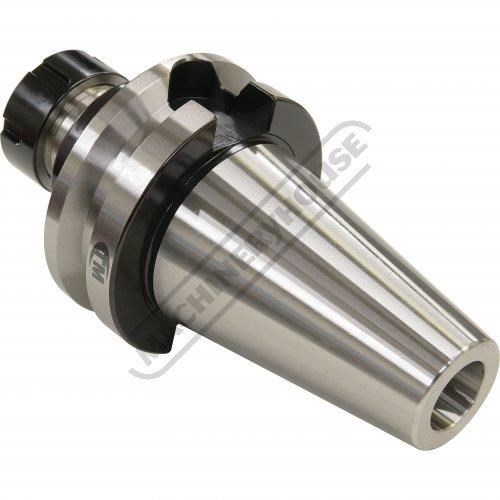

TOOLMASTER BT50 X ER32-100

BT50 x ER32-100 Collet Chuck ??3-??20mm Range 10,000rpm Speed Rating

TOOLMASTER BT50 x ER32-100 Collet Chuck ??3-??20mm Range 10,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T448

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
Manufactured to MAS403BT50 standard
M24 Pull Stud thread
100mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T448
MODEL: BT50 x ER32-100
Speed Rating (rpm): 10,000
Taper (BT): BT50
Capacity (mm): 3 - 20
L (mm): 100
D (mm): 50
Collet Type (ER): ER32
Nett Weight (kg): 5.0


To Purchase Online Please Visit The Machineryhouse Website & Search For 'T448'
