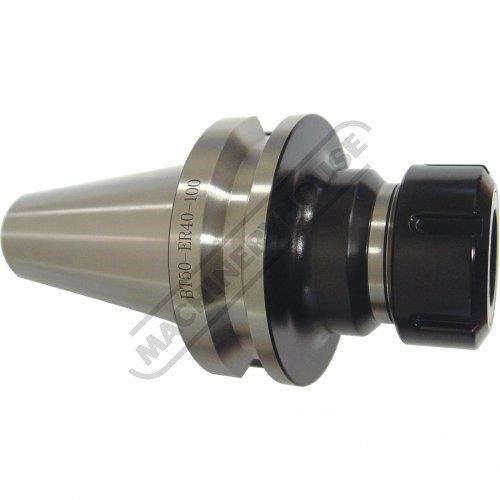

TOOLMASTER BT50 X ER40-100

BT50 x ER40-100 Collet Chuck ??3-??26mm Range 10,000rpm Speed Rating

TOOLMASTER BT50 x ER40-100 Collet Chuck ??3-??26mm Range 10,000rpm Speed Rating
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: T450

All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)

Features:
Precision ground
All ER40 collet chucks are fitted with ball bearing nuts
Manufactured to MAS403 BT50 standard
M24 Pull Stud thread
100mm extension from the gauge line
Locking spanner not included


Specifications:
ORDER CODE: T450
MODEL: BT50 x ER40-100
Speed Rating (rpm): 10,000
Taper (BT): BT50
Capacity (mm): 3 - 26
L (mm): 100
D (mm): 63
Collet Type (ER): ER40
Nett Weight (kg): 5.0
