Flour, sugar, spices, starch, protein powders – the dry ingredients at the heart of today’s food and beverage processing all share a common operational challenge: they generate dust.
Food dust is often viewed as a housekeeping issue, but its impact extends much further. It can contaminate products, cause equipment wear, and negatively affect operators’ respiratory health. Most critically, combustible food dust can create conditions for dust explosions, one of the most serious safety hazards in processing environments.
From the moment a bulk bag is unloaded at receiving to when the ingredient moves through transfer, storage, batching, and final packaging – every stage produces dust. Effective dust management, therefore, requires a system-wide approach.
Stage 1: Where dust begins
Dust generation occurs at ingredient receiving. Material may arrive in a bulk bag, manual bag, drum, container, box or a bulk truck. As the outlet is opened and material begins to flow, displaced air carries fine particles into the surrounding environment creating dust.

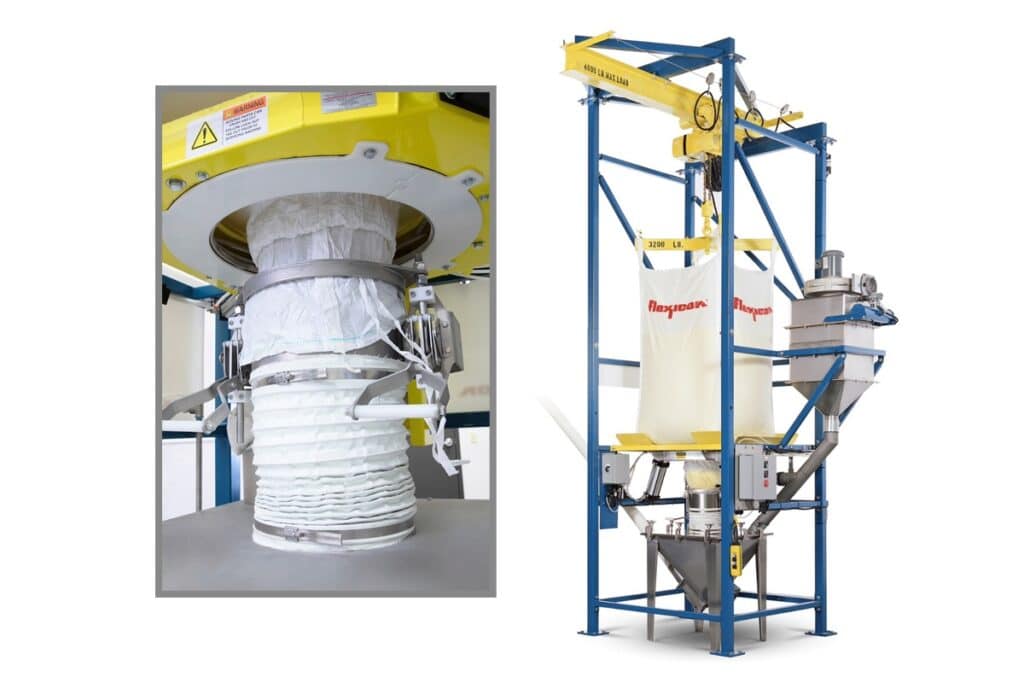

Simple discharger and dumper frames offer little protection. More robust bulk bag discharger systems address this through features such as flow control valves, telescoping tubes, clamp rings, dust collectors, and slide gates, ensuring total dust containment.
Flow control valves clinch bag spouts to prevent dust leakage and enable dust-free retying of partially empty bags. Telescoping tubes maintain constant tension on the bag spout while clamp rings create a tight seal eliminating dust during connection and discharge. Dust collectors collapse empty bags under negative pressure and vacuum residual particles for a dust free disconnection process. Dumpers with features such as dust-tight seals, gasketed connection, controlled discharge via pneumatic or manual slide gates, keep materials contained.
Stage 2: Managing compacted food ingredients
Hygroscopic powders such as sugar and protein isolates tend to absorb moisture from the surrounding air, potentially causing material to clump, cake or compact during storage. Operators often have resort to manual methods such as massaging or striking to break up the material – activities that can generate dust.
Bulk Bag Conditioners eliminate the need for manual intervention using hydraulic rams and variable height turntables that effectively loosen hardened material while the bag remains sealed and suspended.
Stage 3: The gap problem
Dust generation during transfer and conveying occurs primarily at transition points, where material is discharged, picked up, or redirected and gaps are created.
Flexible Screw Conveyors mitigate this risk by fully enclosing material within a sealed tube as product moves through a rotating internal screw. The screw’s gentle rolling action not only ensures smooth, optimized control, but also preserves ingredient integrity.
Pneumatic conveying systems transport materials through fully enclosed pipelines using a controlled air stream. Filter receivers within such conveying systems prevent product loss and dust escape at the most sensitive point i.e., where air and food material are separated.
Tubular Cable Conveyors provide another enclosed option, moving material through a sealed tube using a disc-and-cable assembly. Their low-velocity operation reduces material degradation and helps limit dust generation.
Stage 4: The displacement challenge
When powder is loaded into a hopper or mixer, the air already occupying that vessel escapes and carrier particles with it. The preferred approach is to ensure ingredients are transferred directly into weigh hoppers under sealed conditions and displaced air is routed through dust collection systems. Automated systems with controlled venting contain dust but also improve dosing accuracy and batch consistency.
Where minor ingredients are still loaded manually through bag dump stations, enclosed dump enclosures provide a middle ground between manual dumping and fully automated systems.
Stage 5: The final dust event
Packaging operations are typically the final and most visible dust generation point in ingredient handling. Filling nozzles and sealing interfaces all create brief but repeat opportunities for particle escape. Effective dust mitigation strategies at this stage include source capture at filling points, enclosed filling interfaces, controlled venting of displaced air, and reduced drop distances to limit dust formation during final packaging.
